Electric Submersible Pumps
DRAGA (DG blue), with vortex impeller and large free passage for pumping wastewaters with heavy soil, for use with blueBOX lifting stations.
General Specifications:
• Power supply : 220/240 V ~1
• Frequency : 50 Hz
• Power : 0.3 ÷ 0.74 kW
• Poles : 2

Applications:
• Used with soiled biological wastewaters and sewage.
• Suitable and reliable for domestic use and residential applications.

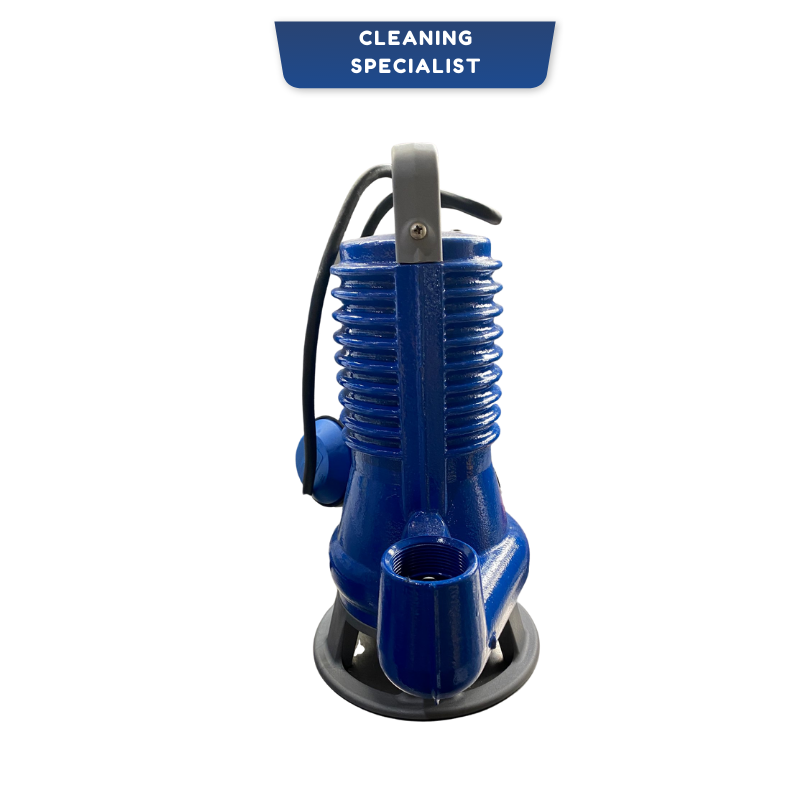

DG - BLUE 75 (Without Float)
DG BLUE 75/2/G40V A1BM/50 05/SH
Rated Power : 0.55kW
Max. Head : 10.1m
Max. Flow Rate : 360 l/m
Max. Free Passage : 40mm
Port Size : G 1½"
