What's in the box:

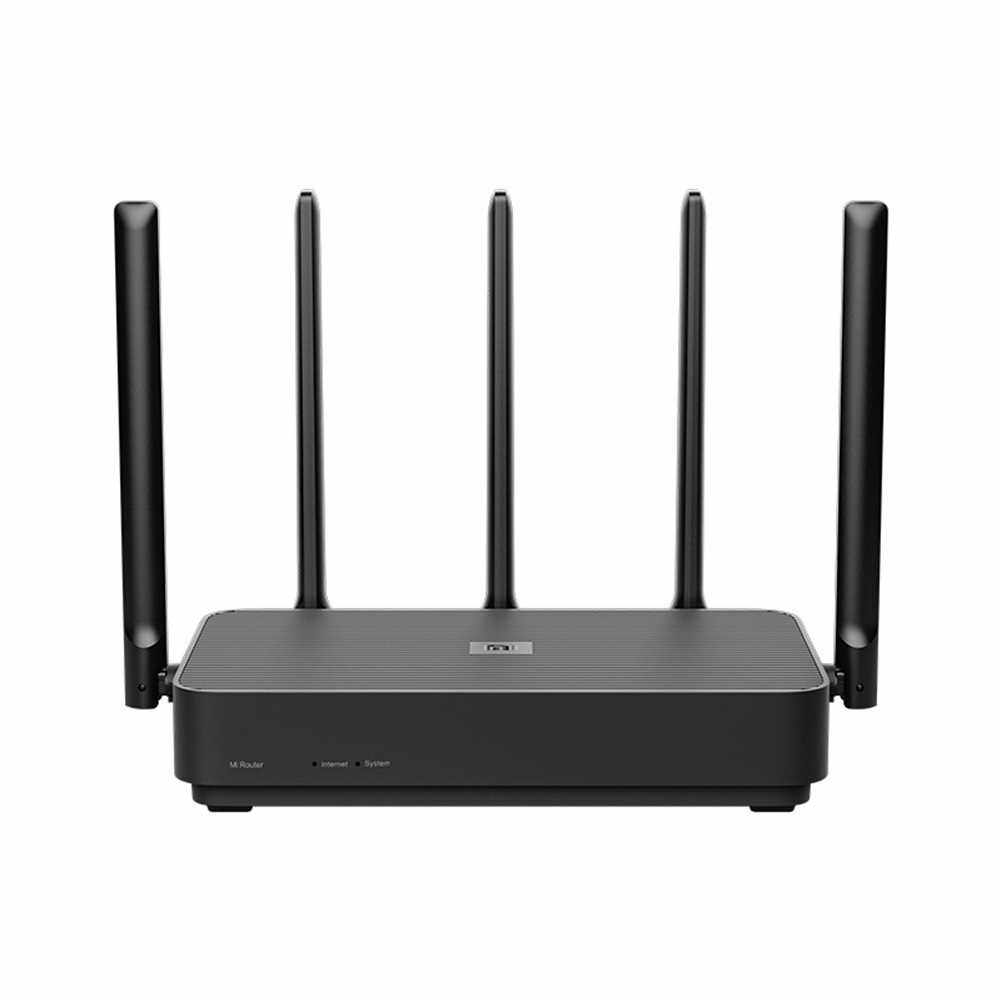

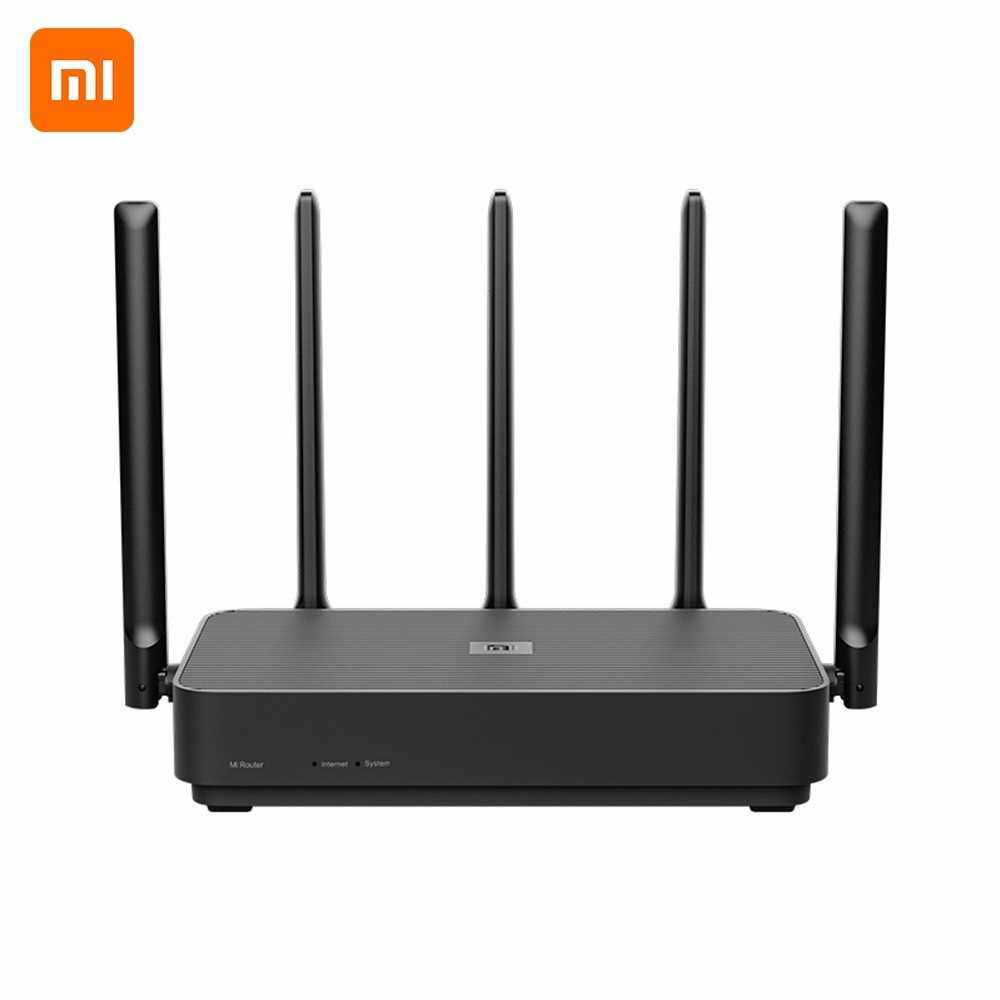

Xiaomi Mi Router4 Pro Gigabit 2.4GHz 5GHz WiFi 1317Mbps Qualcomm Chipset WiFi Repeater 128MB DDR3 High Gain 5 Antennas Network Extender APP Control (Us Plug)

Xiaomi Mi Router4 Pro Gigabit 2.4GHz 5GHz WiFi 1317Mbps Qualcomm Chipset WiFi Repeater 128MB DDR3 High Gain 5 Antennas Network Extender APP Control

Features:

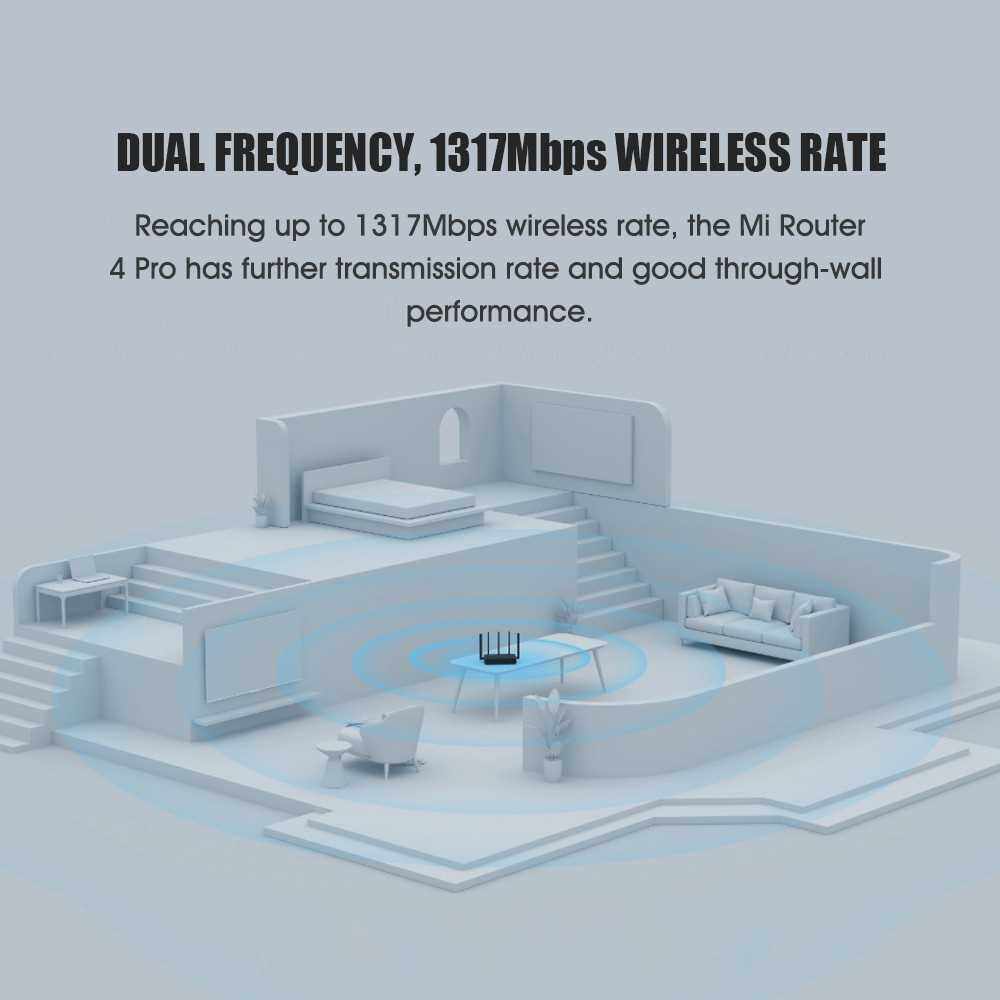

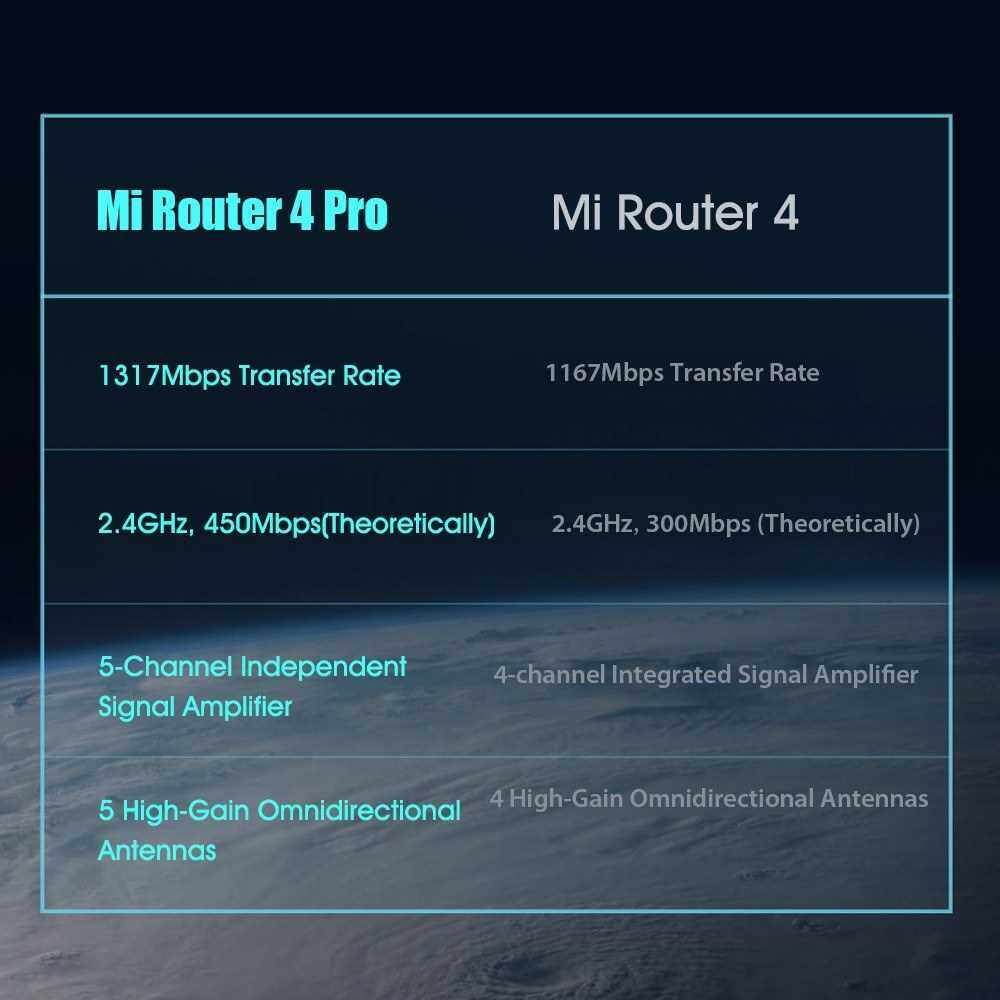

Max. 1317Mbps Wireless Rate:
Reaching up to 1317Mbps wireless rate, the Mi Router 4 Pro has further transmission rate and good through-wall performance.
Qualcomm Processor:
Comes with Qualcomm processor, the Mi Router 4 operate smoothly in comprehensive performance.

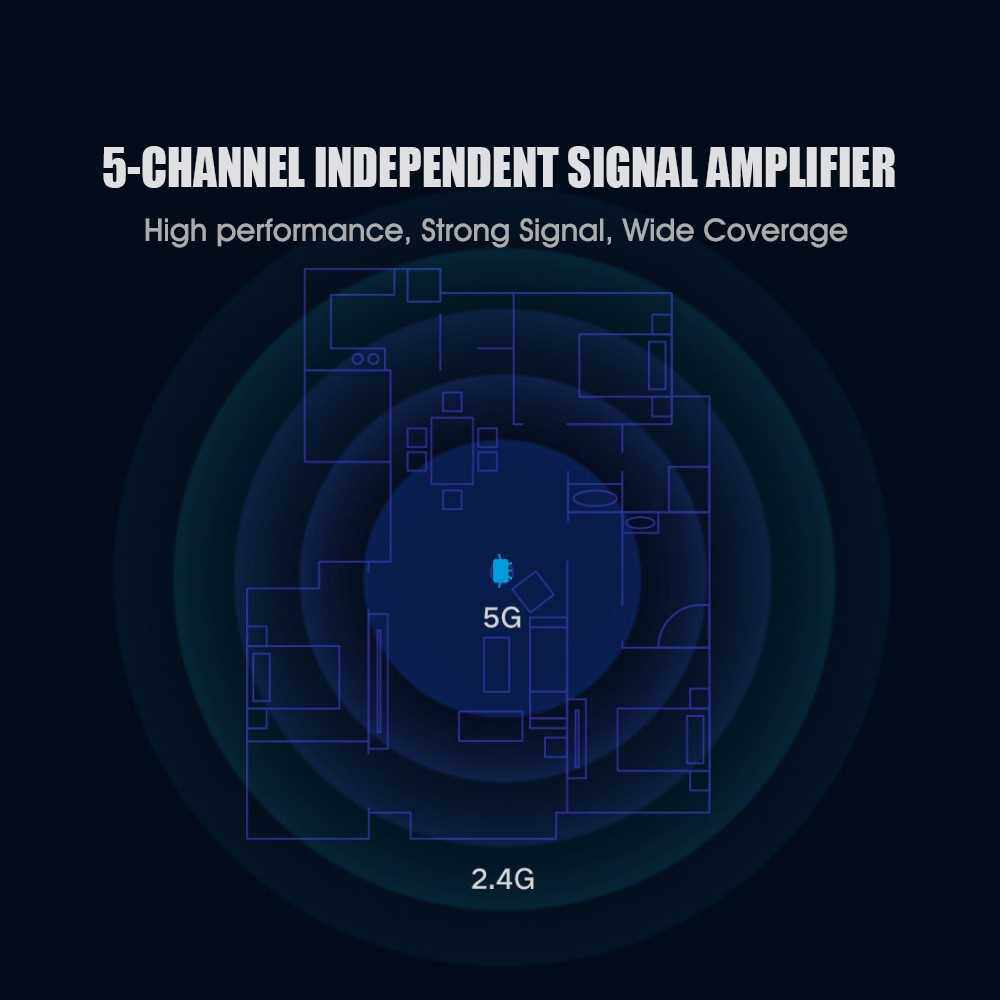

5 Channel Independent Signal Amplifier:
2.4GHz+5GHz frequency comes with high-performance signal amplifier(PA+LNA) to make further distance, stronger through-wall function and wider coverage.

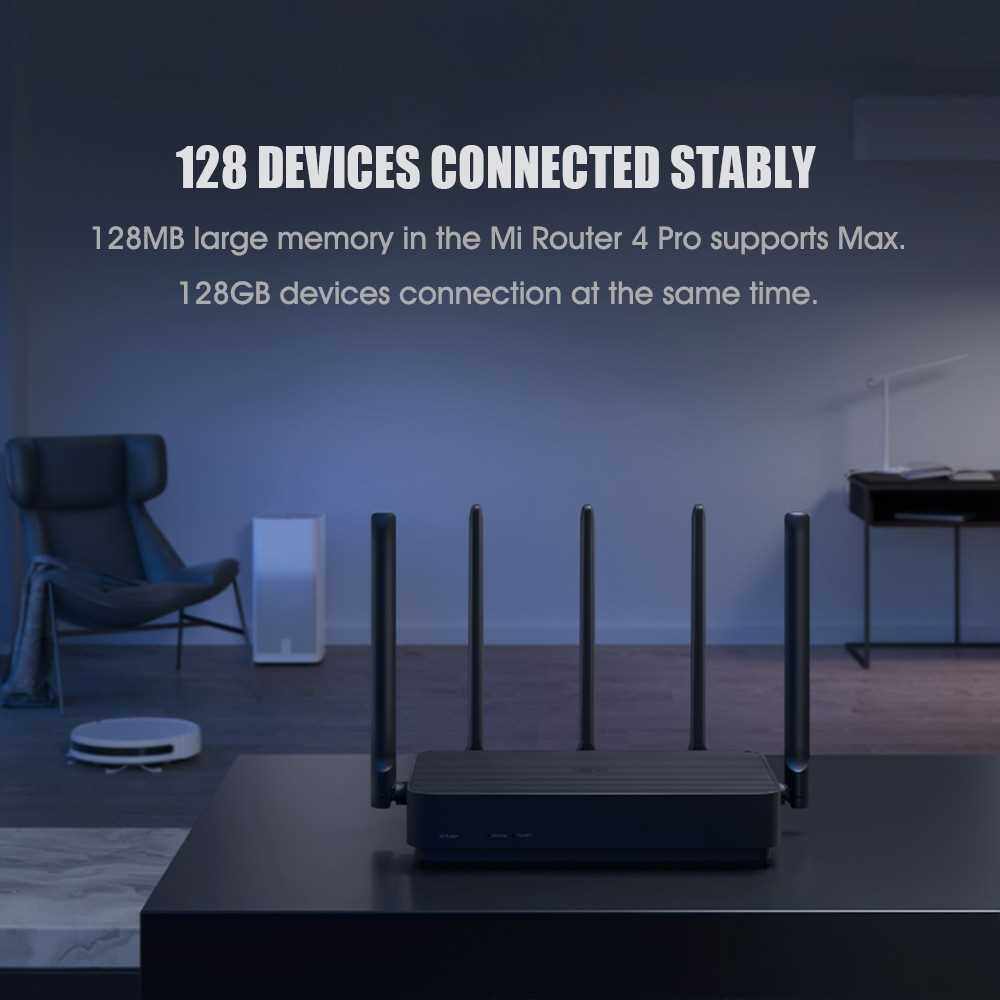

128MB Large Memory:
128MB large memory in the Mi Router 4 Pro supports stable connection with Max.128GB devices simultaneously.

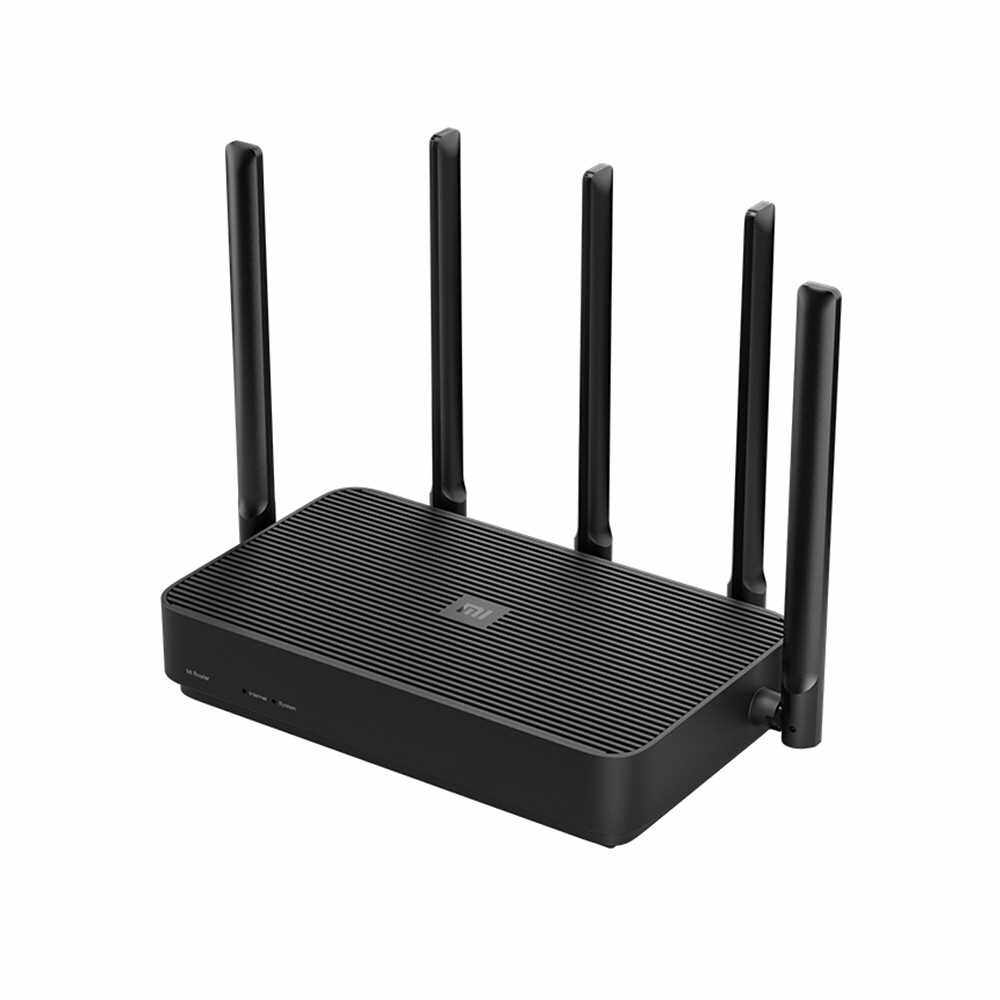

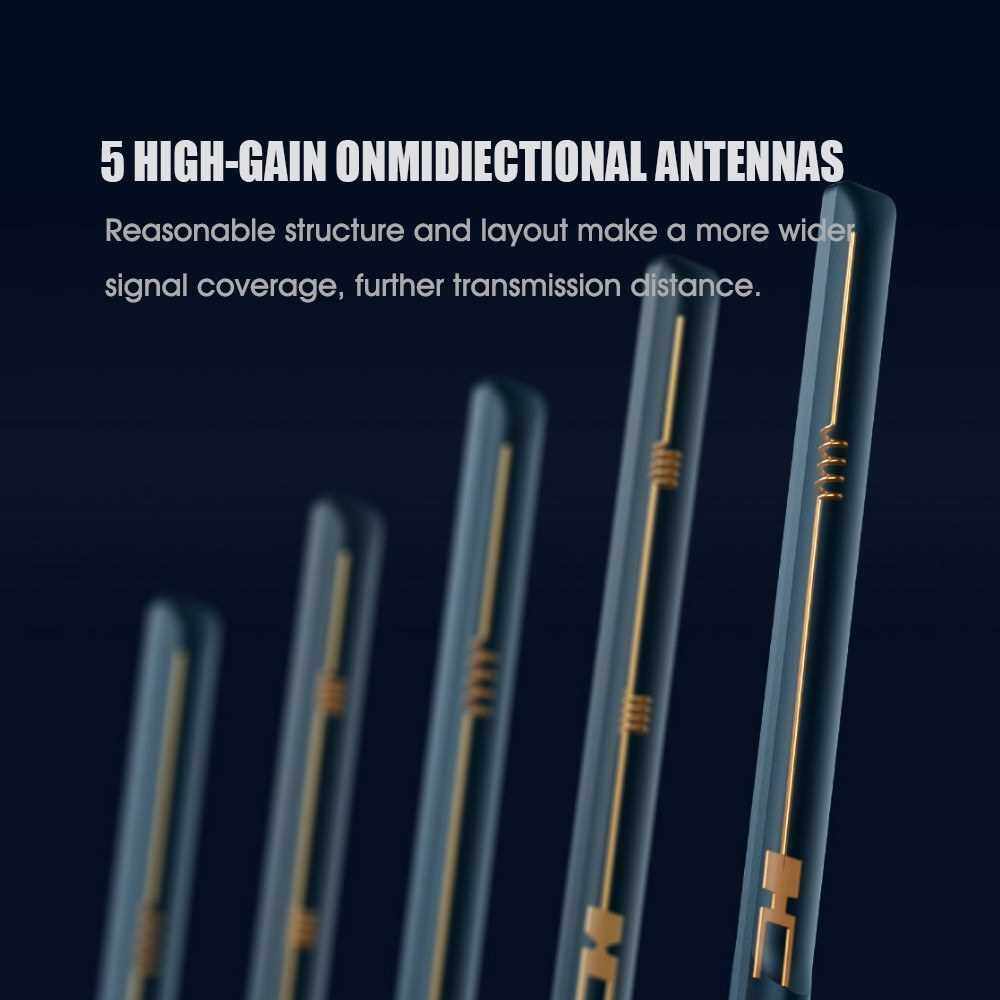

5 High-Gain Omnidirectional Antennas:
Equipped with 5 antennas on the outer, its reasonable structure and layout make a more wider signal coverage and further transmission distance.

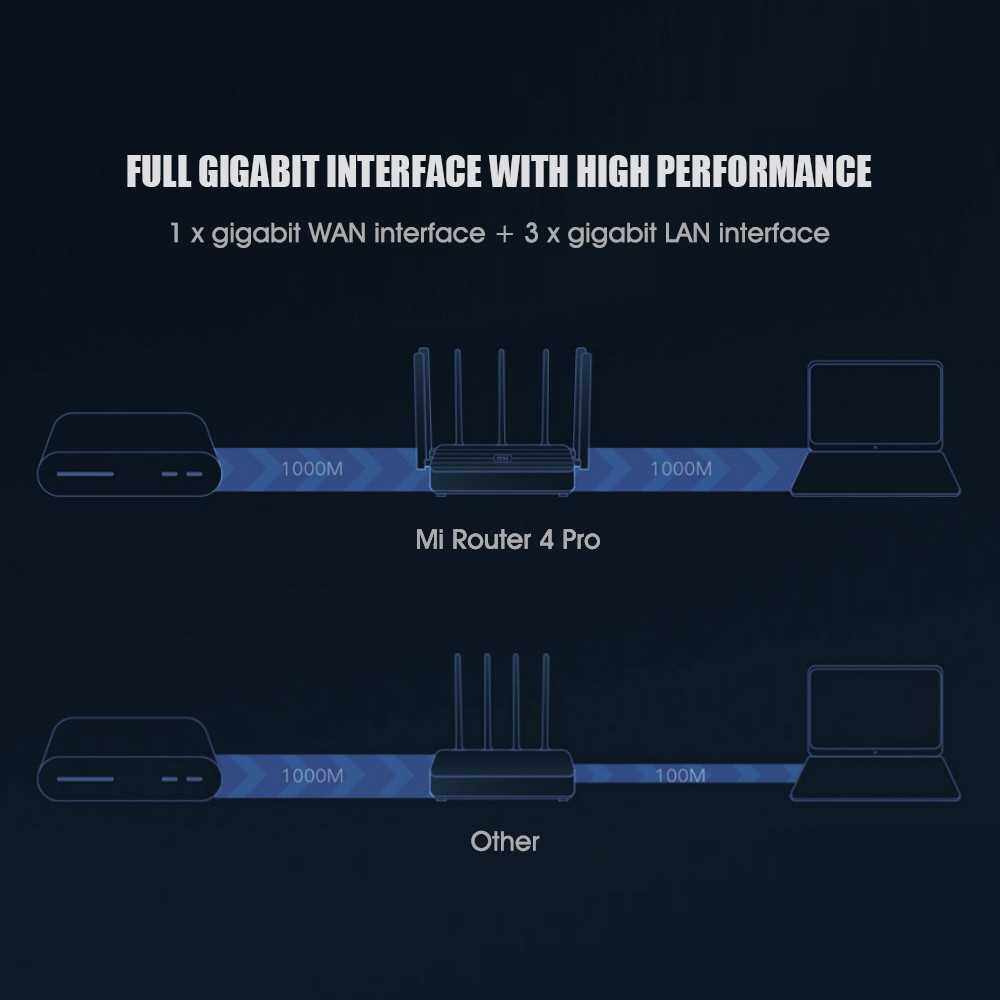

Full Gigabit Network Port:
1 x gigabit WAN interface + 3 x gigabit LAN interface, absolutely meets network needs.

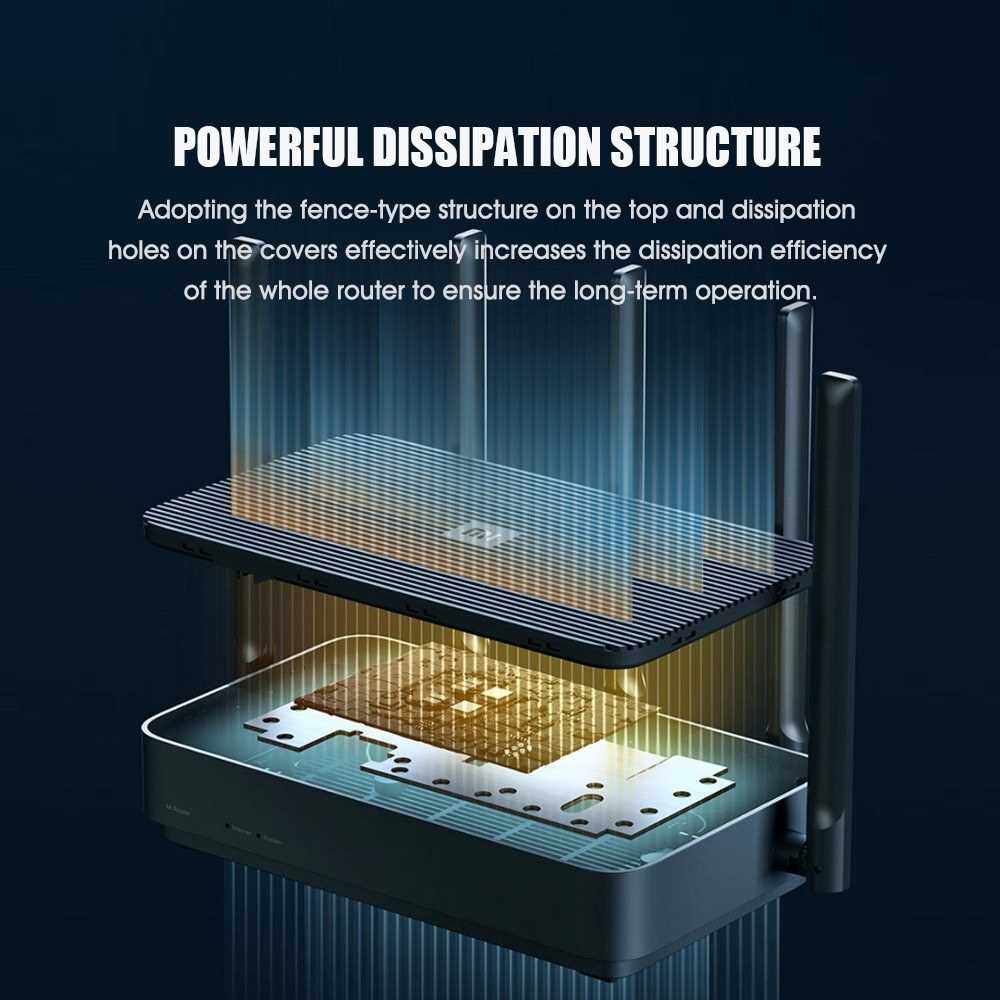

Powerful Dissipation Structure:
Adopting the fence-type structure on the top and dissipation holes on the covers effectively increases the dissipation efficiency of the whole router to ensure the long-term operation.

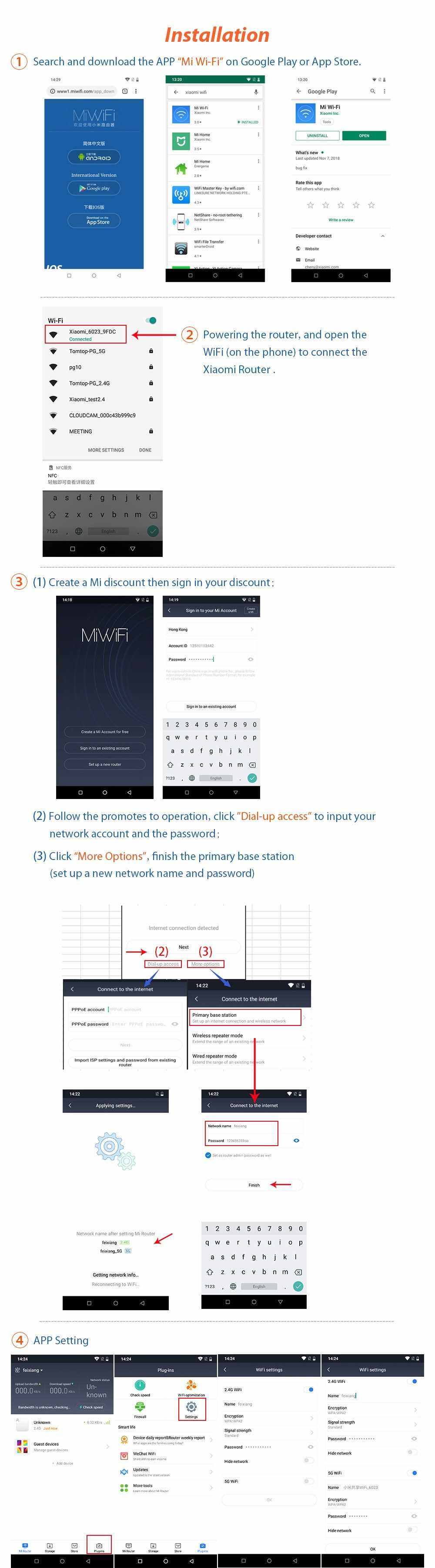

How to use:
1. Search and download the APP Mi Wi-Fi on Google Play or App Store.
2. Powering the router, and open the WiFi (on the phone) to connect the Router.
3. 1)Create a Mi account then sign in your account;
2)Follow the promotes to operation, click Dial-up access " to input your network account and the password;
3)Click More Options, finish the primary base station (set up a new network name and password).
4. Open the APP, complete your WiFi setting.

The APP supports Chinese and English ONLY, and the Xiaomi Mi WiFi Router4 Pro is Chinese version.

Specifications:
Brand: Xiaomi
Model: Mi Router4 Pro
Color: Black
Material: ABS + PC

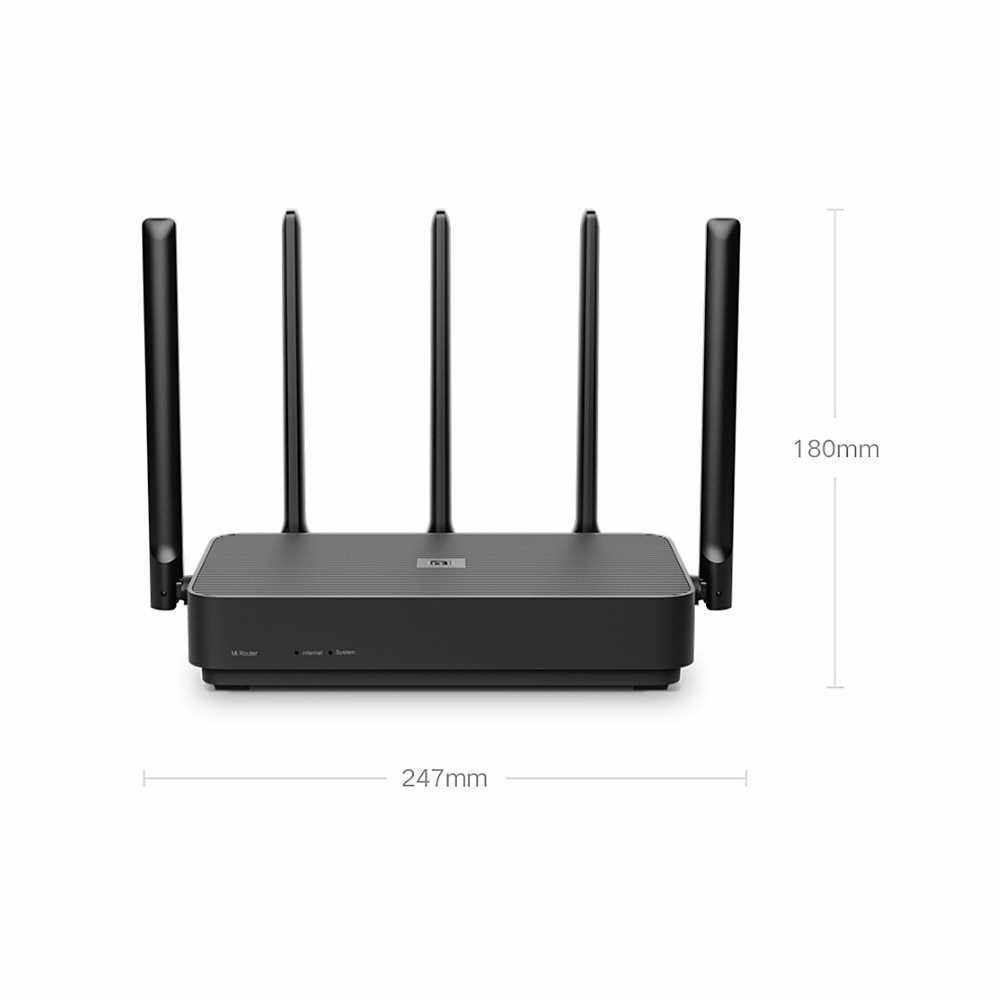

Item size: Approx. 24.7 * 18* 14.1 cm / 9.72*7.09*5.56in
Package size: Approx. 31 * 21 * 5cm /12.20* 8.27* 1.97in
Total weight: Approx. 560g / 19.75oz

Hardware Configuration
Processor: QCA9563
Memory: 128MB
2.4G WiFi: 3*3(Support IEEE802.11n, Max 450Mbps)
5.0G WiFi: 2*2(Support IEEE802.11ac, Max 867Mbps)
Antenna: Eternal All-direction 5 antennas
Cooling system: Natural

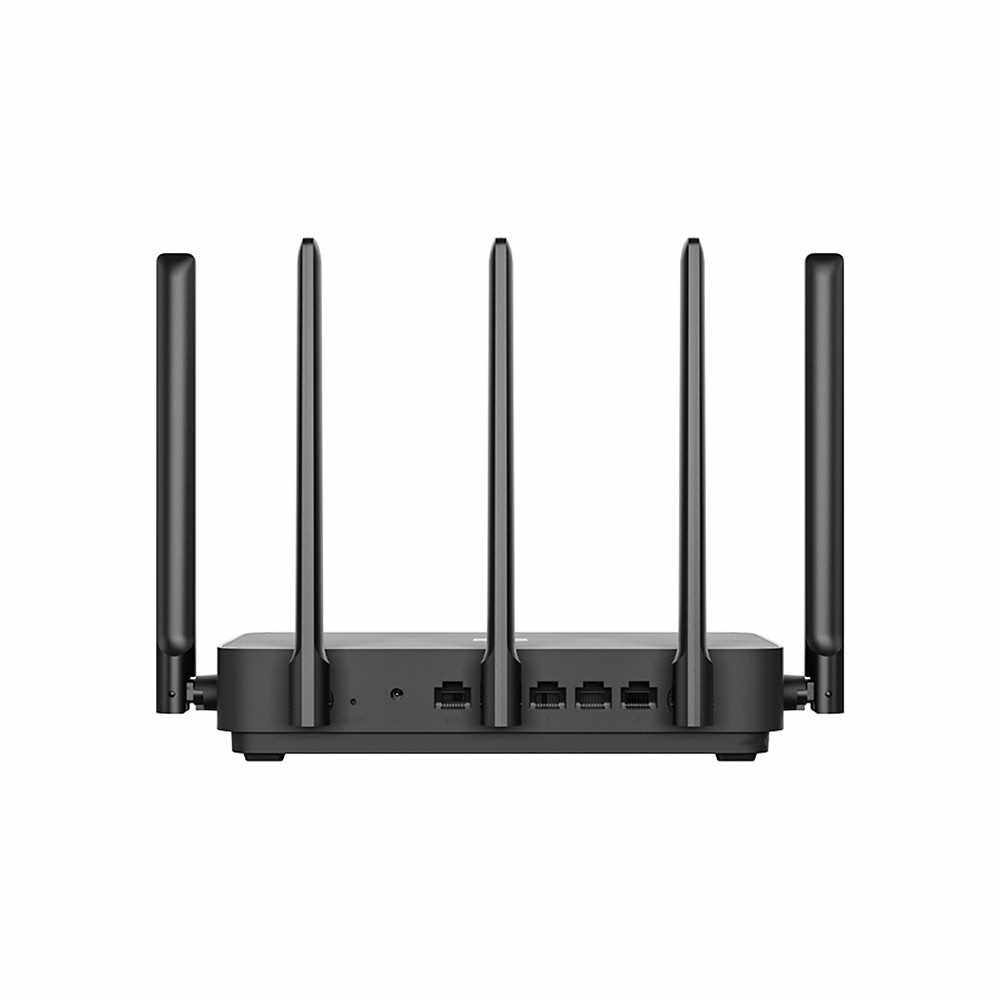

Interface
LAN Ports: 3 x 10/100/1000M Auto MDI/MDIX
WAN Ports: 1 x 10/100/1000M Auto MDI/MDIX
2 * LED indicator
1 * Reset Button
1 * Power input

Wireless Parameters
Dual Bands: 2.4GHz, 5.0GHz
Wireless Channel:
2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel: 36,40,44,48,149,153,157,161,165
Modulation: 11b: DSSS: DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
11a/g: OFDM: BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),64QAM(48/54Mbps)
11n: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM
11ac: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM, 256QAM
Wireless Security: WPA-PSK / WPA2-PSK encryption, wireless access control (black list), SSID hiding, intelligent anti-rub network

Software Configuration
OS: The depth of customization based on OpenWRT intelligent router operating system MiWiFi ROM
APP Language: Chinese, English
Support: Web, Android, iOS

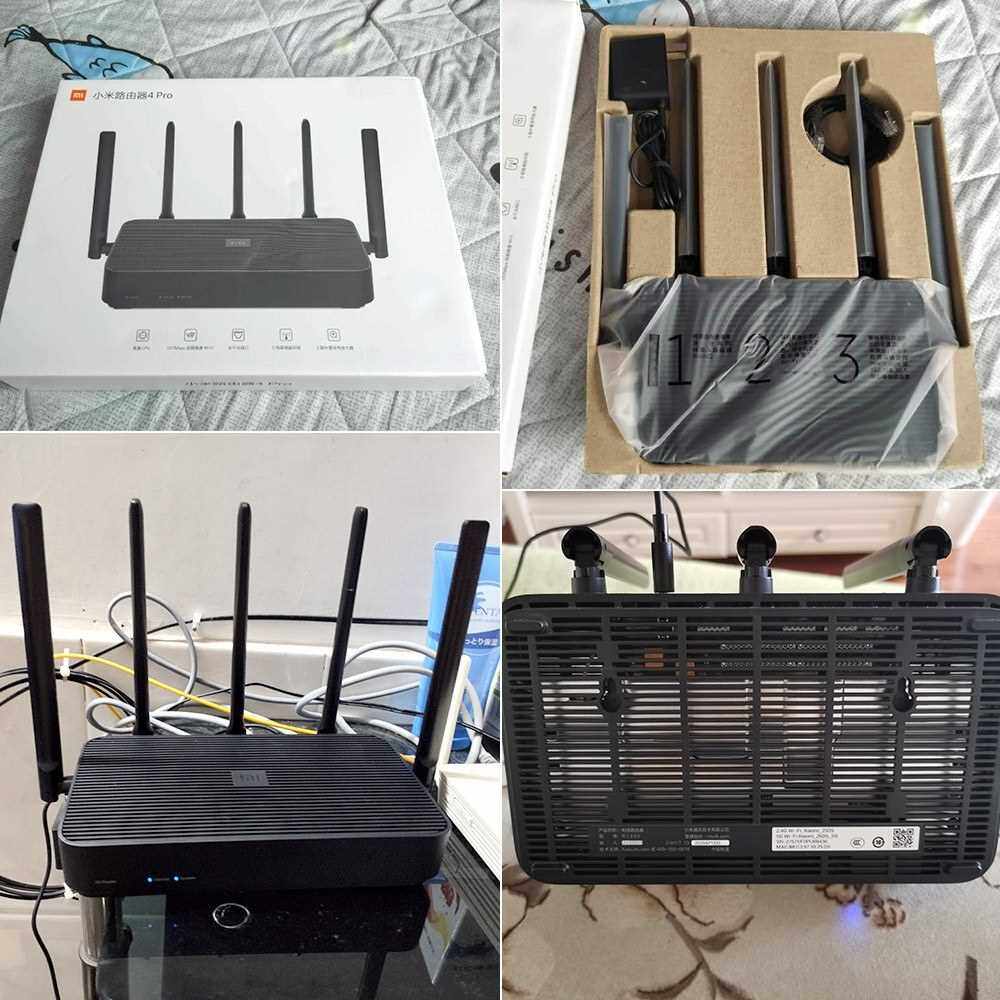

Package List:
1 * Main Machine
1 * Power Cord
1 * Manual (Chinese)
