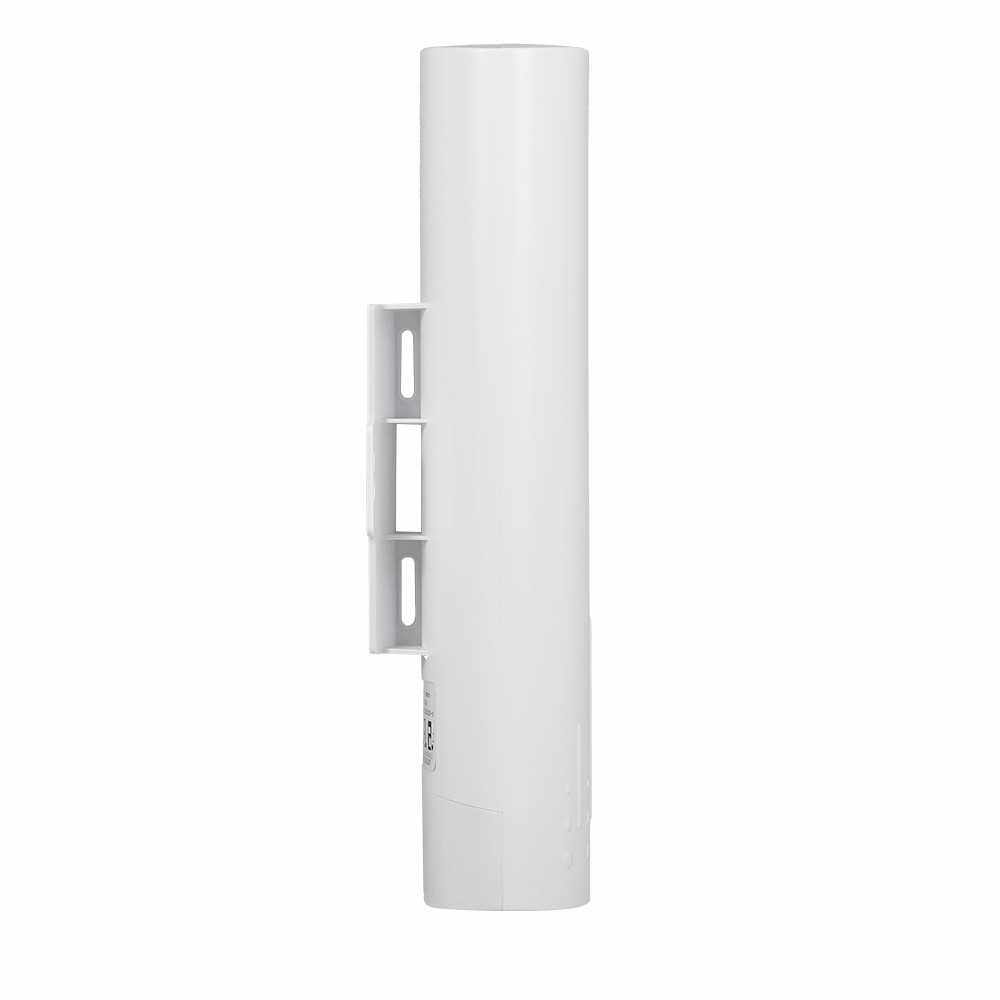

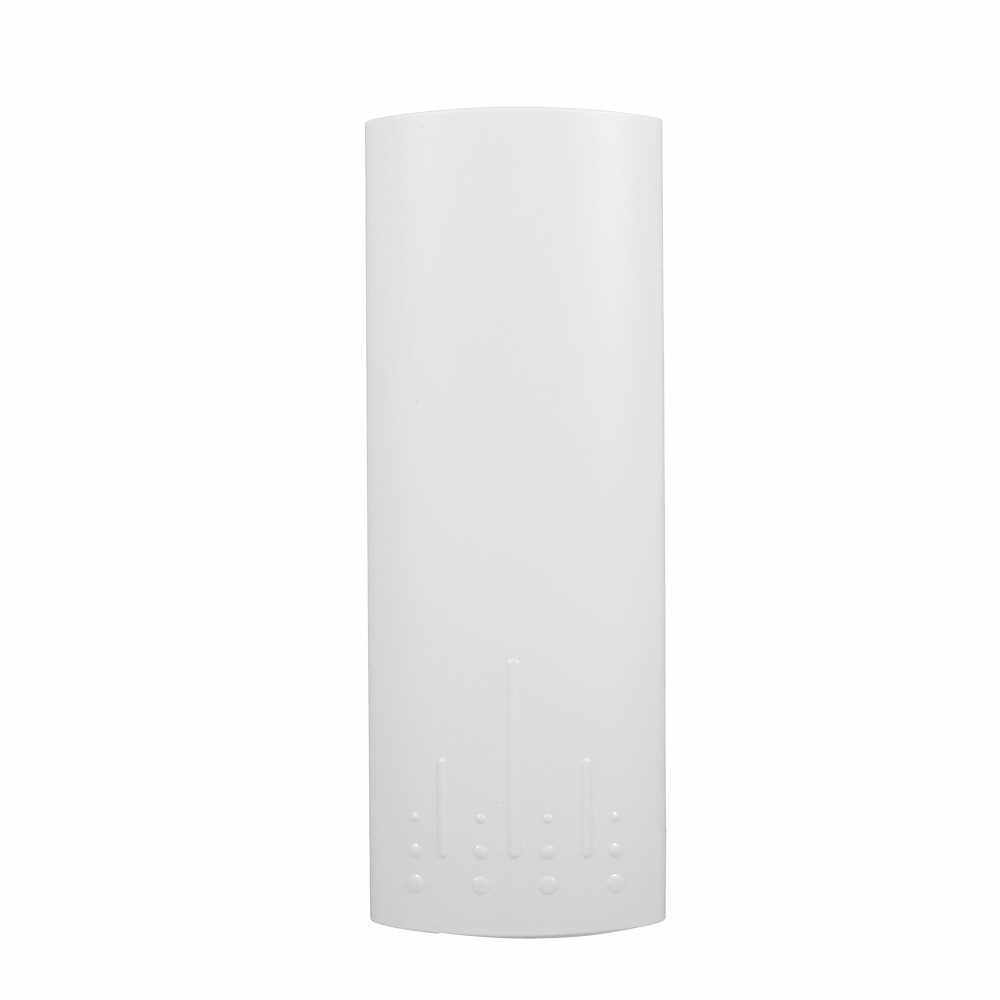

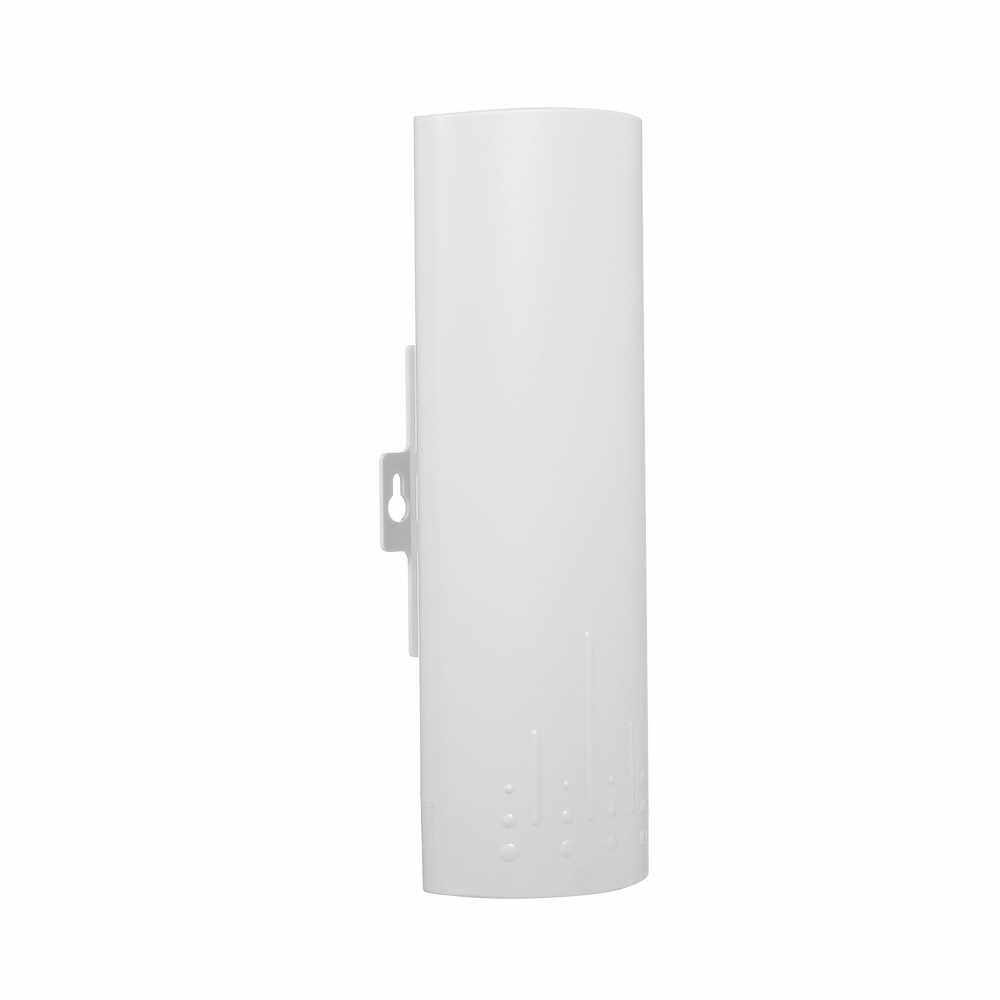

Product Information

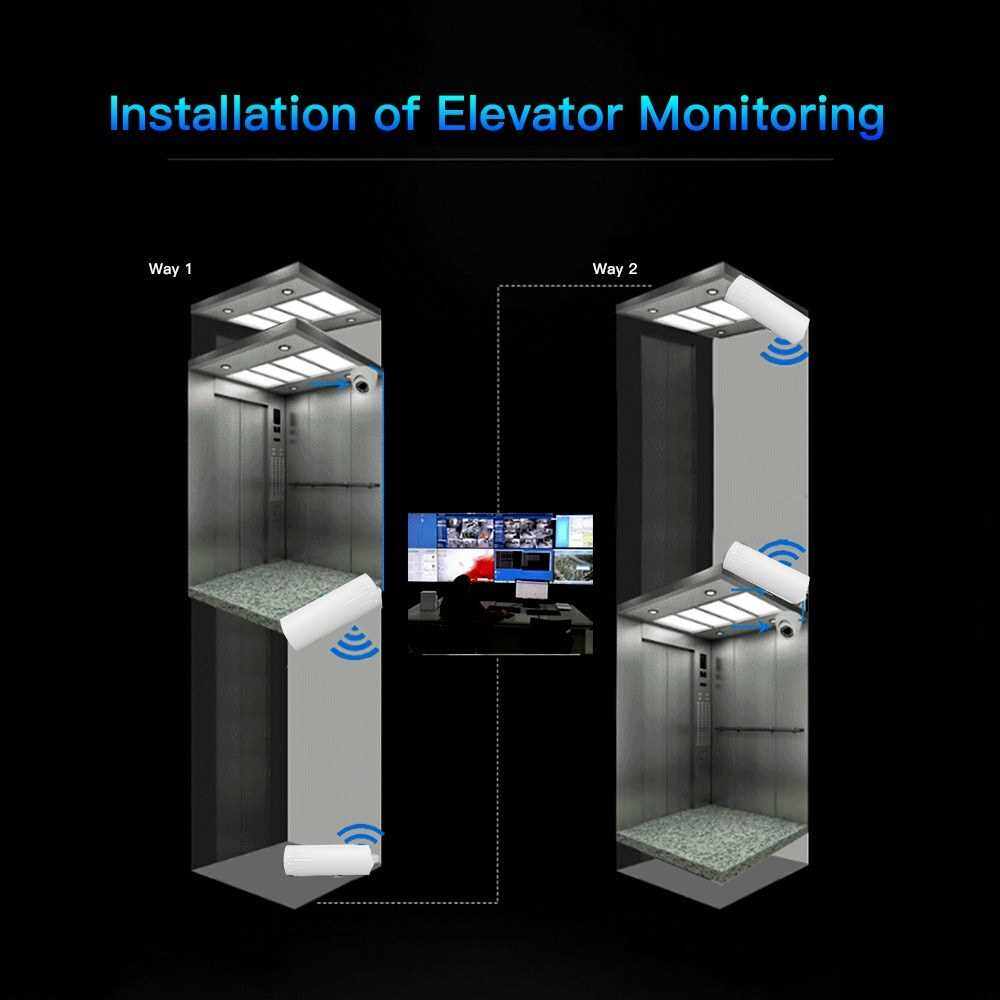

CPE355 is an high power industrial 5G outdoor CPE with the next generation 802.11a/n Wi-Fi standard, combined 300Mbps high speed in 5G, equipped 2 10/100M LAN ports, 2 times Ethernet data rate faster than normal CPE, it make more than 50 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks. It is using air as a medium for network data transmission to remote point-to-point or point to multi-point connectivity. It supports 3KM transmission distance with two-way traffic flow up to 140M.
CPE355 has smart web management, it can be pairing automatically.
Features:
Comply with IEEE 802.11a/n, 5G,300Mbps Data Rate

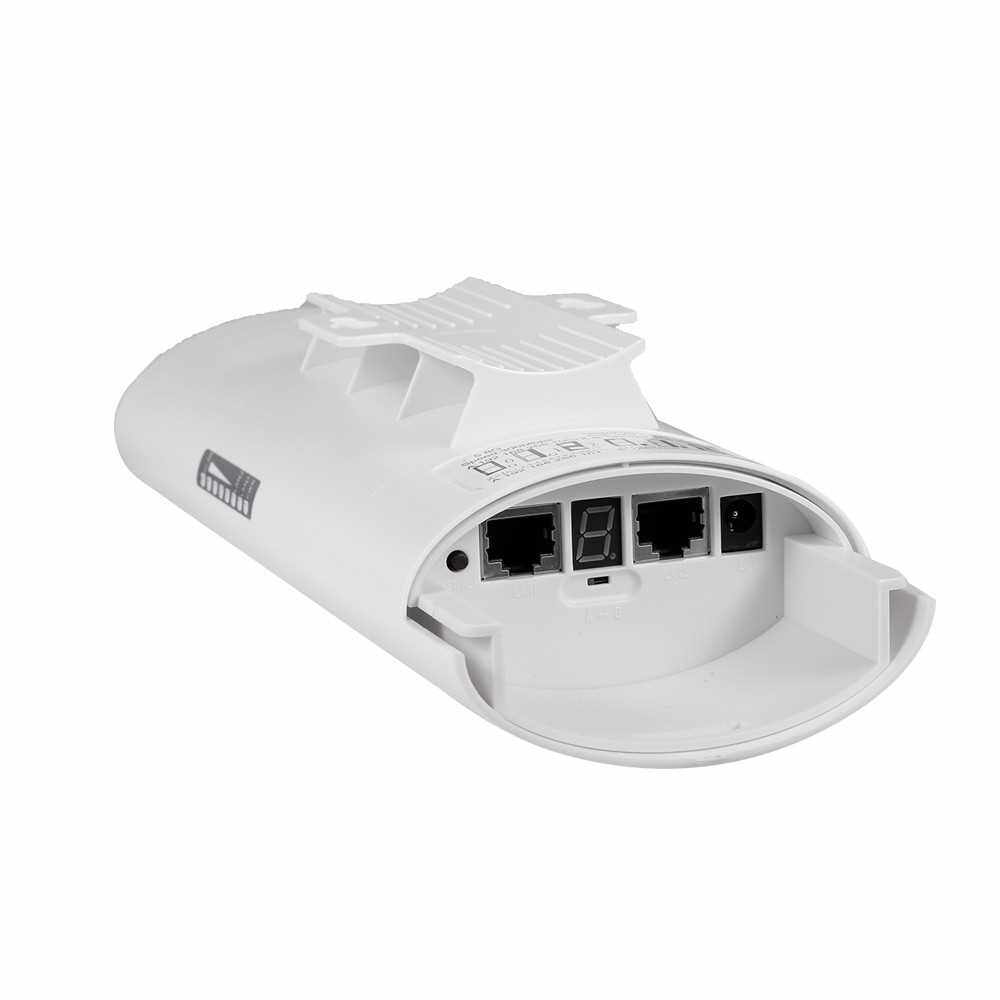

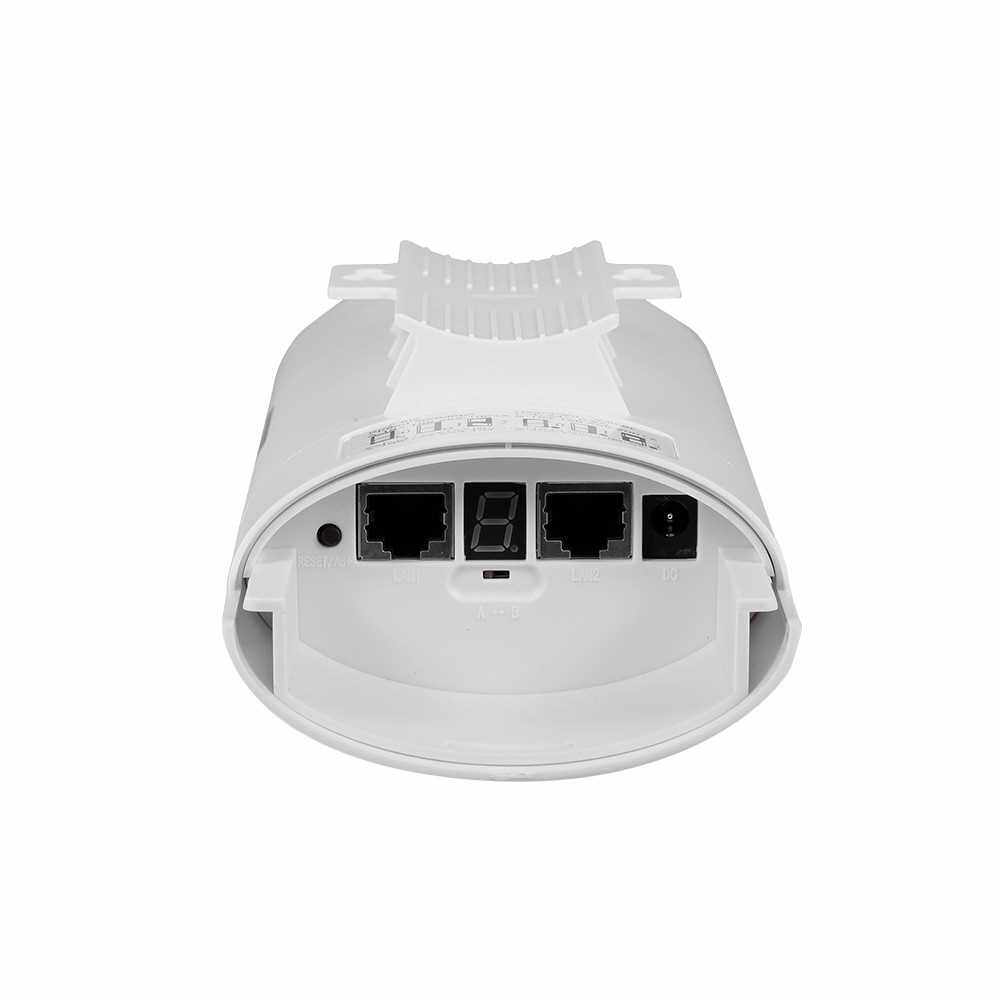

2 x 10/ 100M LAN Port
500mW high power, build in 14dBi MIMO panel antenna, stronger signal strength, more wireless coverage
Support passive PoE
With function of build in firewall, IP filter, URL filter and MAC filter
Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
Specification:
| Chipset | AR9344 | |||
| DRAM | DDR2 64MB | |||
| FLASH | 8MB | |||
| Interface | 10/100Mbps LAN*2 | |||
| Data Rate | 11a:54M,48M,36M,24M,18M,12M,9M,6Mbps | |||
| 11n:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M, 28.9M,43.3M,57.8M,86.7M,115.6M,130M,144.4Mbps 433Mbps | ||||
| Transmission Mode | DSSS | |||
| Modulation Mode | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK | |||
| Wireless Standard | IEEE802.11a, IEEE802.11n ,IEEE802.3u | |||
| Protocal | CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5 | |||
| Frequency | 49006100MHz | |||
| Power Consumption | 3W | |||
| Power | POE 24V 1A (Default) POE 48V 0.5A (Optional) | |||
| RF @252dB | 802.11a | 6-24Mbps | 192dBm | |
| 36-48Mbps | 192dBm | |||
| 54Mbps | 192dBm | |||
| 802.11n | HT20 | MCS 0-3 | 172dBm | |
| MCS 4 | 172dBm | |||
| MCS 5 | 172dBm | |||
| MCS 6 | 172dBm | |||
| MCS 7 | 172dBm | |||
| HT40 | MCS 0-3 | 162dBm | ||
| MCS 4 | 162dBm | |||
| MCS 5 | 162dBm | |||
| MCS 6 | 162dBm | |||
| MCS 7 | 162dBm | |||
| Sensitivity | 802.11a | 6Mbps -89 54Mbps -68 | ||
| 802.11n | HT20 | MCS 0 -86; MCS 7 -68 | ||
| HT40 | MCS 0 -83; MCS 7 -65 | |||
| Antenna | Frequency | 51805825MHz | ||
| Polarization direction | Vertical | |||
| DB | 14 dBi | |||
| Management | WEB management | Support | ||
| Telnet | Support | |||
| Serial | Support | |||
| Security | MAC control | Support | ||
| Encryption | WEP Encryption 64/128bits,WPA,WPA2,802.1x | |||
| Work / Storage Environment | Working | -3065 | ||
| Storage | -5080 | |||
| Moisture (non concentrated) | 95%non-condensing | |||
| Size | 310*95*75mm | |||
| Weight | 0.45kg | |||

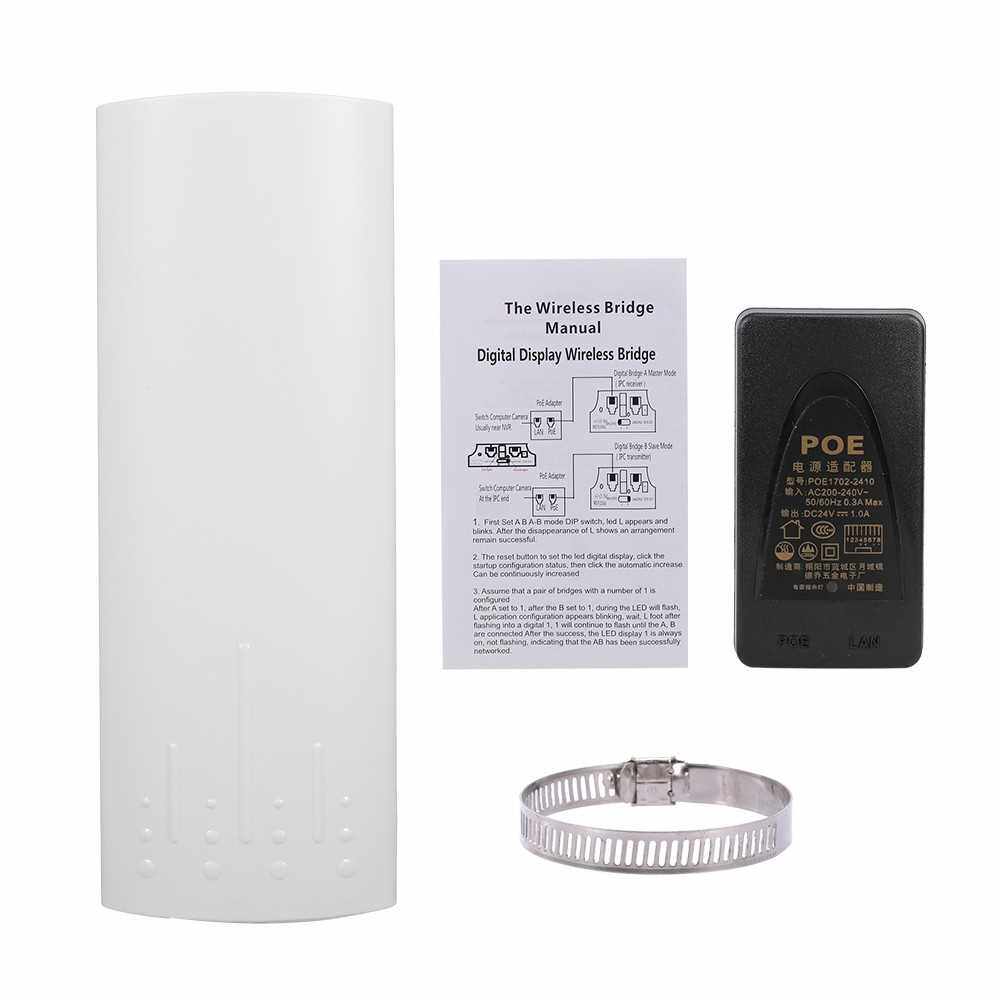

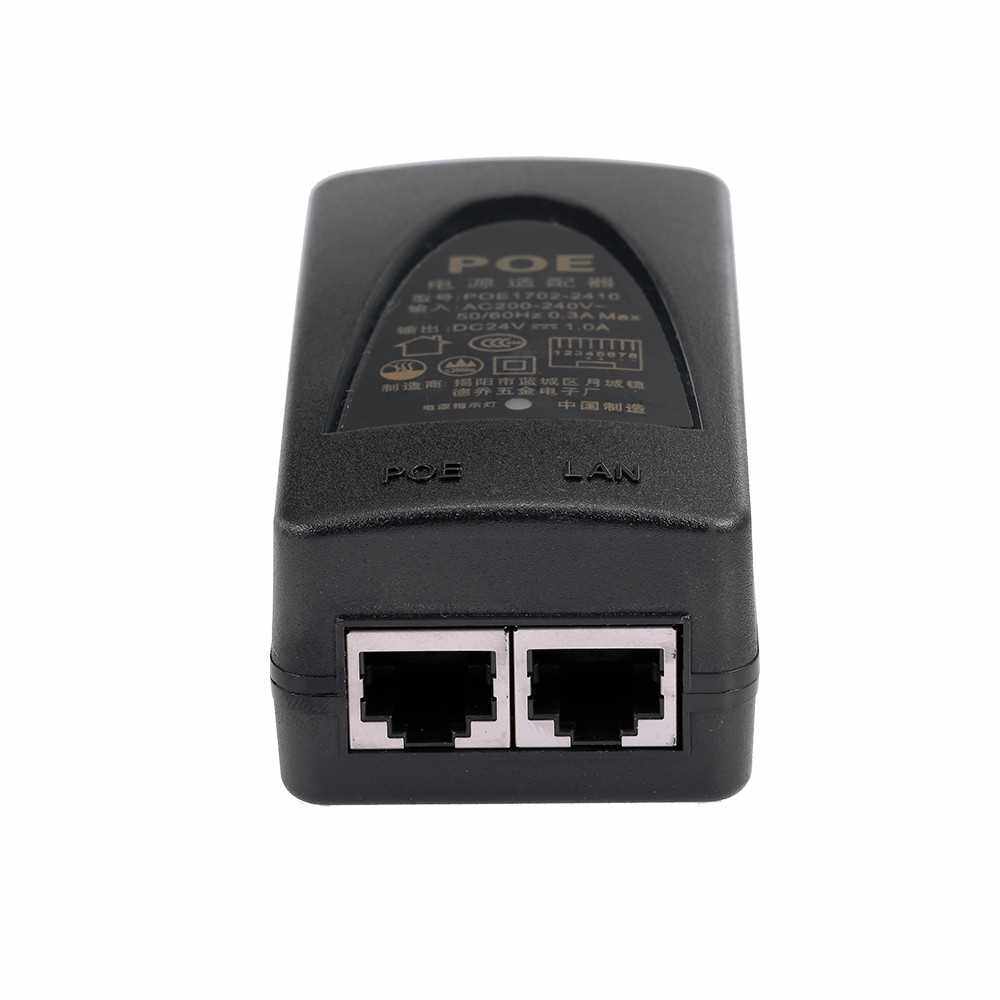

| Packing List | 1* Outdoor CPE 1* 24V POE Power 1* Hose Clamp 1* Instructions | |||
