Always find the other practical wire crimpers tool come with many kinds of jaw molds? You can try these Wire Crimper Jaws. They feature convenience, efficiency and harmlessness to the cable cores. It is easy to use with the function of pressureadjustment.

Features:
Used for crimping plier to press tight the wire and terminal blocks.
5 interchangeable terminals with different crimping ranges for your options.
High durability, long service life, easy to use, high precision.
Durable, wear resistant and energy saving.
Applicable to most of non-insulated crimp terminals and connectors.
Easy and quick to change the jaw molds with a hex key.

Specifications:
Material: Alloy Steel
Color: Silver (JX-1601-06 / JX-1601-08 / JX-1601-2546 / JX-1601-10) / Black(JX-1601-01)
Model: JX-1601-01 / JX-1601-06 / JX-1601-08 / JX-1601-2546 / JX-1601-10 (Optional)

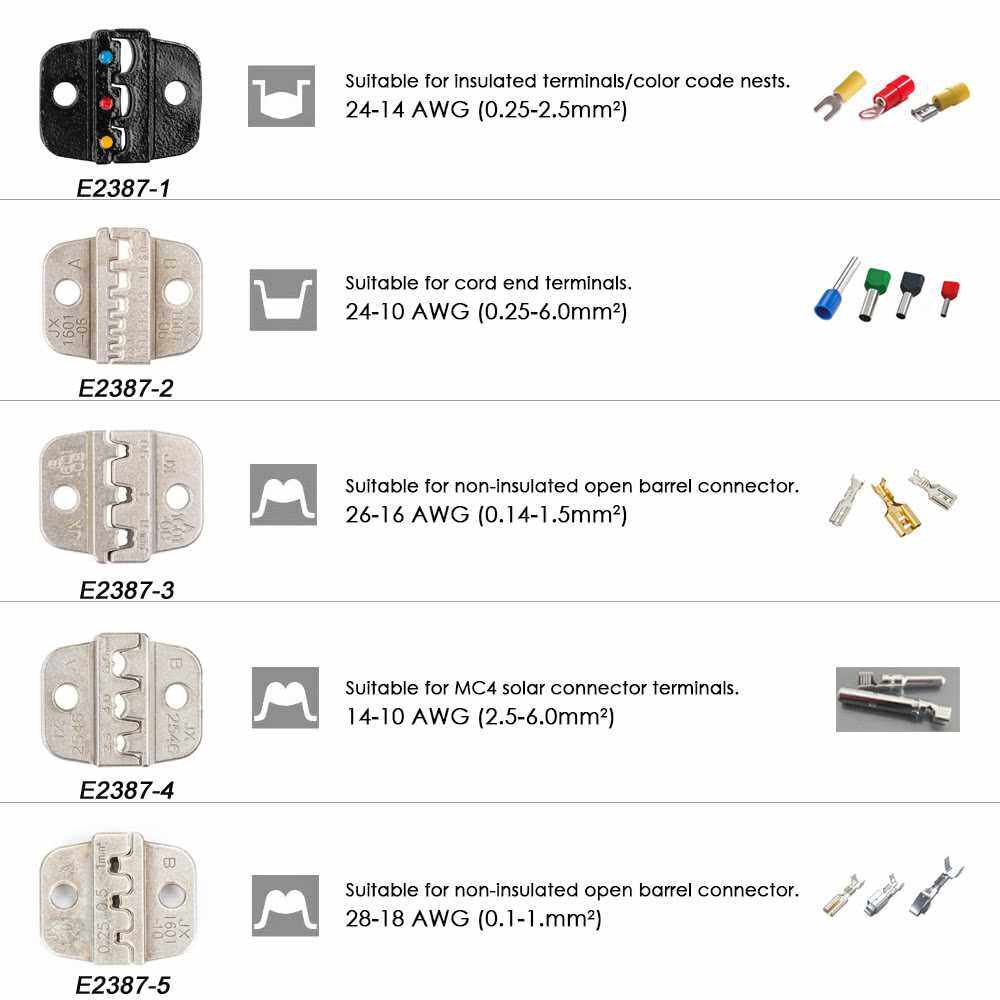

Suitable Terminals & Crimping Range of Wire Crimper:

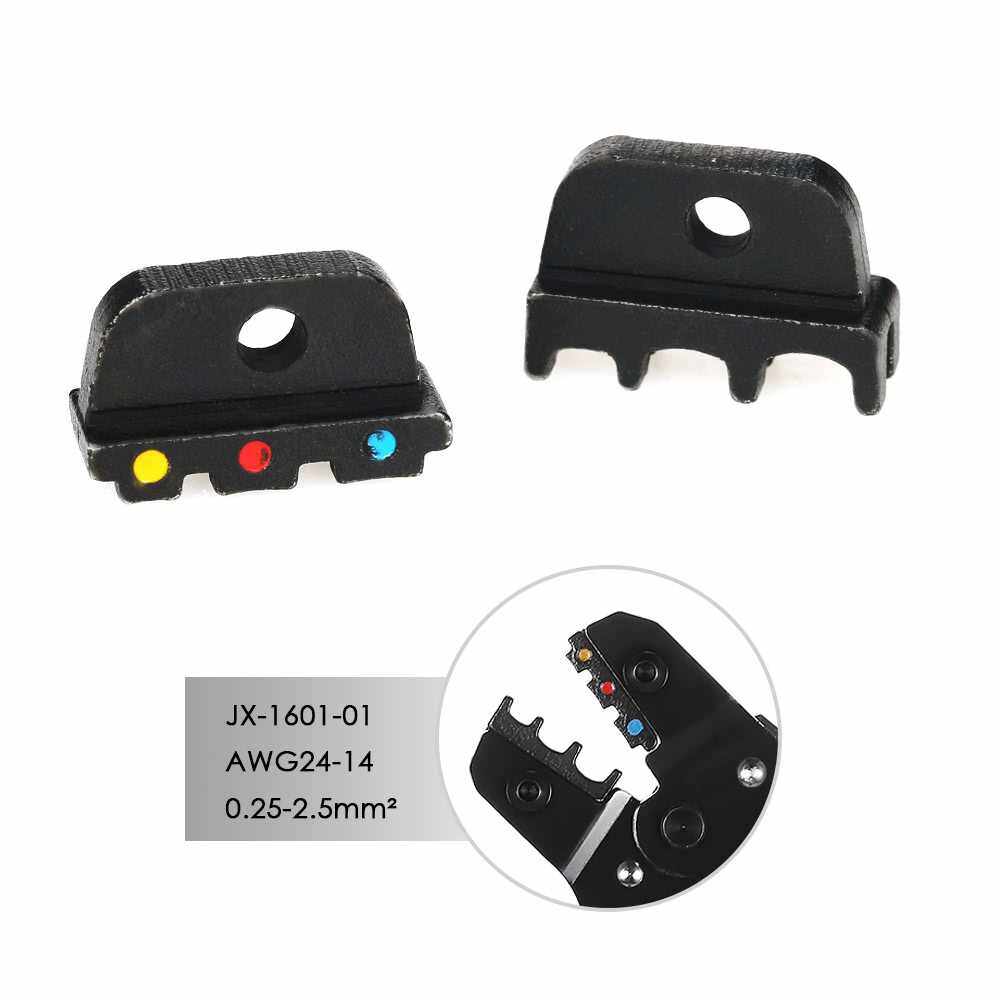

1. JX-1601-01: Color Code Nests + Insulated Terminals 24-14 AWG (0.25-2.5mm2;)
2. JX-1601-06: Cord End Terminals 24-10 AWG (0.25-6.0mm2;)
3. JX-1601-08: Non-insulated Open Barrel Connector 26-16 AWG (0.14-1.5mm2;)
4. JX-1601-2546: MC4 Solar Connector Terminals 14-10 AWG (2.5-6.0mm2;)
5. JX-1601-10: Non-insulated open barrel connector 28-18 AWG (0.1-1.0mm2;)

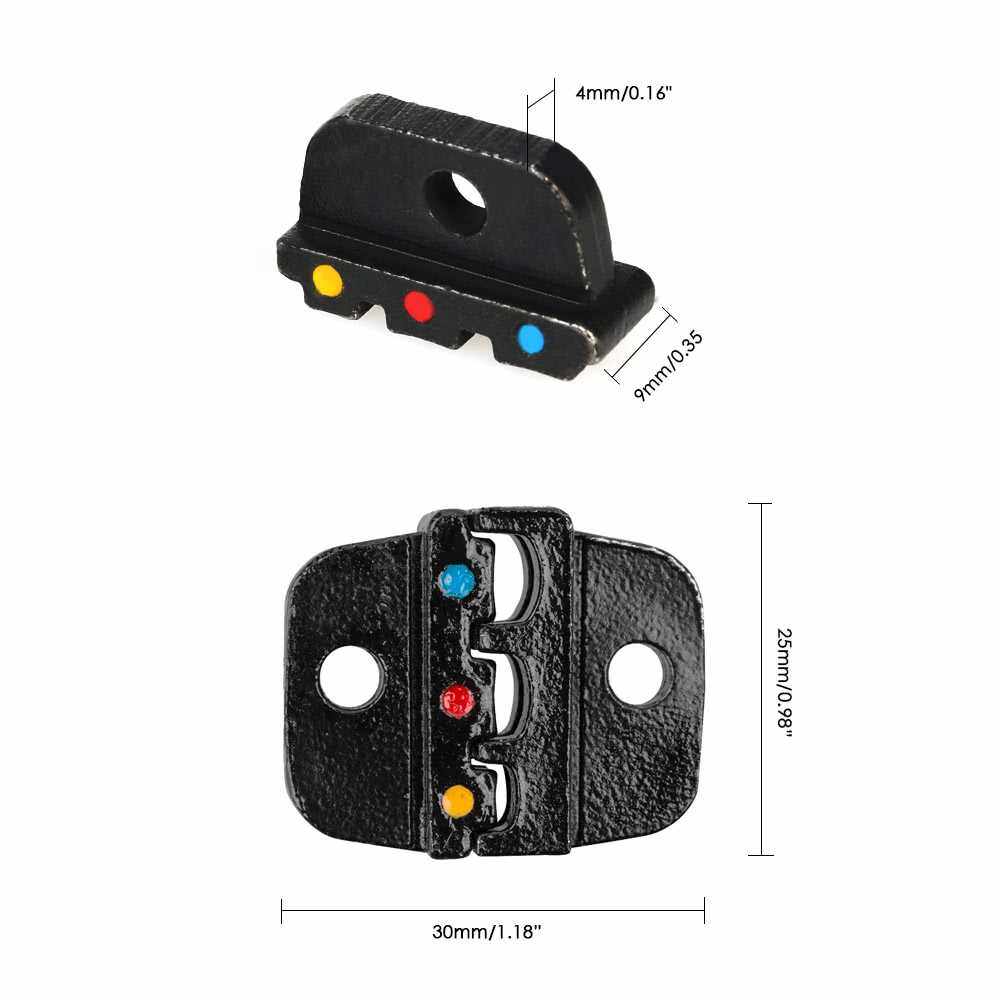

Item Size: Approx. 30 * 25mm / 1.18 * 0.98in (L*W)
Max Thickness: JX-1601-01: 9mm/0.35", JX-1601-06: 12mm/0.47", JX-1601-08: 7mm/0.28", JX-1601-2546: 6mm/0.24", JX-1601-10: 7mm/0.28"
Min Thickness: 4mm/0.16"
Package Size: Approx. 3.1 * 2.6 * 1.3cm / 1.22 * 1.02 * 0.51in
Package Weight: JX-1601-01: Approx. 24g / 0.85oz, JX-1601-06: Approx. 29g / 1.01oz, JX-1601-08: Approx. 21g / 0.73oz, JX-1601-2546:
Approx. 20g / 0.71oz, JX-1601-10: Approx. 22g / 0.79oz

Note: Please notice the anastomosis direction of die and terminal when operation to avoid being burst open.

Package List:
1 * Wire Crimper Jaw
