Studio 2

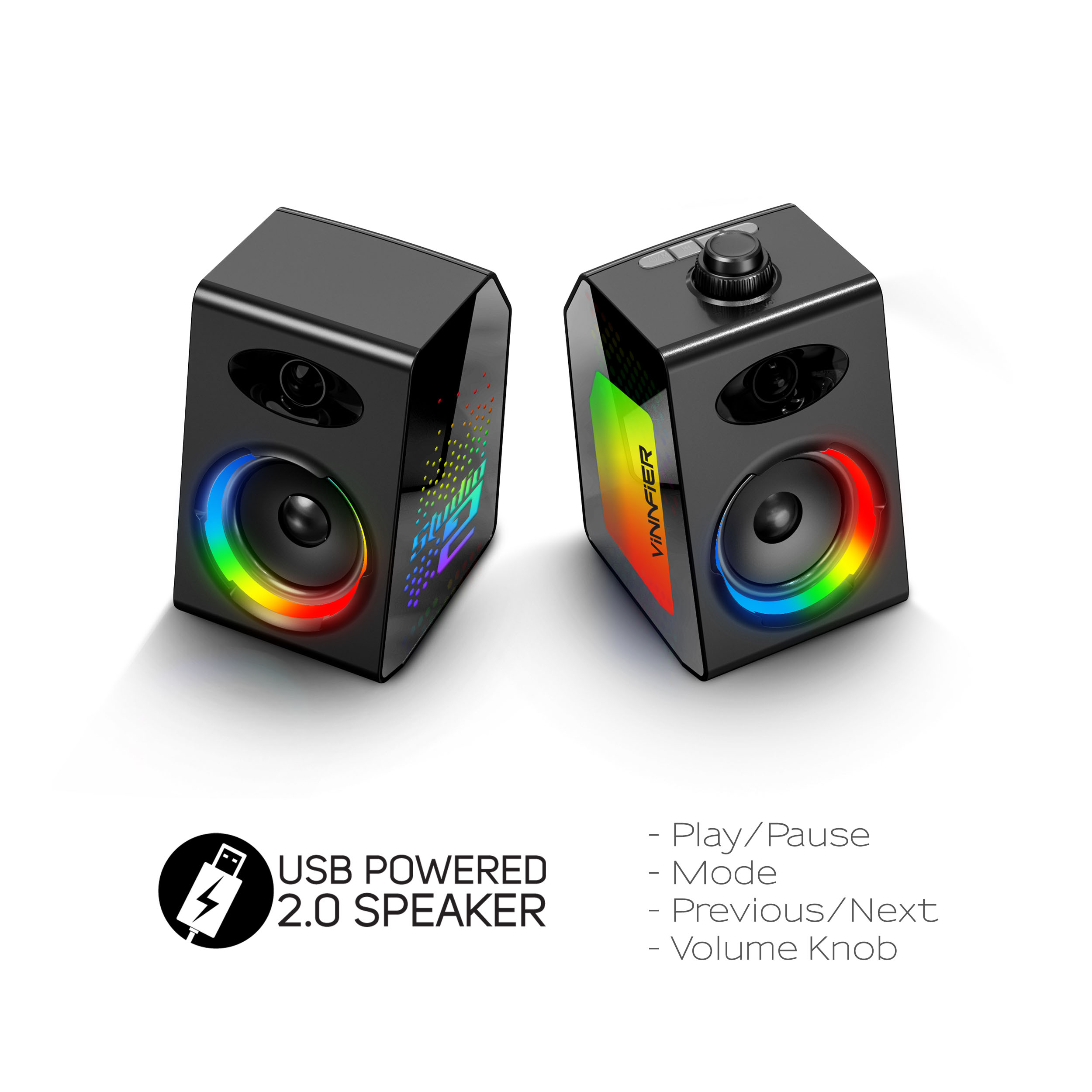

+ Left and Right Speaker: The speaker setup includes both left and right speakers to deliver stereo sound, providing a more immersive audio experience.

+ Power & Mode Switching: The speaker has a power button that can be long-pressed to turn it on or off. Additionally, a short press on the same button allows the user to switch between Bluetooth and AUX modes.

+ Light Mode & Volume Adjustment: The speaker comes with built-in LED light effects. A short press of the mode button allows the user to switch between different light modes, adding a visual element to the audio experience. The volume can be adjusted by turning a dedicated knob on the speaker.

+ FX LED Light Effects: The speaker features special LED light effects that likely synchronize with the music being played, creating a dynamic visual display that complements the audio.

+ 3.5mm Audio Jack: For devices that don't have Bluetooth capability or when the user prefers a wired connection, there is a 3.5mm audio jack available on the speaker. This allows you to connect the speaker to the audio output interface of a computer, laptop, or any other compatible device.

+ USB Jack: The speaker is powered through a USB connection, and it accepts 5V input power. This means you can power the speaker by connecting it to a USB power source, such as a computer, power bank, or wall adapter.

Bluetooth Mode:

To use the speaker in Bluetooth mode, follow these steps:

Power on the speaker by long-pressing the power button.

By default, the speaker starts in AUX mode. To switch to Bluetooth mode, short-press the mode button.

Once in Bluetooth mode, the speaker is ready for pairing. You can pair it with your Bluetooth-enabled devices such as smartphones, tablets, or laptops.

Upon successful pairing and connection, there will be a prompt sound, indicating that the speaker is ready to play music from the connected device.

Note:

If you encounter current noise when using the speaker with an audio cable connected to a computer or mobile phone, you can try adjusting the position of the audio cable head until the noise disappears. This adjustment helps ensure a clean audio signal without interference.

SPECIFICATION

Bluetooth Compliant: V5.0

Speaker Unit: 2.5" X2

Built In Bass Reflex Panels: 50 X 65mm

Total Output Power (RMS): 24W

Pure System Power: 6W X2

Frequency Response: 60 Hz-20KHz

Power Supply: USB 5V/1A

Product Size: W85 X D104 X H149 (mm)

Controls: Volume Control

Function: AUX/BT/RGB LED

Plug: USB 5V + 3.5mm

IN THE BOX

Speaker X2

User Manual X1
