What's in the box:

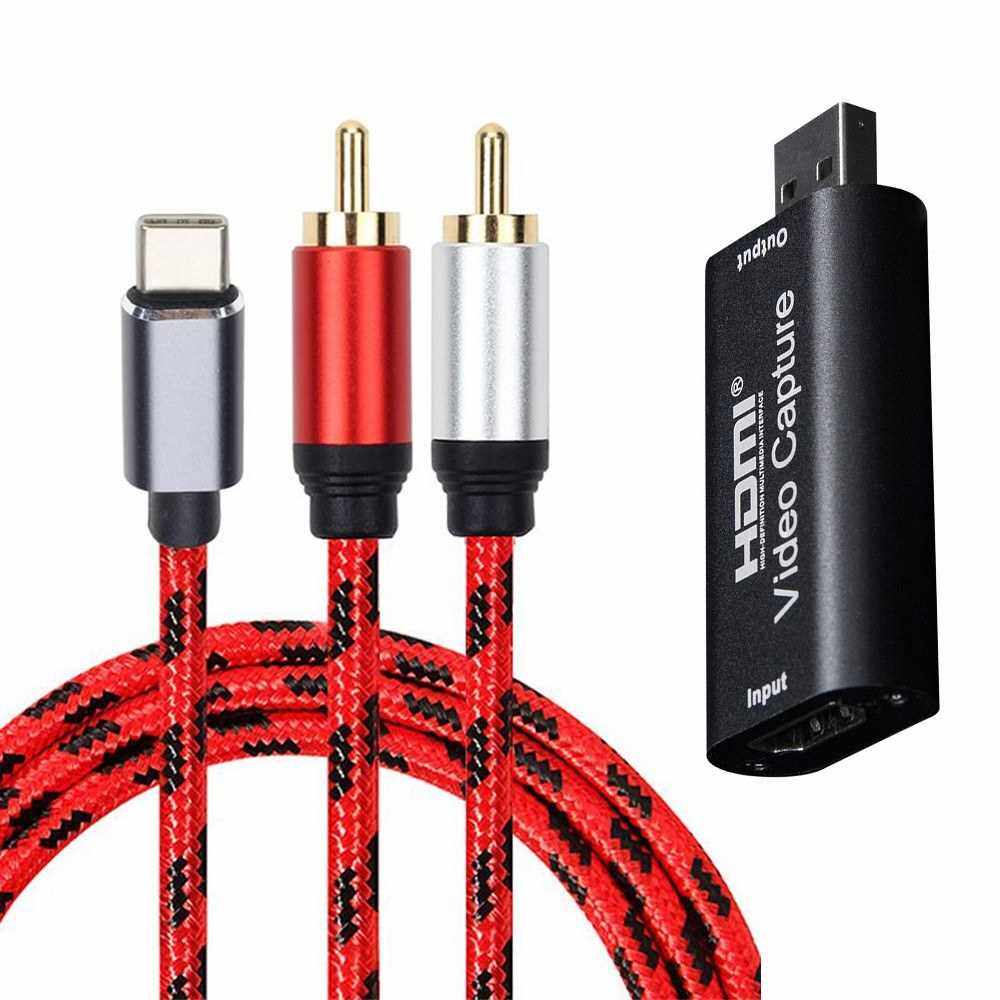

USB2.0 Multi-media Interface Video Audio Capture Card Dongle Game Streaming Live Broadcast with Type-C Interface (Standard)
The video capture can capture both video and audio, sending audio and video signals to computers and smartphones for preview and storage. Suitable for acquisition, teaching recording, imaging, etc.. Comes with one connection cable, white-left channel interface, red-right channel interface, and type-C interface, easy to output the videos to live streaming website. Compatible with mainstream streaming media software and live platform.
Features:
Support input max resolution 3840*2160@30Hz.
Support output max resolution 1920*1080@30Hz.
Support 8/10/12bit deep color.
Support AWG26 standard cable: input up to 15 meters, (1080P and below resolution).
Support most acquisition software, such as VLC, OBS, Amcap, etc..
Support Wins, Android and MacOS.
Conform to USB Video and UVC standard.
Conform to USB Audio UAC standard.
Without external power supply, compact and portable.

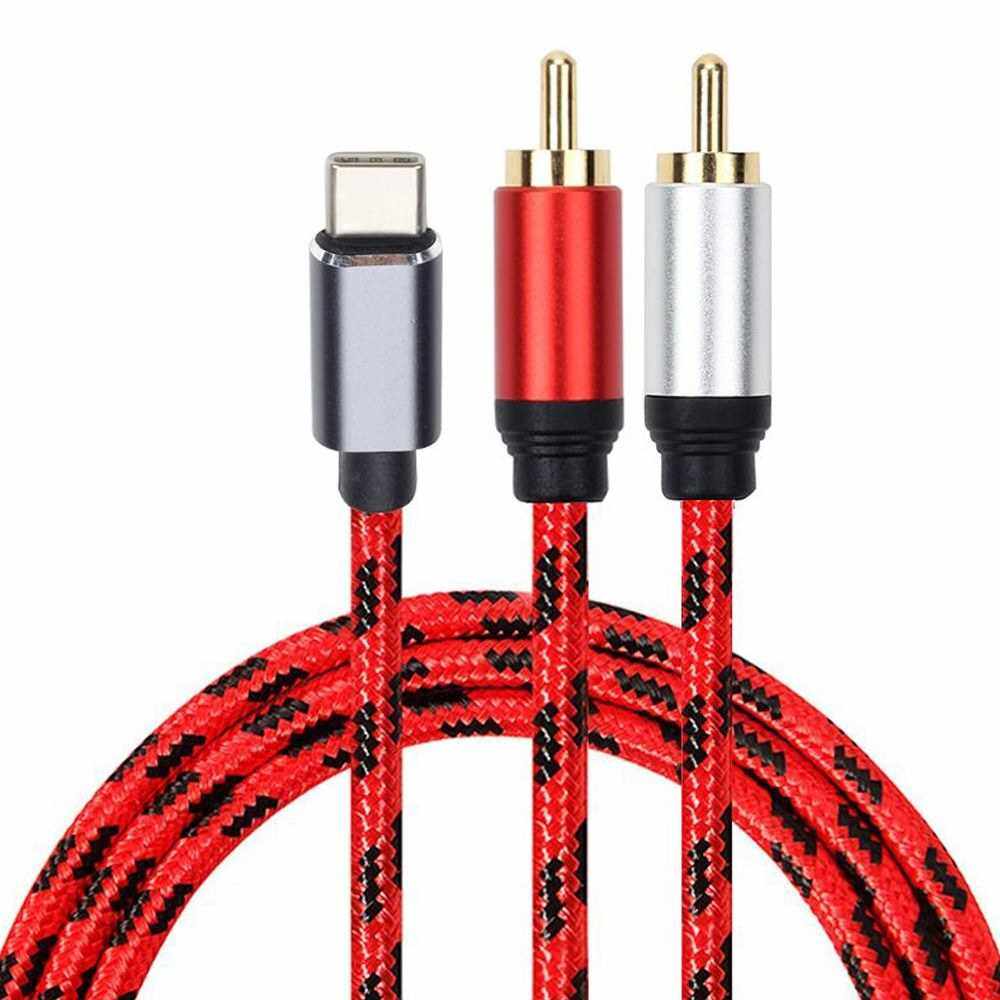

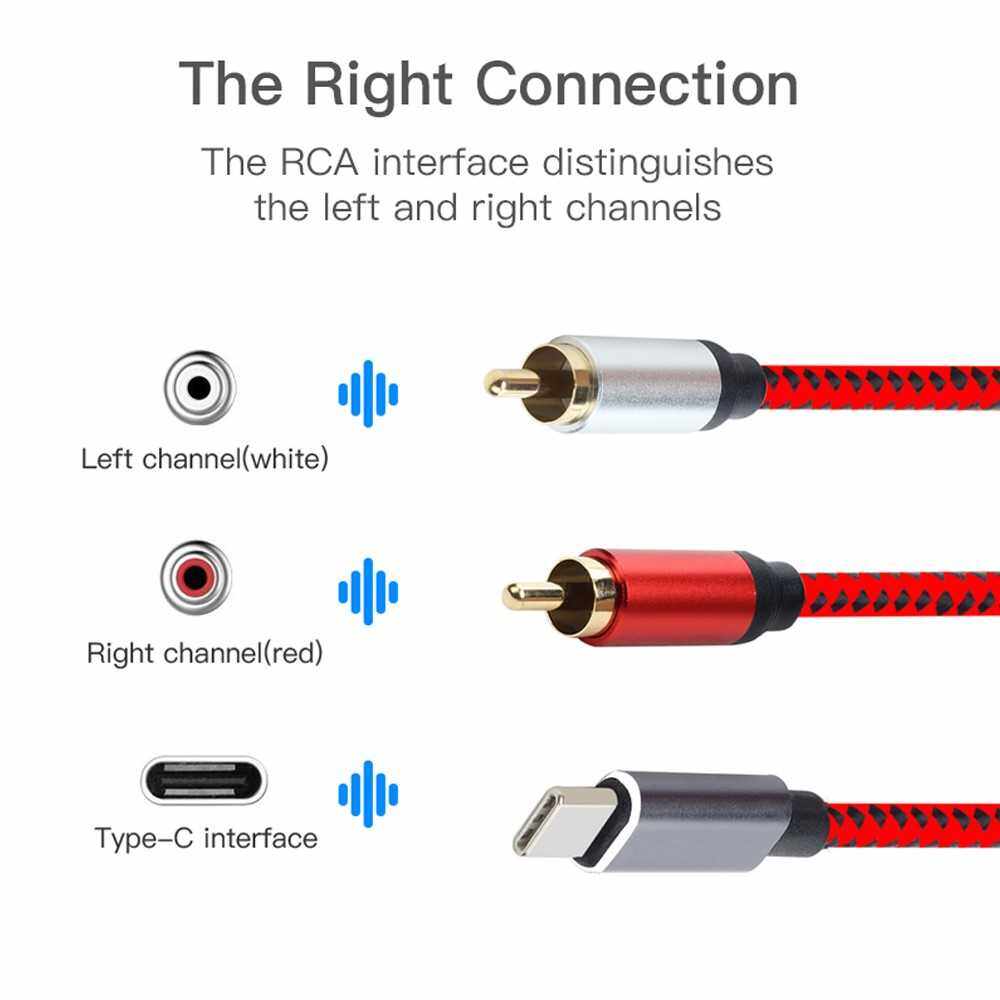

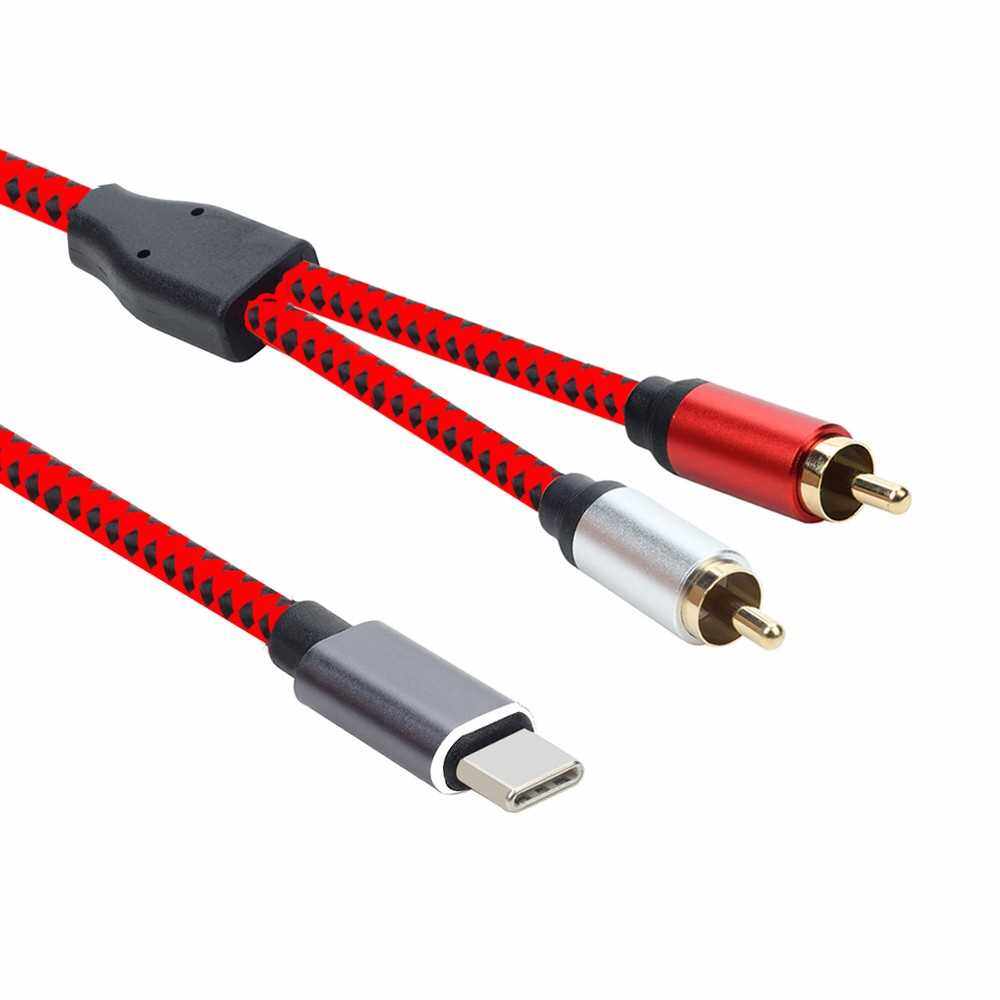

Comes with one connection cable, white-left channel interface, red-right channel interface, and type-C interface, easy to output the videos to live streaming website.
Specifications:
Name: Video Capture
Material: ABS
USB: USB2.0
Resolution: Max input can be 3840*2160@30Hz
Support video format: 8/10/12bit Deep color
Video output format: YUV, JPEG
Video output resolution:Max output can be 1920*1080@30Hz
Support audio format: L-PCM
Input cable distance: 15m, AWG26 standard cable
Max working current: 0.4A/5VDC
Operating temperature range: (-10 to +55)
Item size: 64 * 28 * 13mm / 2.52 * 1.10 * 0.51in
Item weight: 35g / 1.23ounce
Package size: 150 * 100 * 50mm / 5.91 * 3.94 * 1.97in
Package weight: 70g / 2.47ounce
Connection and Operation:
1: Connect the UHD signal source to the input of the video capture with one cable.
2: Connect the computersto the usb port of the video capture with usb cable.
3: Operationsteps for USB video capture(OBS): Open the softwareChoose sources of Video capture DeviceSet the size of imagesChoose Studio Mode(double window) Choose Starts Recording.
Packing List:
1 * Video Capture
1 * Type-C Cable
1 * User Manual
