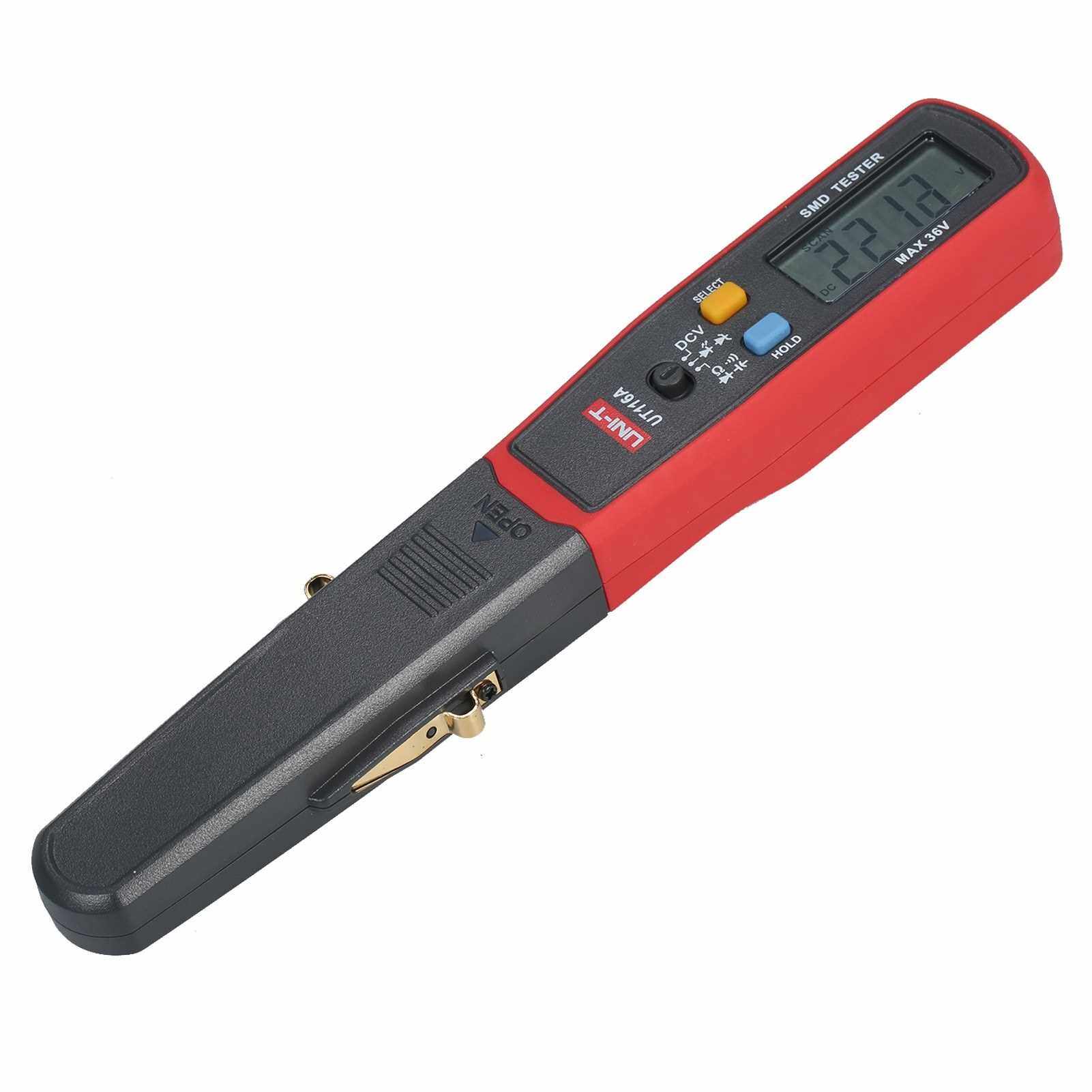

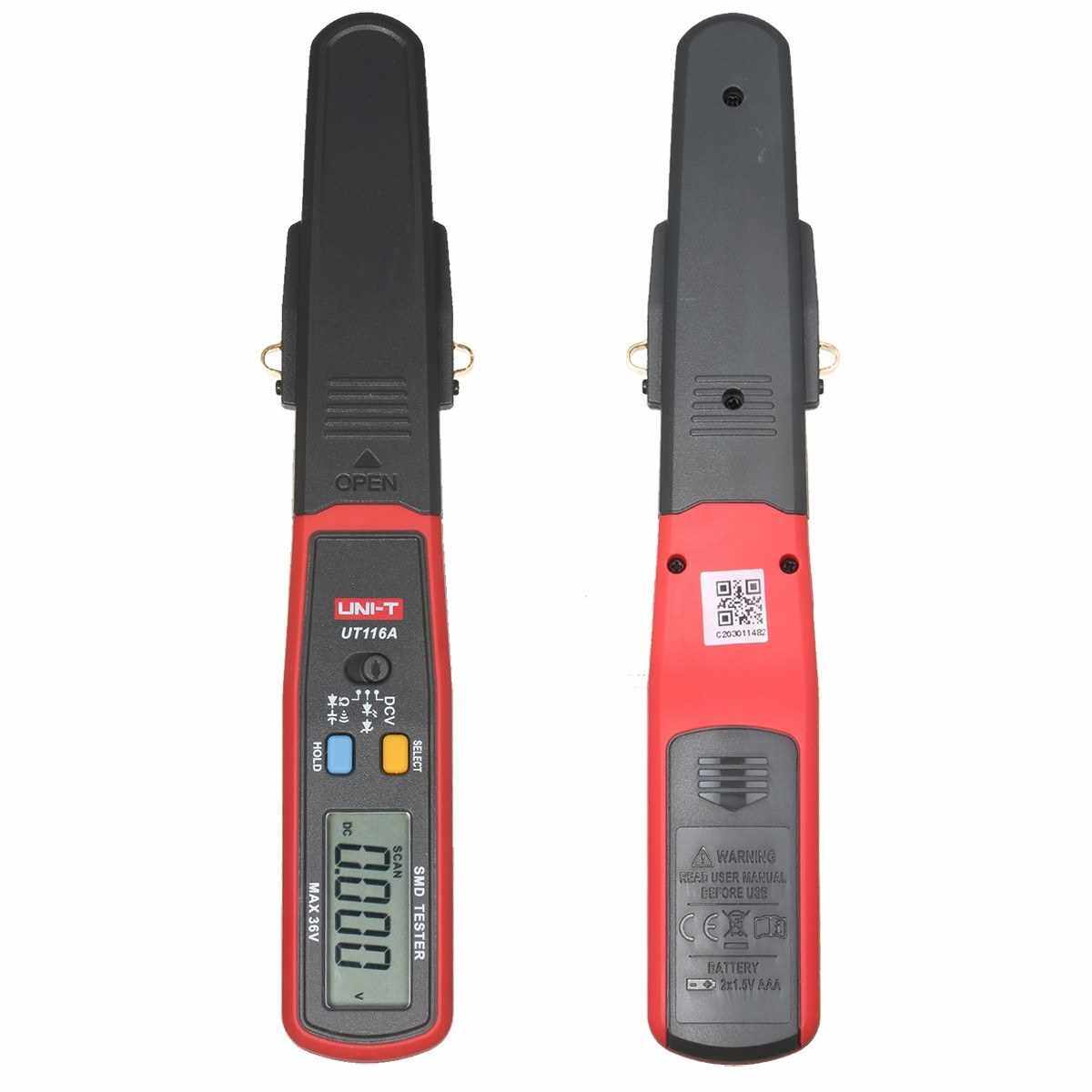

This product is a miniaturized, integrative, brand new instrument for measurements of SMD resistance, capacitance and diode (RCD) parameters. In addition, it can also be used for LED, zener diode, on/off circuit and maximum 36V DC voltage measurement. This tester is a great tool for electronic factories and electronic devices maintenance.
Features:

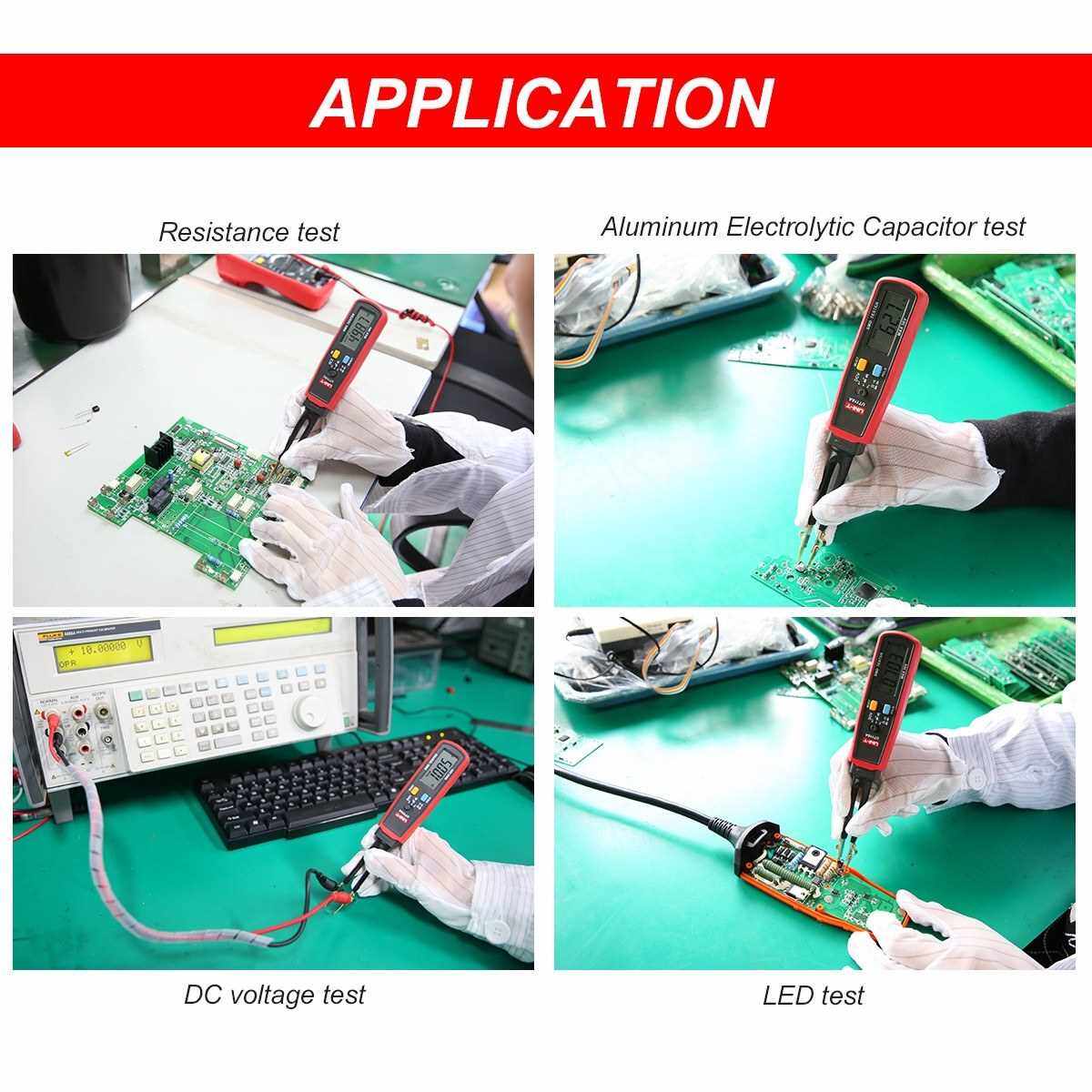

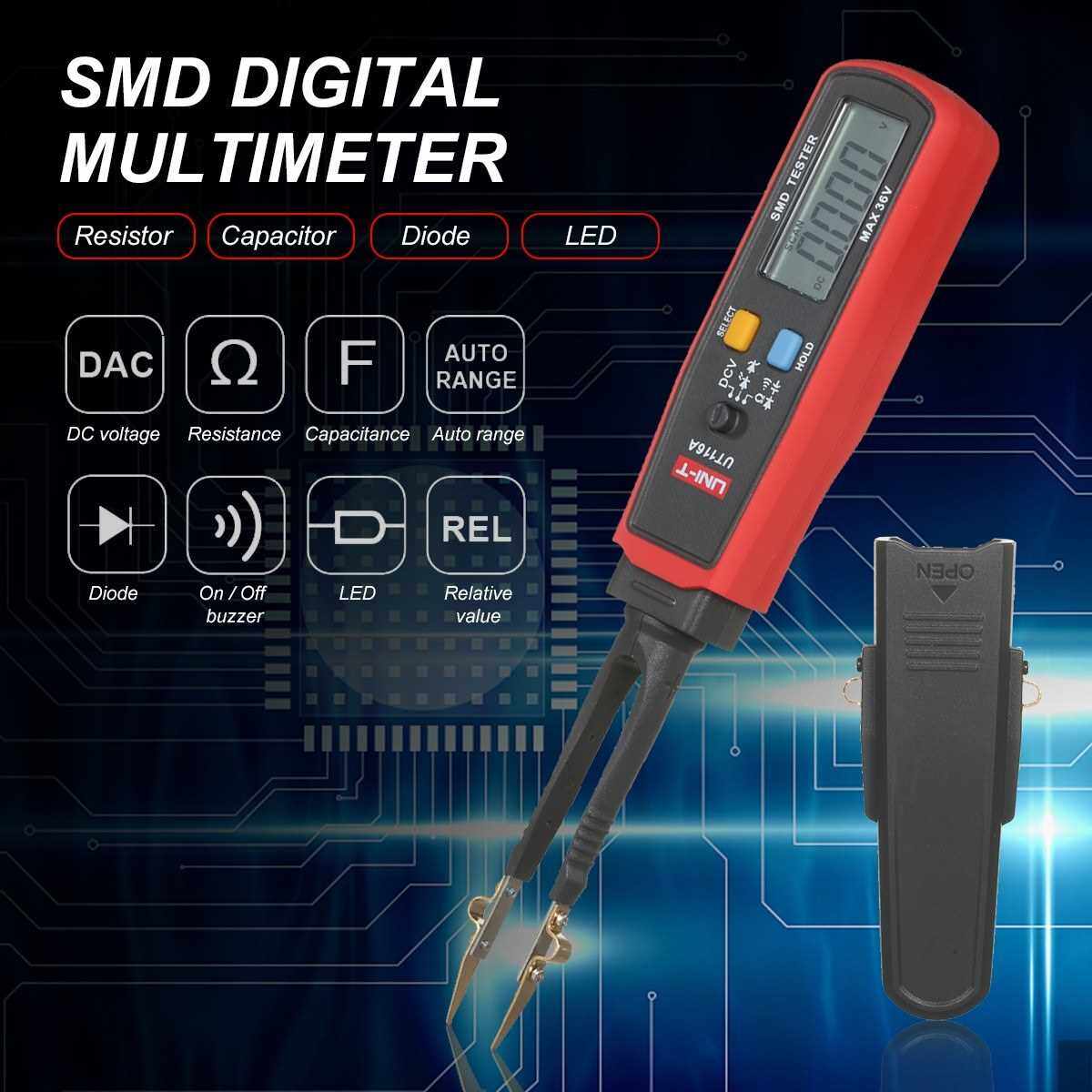

The UT116A has rich functionality including automatic identification of resistance, capacitance, diode and on or off circuit; zener diode polarity/LED test, and can also measure Max.36V DC voltage.

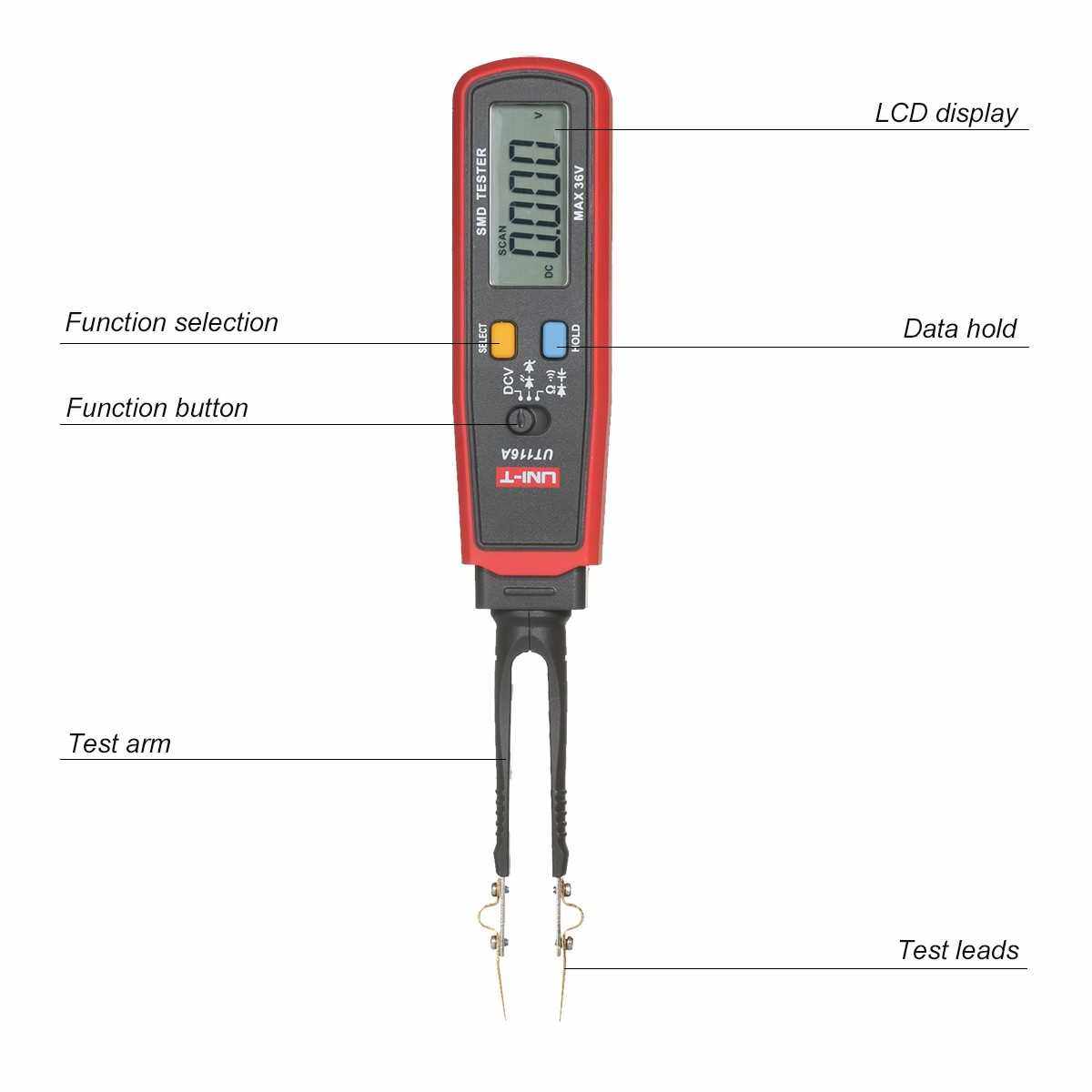

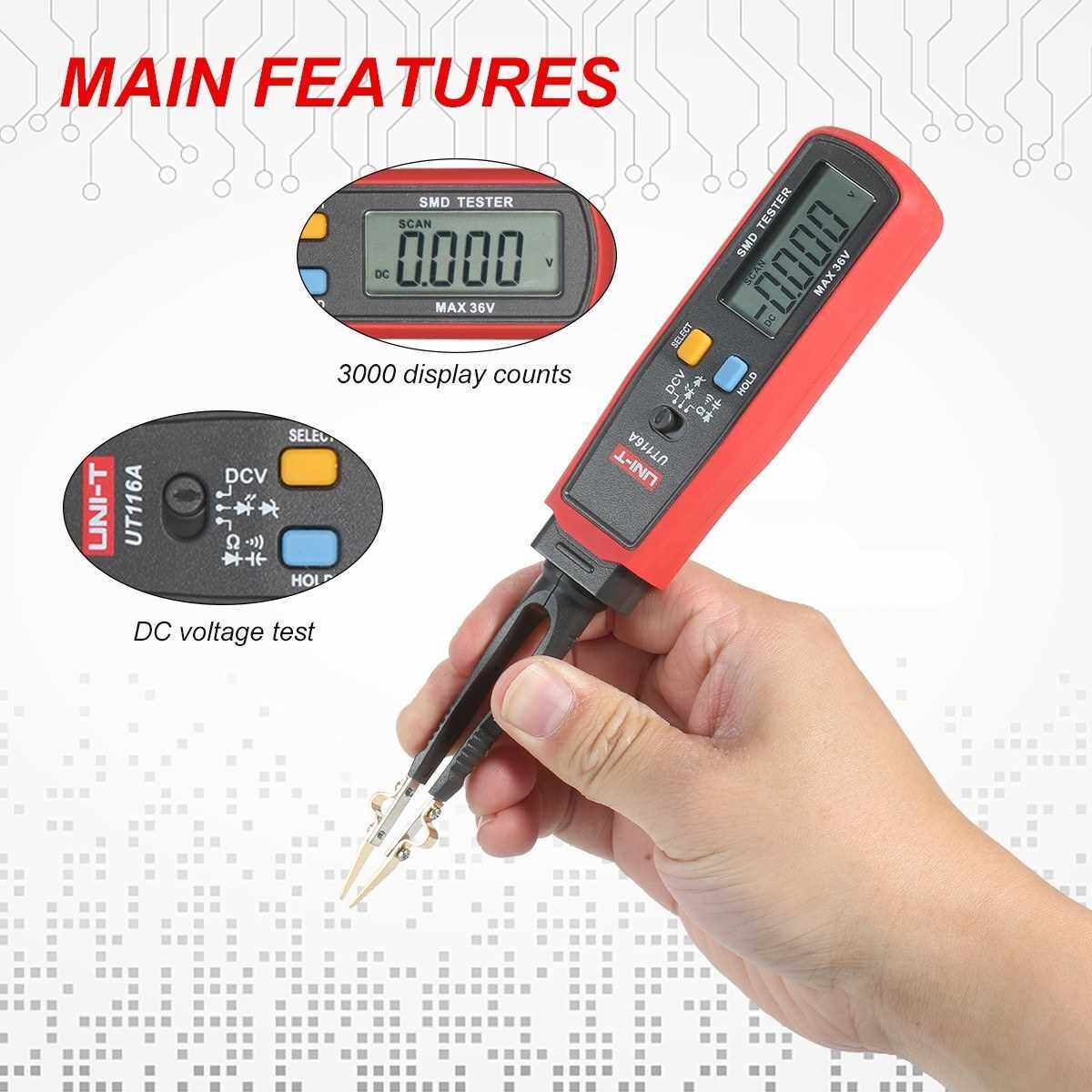

With practical features, such as auto-range, data hold, low battery indicator, LCD display with 3000 countsand auto-power off.

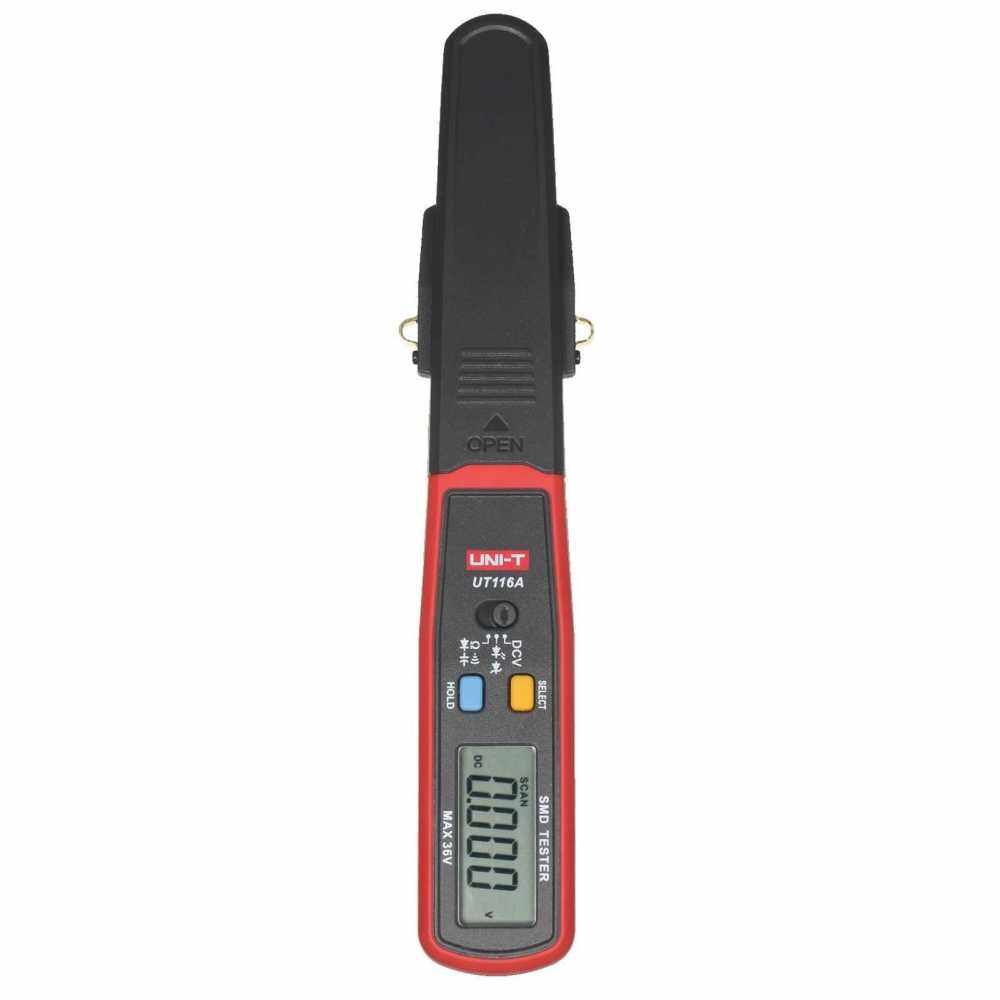

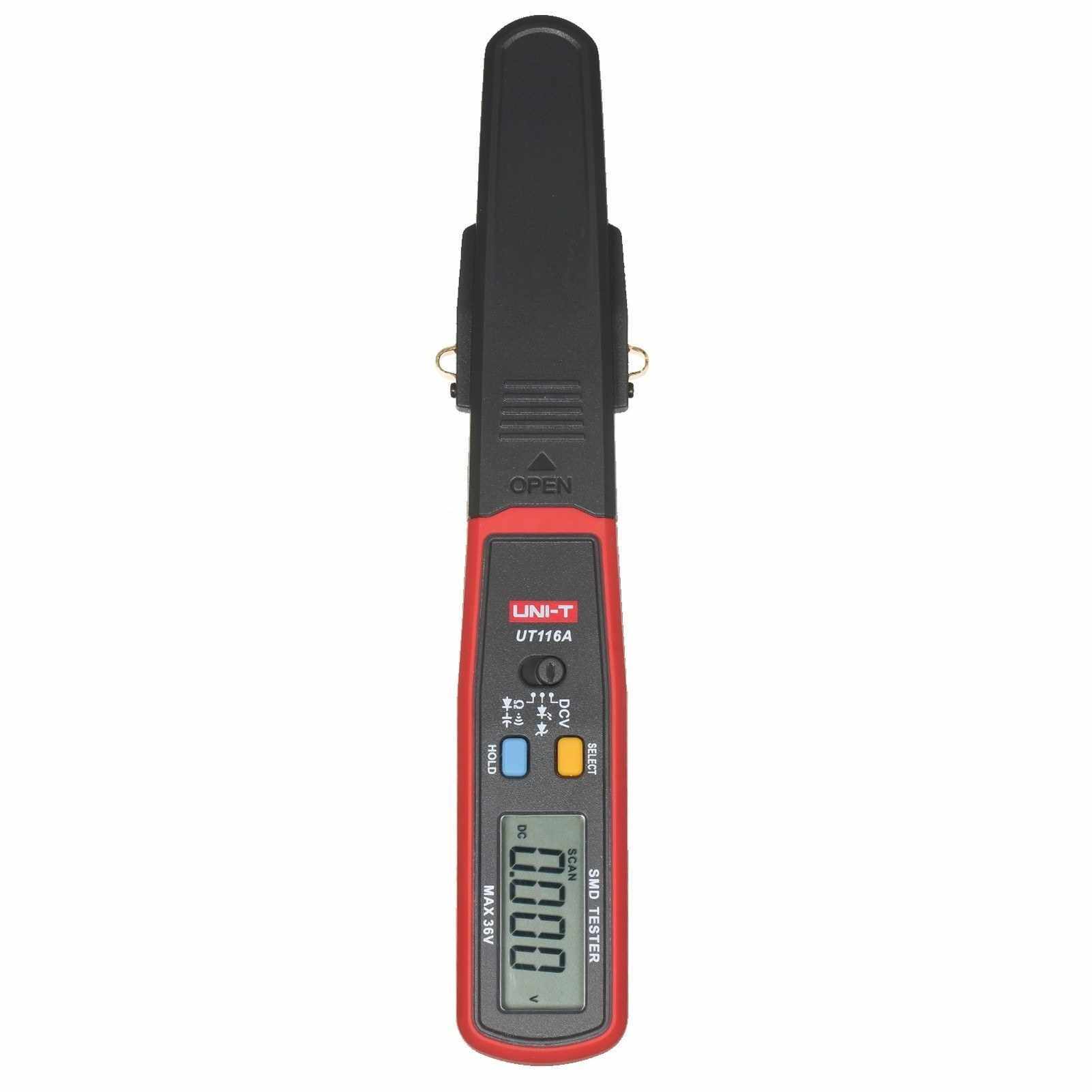

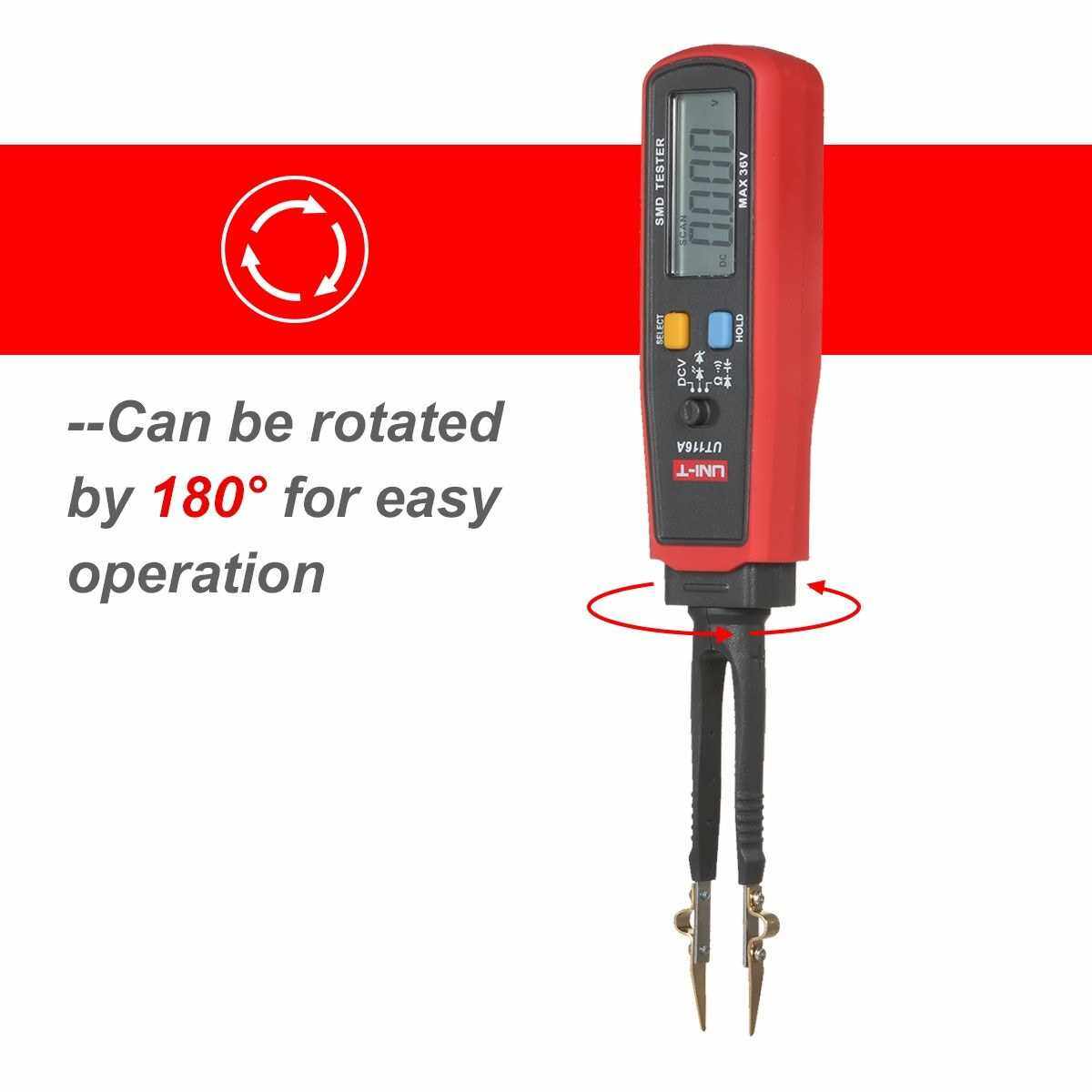

Compact and portable, the pen can be rotated by 180for easy reading and operation.

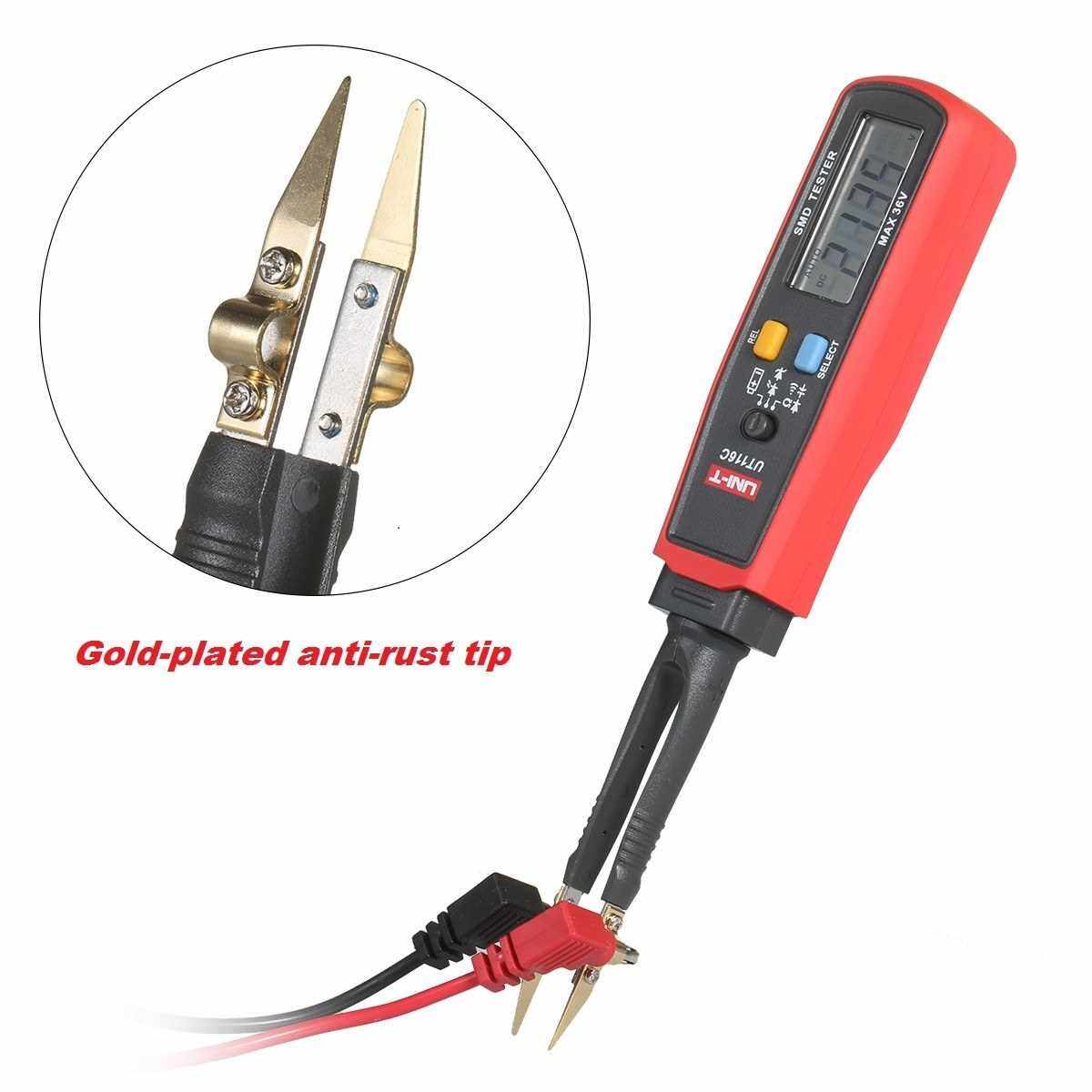

Constructed with durable ABS housing and gold-plated tip to prevent rust.
Ideal tool for electronic engineers, repairman or professionals who engaged in SMD testing.
Specifications:

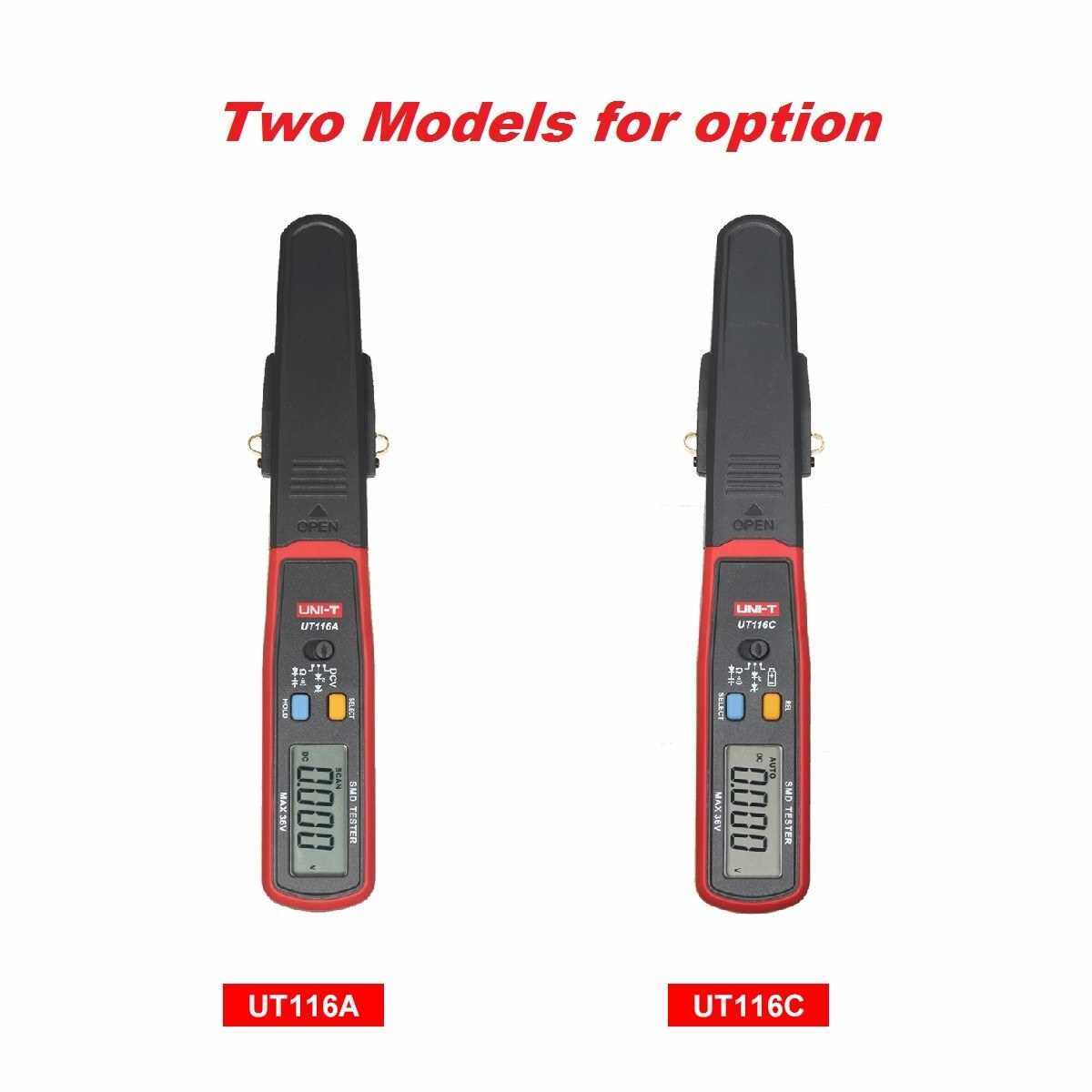

| Model(Optional) | UT116A | UT116C |
| Material | ABS | |
| Display counts | 3000 | 6000 |
| Resistance | 30M | 60M |
| Capacitance | 30mF | 100mF |
| Diode test | 3V | 3.2V |
| LED/stabilivolt | About 21V/1mA | |
| Continuity Test | 30 | 50 |
| DC voltagetest | MAX.36V | N/A |
| Batteryvoltage test | N/A | Load current 10mA |
| Auto range | ||
| Auto scan identication | N/A | |
| Auto power off | 10min | 15min |
| LCD Display | 39mm x 20mm | |

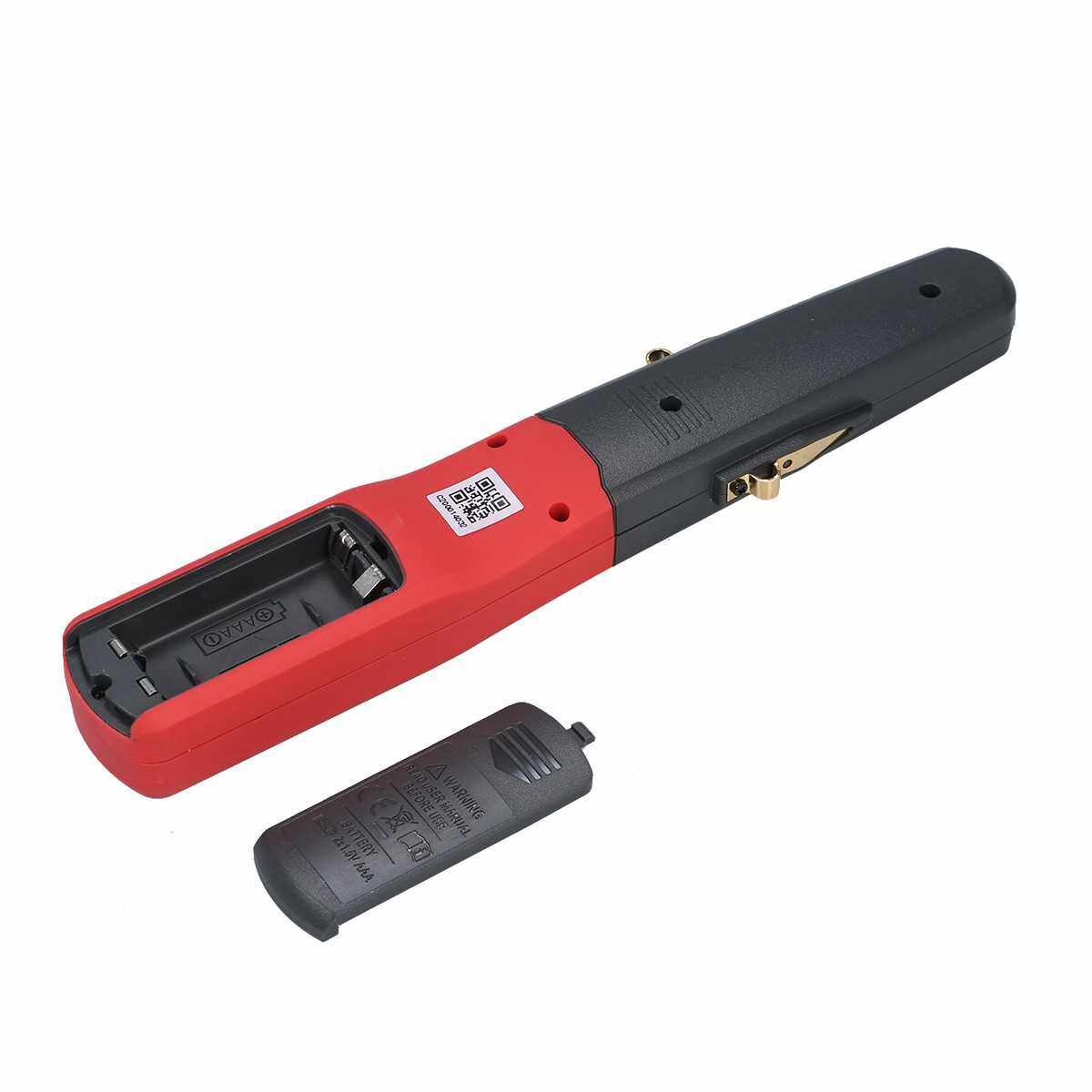

| Power Supply | 2 * 1.5V AAA battery (NOT included) | |

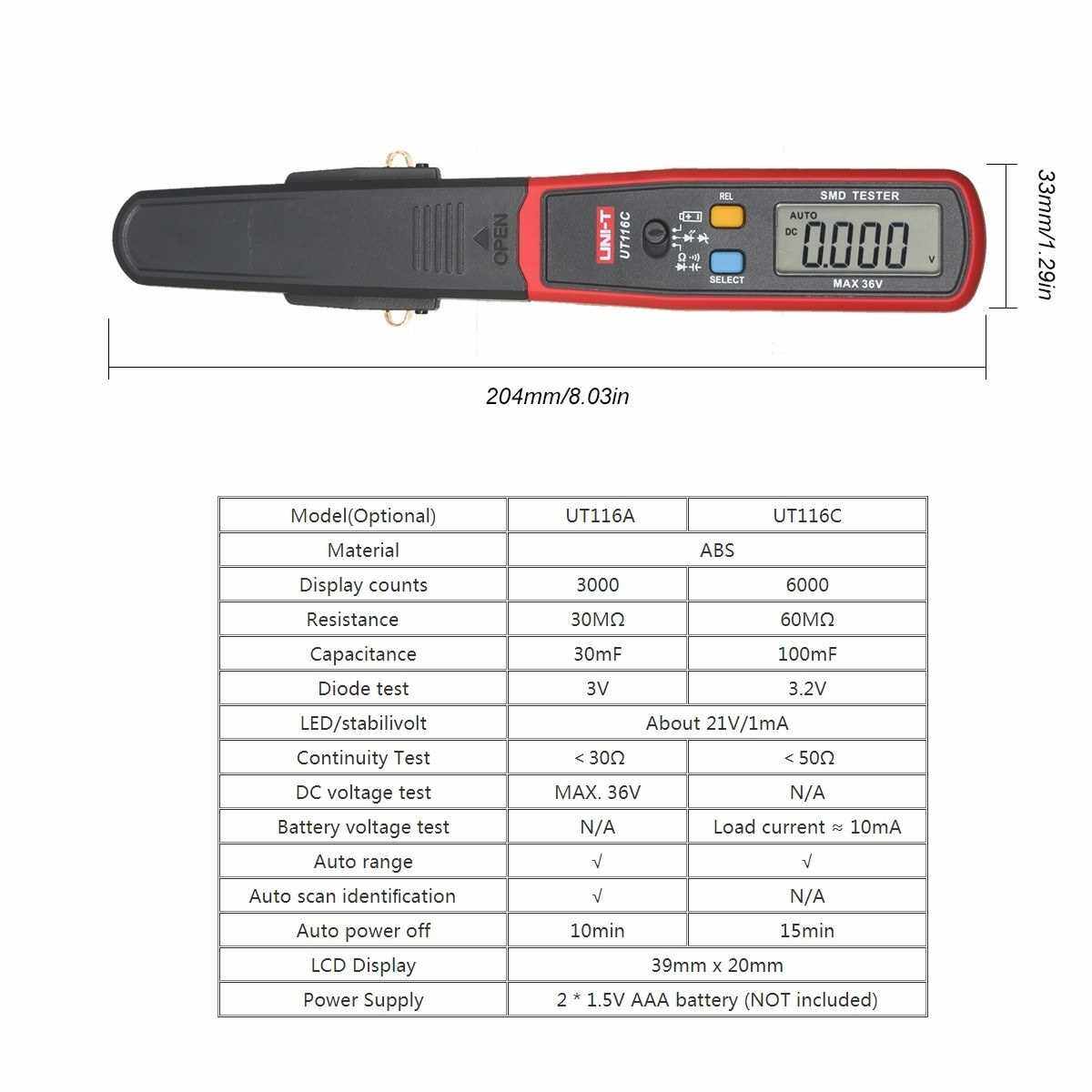

Item Size: 204 * 33 * 25mm / 8.03 * 1.29 * 0.98in
Item Weight: 80g / 2.82oz
Package Weight: 167g / 5.89oz
Package Size: 21.5 * 6.6 * 4.6cm / 8.46 * 2.59 * 1.81in

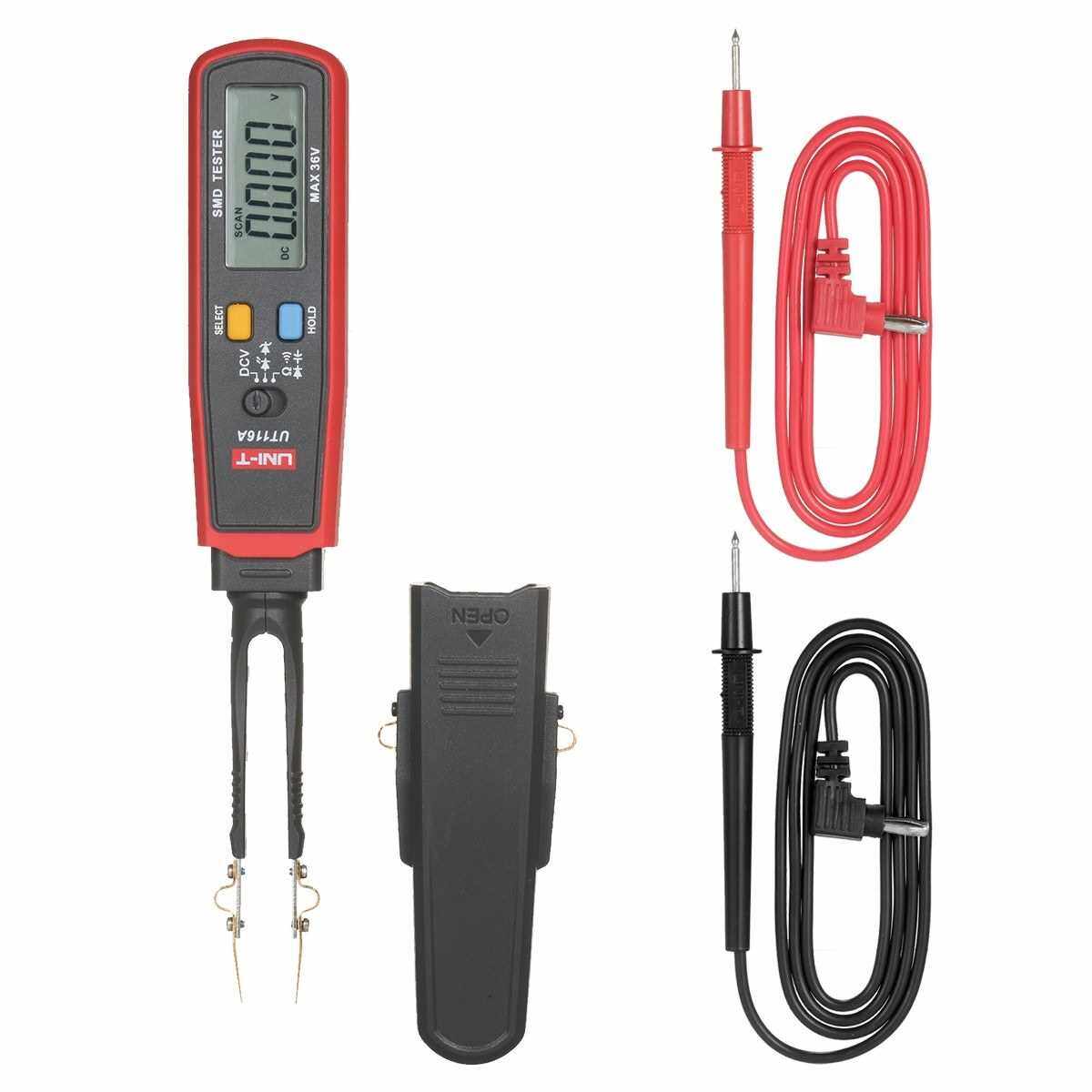

Packing List:
1 * SMD Tester
2 * Spare test clamps

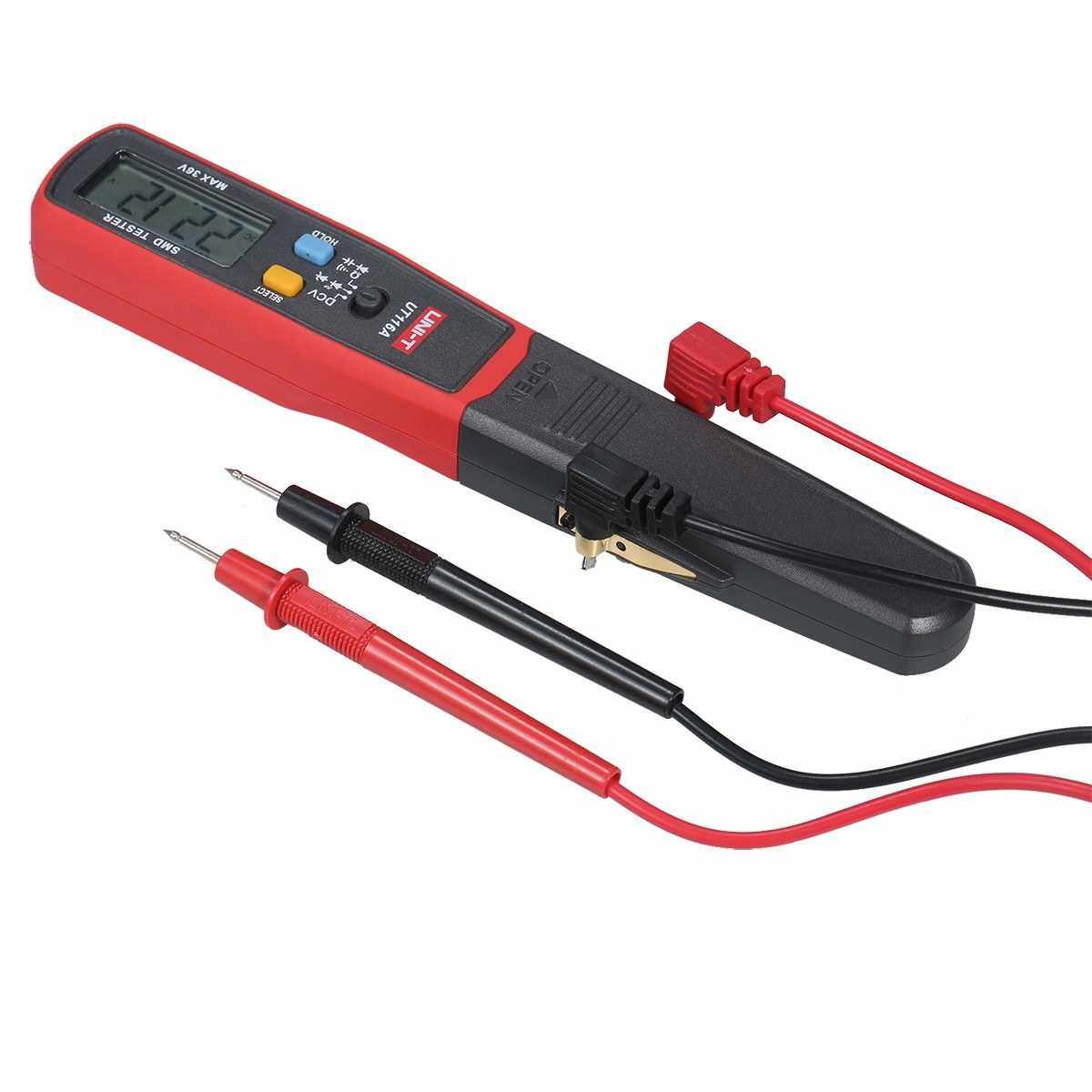

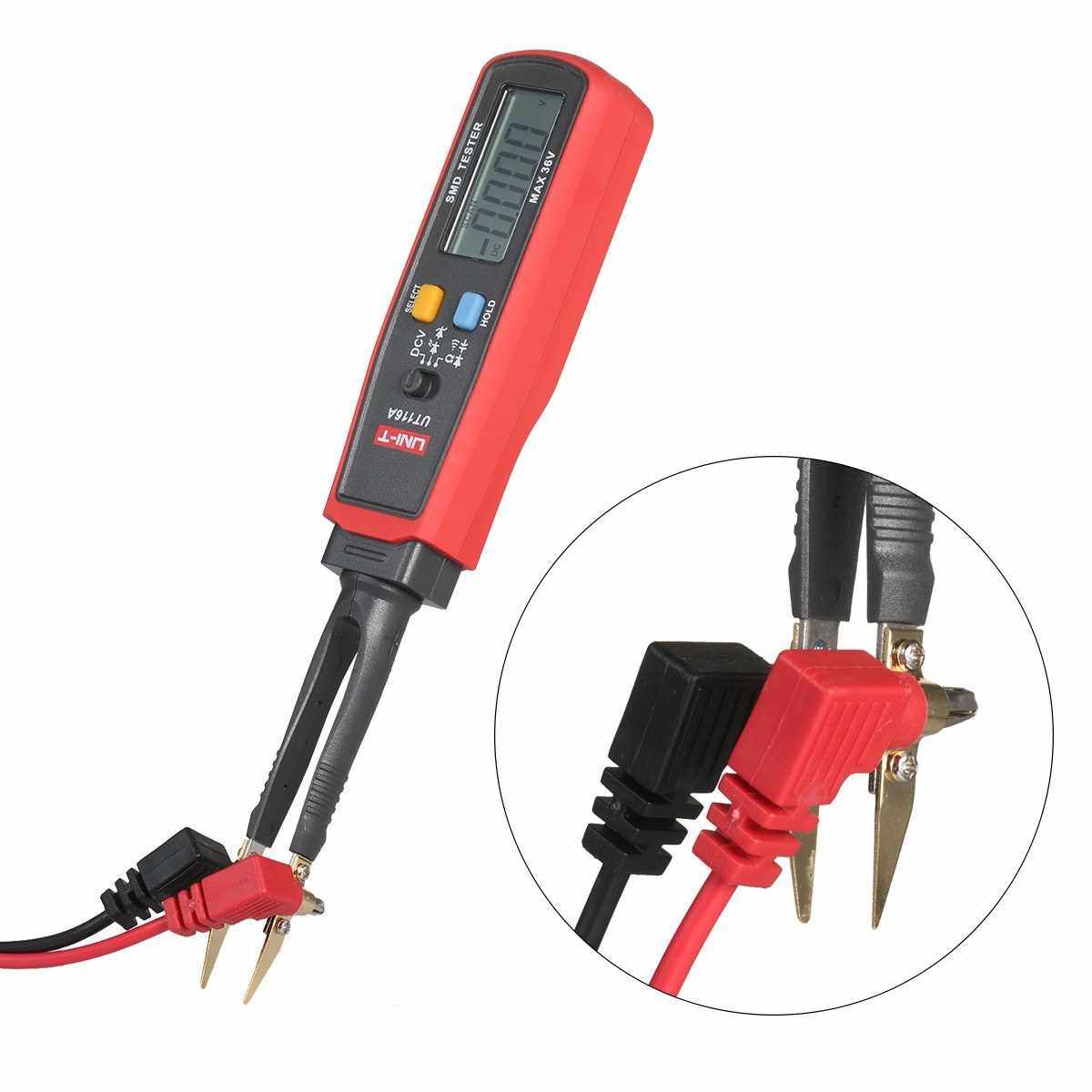

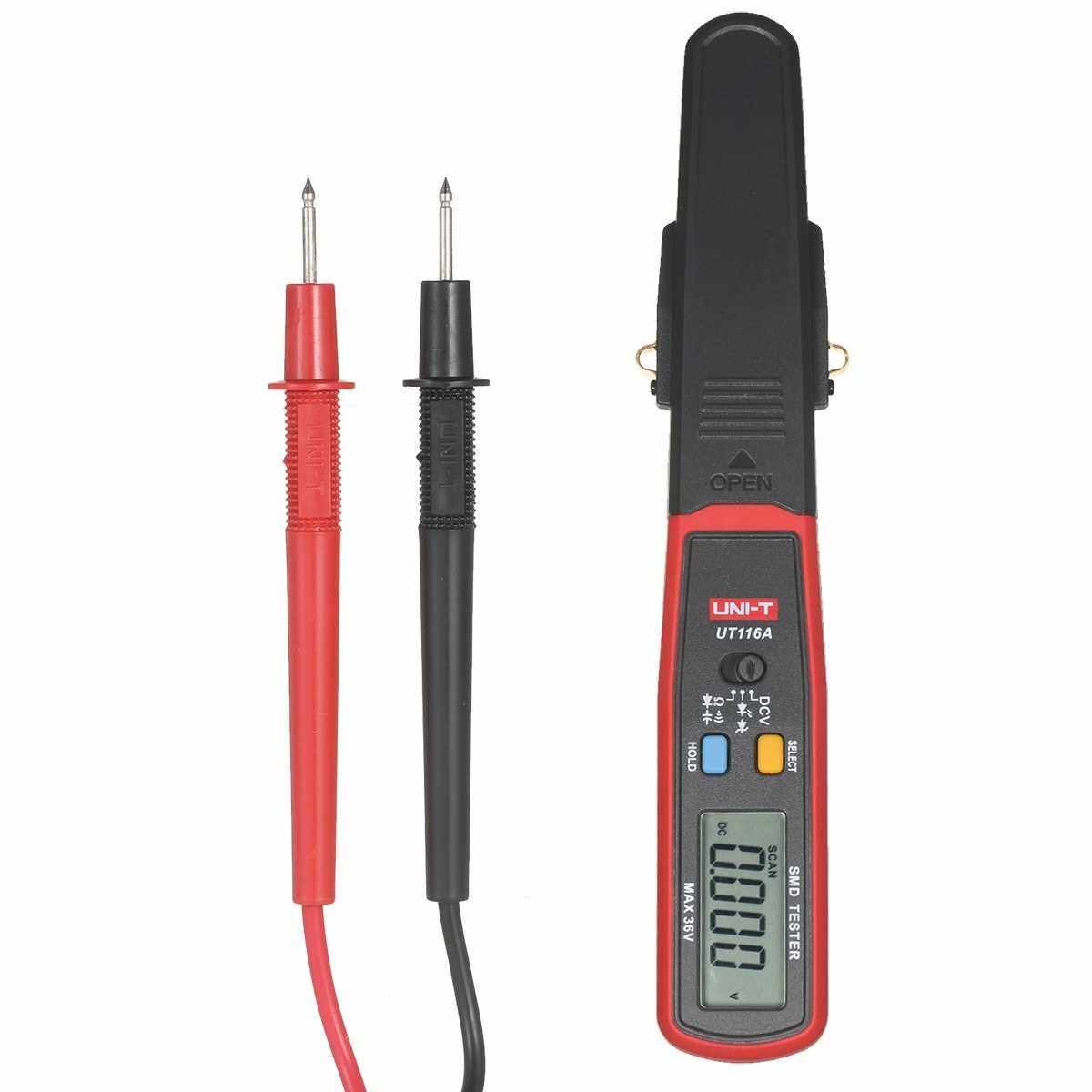

1 * Pair of dedicated test leads
1 * User Manual (English)
