What's in the box:
1 x VIGI NVR1016 16 Channel Network Video Recorder

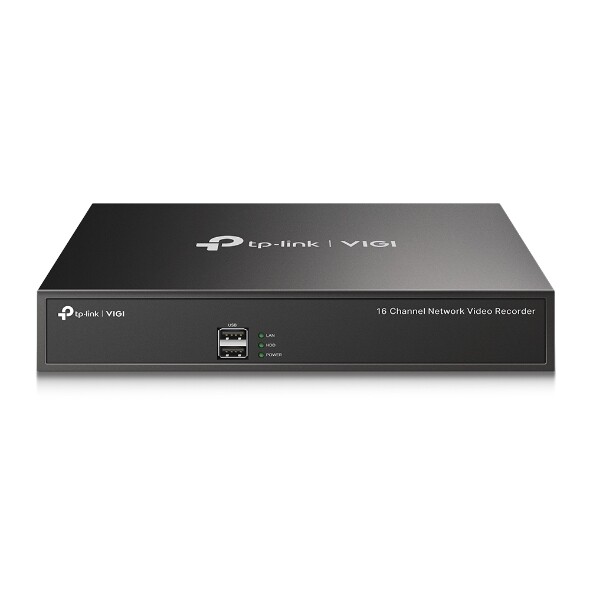

Product details ofTP-Link VIGI NVR1016 VIGI 16 Channel Network Video Recorder
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- 16-Channel Real-Time Live View: Sharp image definition up to 8MP and a16-channel display ensures you capture every detail, from every angle.
- Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.
- Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

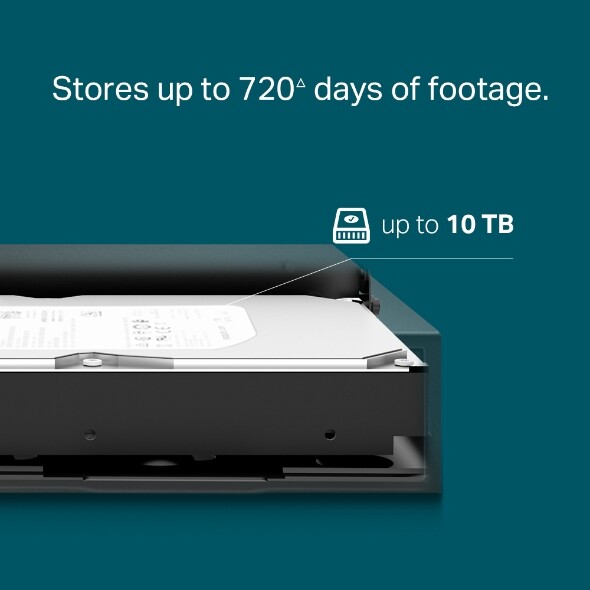

- 1 HDD Interface (up to 10 TB): Stores up to 10 TB (720 daysof video) on a SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
|---|---|
| Incoming Bandwith | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| GENERAL | |
|---|---|
| Operating Temperature | -1055 C |
| Dimensions( H X W X D ) | 246.2 148.2 45 mm |
| Weight | 578.5 g |
| External Power Supply | 12V DC/1.5 A |
| Power Consumption | 4.25 W (without disk) 13.10 W (with disk) |
| VIDEO/IMAGE | |
|---|---|
| Video Input | 16-Channel IP Video Input, up to 8 MP Resolution |
| Video Output | Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF HDMI/VGA Output Resolution: 1920 1080p/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1680 1050/60Hz, 1440 900/60Hz |
| DECODING | |
|---|---|
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Live View/Playback Resolution | 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 1-ch @ 8 MP, 2-ch @ 4 MP, 4-ch @ 2 MP |
| HARD DISK | |
|---|---|
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB |

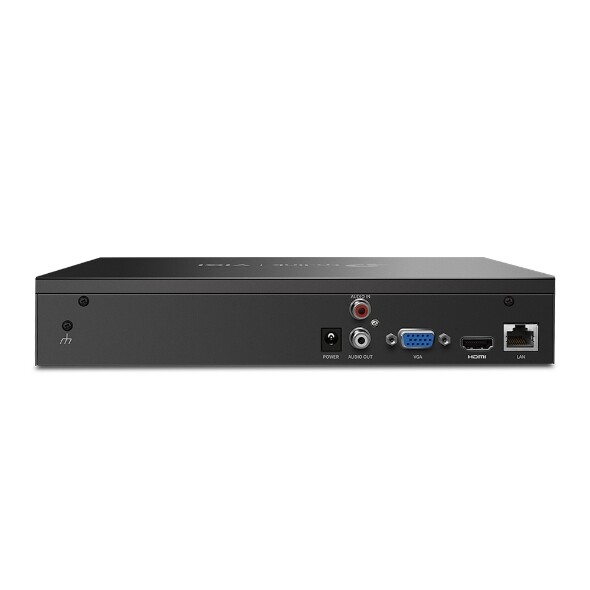

| INTERFACES | |
|---|---|
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 USB 2.0 |
