What's in the box:
1 x TL-SM311LS Transceiver

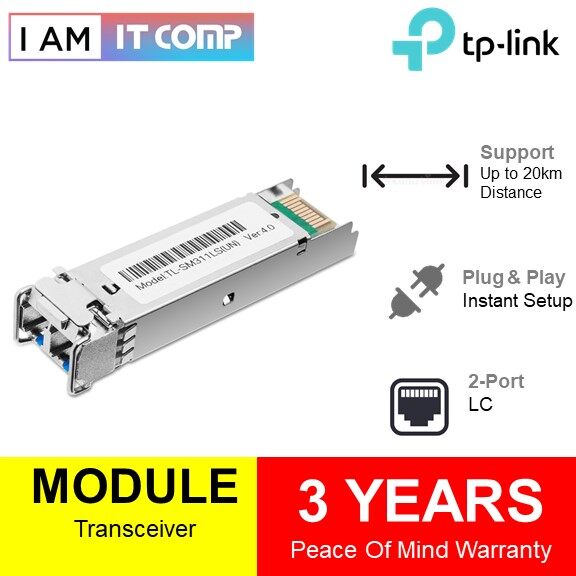

Product details ofTP-LINK TL-SM311LS 2-Port Single-mode MiniGBIC Module Transceiver
- Up to 20 km transmission distance in 9/125 m SMF (Single-Mode Fiber)
- Compatible withall SFP ports on TP-Link products including JetStream switches, and media converter MC220L.
- Work with MC210CS witha single-mode fiber connection
What This Product Does
The TL-SM311 series Fiber Module Cards are introduced to extend transferring distance. Installedinour managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
| Package Contents | SFP Module TL-SM311LS Installation Guide |
|---|
| HARDWARE FEATURES | |
|---|---|
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z |
| Wave Length | 1310 nm |
| Power Supply | 3.3 V |
| Safety & Emission | FCC, CE |
| Cabel | Single-Mode Fiber |
| Fiber Type | 9/125 m Single-Mode |
| Max. Cable Length | 20 KM |
| Data Rate | 1.25 Gbps |
| Port Type | LC Duplex |
| Environment | Operating Temperature: 070 C (32158 F) Storage Temperature: -4085 C ( -40185 F) Operating Humidity: 1090% RH, Non-Condensing Storage Humidity: 590% RH, Non-Condensing |
