What's in the box:
1 x TL-SL1218P1 x Power Cord1 x Installation GuideTwo mounting brackets and the fittings

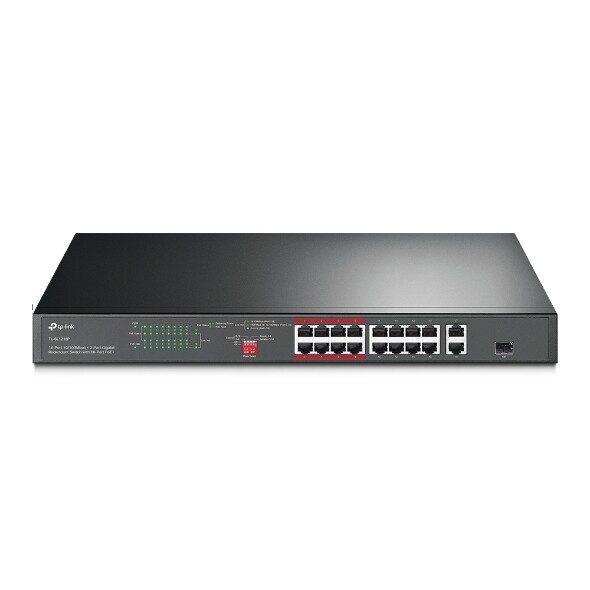

Product details ofTP-LINK TL-SL1218P 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ Desktop Switch
- 16 PoE+ 10/100 Mbps RJ45 ports, 2 Gigabit RJ45 ports,and 1combo Gigabit SFP slot.
- High PoE power budget with up to 30 W for each PoE port and 150W for all PoE ports.*
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
- Priority mode for ports 18 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
| Interface | 16 PoE+ 10/100 Mbps RJ45 Ports 2 10/100/1000 Mbps RJ45 Ports 1 Combo Gigabit SFP Slot |
|---|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Ports 116 PoE Power Budget: 150 W |
| Dimensions ( W x D x H ) | 17.3 7.1 1.7 in (440 180 44 mm) |
| Max Power Consumption | 12.7 W (no power device connected) 172.8 W (with 150W power devices connected) |
| Max Heat Dissipation | 43.3 BTU/h (no power device connected) 589.3 BTU/h (with 150W power devices connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SL1218P Power Cable Installation Guide Two mounting brackets |
| Environment | Operating Temperature: 050 C (32122 F) Storage Temperature: -4070 C (-40158 F) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing |
