What's in the box:
1 x TL-SG3428XMP Switch1 x Power Cord1 x Quick Installation Guide1 x Rackmount Kit1 x Rubber Feet

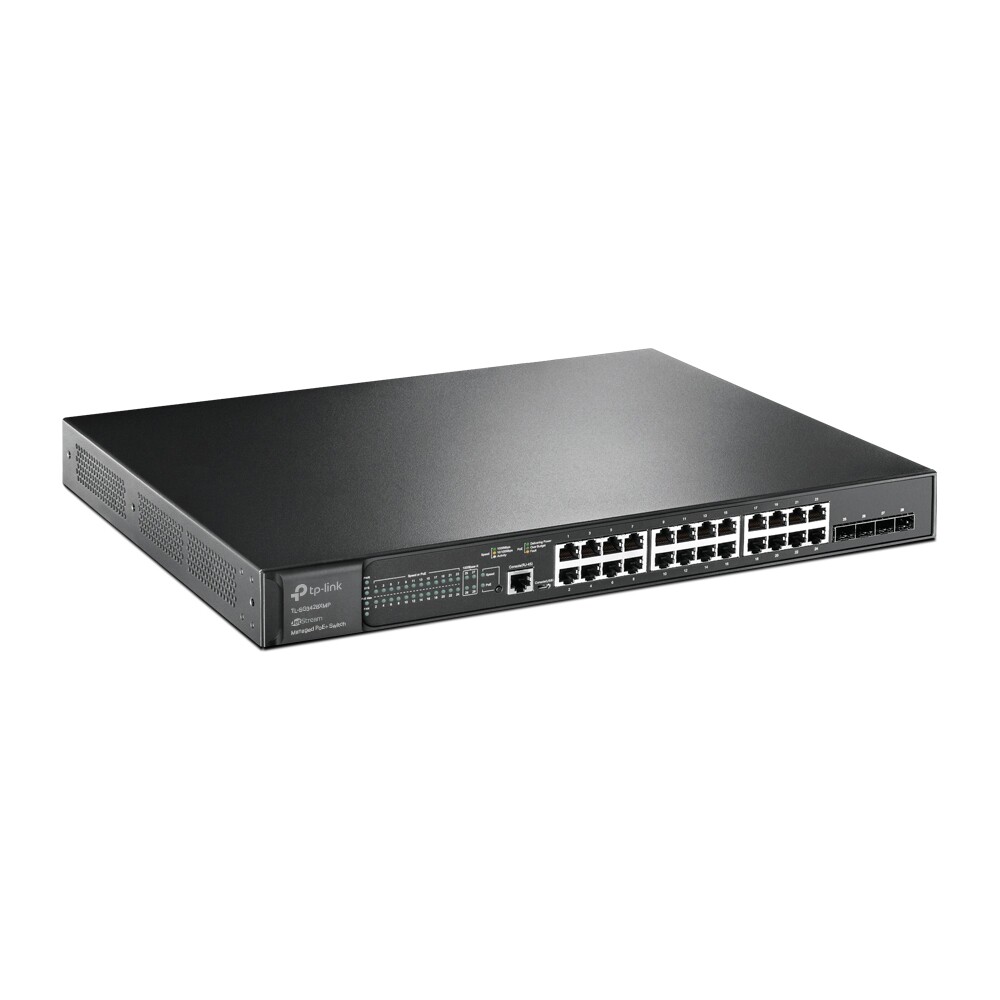

Product details ofTP-LINK TL-SG3428XMP 24 Ports JetStream 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ Desktop Switch
- 10G Lightning-Fast Uplink-4 10GbpsSFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
- PoE+ Output with 500 W Power Budget-48802.3af/atPoE+ gigabit ports with a 500 W power budget for numerous applications and flexible deployment
- Centralized Cloud Management-Integrates intoOmadaSDN for cloud access and remote management
- Abundant L2 and L2+ Features-Supports a complete lineup of L2 and L2+ featuresincluding Static Routing, enterprise-levelQoS, IGMP Snooping, and more
- Robust Security Strategies-Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security,802.1XAuthentication, and more
| Interface | 24 10/100/1000 Mbps RJ45 Ports 4 10G SFP+ Slots 1 RJ45 Console Port 1 Micro-USB Console Port |
|---|---|
| Fan Quantity | 2 |
| Power Supply | 100-240 V AC~50/60 Hz |
| PoE+ Ports(RJ45) | Standard: 802.3at/af compliant PoE+ Ports: 24 Ports, up to 30 W per port Power Budget: 384 W |
| Dimensions ( W x D x H ) | 17.3 13.0 1.7 in (440 330 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 34.4 W (110V/60Hz) ( no PD device connected) 465.8 W (110V/60Hz) ( with 384 W PD device connected) |
| Max Heat Dissipation | 117.38 BTU/h (110 V/60 Hz) (no PD device connected) 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16 K |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | 8 priority queues 802.1p CoS/DSCP priority Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR Bandwidth Control - Port/Flow based Rating Limiting Smoother Performance Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| L2 and L2+ Features | Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect Loopback Detection - Port based - VLAN based Flow Control - 802.3x Flow Control - HOL Blocking Prevention Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both |
| L2 Multicast | IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication IGMP Authentication MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast MVR Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | VLAN Group - Max 4K VLAN Groups 802.1Q Tagged VLAN MAC VLAN: 7 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ Voice VLAN |
| Access Control List | Time-based ACL MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority Combined ACL Packet Content ACL IPv6 ACL Policy - Mirroring - Redirect - Rate Limit - QoS Remark ACL apply to Port/VLAN |
| Security | IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries DoS Defend Static/Dynamic Port Security - Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication andaccountability AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control |
| IPv6 | IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| L3 Features | 16 IPv4/IPv6 Interfaces Static Routing - 48 static routes Static ARP - 128 Static Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay DHCP L2 Relay |
| Management | Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3 - Trap/Inform - RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log |
| Advanced Features | Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning)** |
| MIBs | MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIB |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG3428XMP Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet |
| Environment | Operating Temperature: 045 (32113 ); Storage Temperature: -4070 (-40158 ) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing |
