What's in the box:
1 x TL-SG2424P Switch1 x Power Cord1 x Quick Installation Guide1 x Resource CD1 x Rackmount Kit1 x Rubber Feet

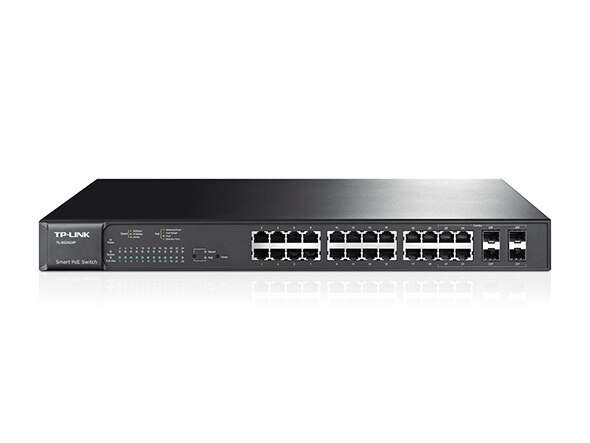

Product details ofTP-LINK TL-SG2424P 24-Port Gigabit Smart PoE+ Switch with 4 Combo SFP Slots Desktop Switch ( T1600G-28PS )
- Supports 24 802.3at/af-compliant POE+ ports with a total power supply of 180W
- Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
| Standards and Protocols | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad, IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q, IEEE 802.1p |
|---|---|
| Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Combo 100/1000Mbps SFP Slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | 3 |
| Power Supply | 100~240VAC, 50/60Hz |
| Power Consumption | Maximum (PoE on): 216W (220V/50Hz) Maximum (PoE off): 36W (220V/50Hz) |
| PoE+ Ports(RJ45) | Standard: 802.3at/af compliant PoE+ Ports: 24 Ports Power Supply: 180W |
| Dimensions ( W x D x H ) | 17.32*13*1.73 in.(440*330*44 mm) |
| PERFORMANCE | |
|---|---|
| Bandwidth/Backplane | 48Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10240 Bytes |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
| L2 Features | IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP LLDP, LLDP-Med BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control |
| VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
| Access Control List | L2L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports Time Range Based |
| Security | SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client,DHCP Filtering CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Switch Power Cord Quick Installation Guide Resource CD Rackmount Kit Rubber Feet |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux. |
| Environment | Operating Temperature: 0~40 (32~104); Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
