What's in the box:
1 x TL-SG2210P1 x Power Cord1 x Quick Installation Guide1 x Rackmount Kit1 x Rubber Feet

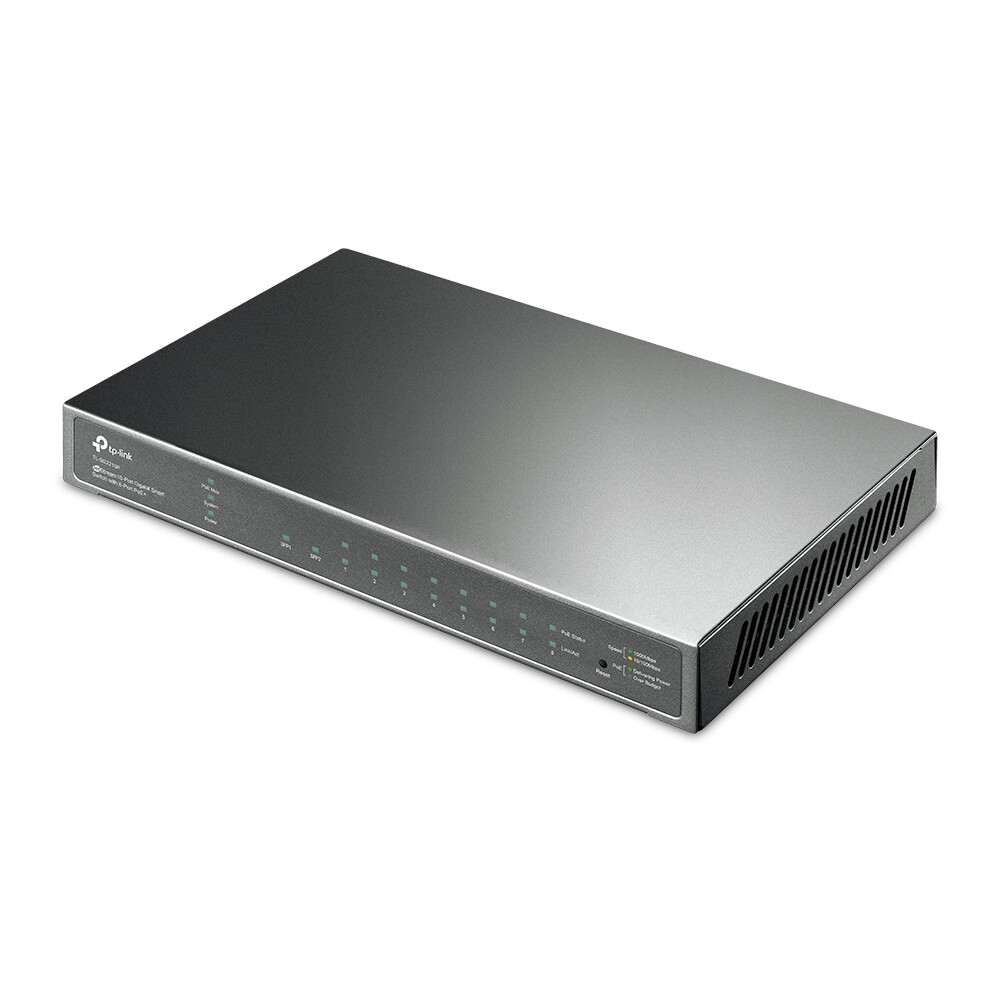

Product details ofTP-LINK TL-SG2210P 10 Ports JetStream Smart Switch with 8-Port PoE+ Desktop Switch
- 61 W PoE Budget: 8802.3af/at-compliant PoE+ ports with a total power supply of 61W*.
- Full Gigabit Ports: 8 gigabit PoE+ ports and2 gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimized Voice and Video Applications: L2/L3/L4 QoS andIGMP snooping.
- Versatile Management:WEB/CLI managed modes, SNMP, and RMON bring abundant management features.
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
|---|---|
| Interface | 8 10/100/1000Mbps RJ45 Ports 2 1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | Fanless |
| Power Supply | 100~240VAC, 50/60Hz External Power Adapter(Output: 54VDC/1.3A) |
| Power Consumption | 10.3W (without POE device connected) 76.5W (with 61W POE devices connected) |
| PoE Ports (RJ45) | Standard: 802.3af/at compliant PoE Ports: 8 Ports Power Supply: 61 W* |
| Dimensions ( W x D x H ) | 8.2 x 4.9 x 1.0 in. (209 x 126 x 26mm) |
| PERFORMANCE | |
|---|---|
| Bandwidth/Backplane | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | 802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control - Port/Flow based Rating Limit Smoother Performance Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | 16 IP Interfaces - Support IPv4/IPv6 Interface Static Routing - 32 IPv4/IPv6 Static Routes DHCP Server DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay DHCP L2 Relay Static ARP Proxy ARP Gratuitous ARP Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect Loopback Detection Flow Control - 802.3x Flow Control Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED |
| VLAN | VLAN Group - Max. 4K VLAN Groups 802.1Q tag VLAN MAC VLAN Protocol VLAN GVRP Voice VLAN |
| Access Control List | Support up to 230 entries Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday Time-based ACL MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS IPv6 ACL Combined ACL Rule Operation - Permit/Deny Policy Action - Mirror - Rate Limit - Redirect - QoS Remark ACL Rules Binding - Port Binding - VLAN Binding Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| Security | AAA 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection IP Source Guard - 253 Entries - Source IP+Source MAC IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC DoS Defend Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control |
| Management | Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System Log |
| MANAGEMENT | |
|---|---|
| Centralized Management | Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| APP support | Yes |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Management Features | Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System Log |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG2210P Power Adapter Installation Guide Rubber Feet |
| Environment | Operating Temperature: 0~40 (32~104); Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
