What's in the box:
1 xTL-SG1008MP1 x installation Guide1 x Power Cord1 x Rackmount Kit1 x Rubber Feet

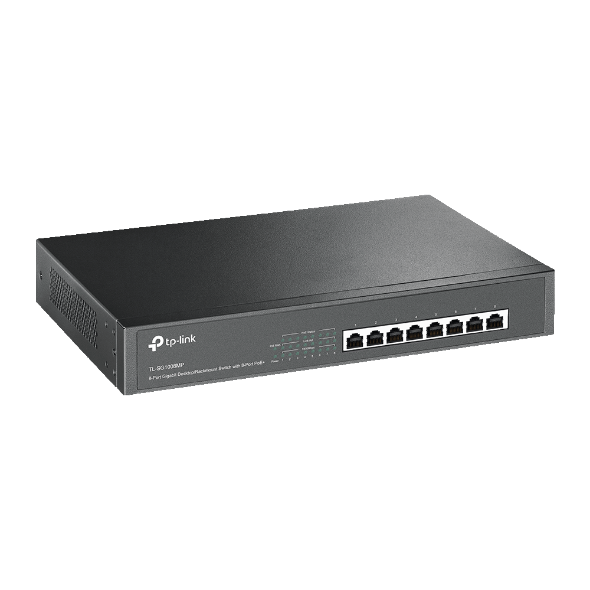

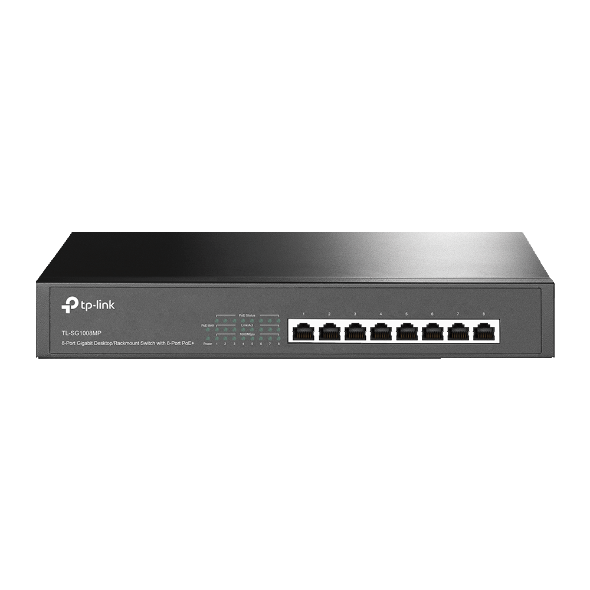

Product details ofTP-LINK TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ Desktop Switch
- 810/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Innovative energy-efficient technology reduces power consumption
- Supports PoE+ standard with total power budget of 153W* and up to 30W per port
- Plug and play design, no configuration required
| Interface | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
|---|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) |
| Fan Quantity | 1 |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Packet Forwarding Rate | 11.904 Mpps |
| PoE+ Ports(RJ45) | Standard: 802.3af/at compliant PoE+ Ports: 8 Ports Power Supply: 153W |
| Mac Address Table | 4K |
| Buffer Size | 1.5Mbits |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16Gbps |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| Mounting | Desktop/Rack Mountable |
| Max Power Consumption | 8.57W(220V/50Hz. no PD connected) 173.65W(110V/60Hz. with 153W PD connected) |
| Max Heat Dissipation | 29.22BTU/h(no PD connected) 592.15BTU/h(with 153W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| Transfer Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
| Environment | Operating Temperature: 0~50 (32~122) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
