What's in the box:
1 x TP-LINK TL-R470T+ 5 Ports Load Balance Broadband Router Desktop Switch1 x Power Cord1 x RJ-45 Ethernet Cable1 x Installation Guide1 x Rack-mount Kit

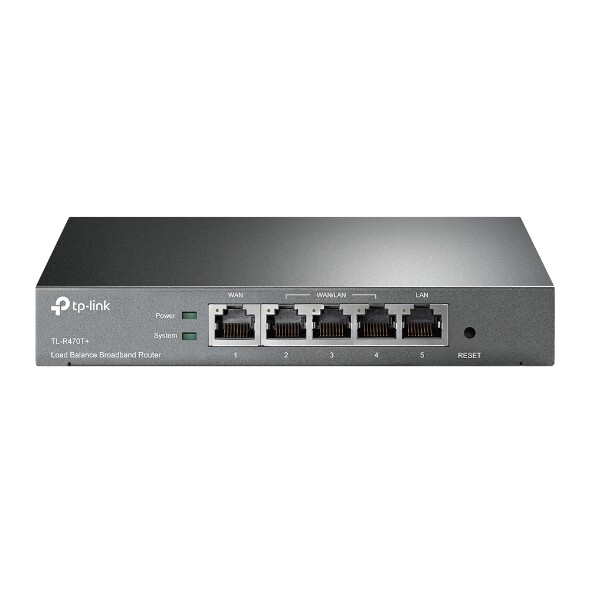

Product details ofTP-LINK TL-R470T+ 5 Ports Load Balance Broadband Router Desktop Switch
- Up to 4 WAN 10/100 ports for multiple Internet connections. Load balancing by bandwidth distribution, by type of application, or simply failover when the main connection is disturbed1
- Web interface portal authentication evaluate and authenticate all the accesses to the Internet for better access and bandwidthmanagement
- Marshals bandwidth resource to specific clients based on their unique application environments
What This Product Does
The TL-R470T+ load balance broadband router is a wise choice for small business. It brings you a high return on investment with low overhead. Featuring three changeable WAN/LAN ports, TL-R470T+ supports up to 4 WAN ports, which can satisfy various Internet access requirements through one device. TL-R470T+ integrates multiple load balancing strategies, advanced QoS and strong firewall to provide you with consistent network uptime and reliable Ethernet connectivity. Moreover, it is easy to manage the TL-R470T+ via a web browser, which makes building and managing your network more convenient.
Three Changeable WAN/LAN Ports
The TL-R470T+ features three changeable ports that can be set to either LAN or WAN, allowing the router to support up to four WAN ports to satisfy various Internet access requirements through one device. The router also has an integrated smart load balancing function which automatically selects the most efficient line according to load and bandwidth requirements, providing users with consistent network uptime and reliable Ethernet connectivity.
Abundant Security Features
For defense against external threats, TL-R470T+ can automatically detect and block Denial of services (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death and other related threats. Moreover, this router provides IP/MAC/URL/WEB filtering functions, which forcefully prevent attacks from intruders and viruses. For applications such as FTP, H.323, SIP, IPsec, and PPTP which are not well compatible with NAT, TL-R470T+ offers administrators one-click enable of ALG choices corresponding to the above five applications.
Efficient Access Management
Web portal authentication inspects and allows all connecting sessions whether from wireor wireless. When the access control works together withIP-based bandwidth control, you can configure the dedicatedbandwidth for certain account.
Safety Minded Enterprise Investments
Professional lightning protection technology2is designed to prevent electrical surges from penetrating the interior of the device, to be discharged harmlessly into the Earth. This router is designed to prevent lightning damage of up to 4KV in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of Mother Natures more violent elements.
Standards and Protocols | IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |
---|---|
Interface | 1 Fixed 10/100 Ethernet WAN Port 1 Fixed 10/100 Ethernet LAN Port 3 Changeable 10/100 Ethernet WAN/LAN Ports |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) |
Button | Reset Button |

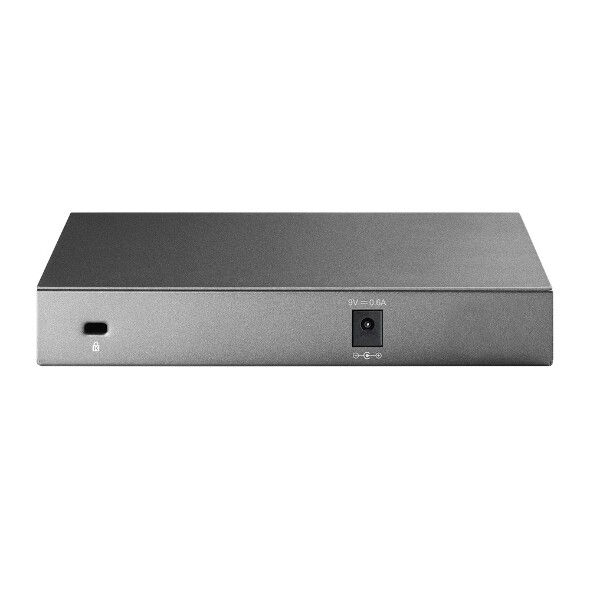

Power Supply | External 9V/0.6A DC Adapter |
Flash | 16MB |
DRAM | 128MB |
LED | PWR, SYS, WAN, LAN, WAN/LAN |
Dimensions ( W x D x H ) | 6.2 4.0 1.0 in. (158 101 25mm) |
PERFORMANCE | |
---|---|
Concurrent Session | 10K |
BASIC FUNCTIONS | |
---|---|
WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
MAC Clone | Modify WAN/LAN MAC Address |
DHCP | DHCP Server/Client, DHCP Address Reservation |
Switch Setting | Rate Control, Port Configuration, Port VLAN |
ADVANCED FUNCTIONS | |
---|---|
ACL | IP/MAC/URL/WEB Filtering |
IGMP | IGMP Proxy/IGMP Snooping |
Forwarding | Virtual Server, Port Triggering, DMZ |
Load Balance | Policy Routing, Link Backup |
Routing | Static Routing |
Security | FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding |
Traffic Control | Bandwidth Control, Session Limit |
MANAGEMENT | |
---|---|
Service | Dynamic DNS, UPnP |
Maintenance | System Time Setting Daylight Saving Time SNMP Diagnostics Firmware Upgrade Factory Defaults/Reboot Backup/Restore System Log Remote Management System Statistics |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TL-R470T+ Power Adapter RJ-45 Ethernet Cable Quick Installation Guide |
Environment | Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
