What's in the box:
1 x TL-POE10R Switch

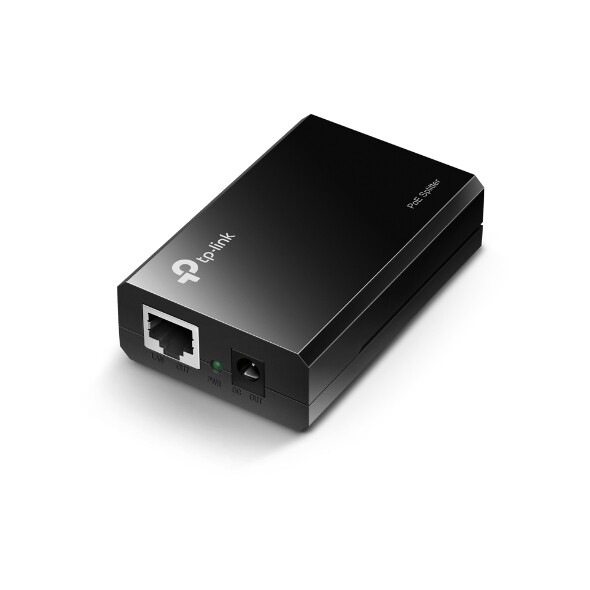

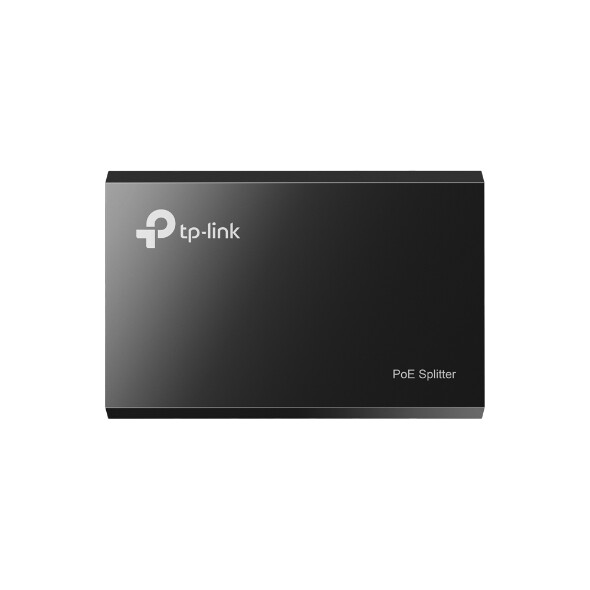

Product details ofTP-LINK TL-POE10R 2 Gigabit ports faster transmission PoE Splitter
- IEEE 802.3af compliant
- Output:12VDC 1A, 9VDC 1A, 5VDC 2A selectable
- Gigabit speed support
- Plug-and-Play, requires no configuration
What This Product Does
The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's T1600G-52PS, TL-SG1008PE or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

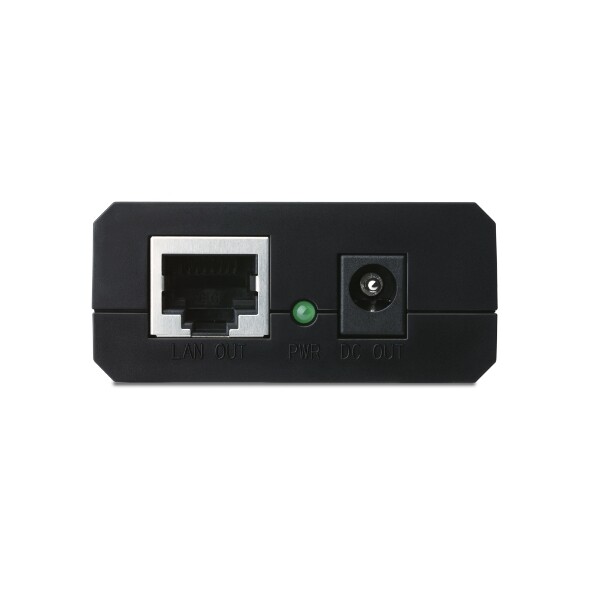

| Interface | 2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 POWER OUTPUT PORT (5.5 mm round barrel) |
|---|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100 STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100 STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |

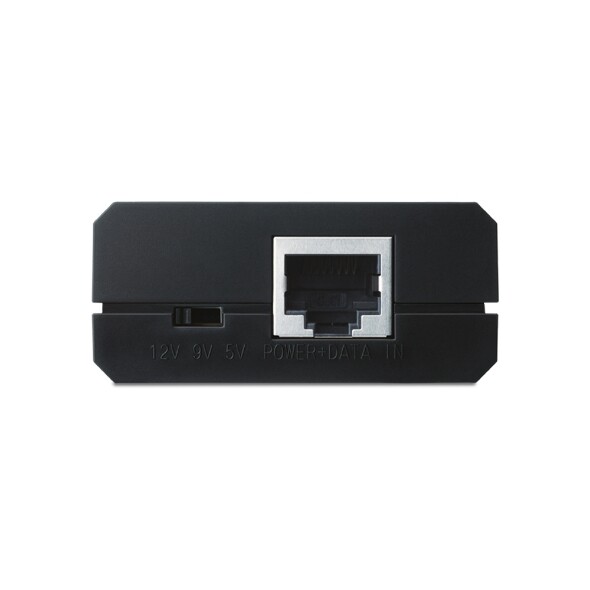

| Power Supply | 12VDC 1A, 9VDC 1A, 5VDC 2A selectable |
| Basic Function | Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Output |
| LED Indicator | PWR |
| Dimensions ( W x D x H ) | 3.2 2.1 0.9 in. (81 54 24 mm) |
| SOFTWARE FEATURES | |
|---|---|
| Basic Function | Compatible with IEEE 802.3af compliant power sources (PSE) Delivers power up to 100 meters Selectable 12VDC, 9VDC or 5VDC power output |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | PoE Splitter TL-POE10R Power Cord RJ45 Cable Installation Guide |
| Environment | Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
