What's in the box:
1 x TL-FC111A-20 Switch

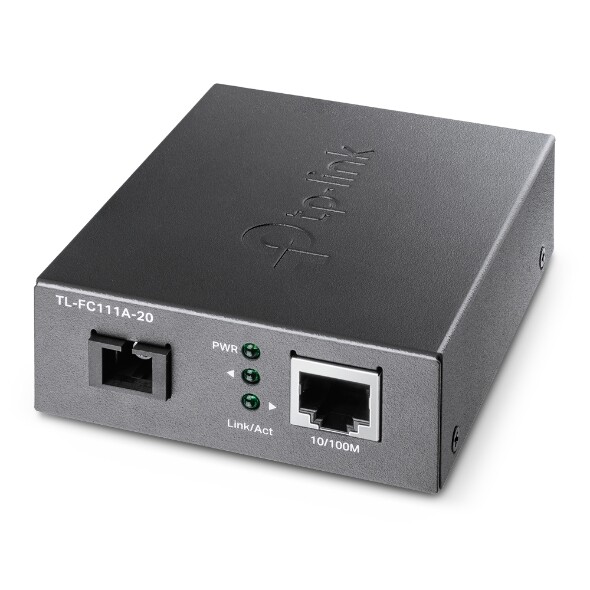

Product details ofTP-LINK TL-FC111A-20 1-PortGigabit 10/100 Mbps WDM Media Converter
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- 9/125 m SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Rangesup to 20km (12.4 miles)
- Work with TL-FC111B-20 as a pair
What This Product Does
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only onefiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair byreceiving data atwavelength1550nm andsending data atwavelength1310nm.
| Standards and Protocols | IEEE802.3, IEEE802.3i, IEEE802.3u |
|---|
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0C to 50C (32F to 122F) |
| Storage Temperature | -40C to 70C (-40F to 158F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 100 Mbps SC Fiber Port 1 10/100 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (100 m) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 94.5*73*27 mm |
| Wave Length | 1550 nm TX, 1310 nm RX |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE802.3u |
| Basic Function | Auto-negotiation of half-duplex / full-duplex transfer mode Full-duplex flow control (IEEE 802.3x) Half-duplex flow control (Backpressure) Extends fiber distance up to 20km (12.4 miles) |
| Ports | 1x 100M single SC/UPC port 1x 10/100M RJ45 port (Auto MDI/MDIX) |
| WDM TX | 1550 nm |
| WDM RX | 1310 nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 2.9 1.1 in. (95 73 27 mm) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| Safety & Emission | FCC, CE, RoHS |
| Fiber Type | 9/125 m single-mode fber (20 km) |
| Environment | Operating Temperature: 0~50 (32~122) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| OTHERS | |
|---|---|
| Package Contents | Media Converter TL-FC111A-20 Power Adapter Installation Guide |
