商品介绍
What's in the box:
1 x T1500G-8T Switch1 x Power Adapter1 x Installation Guide1 x Resource CD1 x Rubber Feet

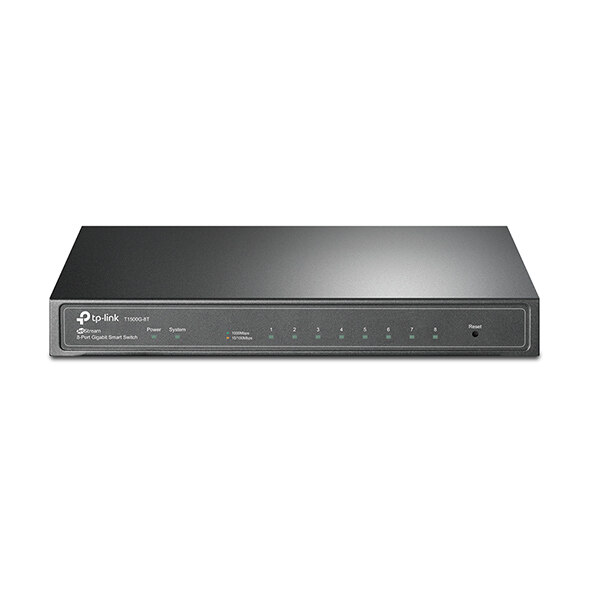

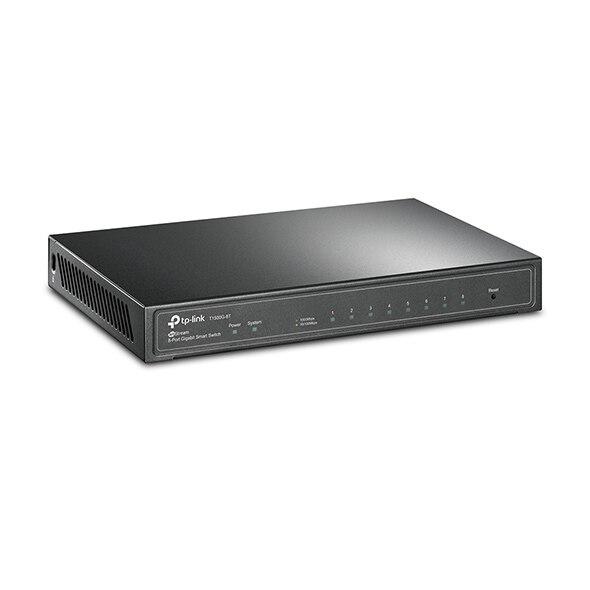

Product details ofTP-LINK T1500G-8T JetStream 8-Port Gigabit Smart Desktop Switch (TL-SG2008)
- Powered by standard 802.3af compliant PoE source or direct DC power supply
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Dual Firmware Image improves reliability and up-time of your network
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE802.3z IEEE 802.3ad IEEE 802.3x IEEE 802.3af PD IEEE 802.1d IEEE 802.1s IEEE 802.1w IEEE 802.1q IEEE 802.1x IEEE 802.1p |
|---|---|

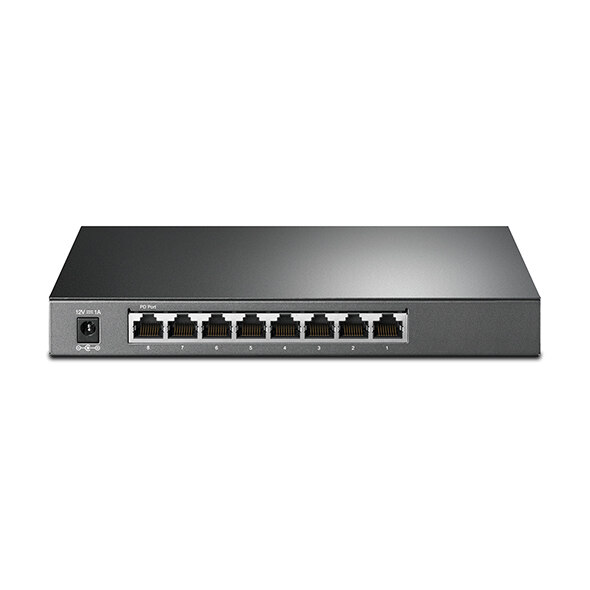

| Interface | 8 10/100/1000Mbps RJ45 Ports Port8 obtain power from PoE source (Auto-Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | 12VDC/1A External Power Adapter or powered by 802.3af PoE |
| PD Port (RJ45) | Port 8 power device port which can power up the switch by IEEE802.3af power source |
| Dimensions ( W x D x H ) | 8.2 x 5.0 x 1.0 in. (209 x 126 x 26 mm) |
| Max Power Consumption | 5.8W |
| Max Heat Dissipation | 19.6 BTU/h |
| PERFORMANCE | |
|---|---|
| Bandwidth/Backplane | 16Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 9216 Bytes |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | 802.1p CoS/ DSCP priority 8 priority queues Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control - Port/Flow based Rating Limit Smoother Performance Actions for flows - Mirror(to supported interface) - Redirect(to supported interface) - Rate Limit - QoS Remark Storm Control - Multiple Control Modes(kbps/ratio/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | Link Aggregation - static link aggregation - Up to 8 aggregation groups and up to 8 ports per group - 802.3ad LACP Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect Loopback Detection Flow Control - 802.3x Flow Control Mirroring - Port Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both - CPU Mirroring Device Link Detect Protocol(DLDP) |
| L2 Multicast | 512 IPv4,IPv6 shared multicast groups IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication - Static Group Config MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config Multicast VLAN Registration Multicast Filtering |
| IPv6 Support | IPv6 Dual IPv4/IPv6 Multicast Listener Discovery(MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| VLAN | VLAN Group - Max. 4K VLAN Groups 802.1Q tag VLAN MAC VLAN Protocol VLAN GVRP Voice VLAN |
| Access Control List | Support up to 230 entries Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday Time-based ACL MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS IPv6 ACL Combined ACL Rule Operation - Permit/Deny Policy Action - Mirror - Rate Limit - Redirect - QoS Remark ACL Rules Binding - Port Binding - VLAN Binding |
| Security | AAA 802.1X - Port based authentication - MAC(Host) based authentication - Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP - MAB - Guest VLAN - Support Radius authentication and accountability IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection IP Source Gurad - 253 Entries - Source IP+Source MAC IPv6 Source Gurad - 183 Entries - Source IPv6 Address+Source MAC DoS Defend Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control - kbps/ratio/pps control mode Port Isolation Secure web management through HTTPS with SSLv3/TLS1.0 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control |
| Management | Web-based GUI and CLI management SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE System Log 802.1ab LLDP/ LLDP-MED |
| MIBs | MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | T1500G-8T Power Adapter Installation Guide Resource CD Rubber Feet |
| Environment | Operating Temperature: 0~40 (32~104); Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
送货资讯
| 区域 | 重量 | 运费 (RM) |
|---|---|---|
| West Malaysia | 首 1.00 kg | 7.00 |
| 额外 1.00 kg | 1.30 | |
| East Malaysia | 首 1.00 kg | 14.40 |
| 额外 1.00 kg | 13.00 |
