What's in the box:
1 x Wi-Fi Router EAP610-Outdoor1 x Passive PoE Adapter1 x Power Cord1 x Mounting Kits1 x Waterproof Kits1 x Waterproof Antenna1 x Installation Guide

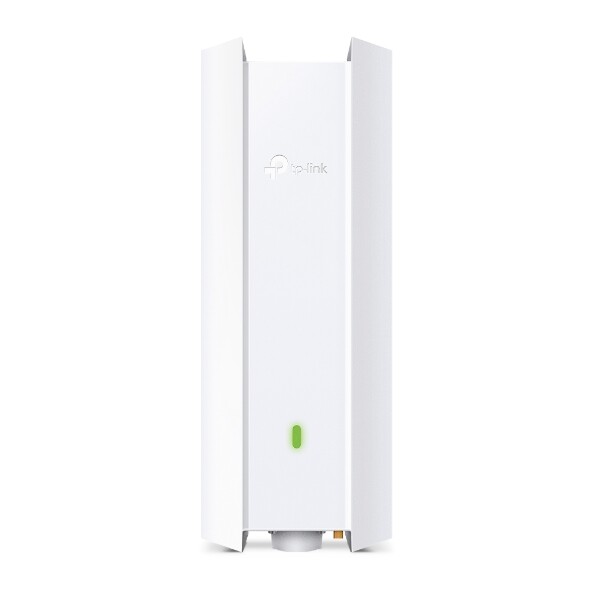

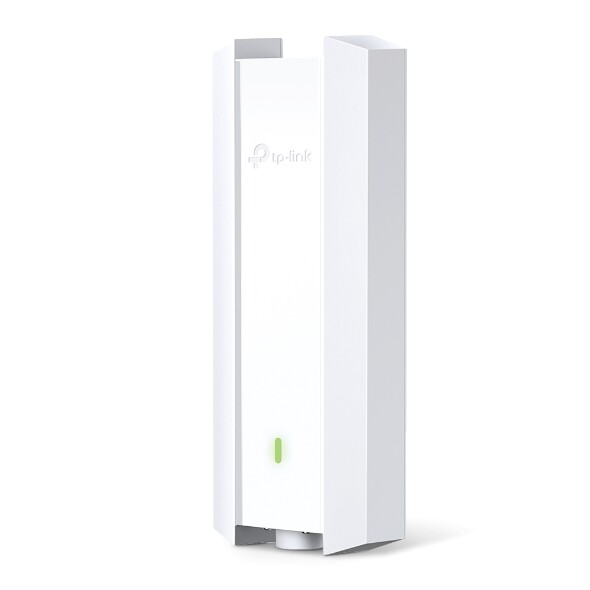

Product details ofTP-Link EAP610-Outdoor AX1800 Omada Indoor/Outdoor WiFi Router - WiFi 6 , Dual Band , Access Point
- Superior WiFi 6 Speeds:Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology
- Higher Network Efficiency:Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
- Long-Range Coverage:Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
- Omada Mesh Technology:Enables wireless connectivity between access points for extended range and flexible deployment**
- Stay Smooth with Fast Roaming:Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points**
- Centralized Cloud Management:Integrates into Omada SDN for cloud access and remote management

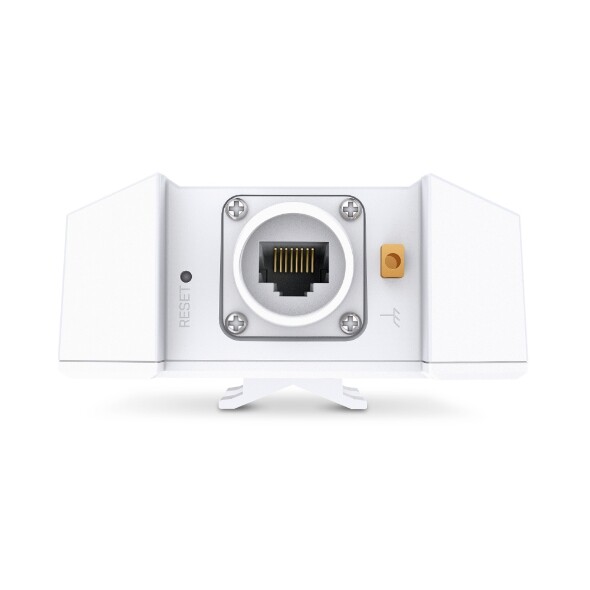

| Interface | 1 Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) |
|---|---|
| Button | Reset |
| Power Supply | 802.3at PoE 48V/0.5A Passive PoE (PoE Adapter Included) |
| Power Consumption | 12.5 W for PoE 10 W for DC |
| Dimensions ( W x D x H ) | 280.4106.556.8 mm (without antenna & mounting kit) |
| Antenna | 2.4 GHz: 2 4 dBi 5 GHz: 2 5 dBi |
| Weatherproof Enclosure | IP67 |
| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) 802.11ac: 5G:6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Transmit Power | CE: <15 dBm (2.4 GHz, EIRP), <22 dBm(5 GHz, EIRP) FCC: <22 dBm (2.4 GHz), <22 dBm(5 GHz) |
| Wireless Functions | 1024-QAM 4 Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) MU-MIMO Omada Mesh Seamless Roaming Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Access Point EAP610-Outdoor Passive PoE Adapter Power Cord Mounting Kits Waterproof Kits Waterproof Antenna Installation Guide |
| Environment | Operating Temperature: -3070 (-22158 ) Storage Temperature: -4070 (-40158 ) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing |
