What's in the box:
1 x Wi-Fi Router EAP2251 x Gigabit Passive PoE Adapter1 x Power Cord1 x Mounting Kit1 x Installation Guide

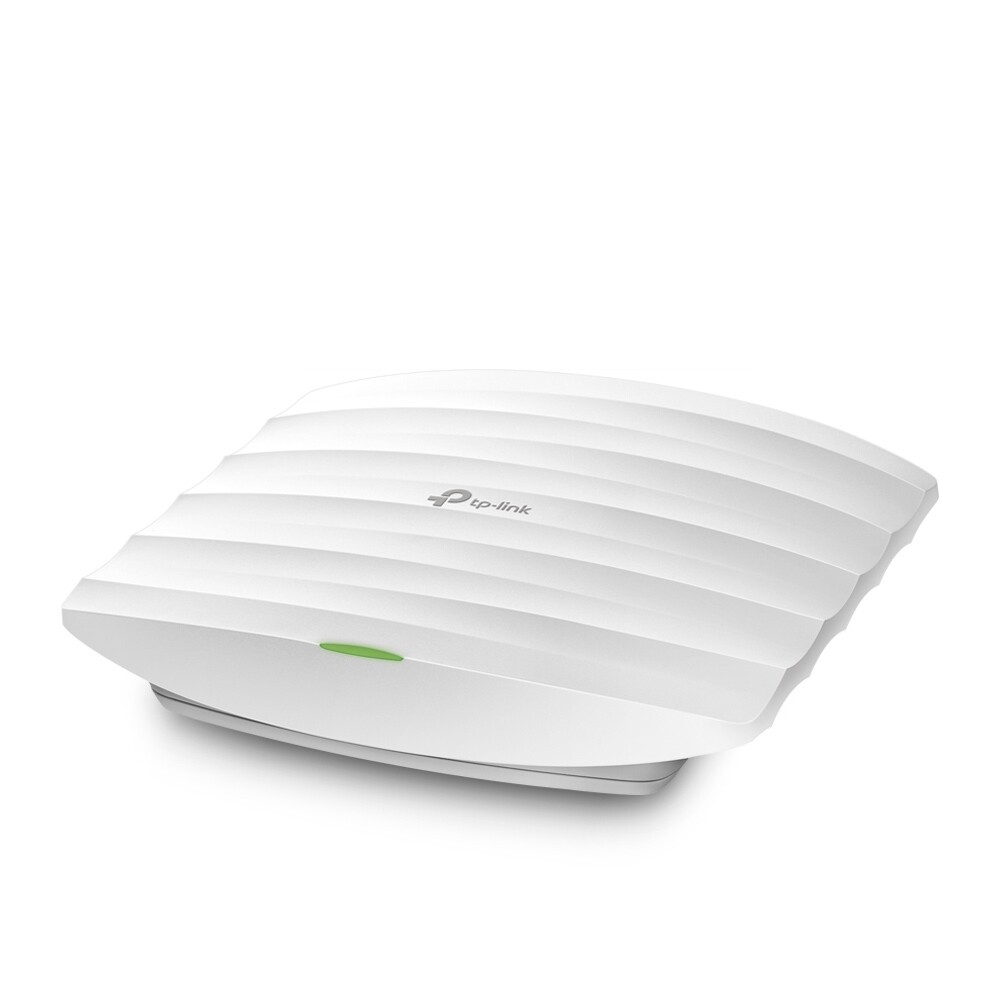

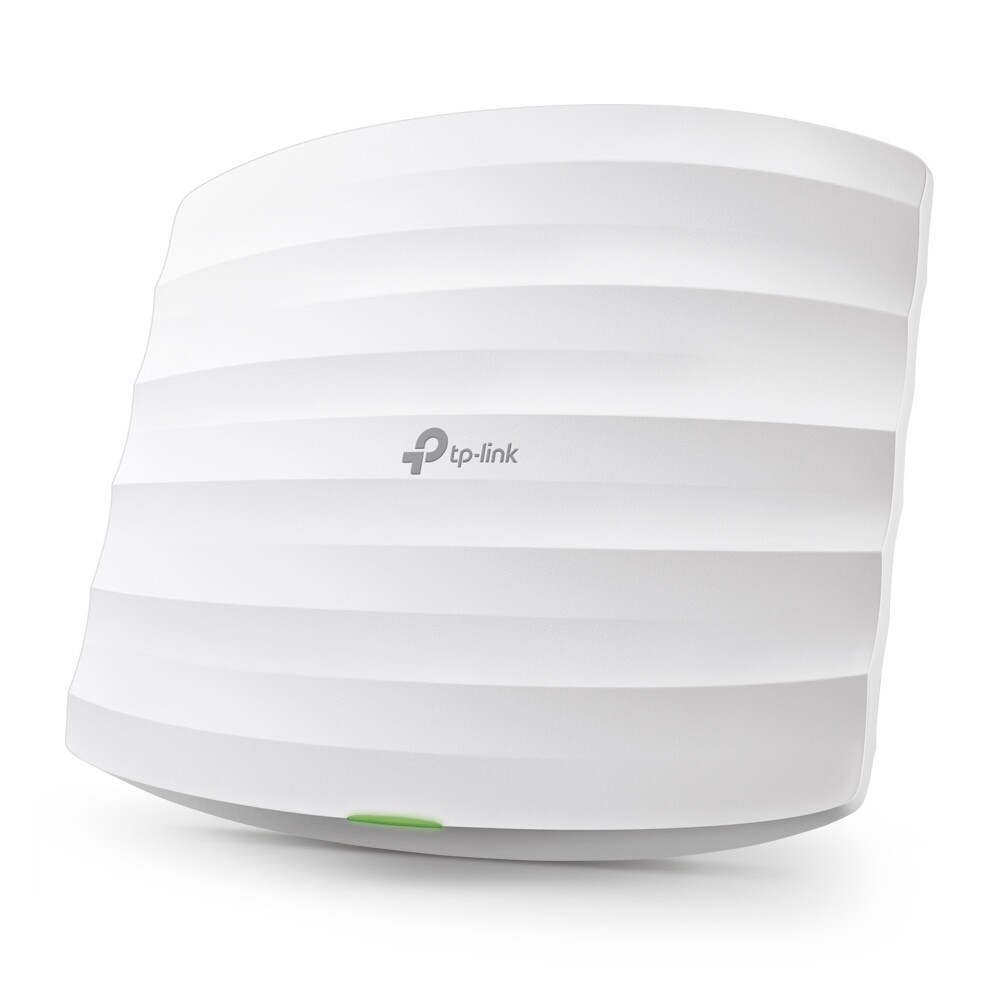

Product details ofTP-Link EAP225 AC1350 Wireless Dual Band MU-MIMO Gigabit Ceiling Mount Access Point - Dual Band , Access Point
- Fast Dual-Band Wi-Fi:Simultaneous 450 Mbps on 2.4 GHzand 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
- PoESupport: Support bothstandard 802.3af/at and Passive PoE (PoE adapter included)for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

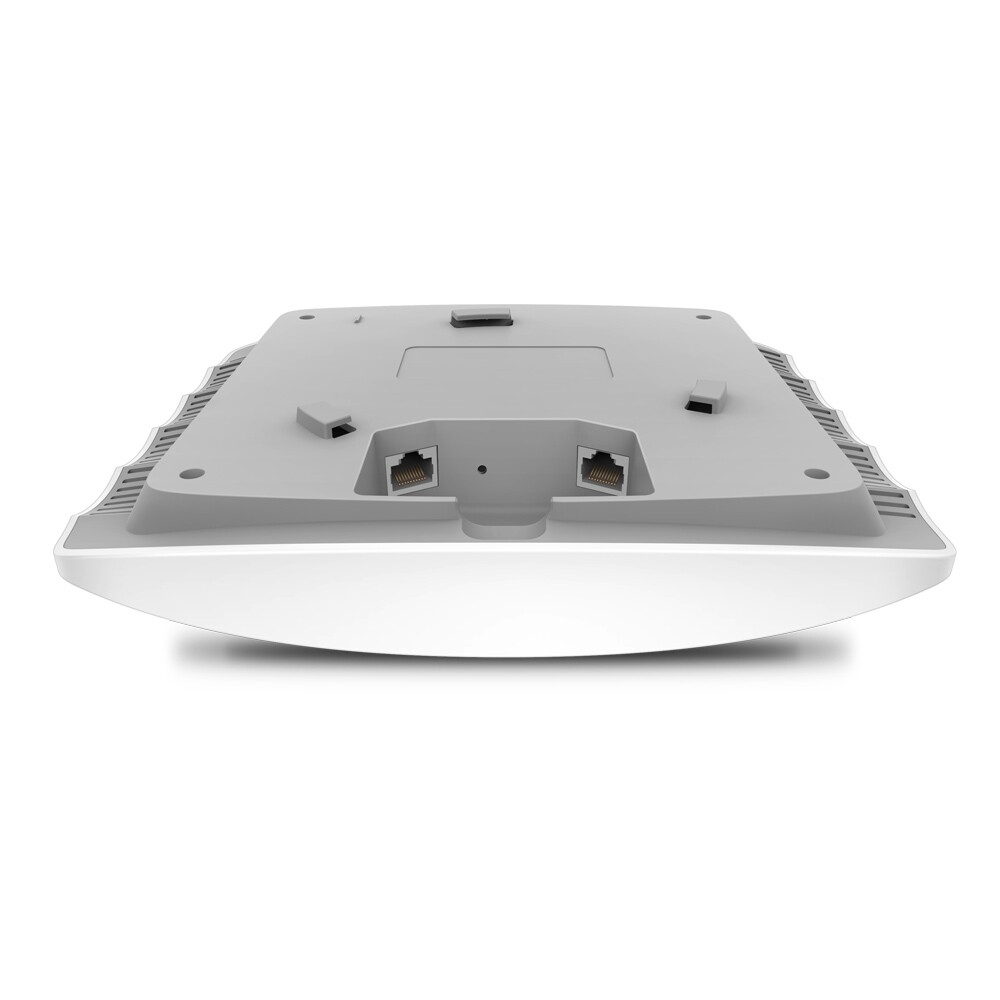

| Interface | Gigabit Ethernet (RJ-45) Port1 (Support IEEE802.3af PoE and Passive PoE) |
|---|---|
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | EU: 10.5 W US: 12.6 W |
| Dimensions ( W x D x H ) | 8.1 7.1 1.5 in (205.5 181.5 37.1 mm) |
| Antenna Type | 3 Internal Omni 2.4 GHz: 4 dBi 5 GHz: 5 dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz:Up to 867 Mbps 2.4 GHz:Up to 450 Mbps |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Seamless Roaming* Omada Mesh* Band Steering Load Balance MU-MIMO Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication* Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Transmission Power | CE: 20 dBm(2.4 GHz, EIRP) 23 dBm(5 GHz, EIRP) FCC: 24 dBm(2.4 GHz) 22 dBm(5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 Passive PoE Adapter Power Cord Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Environment | Operating Temperature: 040 (32104 ) Storage Temperature: -4070 (-40158 ) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing |
