What's in the box:
Piston Set x 1set

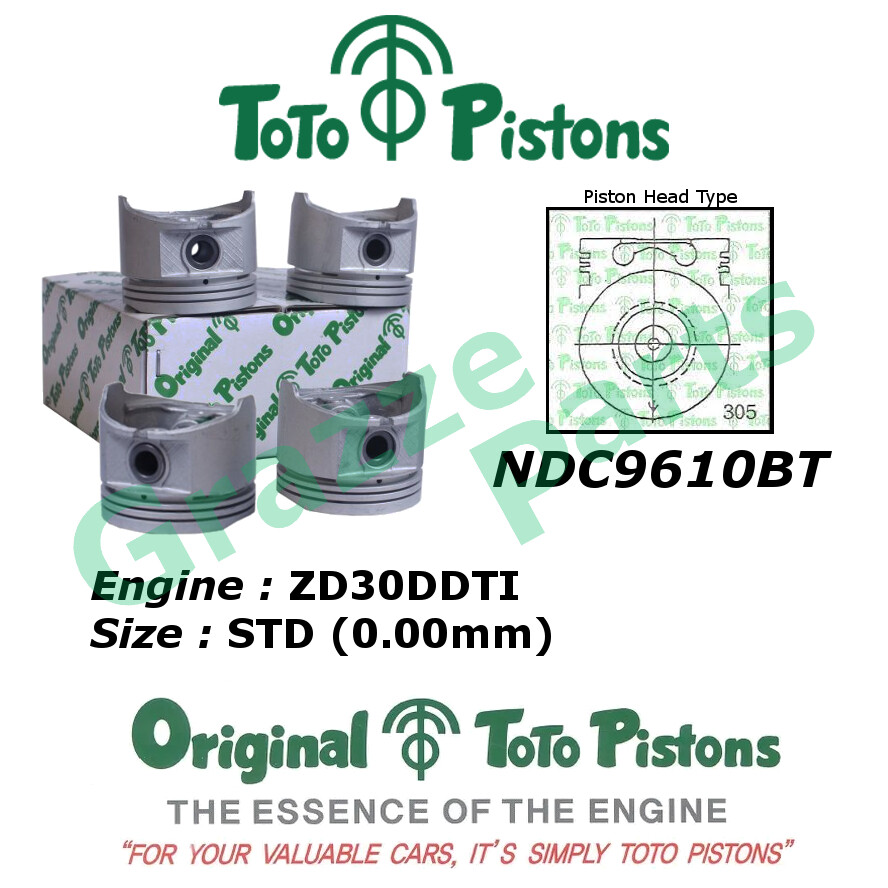

TOTO Piston Set STD Size (0.00mm) NDC9610BT for Nissan Urvan E25 3.0 ZD30 ZD30T ZD30DD ZD30DDTI (96.0mm)
100% TOTO Pistons Japan
Best Quality Product
We have distributed many types of model
Price quoted for 1set
One car require for 1set
Please verify the sizes that you required against the published size to ensure the correct product is being ordered as below :
Piston size below :
No. of Pistons/Cylinders: 4
A : Cylinder Bore Diameter : 96.0mm
C : Compression Height : 50.1mm
+ / - : Height of Dome / Depth of Dish : -9.6mm / -19.6mm
Piston Ring Paired size below :
1st : 96.0 × 2.5 × 3.7
2nd : 96.0 × 2.0 × 4.0
Oil : 96.0 × 2.0 × 2.75
Piston Pin size below :
Diameter : 33.0mm
Lenght : 78mm
Cross Reference :
12010-VK600
12010-VK610
12010-VX201
12010-VX211
Engine :
ZD30 ZD30T ZD30DD ZD30DDTI
Low per-mile cost makes TOTO PISTONS the most economical pistons available. They are designed, engineered and manufactured to give hundreds of thousands of miles of satisfactory performance.
They are made from the finest aluminium alloy available. Thos alloy has a silicon base, giving lower coefficiency of expansion than other alloys used in pistons.
TOTO PISTONS also features a surface treatment which assures a smoother sunning engine, better lubricated cylinder walls and freedom from cold-start scuffing.
TOTO PISTONS are designed with a rugged internal construction – a sturdy piston which will give exceptional service.
