Overview
This is an electronic magnetic lock, which can be installed through the install magnet and install armature plate. Made of metal material, dedicated to access control.

Features:
Use magnetic power to lock the door, 180kgs(350lbs) holding force.
Secure NC Mode: Locked when power on, unlocked when power off.
Made of metal material, corrosion-resistant, high-quality and durable.
It can be open by push the botton, remote control, etc.(Not included)
Suitable for wooden doors, metal doors, glass doors,fireproof doors, etc.

Note:

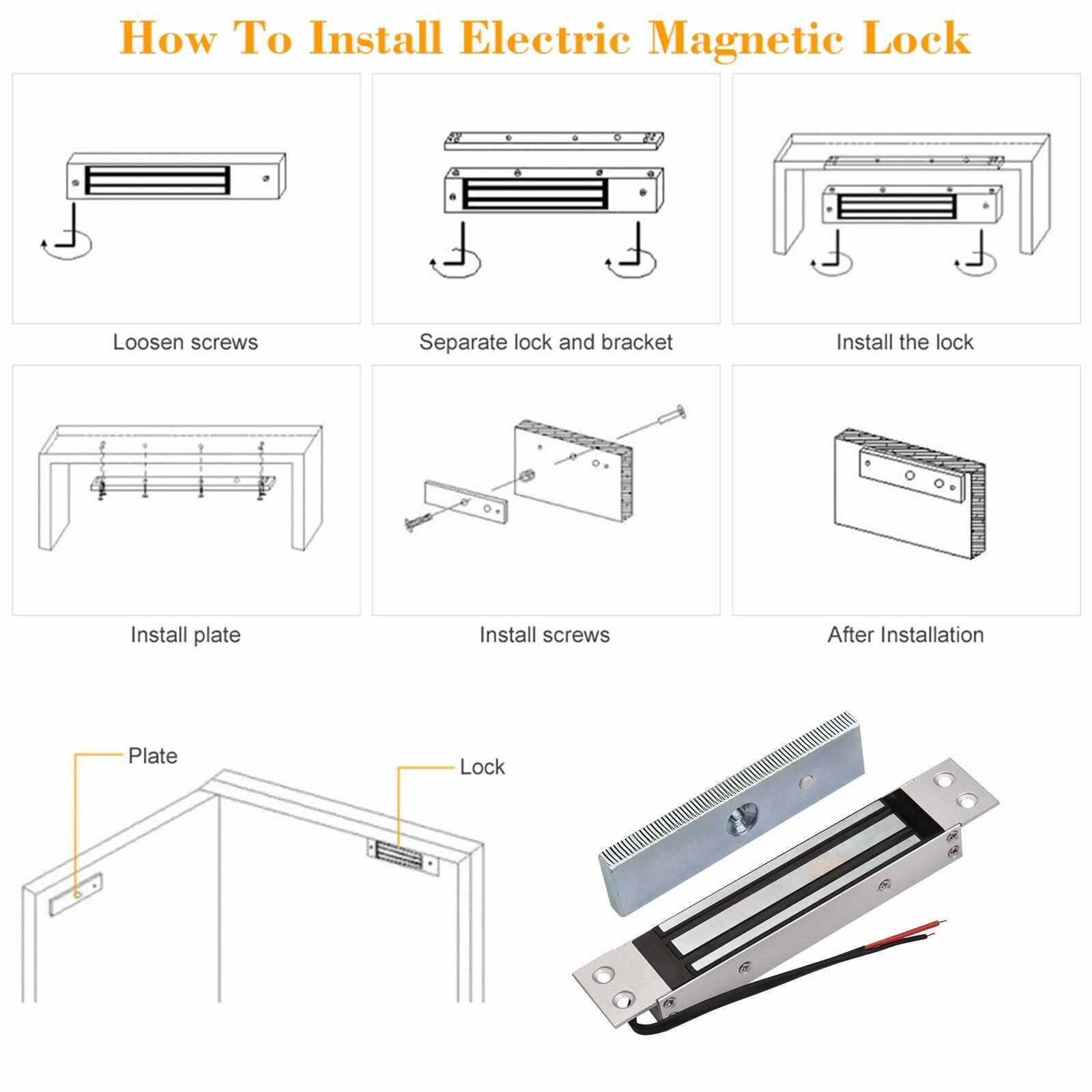

Do not to screw the armature plate too tightly, and leave the rubber washer more flexible so taht the armature plate can be automatically adjusted to the proper position with the magnetic lock.

Specifications:
Type: Electromagnetic Lock
Model: AD-180AB
Material: Metal
Typical Installation: Flushing Mount, Hanging
Holding Force: 180kgs
Voltage: DC 12V
Working Current: 320mA
Working Mode: Power-on to Lock, Power-off to Open
Lock Size: 19.3*3.8*2.8cm/7.60*1.50*1.10in
Lock Weight: 503.5g/5.03oz
Plate Size: 13*3.5*1.4cm/5.12*1.38*0.55in
Plate Weight: 142.7g/20.25oz
Package Size: 21*6*6cm/8.27*2.36*2.36in
Package Weight: 969g/34.18oz

Packing List:
1* Electric Magnetic Lock
1* Armature Plate
1* Set of Installation Accessories
1* User Manual
1* Size Sticker
