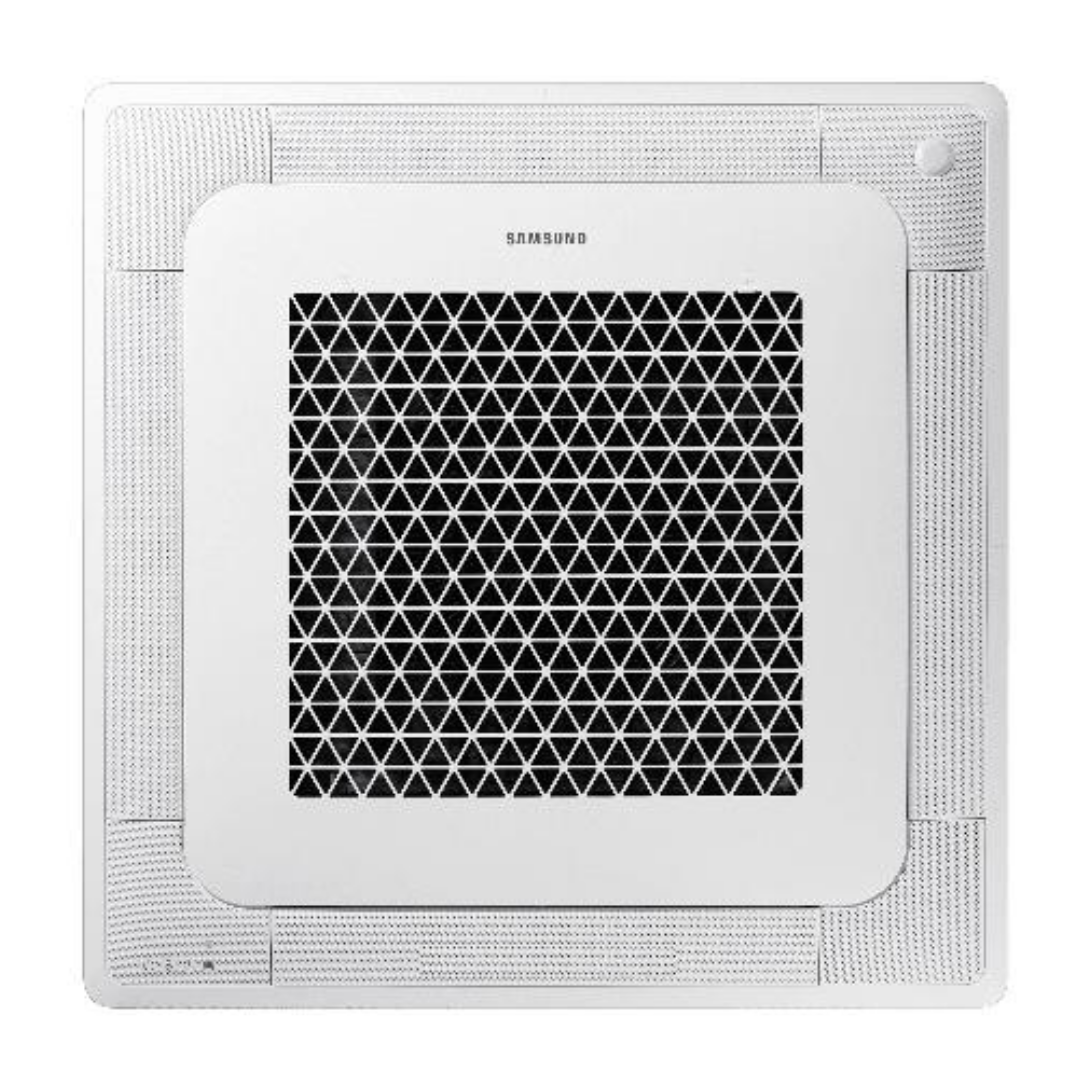

AC052TN4DKC

• Nominal Cooling Capacity (BTU/hr) - 17000
• Cooling Capacity (Min - Max, BTU/hr) - 3,410/17,000/20,470
• Cooling Capacity (kW) - 5
• Cooling Capacity (Min - Max, kW) - 1.0 / 5.0 / 6.0
• EER/COP (W/W) - 3.55
• Air Circulation (Max, m/min) - 16.9
• Noise Level (Indoor, High / Low, dBA) - 35/33/31
• Operating Current (Cooling, A) - 1.5/6.7/9.5
• Power Consumption (Cooling, W) - 0.33/1.41/2.1 kW
• Power Source (V/Hz/) - 220~240 / 50 /1
• Net Dimension (Indoor, mm) - 840 x 204 x 840
• Gross Dimension (Indoor, mm) - 898 275 x 898
• Net Weight (Indoor, kg) - 14.5
• Gross Weight (Indoor, kg) - 17.5
• Piping Length (Max, m) - 30
• Piping Height (Max, m) - 20
• Refrigerant Type - R410A
• Refrigerant Charge (kg) - 1.3
• SVC Valve (Liquid, Outer Diameter, mm) - 6.35
• SVC Valve (Gas, Outer Diameter, mm) - 12.7

AC052TXADKC

• 5.2kW Single Phase Inverter Cooling Only
• Nominal Cooling Capacity (BTU/hr - 17000
• Cooling Capacity (Min - Max, BTU/hr) - 5,120/17,000/20,470
• Cooling Capacity (kW) - 5
• Cooling Capacity (Min - Max, kW) - 1.5 / 5.0 / 6.0
• Noise Level (Outdoor, High, dBA) - 50
• Power Source (V/Hz/) - 220~240 / 50 /1
• Net Dimension (Outdoor, mm) - 880 x 638 310
• Gross Dimension (Outdoor, mm) - 1023 x 730 x 413
• Net Weight (Outdoor, kg) - 40.5
• Gross Weight (Outdoor, kg) - 43.5
• Piping Length (Max, m) - 30
• Piping Height (Max, m) - 20
• Refrigerant Type - R410A
• Refrigerant Charge (kg) - 1.3
• SVC Valve (Liquid, Outer Diameter, mm) - 6.35
• SVC Valve (Gas, Outer Diameter, mm) - 12.7

• Nominal Cooling Capacity (BTU/hr) - 24000
• Cooling Capacity (Min - Max, BTU/hr) - 7,510/24,000/29,000
• Cooling Capacity (kW) - 7.1
• Cooling Capacity (Min - Max, KW) - 2.2 / 7.1 / 8.5
• EER/COP(W/W) - 3.25
• Air Circulation (Max, m3/min) - 20.8
• Noise Level (Indoor, High / Low, dBA) - 40/36/32
• Operating Current (Cooling, A) - 2.0/10.1/16.0
• Power Consumption (Cooling, W) - 0.35/2.185/3.6 kW
• Power Source (V/HZ/Q) - 220~240 / 50 /1
• Net Dimension (Indoor, mm) - 840 x 204 x 840
• Gross Dimension (Indoor, mm) - 898 275 x 898
• Gross Dimension (Indoor, mm) - 898 275 x 898
• Net Weight (Indoor, kg) - 14.5
• Gross Weight (Indoor, kg) - 17.5
• Piping Length (Max, m) - 50
• Piping Height (Max, m) - 30
• Refrigerant Type - R410A
• Refrigerant Charge (kg) - 2.0
• SVC Valve (Liquid, Outer Diameter, mm) - 6.35
• SVC Valve (Gas, Outer Diameter, mm) - 15.88

• Nominal Cooling Capacity (BTU/hr) - 21000
• Cooling Capacity (Min - Max, BTU/hr) - 6,140/21,000/26,610
• Cooling Capacity (kW) - 6.7
• Cooling Capacity (Min - Max, kW) - 1.8 / 6.1 / 7.8
• Air Circulation (Max, m3/min) - 76.0
• Noise Level (Outdoor, High, dBA) - 50
• Power Source (V/Hz/Q) - 220~240 / 50 /
• Net Dimension (Outdoor, mm) - 880 x 798 310
• Gross Dimension (Outdoor, mm) - 1023 881 x 413
• Net Weight (Outdoor, kg) - 52.5
• Gross Weight (Outdoor, kg) - 56.5
• Piping Length (Max, m) - 50
• Gross Dimension (Outdoor, mm) - 1023 881 x 413
• Net Weight (Outdoor, kg) - 52.5
• Gross Weight (Outdoor, kg) - 56.
• Piping Length (Max, m) - 50
• Piping Height (Max, m) - 30
• Refrigerant Type - R410A
• Refrigerant Charge (kg) - 2.0
• SVC Valve (Liquid, Outer Diameter, mm) - 6.35
• SVC Valve (Gas, Outer Diameter, mm) - 15.88

• Nominal Cooling Capacity (BTU/hr) - 34000
• Cooling Capacity (Min - Max, BTU/hr) - 10,240/34,000/40,940
• Cooling Capacity (kW) - 10
• Cooling Capacity (Min - Max, kW) - 3.0 / 10.0 /12.0
• EER/COP (W/W) - 3.2
• Air Circulation (Max, m3/min) - 30.3
• Noise Level (Indoor, High / Low, dBA) - 43/38/33
• Operating Current (Cooling, A) - 3.0/14.8/20.4
• Power Consumption (Cooling, W) - 0.6/3.125/4.7 kW
• Power Source (V/Hz/) - 220~240 / 50 /1
• Net Dimension (Indoor, mm) - 840 x 288 x 840
• Gross Dimension (Indoor, mm) - 898 357 898
• Net Weight (Indoor, kg) - 20
• Gross Weight (Indoor, kg) - 23.5
• Piping Length (Max, m) - 50
• Piping Height (Max, m) - 30
• Refrigerant Type - R410A
• Refrigerant Charge (kg) - 3.0
• SVC Valve (Liquid, Outer Diameter, mm) - 9.52
• SVC Valve (Gas, Outer Diameter, mm) - 15.88
• ACTOOTXADKC
