Capacity

• Capacity (Cooling, Btu/hr)11500 Btu/hr
• Capacity (Cooling, kW)3.370 kW

Energy Efficiency

• EER (Cooling, W/W)3.20 W/W
• EER (Cooling, Btu/hW)10.92 Btu/hW
• CSPF3.55
• Energy Star Rating (Cooling)3 Star

Noise Level

• Noise Level (Indoor, High/Low, dBA)38/27 dBA
• Noise Level (Outdoor, High/Low, dBA)51 dBA

Electrical Data

• Power Source(/V/Hz)1 / 220-240 / 50
• Power Consumption(Cooling, W)1053 W
• Operating Current(Cooling, A)4.8 A

Physical specification

• Gross Dimension (Indoor, WxHxD)870x270x365 mm
• Gross Dimension (Outdoor, WxHxD)900x345x595 mm
• Net Dimension (Indoor, WxHxD)805x194x285 mm
• Net Dimension (Outdoor, WxHxD)770x300x555 mm
• Gross Weight (Indoor, kg)11.20 kg
• Gross Weight (Outdoor, kg)30.50 kg
• Net Weight (Indoor, kg)8.80 kg
• Net Weight (Outdoor, kg)28.20 kg
• Loading Quantity (20/40/40Hft without Pipe)110/227/244

Technical Information

• Piping Length (Max, m)20 m
• Piping Height (Max, m)8 m
• SVC Valve (Liquid (ODxL))6.35
• SVC Valve (Gas (ODxL))12.7
• Moisture Removal (l/hr)1.20 l/hr
• Air Circulation (Cooling, /min)9.20 /min
• Refrigerant (Type)R32
• Low Ambient (Cooling, )18~43
• Outdoor Unit (Compressor Type)ROTARY

Air Flow

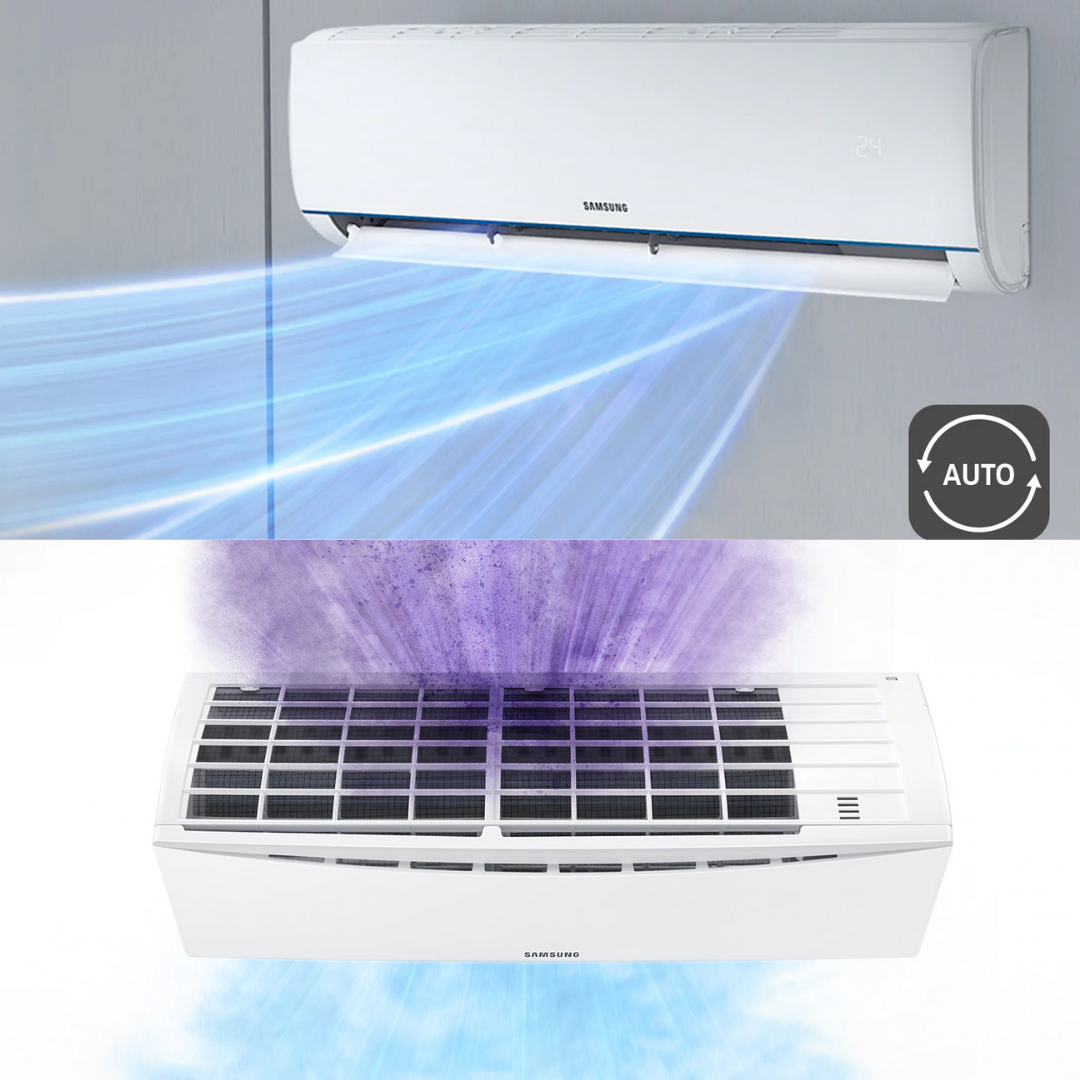

• Air Direction Control (Up/Down)Auto
• Air Direction Control (Left/Right)Manual
• Air Flow Control Step (Cool/Fan)3 / 3

Convenience

• Indoor Temp. DisplayYes
• Display On/OffYes
• Beep On/OffYes
• 24-Hour TimerYes
• Auto RestartYes

Operating Mode

• Auto ModeYes
• Fast CoolYes
• Good SleepYes
• DehumidificationYes
• Fan ModeYes

Smart

• WiFi EmbeddedNo
