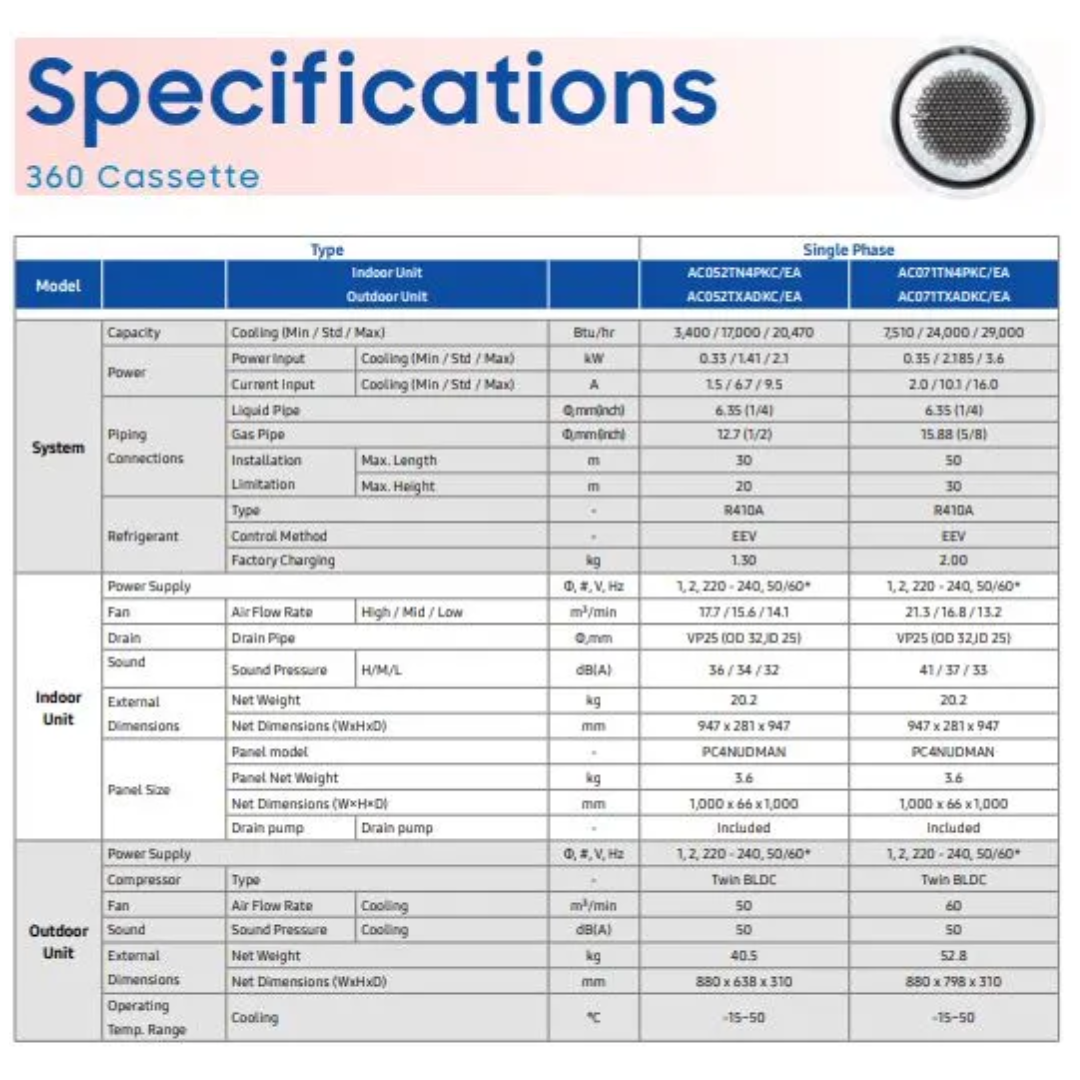

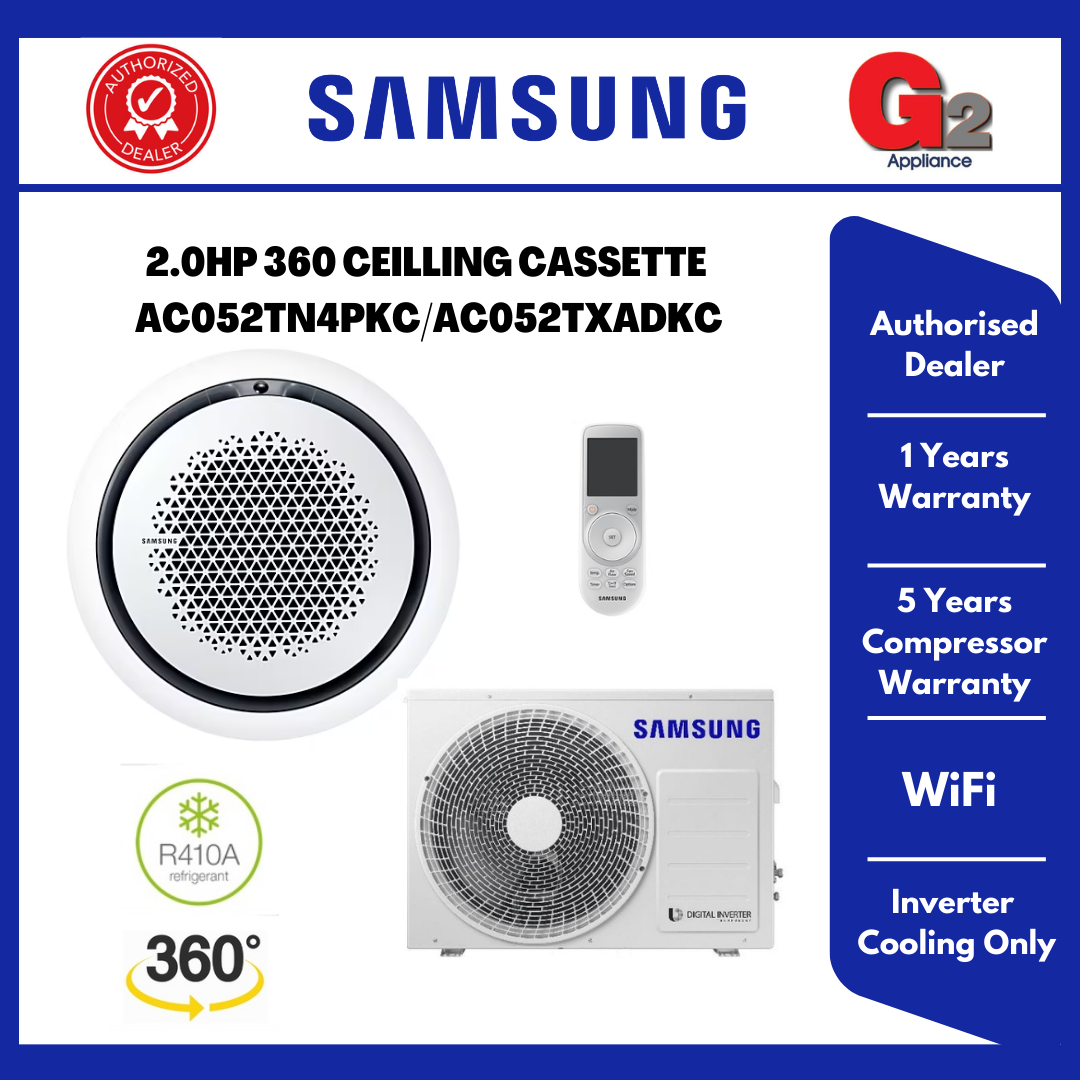

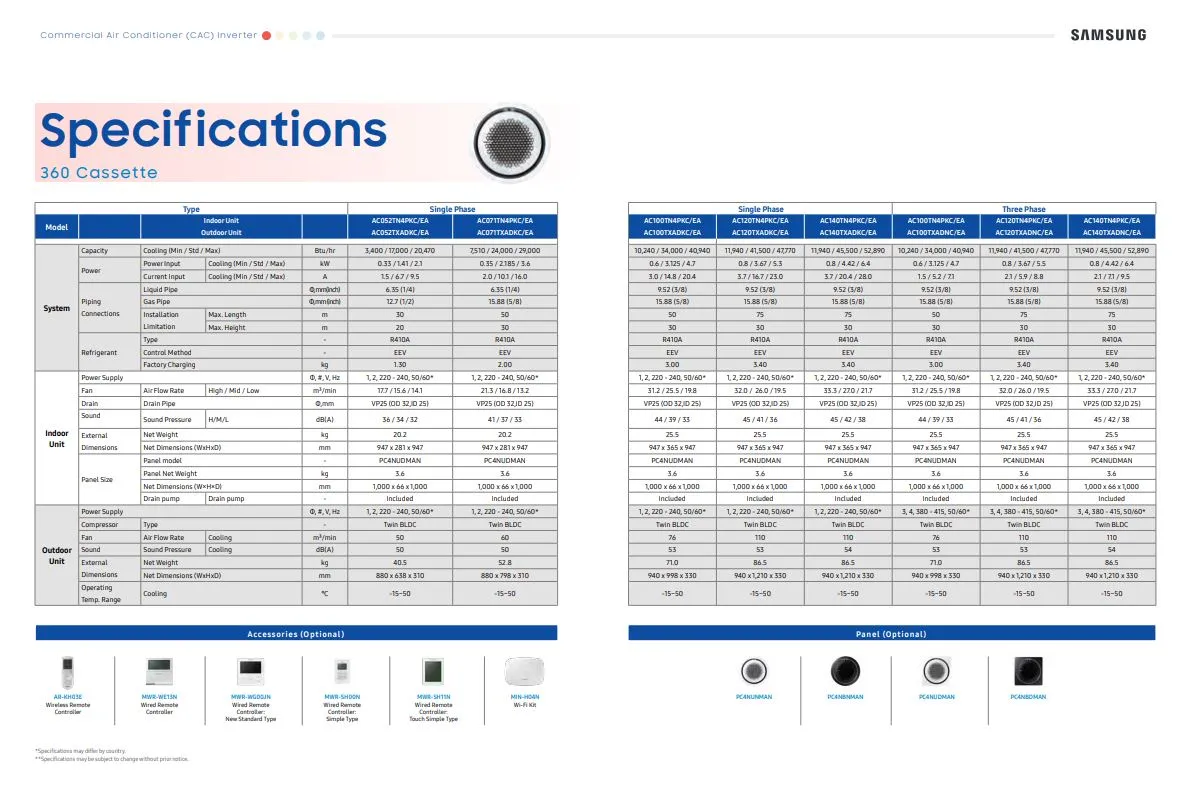

AC052TN4PKC

Nominal Cooling Capacity (BTU/hr) - 17000

Cooling Capacity (Min - Max, BTU/hr) - 3,410/17,000/20,470

Cooling Capacity (kW) - 5

Cooling Capacity (Min - Max, kW) - 1.0 / 5.0 / 6.0

EER/COP(W/W) - 3.55

Air Circulation (Max, m$/min) - 17.7

Noise Level (Indoor, High / Low, dBA) - 36/34/32

Operating Current (Cooling, A) -1.5/6.7/9.5

Power Consumption (Cooling, W) - 0.33/1.41/2.1 kW

Power Source (V/Hz/Q) -220~240 / 50 /1

Net Dimension (Indoor, mm) - 947 x 281 x 947

Gross Dimension (Indoor, mm) - 990 x 330 x 990

Net Weight (Indoor, kg) - 20.2

Gross Weight (Indoor, kg) - 24.5

Piping Length (Max, m) - 30

Piping Height (Max, m) - 20

Refrigerant Type - R410A

Refrigerant Charge (kg) - 1.3

SVC Valve (Liquid, Outer Diameter, mm) - 6.35

SVC Valve (Gas, Outer Diameter, mm) - 12.7
