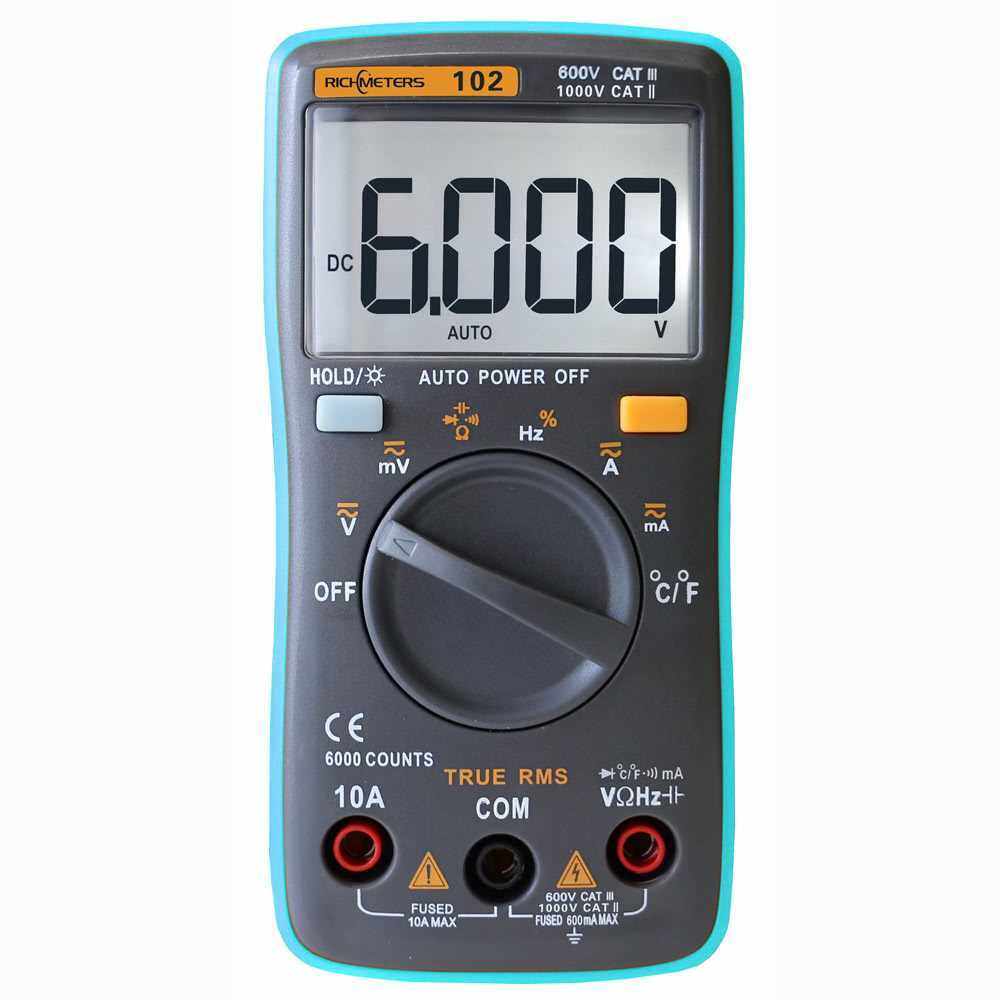

It can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity testing, frequency, etc. This battery powered product uses double-integral style A/D transform as its core, and is characterized by stable function and high reliability. With the features of overload protection and backlight lighted LCD display for clear reading, this product is a perfect tool for lab, factory, radio fans, and family use.

Features:
LCD display with backlight.
Max. display: 6000 Counts.
Automatic polarity identification.
Measurement mode: Double-integral style A/D transform.
Measure AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity testing, frequency, etc.
RM102 is specially designed with temperature measurement function.
Over range indication: OL.
Low voltage indication.
Auto power off.
Sample rate: 3 times per second.

Specifications:
Model: RM101, RM102 (optional)
Maximum display: 6000
Working environment: 0-40?
Relative humidity: <80> Supply power: 3V (1.5V battery * 2) (Not included)
DC voltage: 600mV/6V/60V/600V/1000V
DC voltage resolution: 0.1mV/1mV/10mV/100mV/1V
AC voltage: 6V/60V/600V/700V
AC voltage resolution: 1mV/10mV/100mV/1V
DC current: 600A/6000A/60mA/600mA/10A
DC current resolution: 0.1A/1A/10A/100A/10mA
AC current: 600A/6000A/60mA/600mA/10A
AC current resolution: 0.1A/1A/10A/100A/10mA
Resistance: 600O/6kO/60kO/600kO/6MO/60MO
Resistance resolution: 0.1O/1O/10O/100O/1kO/10kO
Capacitance: 10nF/100nF/1F/10F/100F/1000F/10000F
Capacitance resolution: 10pF/100pF/1nF/10nF/100nF/1F/10F
Temperature: -20~1000C / -4~1832F(only for RM102)
Temperature resolution: 1C/1F
Item size: Approx. 13 * 6.5 * 3.2cm / 5.1 * 2.56 * 1.26in
Item weight: 113g / 3.98oz
Package size: 14 * 7 * 5cm / 5.5 * 2.75 * 1.97in
Package weight: 182g / 6.42oz (RM101), 202g / 7.13oz (RM102)

Package list:
1 * Multimeter
1 * Pair of test leads
1 * Thermocouple (Only for RM102)
1 * English user manual

Note:When switched to mV, it is normal if there is slight value change even without operation, and the testing result won't be influenced at all.
