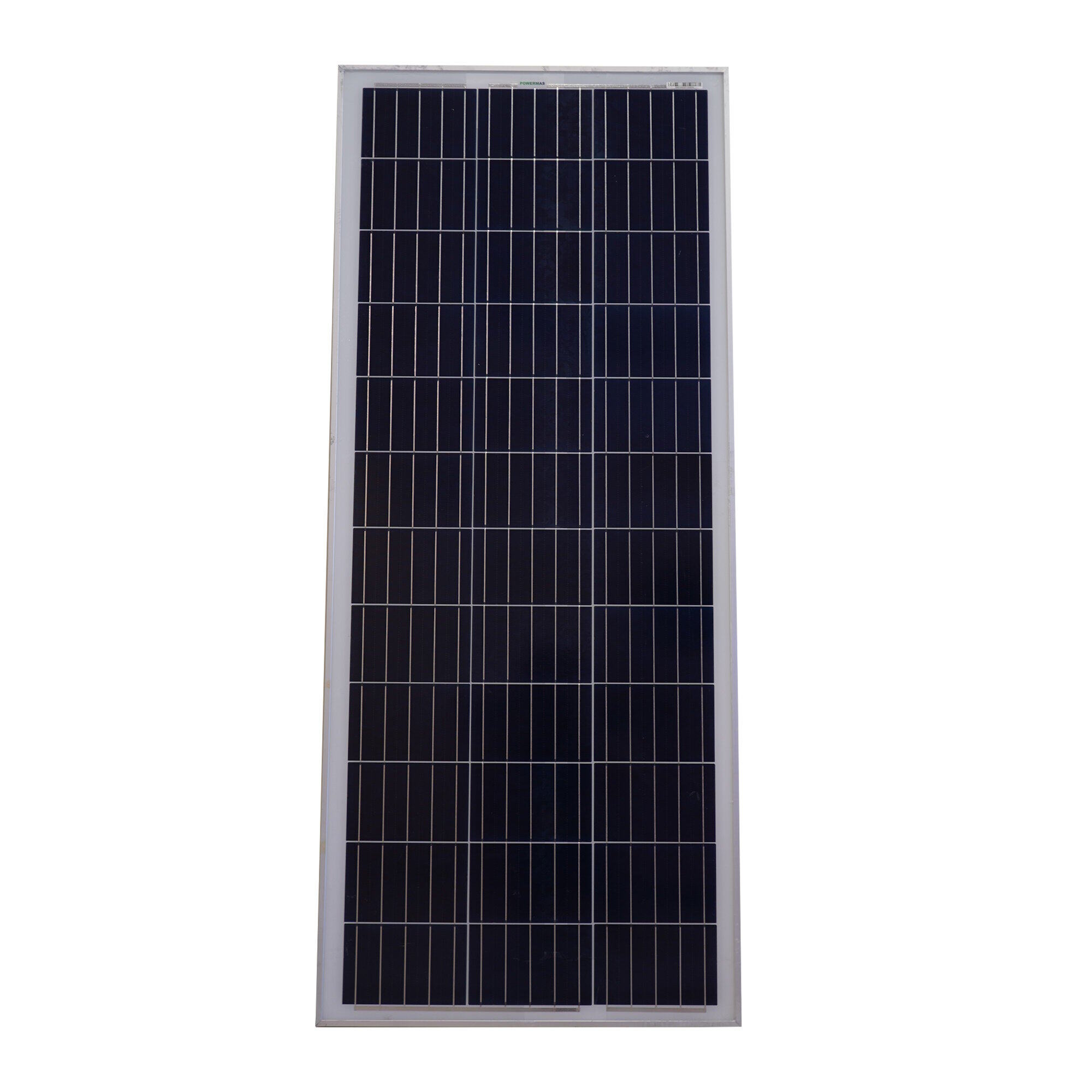

POWERMAS 100 Watt / 100W Polycrystalline A-Grade Solar Panel Vmp 18V Imp 5.66A

Product Features

- Bypass diode minimizes the power drop by shade

- White tempered glass, EVA resin, weather proof film and anodized aluminum frame to provide efficient protection from the severest environmental conditions

- IP65 Waterproof

Performance Guarantee

- 90% power output 12 years

- 80% power output 25 years

Quality Assurance

- Electrical Insulation test

- Outdoor exposure test

- Hot-spot endurance test

- UV-exposure

- Thermal cycling test

- Humidity freeze test

- Damp heat test

- Robustness of terminations test

- Wet leakage current test

- Mechanical load test

- Hail impact test

- Bypass diode thermal test

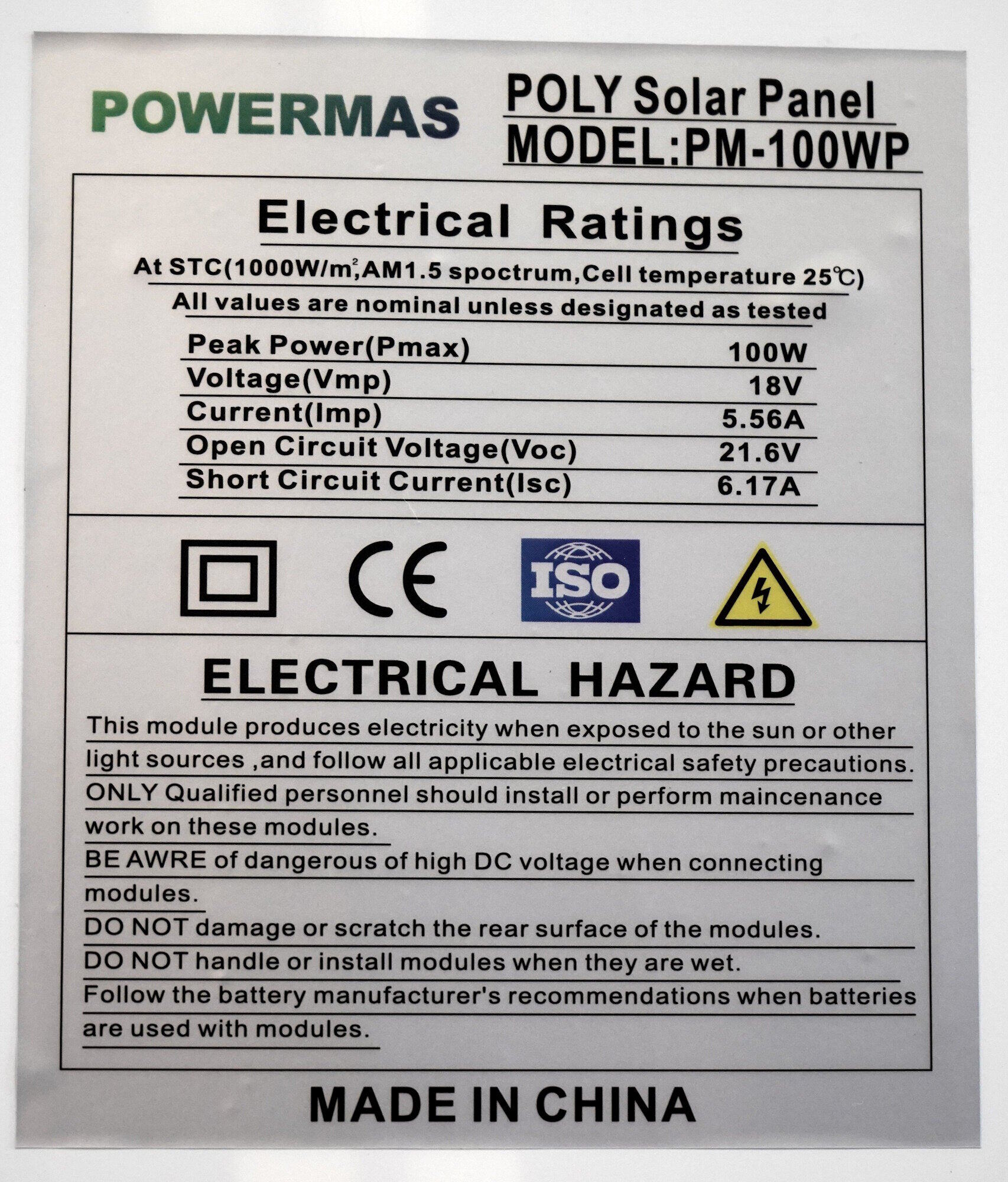

Specification

Maximum Power (W) : 100

Tolerance (%) : +/- 3%

Open Circuit Voltage (Voc) (V) : 22

Short Circuit Current (Isc) (A) : 6.06

Maximum Power Voltage (Vmp) (V) : 18

Maximum Power Current (Imp) (A) : 5.66

Series Fuse Rating (A) : 15

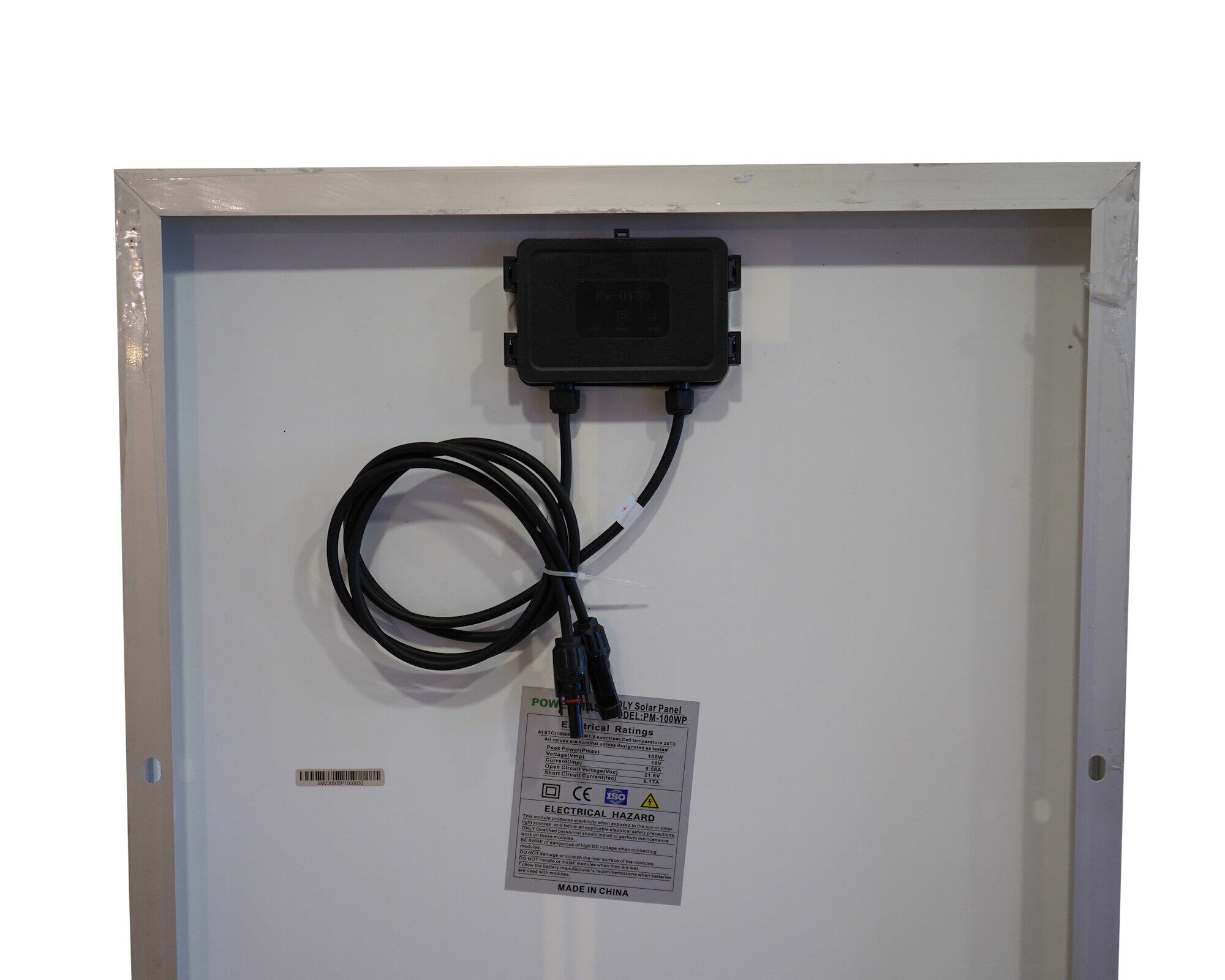

Terminal Box : IP65

Maximum system voltage (V) : DC1000

Operating Temperature (C) : -40C ~ 85C

Weight (Kg) : 8.0kg

Dimension (mm) : 1280 x 540 x 35
