Description:
Power meter socket is a kind of monitoring and testing instrument, which can measure the electricity consumption, current, voltage, electricity consumption and cost of the electrical appliances connected to it, and it has the functions of electric charge alarm, electricity consumption alarm and overload alarm.
Features:
- LCD display:
Backlight design is easy to read data of time, watt, cost, etc.
- Plug-in design:
Simply plug this device to your wall electric outlet
- Measuring function:
Can measure various parameters, such as power, voltage, current
- Save your money:
It has alarm function of electricity cost, when the electricity charge reaches the set alarm fee, it will remind you
- Resetting:
If an abnormal display appears or the buttons produce no response, the power meter must be reset
- Button design:
With buttons design, easy to operate and convenient for daily use
- Memory feature:
Adopts 3.6V rechargeable battery (built-in), which is used to store the total power and set memory
Use Instruction:
Simply plug the meter into the household wall socket and then plug your appliance into the power meter.
Cautions:
- For safety, please make sure the connected appliance has no short circuit, overload and wiring aging conditions.
- Only to be used indoor and in dry conditions.
- It is necessary to use electricity.
Parameter:
Backlight color: white
Optional plugs: US Plug (3-pin), EU Plug, UK Plug
Operating voltage: 120V 60Hz (US Plug (3-pin)), 230V 50Hz (EU Plug), 230V 50Hz (UK Plug)
Operating current: max. 15A (US Plug (3-pin)), max. 16A (EU Plug), max. 13A (UK Plug)
Wide voltage range: 110 - 130V (US Plug (3-pin)), 200 - 250V (EU Plug), 200 - 250V (UK Plug)
Wattage display (watts): 0 - 1800W (US Plug (3-pin)), 0 - 3680W (EU Plug), 0 - 2900W (UK Plug)
Current display (amps): 0 - 15A (US Plug (3-pin)), 0 - 16A (EU Plug), 0 - 13A (UK Plug)
Voltage display range: 0 - 9999V
Frequency display: 0 - 9999Hz
Minimum wattage display range: 0 - 9999W
Maximum wattage display range: 0 - 9999W
Price display range: 0.00COST/KWh - 99.99COST/KWh
Total KWh and cost display: 0.000KWh - 9999KWh, 0.00COST - 9999COST
0.186 Package weight: 0.219 kg

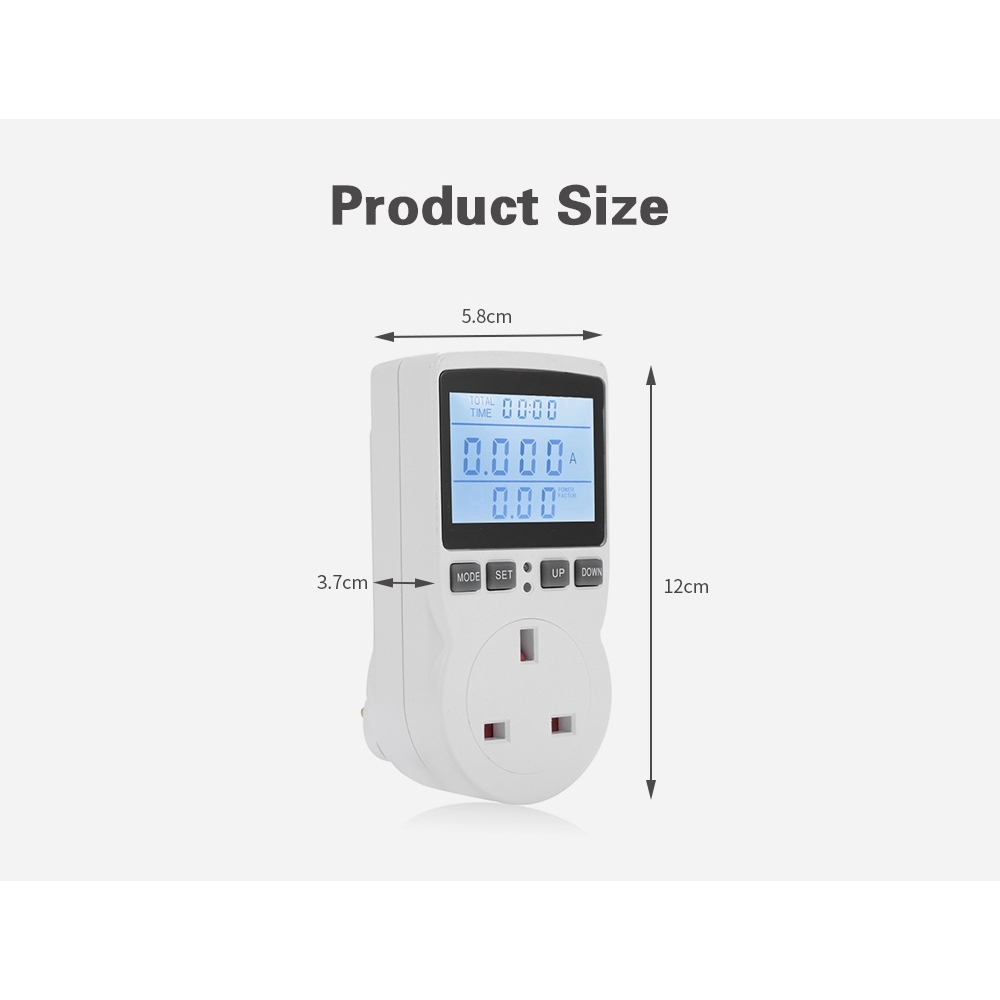

Package Size(L x W x H): 8.50 x 6.50 x 14.50 cm / 3.35 x 2.56 x 5.71 inches
Package Contents: 1 x Power Meter Socket
