What's in the box:

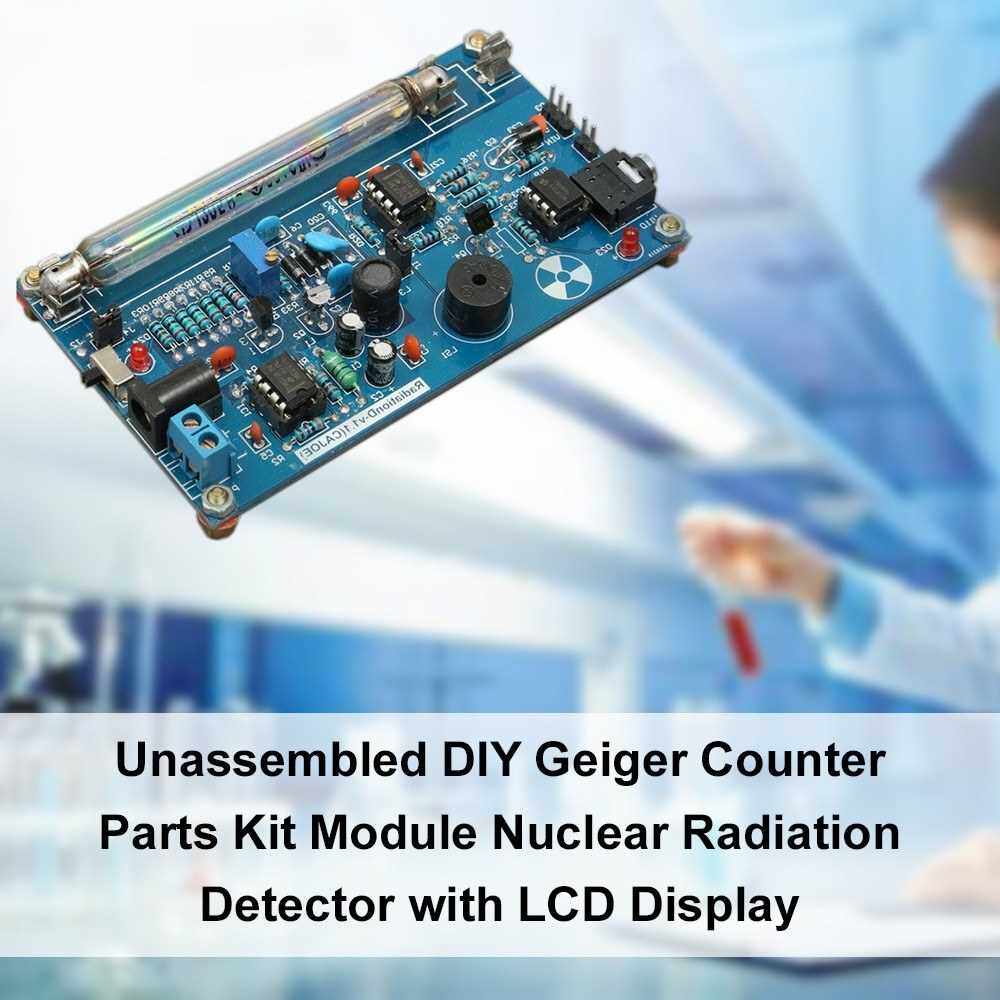

Unassembled DIY Geiger Counter Parts Kit Module Nuclear Radiation Detector with LCD Display (Standard)

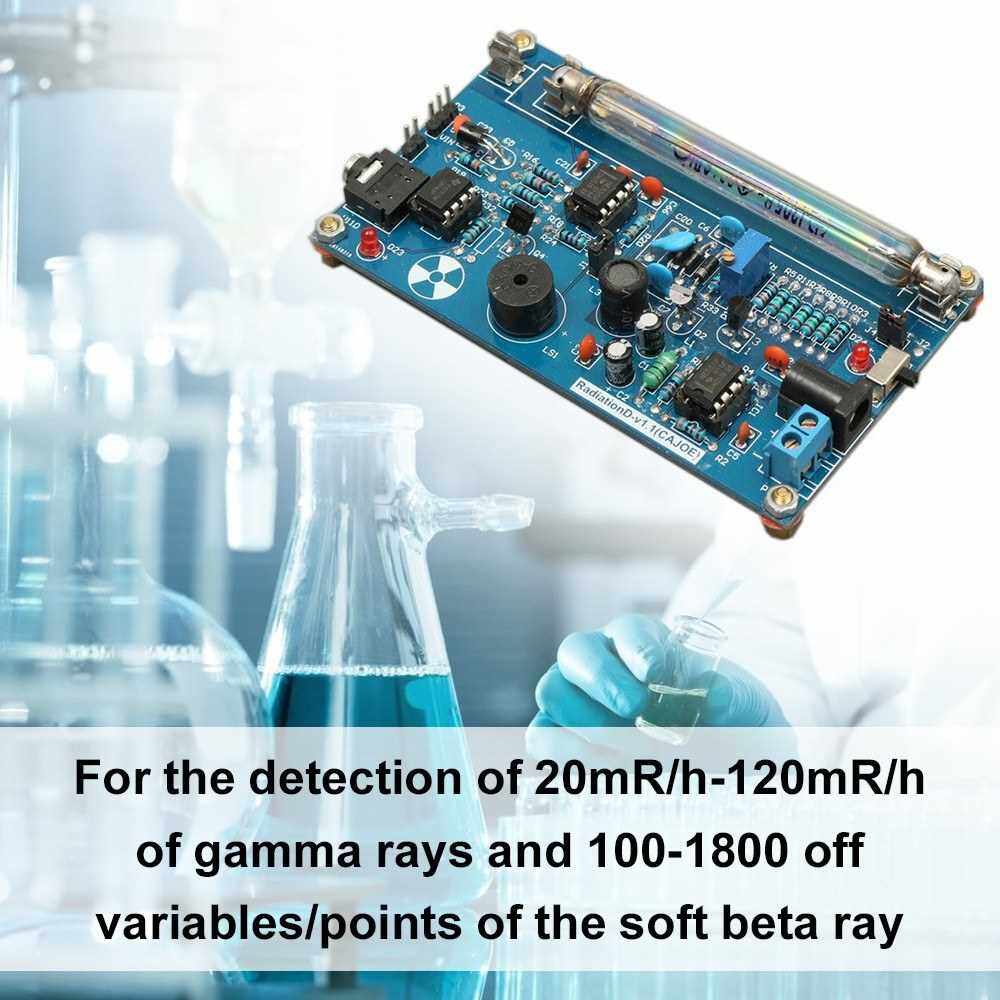

This is a set of fine quality nuclear radiation detect module unassembled parts set, plug it and you can directly measured nuclear radiation. For the detection of 20mR/h-120mR/h of gamma rays and 100-1800 off variables/points of the soft beta ray. You can have a try.

Features:
5V power supply, or 3 * 1.5V battery; 4 * 1.2V battery, current: 30mA - 120mA.
For the detection of 20mR/h-120mR/h of gamma rays and 100-1800 off variables/points of the soft beta ray.
Equipped with sound and light alarm.
Interrupt the output interface, through this interface can be connected to the microcontroller and then displayed on the LCD display.
Supports most of the Geiger tube: M4011, STS-5, SBM20, J305, etc. (the 330-600V operating voltage of the Geiger tube can be supported).
Support the computer (PC) data acquisition, Matlab analysis and processing.

Detection of nuclear radiation work (copy the following link to the browser to watch):
Http://v.youku.com/v_show/id_XNzI3MTU2NzQ0.html

Customers using our Geiger counter to record the video:
Http://v.youku.com/v_show/id_XOTE4ODIyNTIw.html

Compatible with:
(recommended UNOR3, or any other arbitrary with 5V and external interrupt INT)
Internet can be downloaded: SPI example for Radiation Logger
Logger Radiation can be used as the host computer software to build radiation monitoring station.

Specifications:
Model: GC-1602-NANO
Material: electronic component
Geiger tube parameters:
Technical parameters diameter: F100.5mm
Total length: 902mm
The maximum count rate: 25 times / min
Life: > 1 * 10^9 pulse
Medium temperature: -40 to 55 ?
Item size: 108 * 63 * 20mm / 4.25 * 2.48 * 0.79in
Item weight: 100g / 3.53ounce
Package size: 120 * 80 * 40mm / 4.72 * 3.15 * 1.57in
Package weight: 150g / 5.29ounce

Packing List:

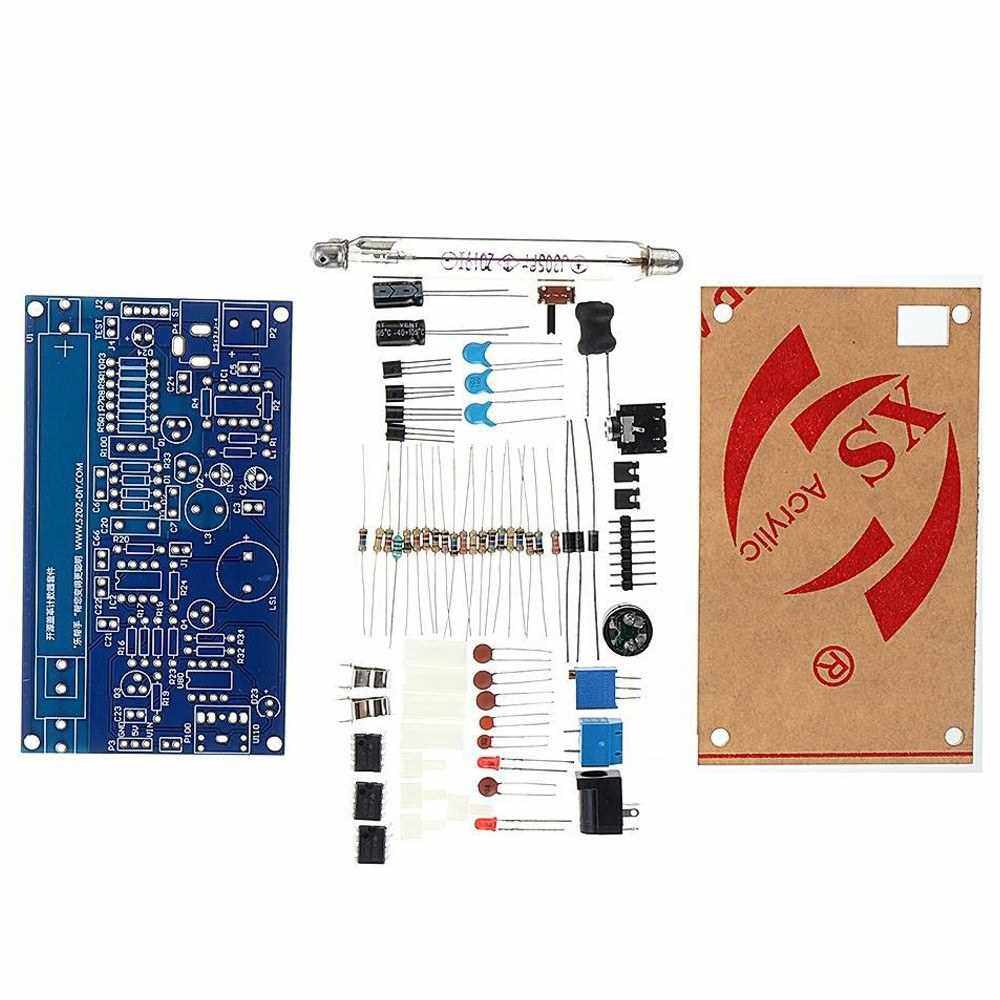

1 * Unassembled Radiation Detector Module Set
