What's in the box:

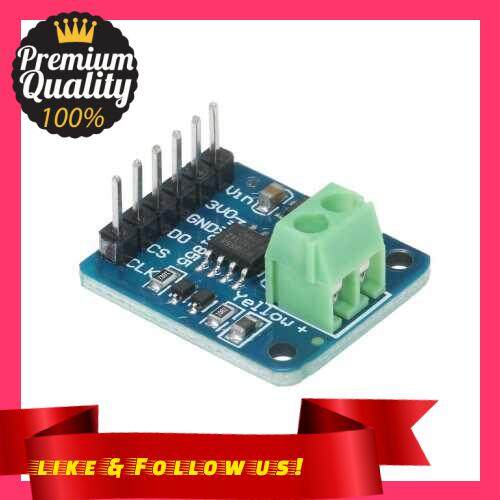

KKmoon MAX31855 K Type Thermocouple Module Mini Board Temperature Sensor Module -200C to +1350C Temperature Controller Board with SPI Interface (Standard)
Features:
Works with any K type thermocouple.
3 to 5V power supply and logic level compliant; SPI high -speed transmission interface.
-200C to +1350C output in 14-digit resolution, 0.25C high accuracy.
Terminal block and pin header already soldered on the module.
20 x 23mm size, small and lightweight.
Specifications:
Material: CCL
Main Color: Green
Product Weight: 2g
Product Size (L * W): 20 * 23mm / 0.79 * 0.91in
Package Weight: 5g / 0.17oz
Package Size: 9*7*1cm / 3.54*2.75*0.39in
Note:
MAX31855 K type thermocouple board only, other accessories in the pictures are not included.
Due to manual measurement, there may be deviation, please in kind prevail.
Due to lighting or other reasons, the picture and material object may slightly differ.
Packing List:
1 * MAX31855 K Type Thermocouple Board
