What's in the box:

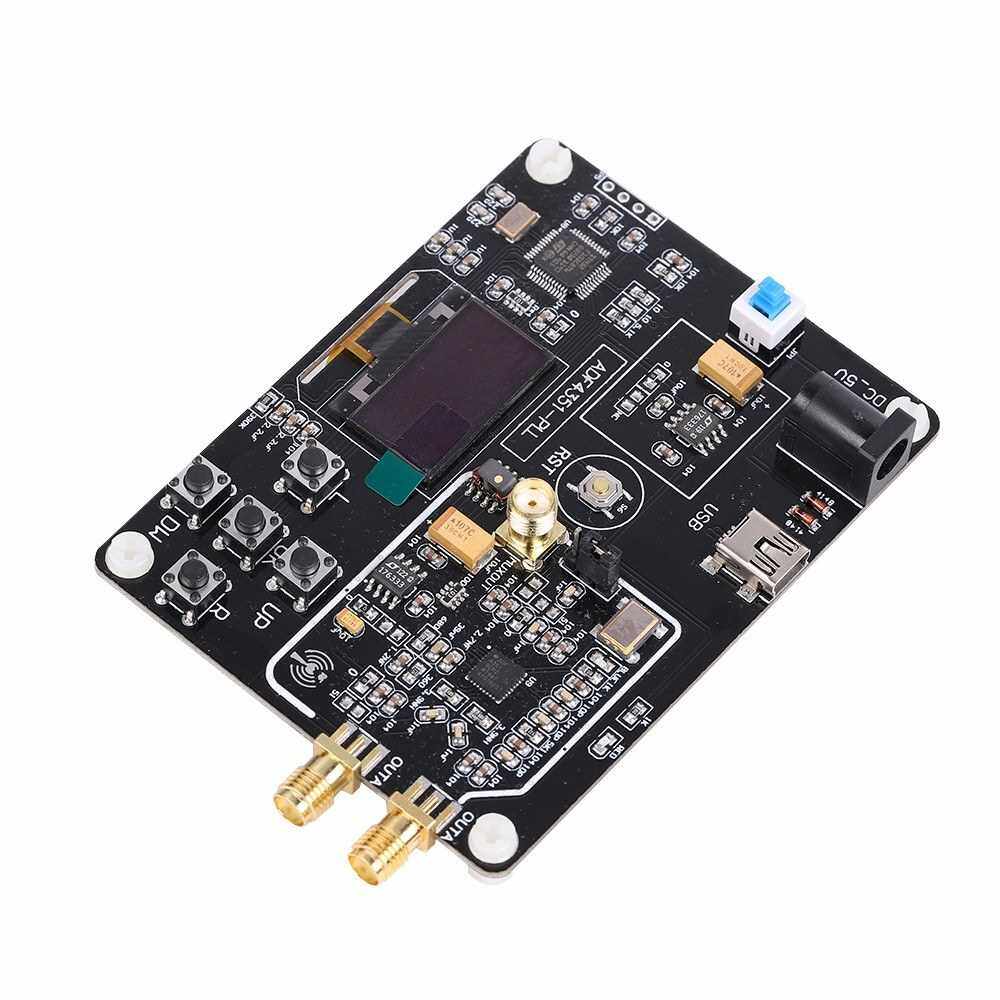

ADF4351 OLED Display Development Board RF Professional 35M-4.4G Accurate Signal Generator Module USB Port Frequency Synthesizer (Standard)

Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.

Features:
Display: It has an OLED display to make the results clearly visible.
Compatible: For the ADF4351 ADF4350 integrated phase-locked loop, introduced this host computer's USB and serial port module.
Wide voltage: It is a phase-locked loop module with integrated key operation, wide range voltage supply, and fine human-computer interaction interface.
Multifunction: The module can realize the frequency output of 35MHz-4.4GHz, basic functions such as point frequency, frequency sweep, frequency hopping.
Package: Comes with a signal generator module, a USB-mini line and a BNC male head to SMA male high-frequency cable.

Specifications:
Material: PCB
Power: 5V-15V (DC 5.1mm); 5V (USB)
Bandwidth: 35MHz-4.4GHz
Module step: 100KHz (minimum)
Frequency error: 1KHz
Output: OUTA OUTB two ways
Module phase noise: better than -100dBc 10KHz (the noise varies with the frequency band phase)
Module output power: 7dBm (maximum)
Module interface: STM32 USB external communication port can be configured as USB or analog serial port (default)
Module program download mode: SW module, three-wire system (GND SWCLK SWDIO)
Item size: 88 * 67mm / 3.5 * 2.6in
Package size: 100 * 80 * 10mm / 3.9 * 3.1 * 0.4in
Package weight: 58g / 2.0ounce

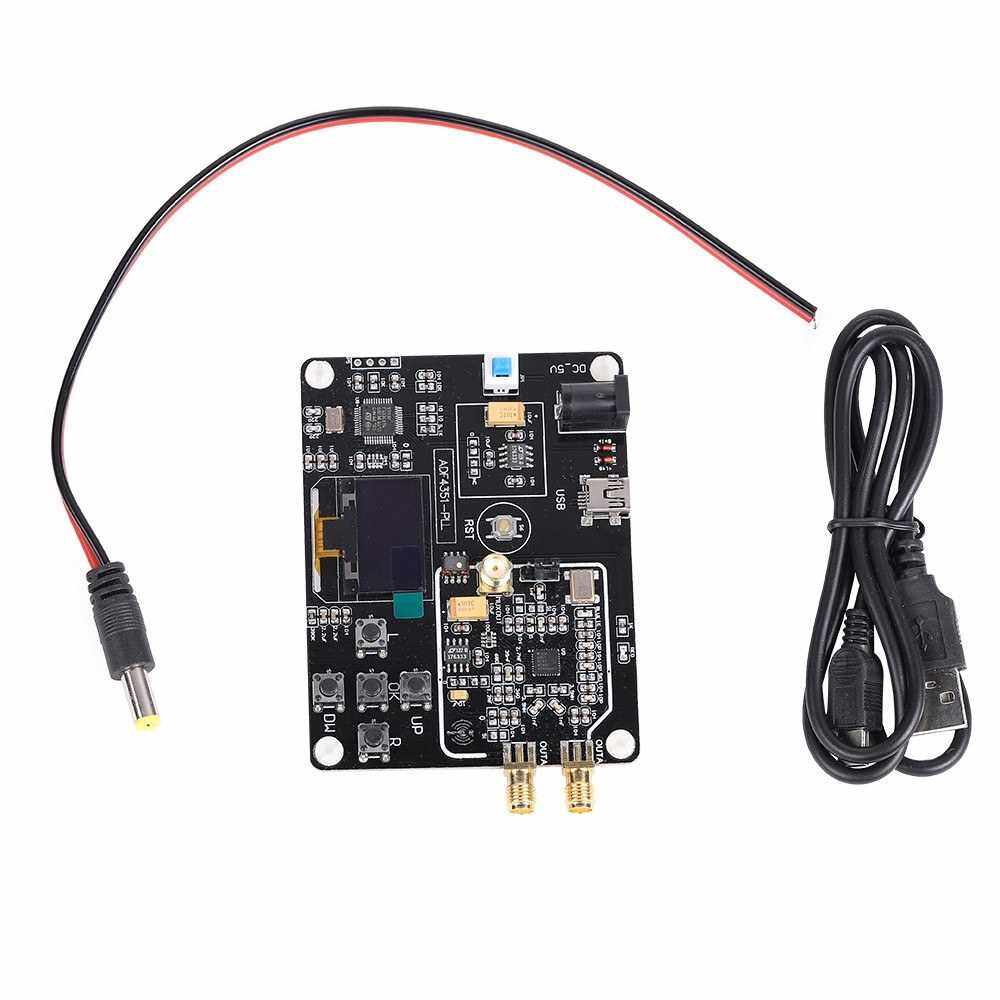

Packing List:
1 * Signal Generator Module
1 * USB-Mini Line
1 * BNC Male Head to SMA Male High-frequency Cable
