What's in the box:

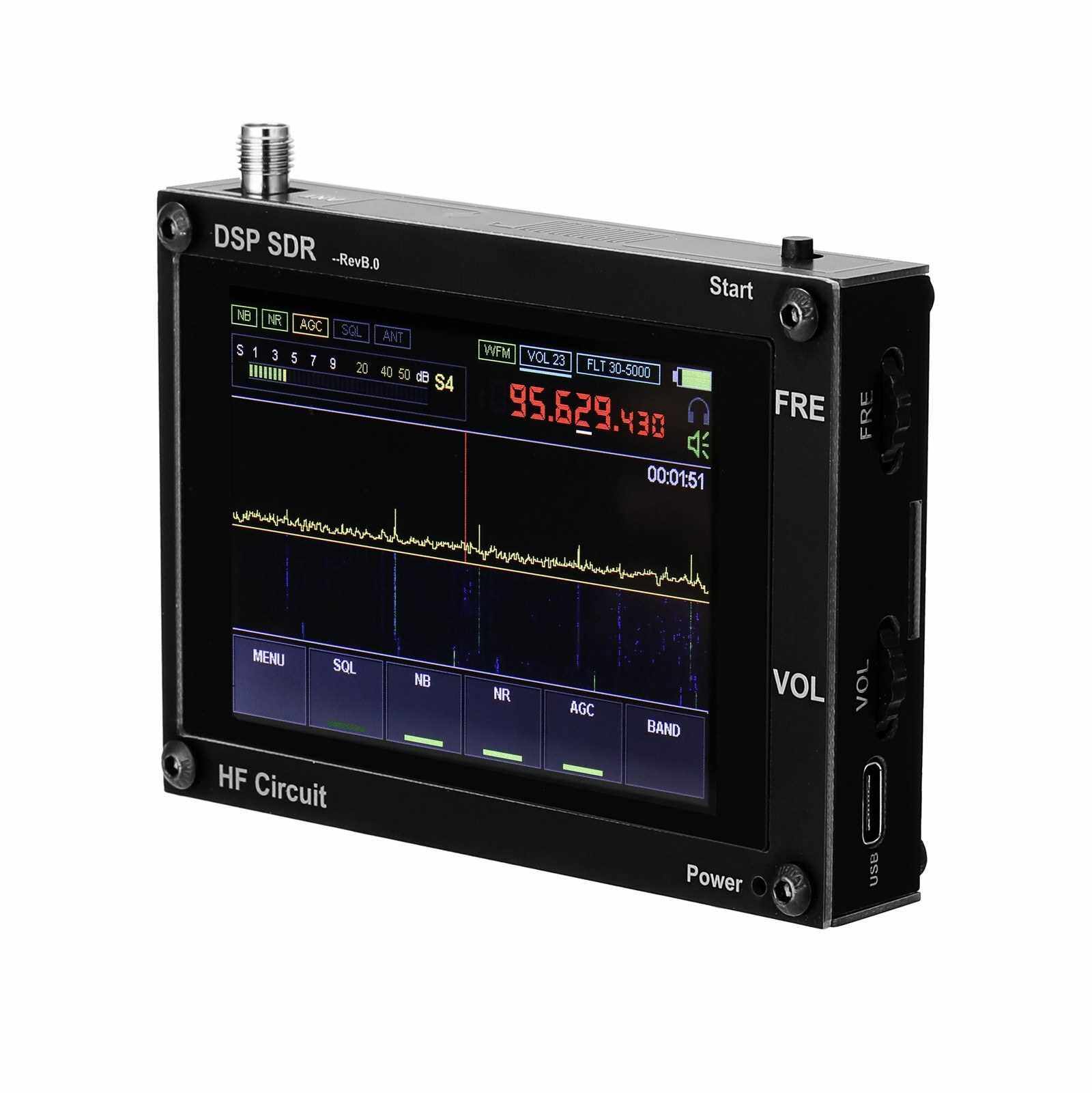

50KHz-200MHz 3.5 Inch Touchable IPS Display Screen Zoom Display AM SSB NFM WFM Ana-log Modulation RF DSP SDR HAM Wireless Receiver Backlight Control Function Support UHF Band Wireless Receivers(Built In Battery) (Standard)

The receiver is based on the SDR principle, support five analogs modulation and several powerful functions like adaptive noise suppressor and so on, with MSI001 RF front, and 3.5 inch touchable IPS display screen, it can give you a better using experience. Come on and try it, it won't let you down.

Features:
The receiver is based on the SDR principle architecture and its functions are determined by the loaded software.
Support several analogs modulation: AM, SSB, NFM, WFM.
Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise blanker, AGC, equalizer.
The RF front end uses MSI001, and the processor core uses STM32H743 with a primary frequency of 480MHz.

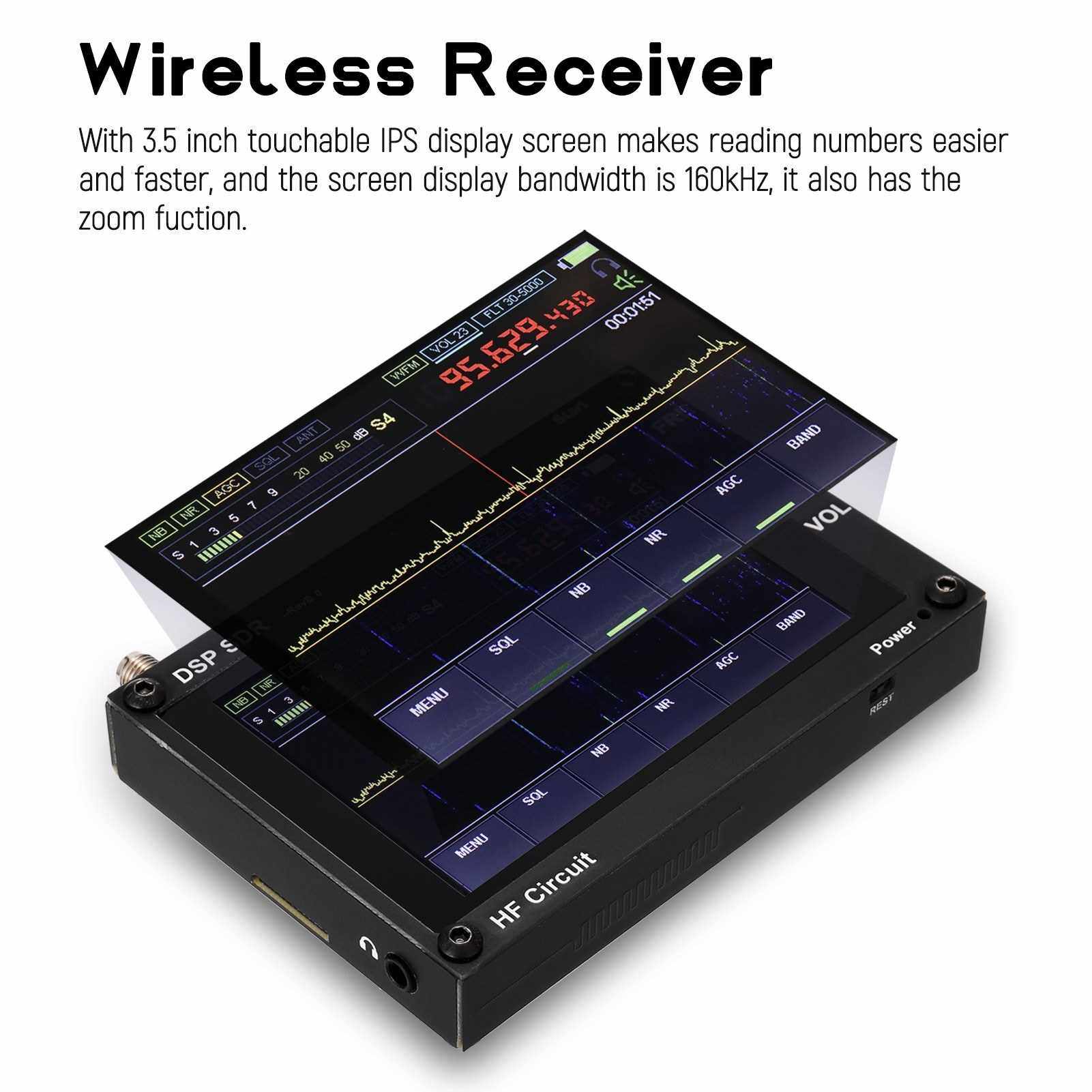

With 3.5 inch touchable IPS display screen makes reading numbers easier and faster, and the screen display bandwidth is 160kHz, it also has the zoom fuction.

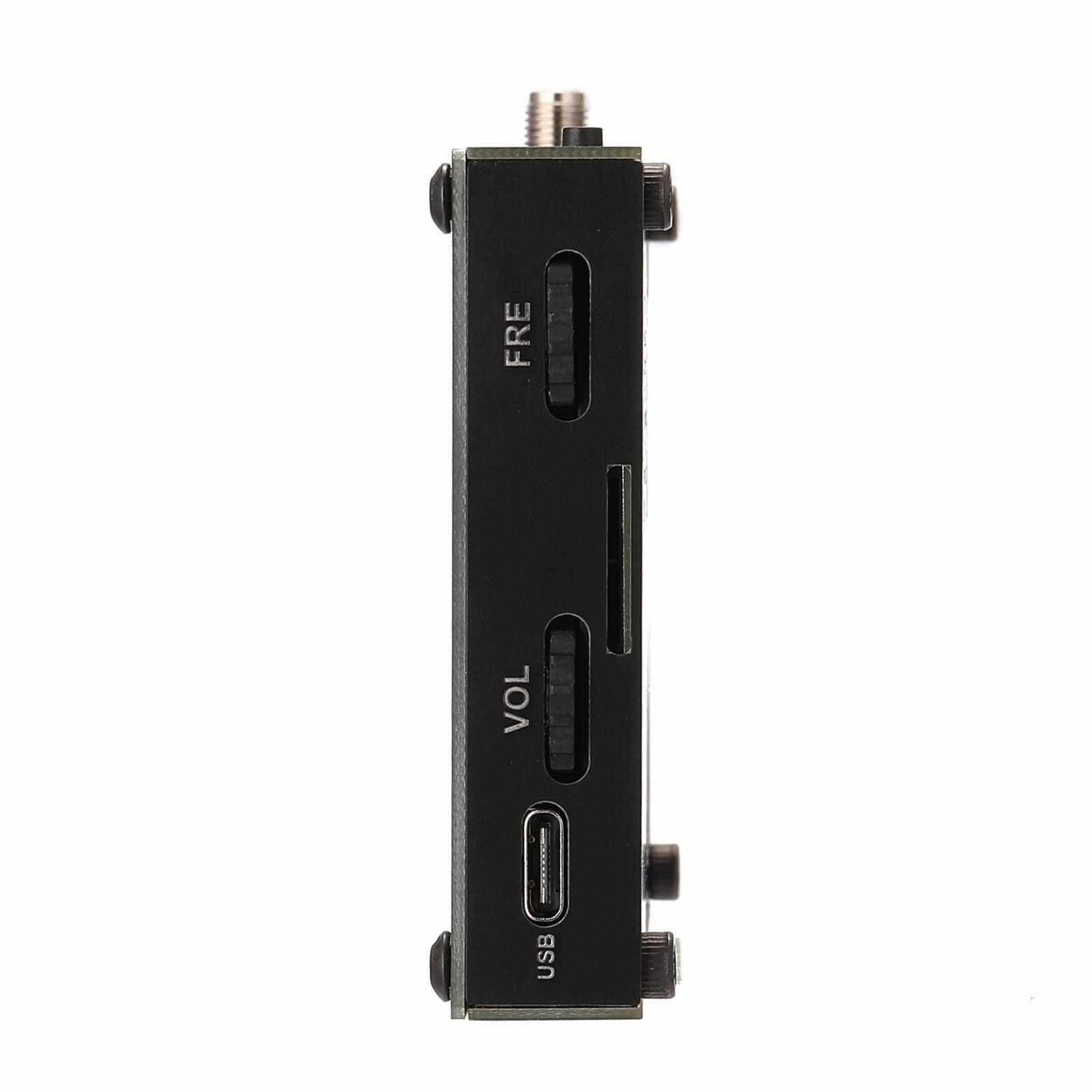

The machine supports UHF band, and the operating way includes EC11 pulse encoder and capacitive touching screen two ways.
The built-in LNA is used to improve the dynamic ranges of the receiver and the extended version of improving HF frequency band is designed.
Connect it with the computer by USB cable, you can translate the CAT, IQ and audio to the computer.
The backlight can be controlled and use a fine quality sound chamber with a bass diaphragm.
With SMA type antenna socket, the mainboard PCB uses four layer circuit board process, and the circuit impedance matching.

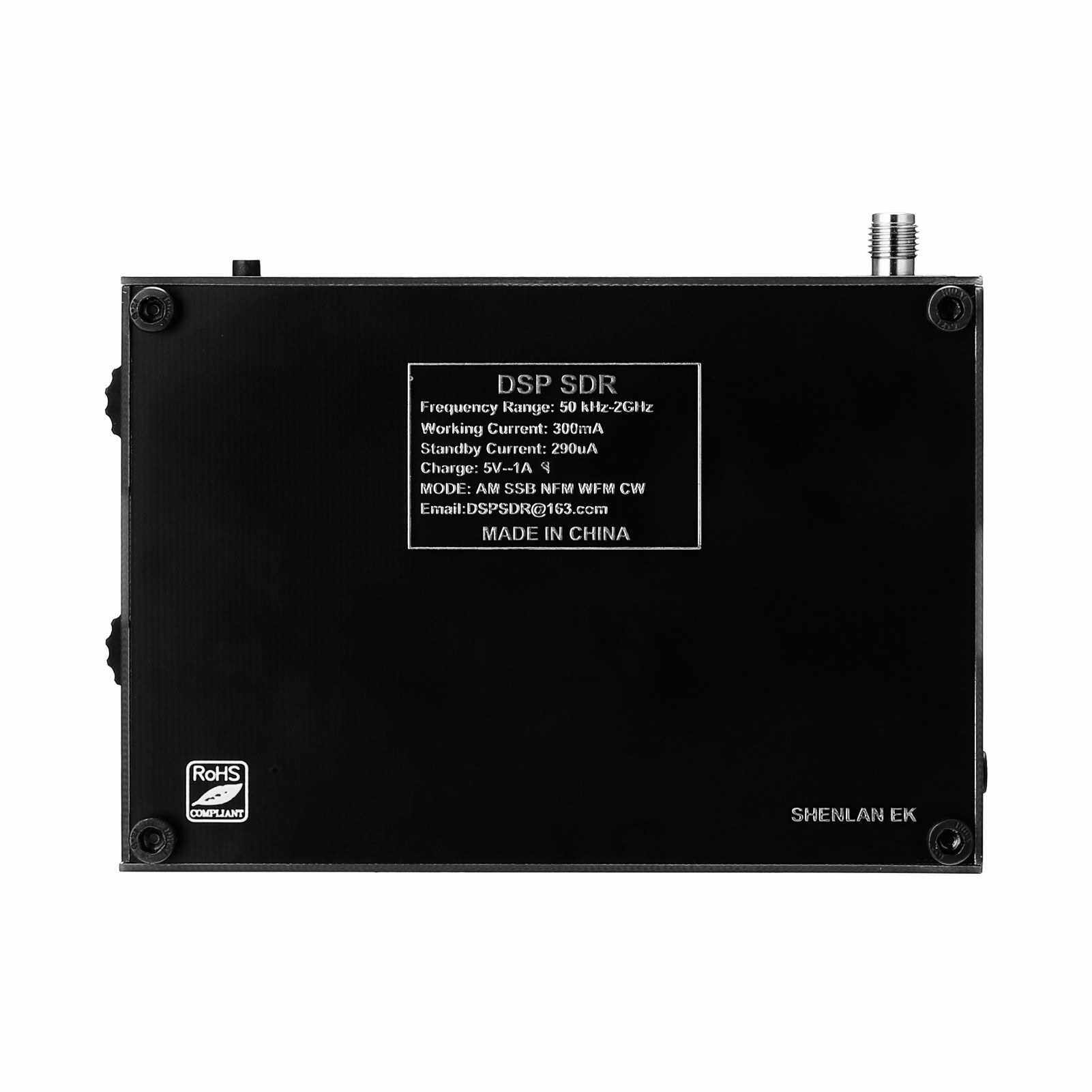

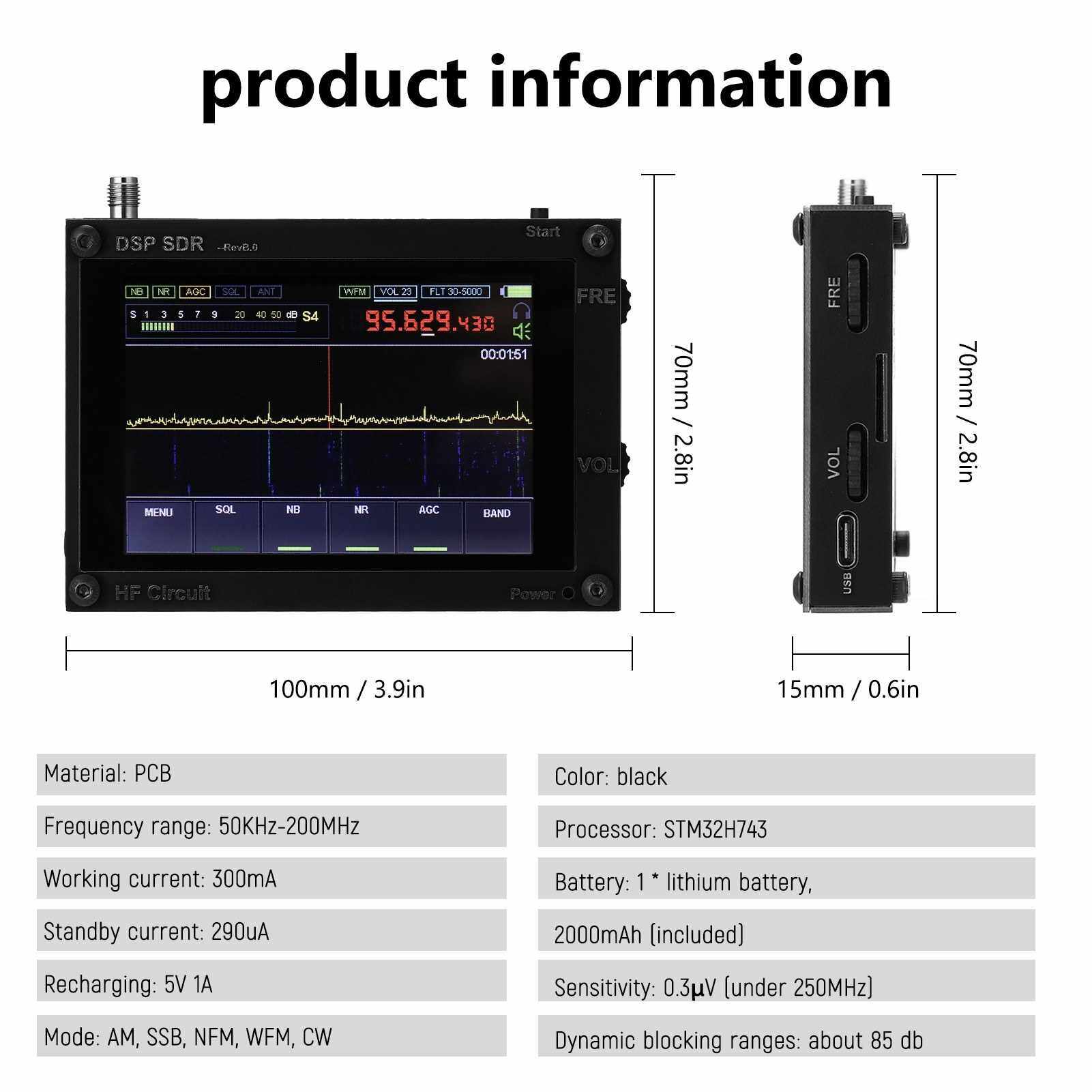

Specifications:
Material: PCB
Color: black
Frequency range: 50KHz-200MHz
Working current: 300mA
Standby current: 290uA
Recharging: 5V 1A
Mode: AM, SSB, NFM, WFM
Processor: STM32H743
Battery: 1 * lithium battery, 2000mAh (included)
Sensitivity: 0.3V (under 250MHz)
Dynamic blocking ranges: about 85 db
Item size: 100 * 70 * 15mm / 3.9 * 2.8 * 0.6in
Item weight: 136g / 4.8ounce
Package size: 140 * 110 * 90mm / 5.5 * 3.3 * 3.5in
Package weight: 217g / 7.7ounce

Packing list:
1 * Wireless Receiver
