What's in the box:

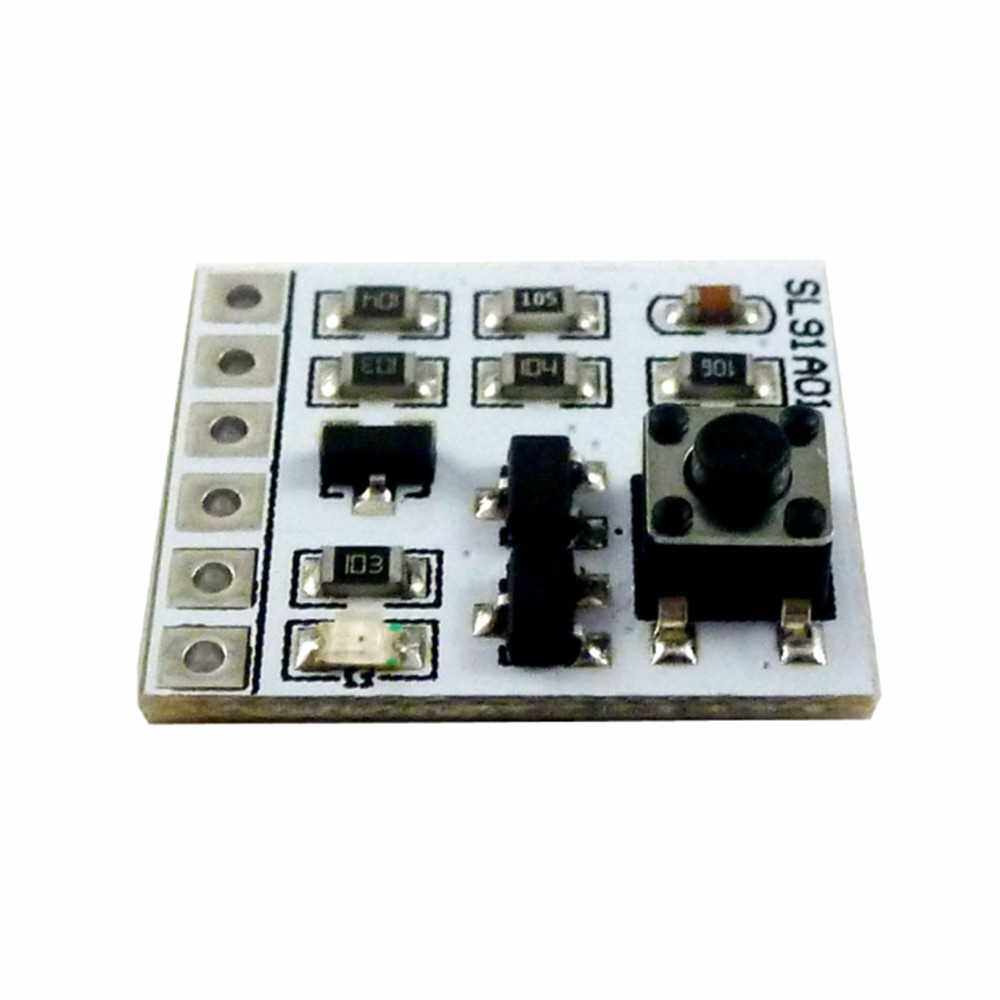

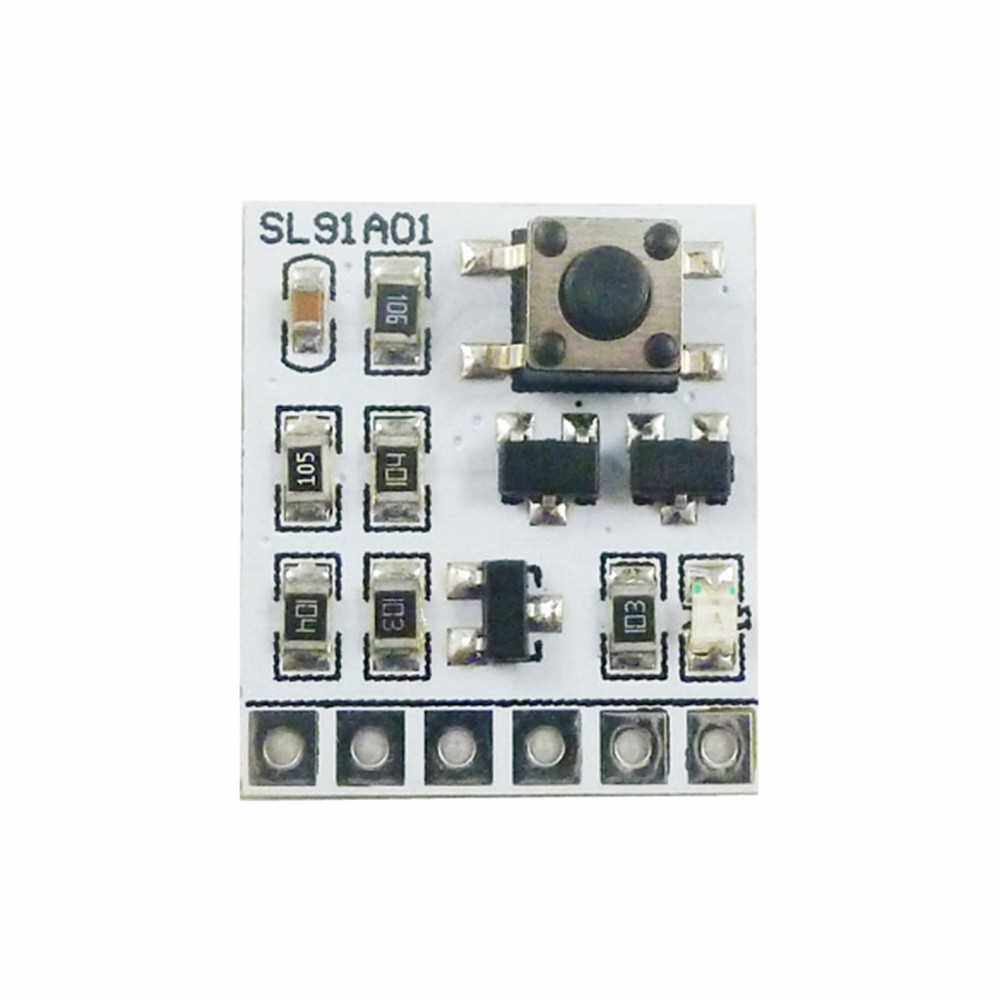

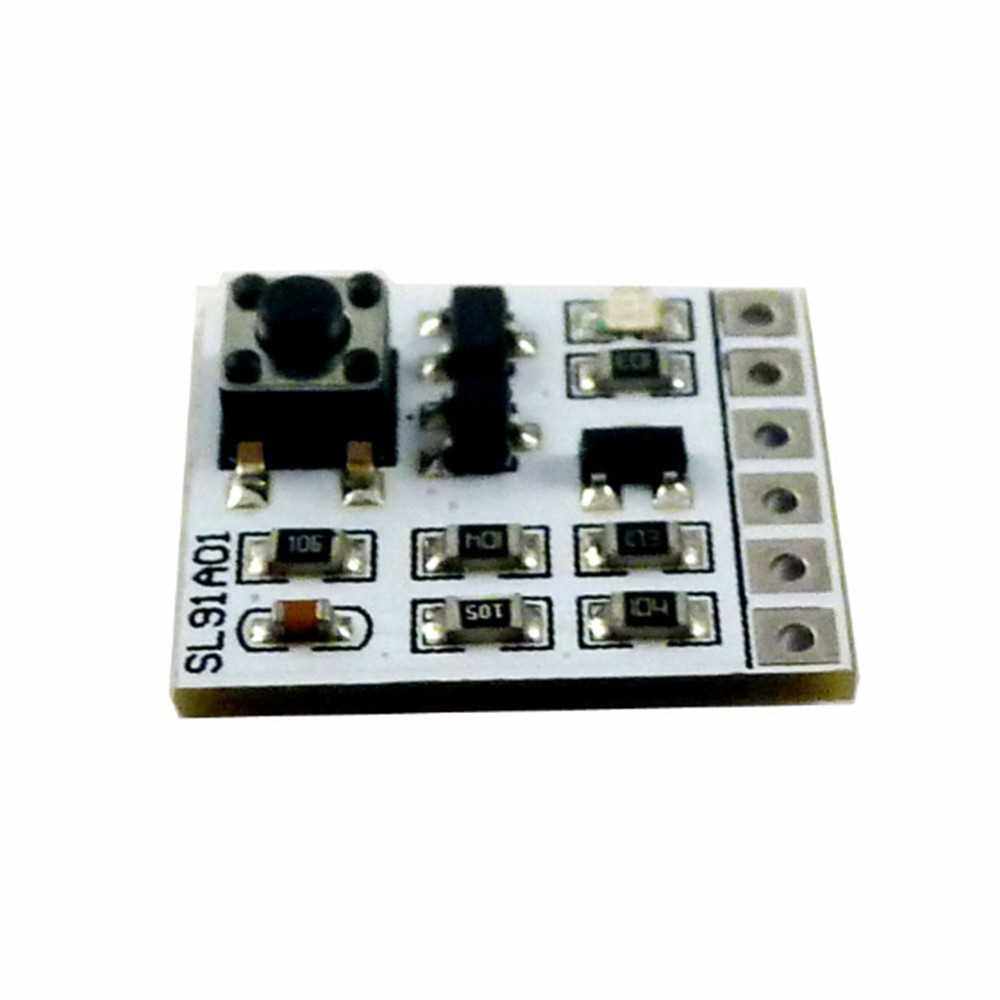

2-18V 2A Self-Locking Electronic Switch Bistable Board Button Trigger Key for Led Relay Solenoid Valve (Standard)

Features:
Working voltage: dc 2-18V
Load current : 0-2A
Quiescent current: 11uA
Operating ambient temperature: -40?~+85?
Storage temperature: -65?~+125?

Specifications:

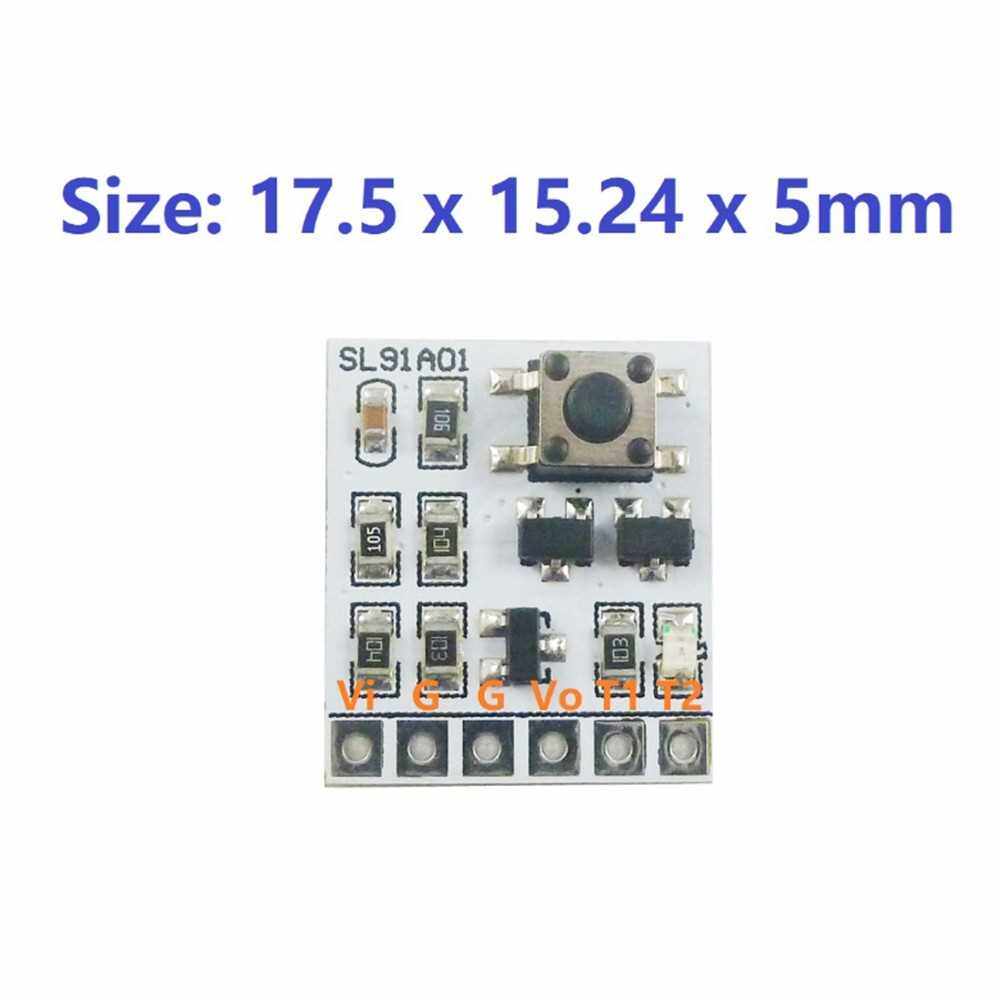

Item size: 17.5 * 15.24 * 5mm / 0.69 * 0.6 * 0.2in
Item weight: 1g / 0.03ounces
Package size: 25 * 25 * 10mm / 0.98 * 0.98 * 0.39in
Package weight: 3g / 0.1ounces

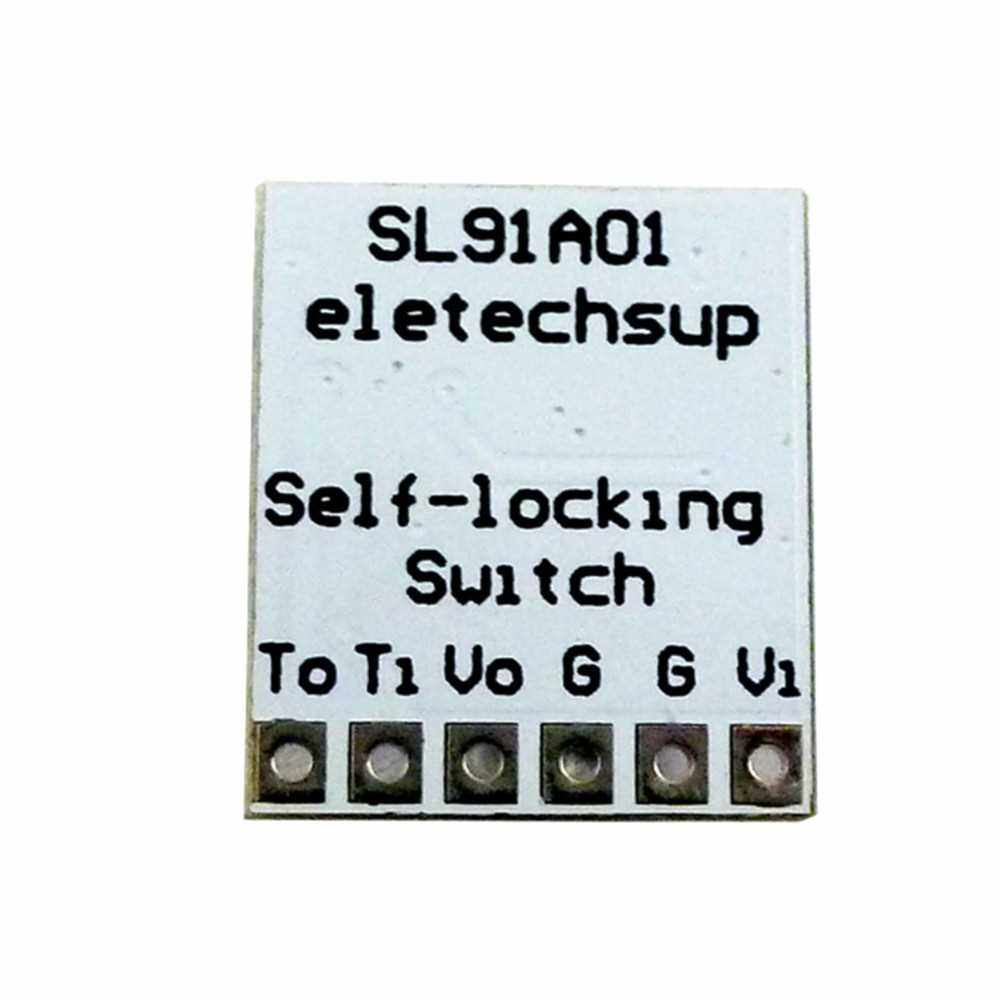

Module interface:
1.Vi: positive power-supply (VCC)
2.G: negative power-supply (GND)
3.G: negative Output (GND)
4.Vo: positive Output
5.Ti: Button port 1
6.To: Button port 2

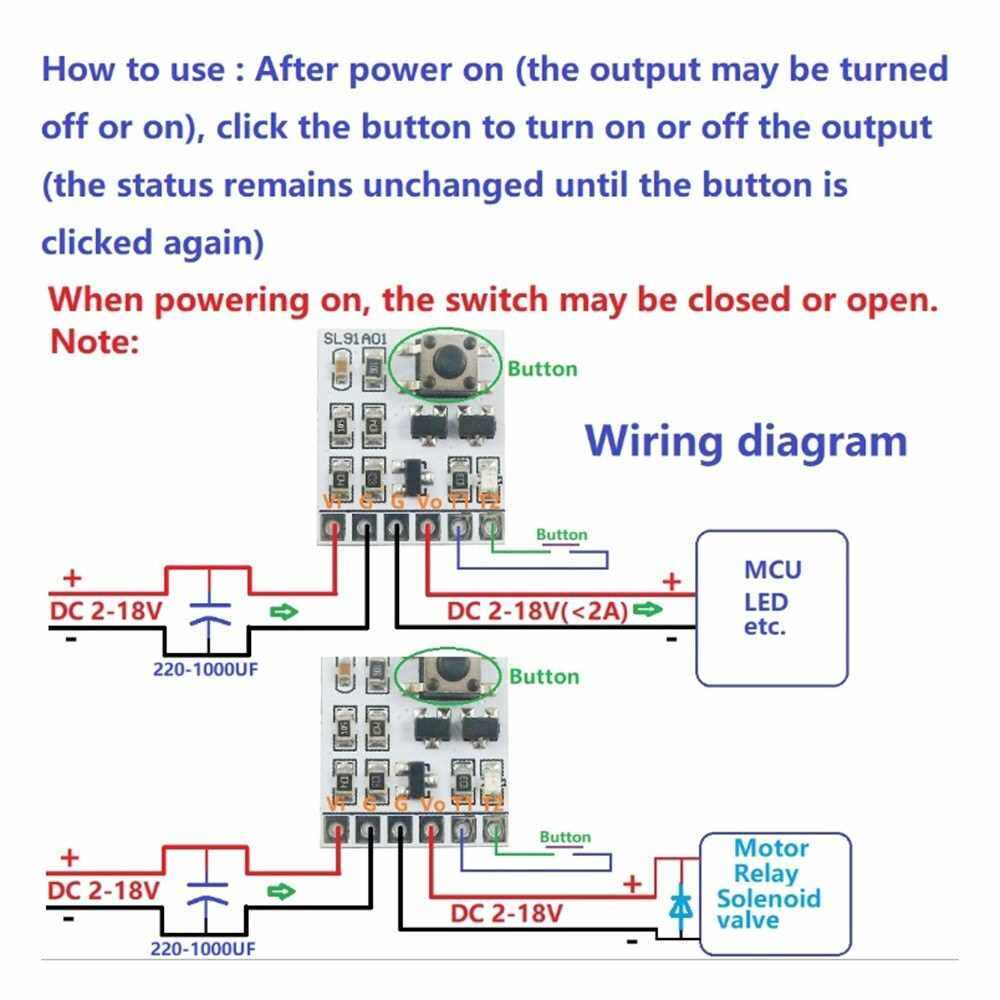

How to use:
After Power on (the output may be turned off or on), click the button to turn on or off the output (the status remains unchanged until the button is clicked again).

Note:
1.Due to the different display screen and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2.Please allow a little measuring deviation due to manual measurement.

Package List:
1 * Module
