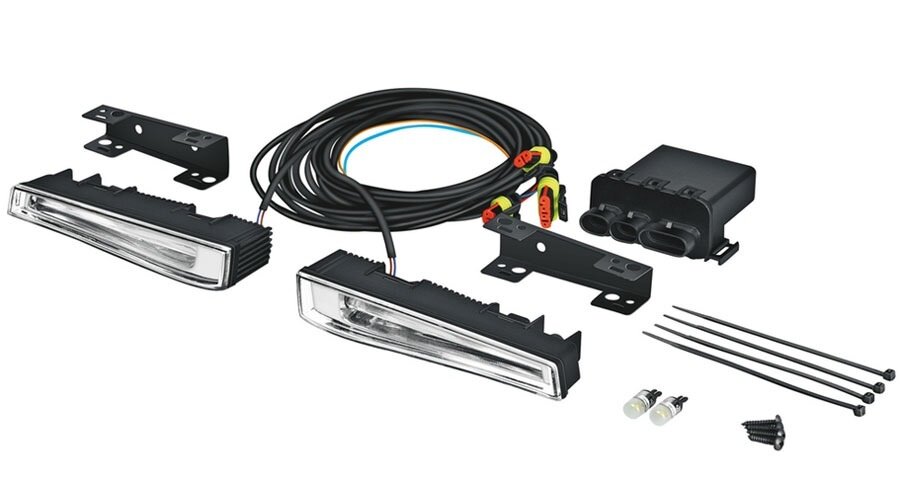

What's in the box:

- 1xOsram LED LIGHT DAY LED daytime running light

The reasons why among all the offers on the market was chosen namely "OSRAM" DRL 101:

- QUALITY: from the previous experience of using the product "OSRAM" ( see the LEDs "OSRAM" in the front dimensions and in the backlight illumination. ) There are exceptionally positive impressions. Quality does not cause censures!

- PROTECTION: this set of DSRO OSRAM not only meets the European requirements for similar devices, but surpasses them. It has a dust / moisture protection class - IP69K (!), Although the existing maximum is 68 by the encoding of IP. The first digit after IP (six) indicates full dustproofness, and the second (eight) - full waterproof, up to work in submerged condition. Where did the nine come from? The advanced German standard IP69K, developed for special transport, allows even high-temperature washing under high pressure.

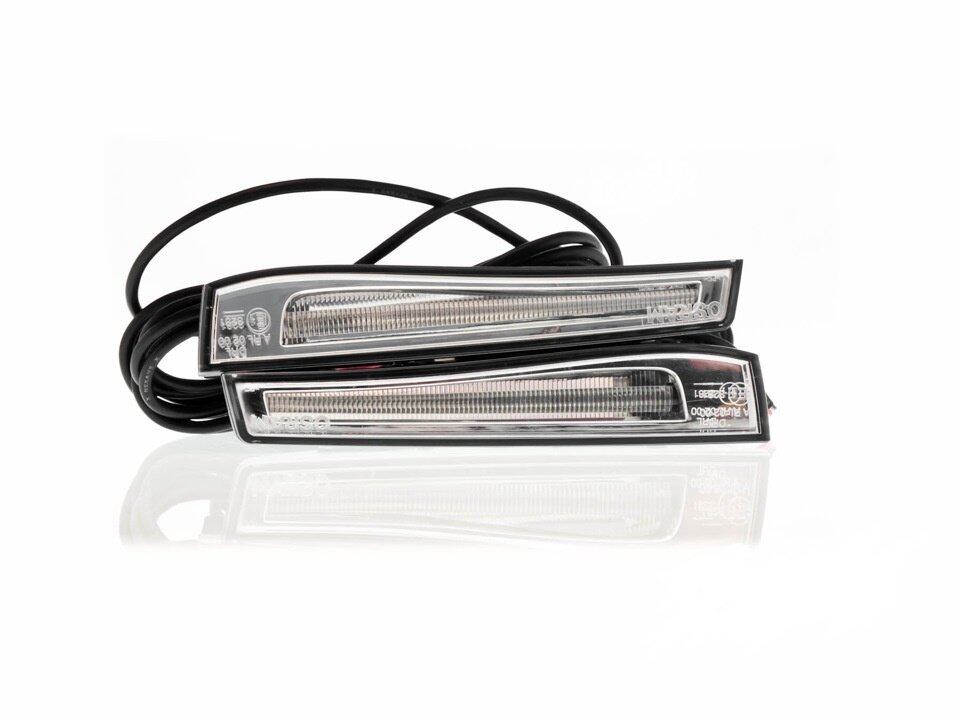

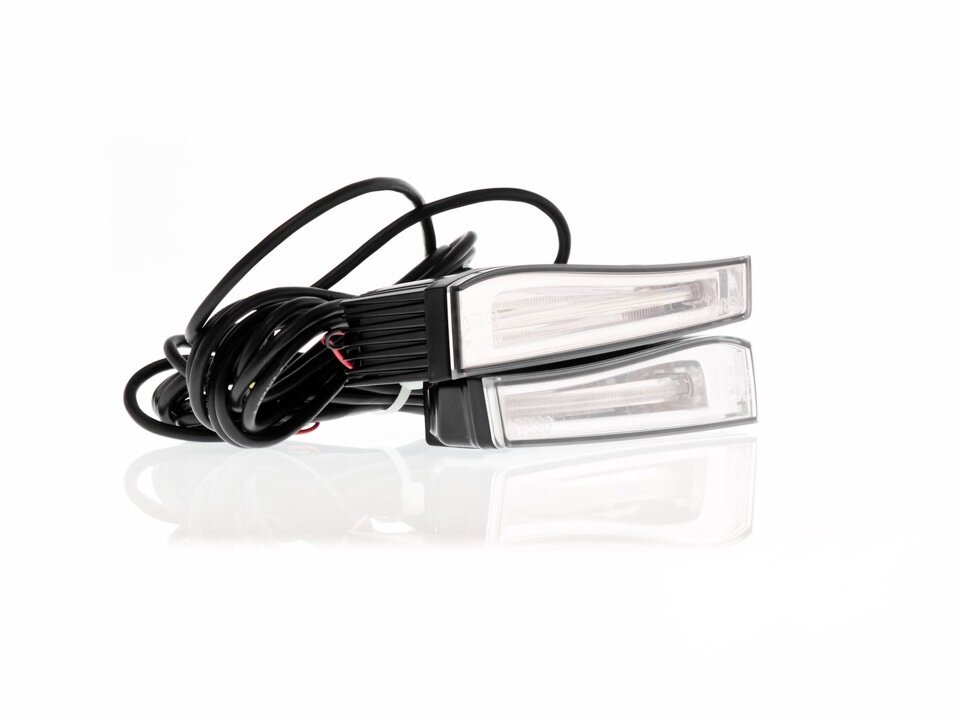

- APPEARANCE: DRL 101 is original! The rows of separately burning LEDs do not surprise anyone, but the light-filled tube that forms a continuous glowing area is something special. A powerful luminous flux of 400 lumens (each block) is provided by a single light-emitting diode, the light of which propagates through the light guide and dissipates at angles that are greatest in the horizontal plane.

Characteristics OSRAM DRL 101:
Color Temperature - 6000K
Max Power - 2x7.5W
Luminous flux - 400 lm (each block)
SAE and ECE R87 matching
OES workmanship
Class dust / moisture protection - IP69K
dimensions: Height - 31.2 mm width - 167 mm, depth - 48.9 mm.

We follow the following sequence of work when installing DRL:

Step 1: determine the location for the installation of lights
Step 2: mount the mounting brackets and install the lights
Step 3: select the location for the control unit and secure it
Step 4: extend and connect the wires, check the correct operation of DRL.

Step 1. The requirements for the installation of DRL are described in UNECE Regulation No. 87. According to them, navigation lights should be installed at least 250 mm and not more than 1500 mm from the surface of the roadway. The minimum distance between the inner edges of the lights is 600 mm, and from the lights to the edge of the car - no more than 400 mm.

Based on this, DRL will be installed in the bumper, at the edges of the license plate. There is enough free space to install the DRL of this model, so there is nothing to cut and saw.

Step 2. For ease of installation, remove the front bumper. After that, try on the mounting brackets, mark the correct location and screw them to the bumper screws that are included in the kit. Then, the light blocks simply snap into the brackets.

Step 3. The length of the wires has sufficient margin for convenient placement of the DRL control unit in the engine compartment. We fixed the unit on a plastic casing, between the suction nozzle of the air filter and the battery. The main requirement of the manufacturer when pulling wires to the unit is not to fasten the wires to the fuel pipes and the pipes of the cooling system.

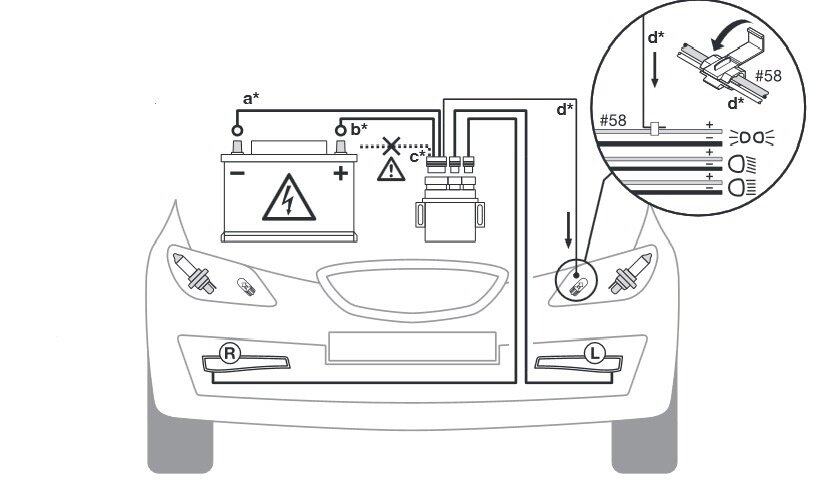

Step 4. DRL should not only be "correct", but also correctly connected. UNECE Regulation No. 48 states that daytime running lamps must be switched on automatically when the engine is started and automatically switched off when headlamps or parking lights are switched on, except when the headlamps are on for a short time (wink).
