Product Information

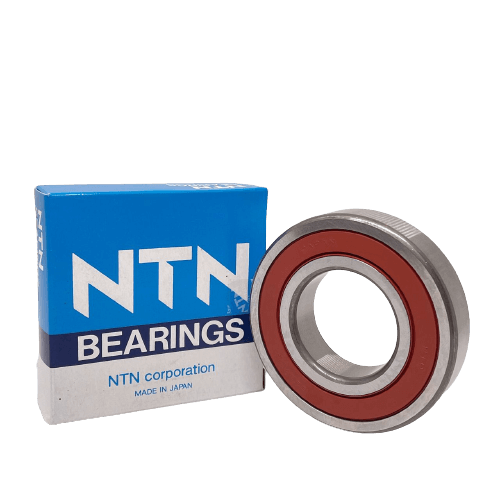

Deep groove ball bearings 6005LLU
- Bearing number : 6005LLU
- Size (mm) : 25x47x12
- Brand : NTN
- Bore Diameter (mm) : 25
- Outer Diameter (mm) : 47
- Width (mm) : 12
Bearing dimensions and specification in NTN catalogue :
- d - 25 mm
- D - 47 mm
- B - 12 mm
- C - 12 mm
- r min. - 0,6 mm
- da min. - 29 mm
- da max - 30,5 mm
- Da max. - 43 mm
- ra max. - 0,6 mm
- Weight - 0,075 Kg
- Basic dynamic load rating (C) - 10,1 kN
- Basic static load rating (C0) - 5,85 kN
- Limiting speed - 9400 r/min
- Calculation factor (f0) - 14,5
- Tags : NTN , 25x47x12
