Keterangan

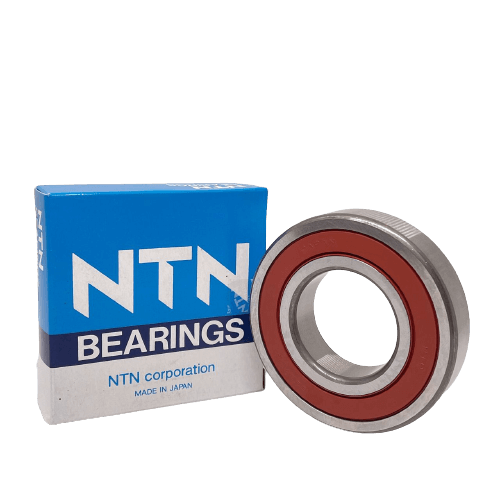

Deep groove ball bearings 6004LLU
- Bearing number : 6004LLU
- Size (mm) : 20x42x12
- Brand : NTN
- Bore Diameter (mm) : 20
- Outer Diameter (mm) : 42
- Width (mm) : 12
Bearing dimensions and specification in NTN catalogue:
- d - 20 mm
- D - 42 mm
- B - 12 mm
- C - 12 mm
- r min. - 0,6 mm
- da min. - 24 mm
- da max - 26 mm
- Da max. - 38 mm
- ra max. - 0,6 mm
- Weight - 0,069 Kg
- Basic dynamic load rating (C) - 9,4 kN
- Basic static load rating (C0) - 5,05 kN
- Reference speed - 11 000 r/min
- Calculation factor (f0) - 13,9
- Tags : NTN , 20x42x12
