What's in the box:
1 x NETGEAR MS510TXPP 8-Port Multi-Gigabit Ethernet Switches, 1 x Quick install guide

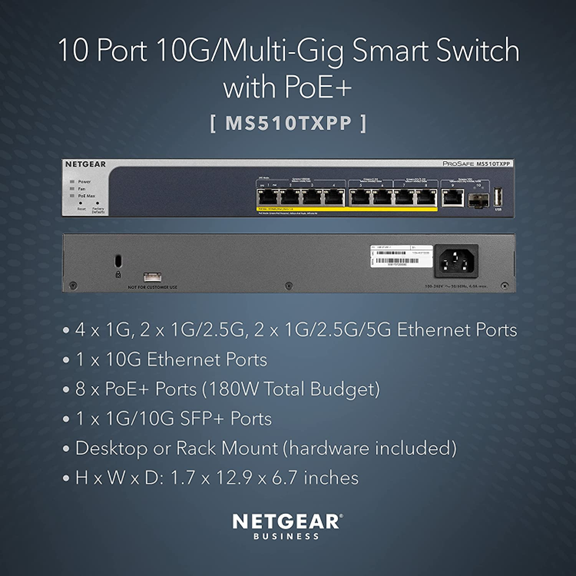

Product Details Of NETGEAR MS510TXPP 8-Port Multi-Gigabit Ethernet PoE+ Smart Switch With 2 Dedicated 10-Gigabit Uplink Ports ( MS510TXPP-100NAS )
Features
Traffic Management
- Auto Negotiation of speed and duplex modes
- IEEE 802.3x Flow Control
- Dynamic MAC address management
- IEEE 802.1Q-based VLAN
- Auto Voice VLAN
- Auto Video VLAN (selected models)
- VLAN routing (selected models)
- QoS based on WRR, strict priority, or both
- Port-based and IEEE 801.2p-based QoS
- TCP/UDP-based QoS
- DiffServ
- IPv4 and IPv6-based QoS (selected models)
- DSCP Support
- Rate Limiting (ingress, or egress)
- Link Aggregation and LACP
Switch Management

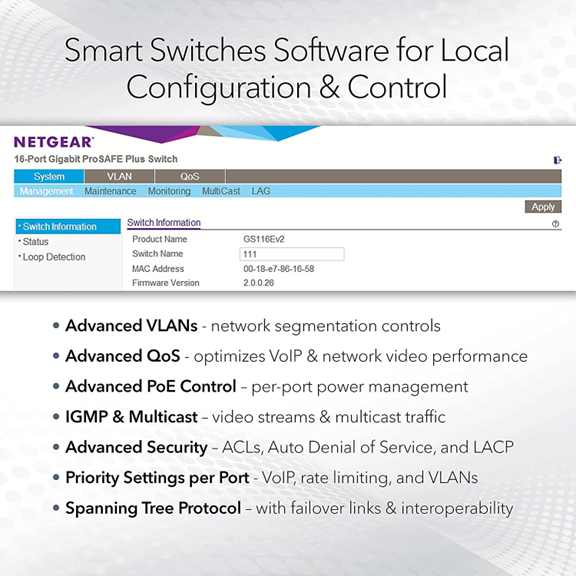

- Web browser-based management GUI
- Smart Control Center Software for multi-switch management
- IP Access List
- IPv6 Management
- Configurable Management VLAN
- SNMP v1/v2c and v3
- Standard MIBs (RFC1213, RFC1643, and RFC1493)
- RMON group 1, 2, 3, 9
- Firmware Upgrade through Smart Control Center (TFTP)
- Firmware download (to switch) and upload (to server) through TFTP/HTTP
- Configuration and Image Upload (to PC) through HTTP
- Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
- Memory & FLASH log
- Syslog (server)
- System password protection
TECHNICAL SPECS

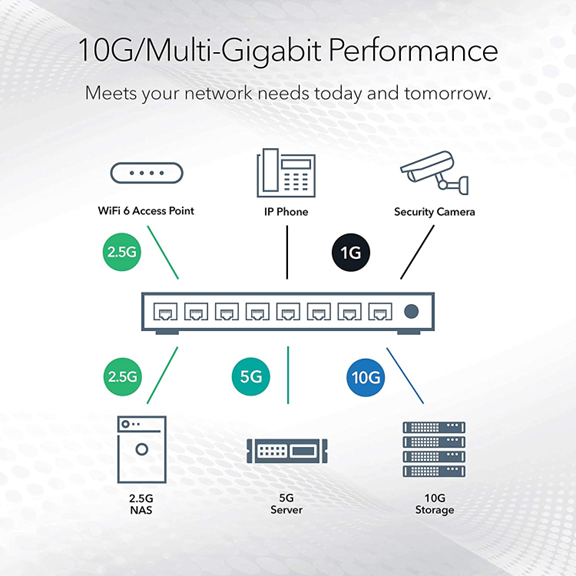

Gigabit ports : 4 (10M/100M/1G)
2.5-Gigabit ports : 2 (100M/1G/2.5G)
5-Gigabit ports : 2 (100M/1G/2.5G/5G)
10-Gigabit copper ports : 1 (100M/1G/2.5G/5G/10GBASE-T)
10-Gigabit fiber SFP+ ports : 1 (1G/10GBASE-X SFP+)
Switching fabric : 78 Gbps line rate

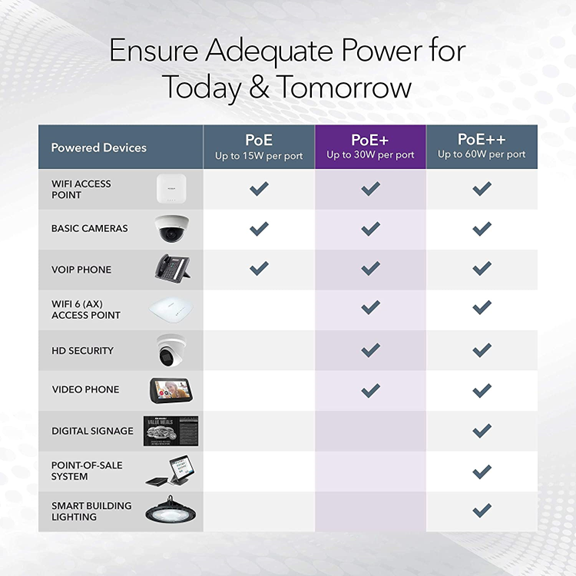

Number of PoE ports : 8
PoE+ (802.3at) : 8
Total PoE Power budget (Watts) : 180W
Max MAC entries : 16K
Buffer size : 3MB
VLAN (Number Supported) : 256
VLAN routing : Yes
Dynamic VLAN assignment : Yes
MLD Snooping : Yes
Static route : Yes (32 IPv4 + 32 IPv6)
Host ARP table : Yes (512)
EEE : Yes
DoS Prevention : Yes
Internal/External : Internal 100-240VAC 50-60Hz
Max consumption (Watts) : 234.31W
FAN : 1
Acoustic Noise Level @25C (dBA) : 28.8
Operating Temperature : 0 to 50 C
MTBF at 25 C : 376,434 hrs
