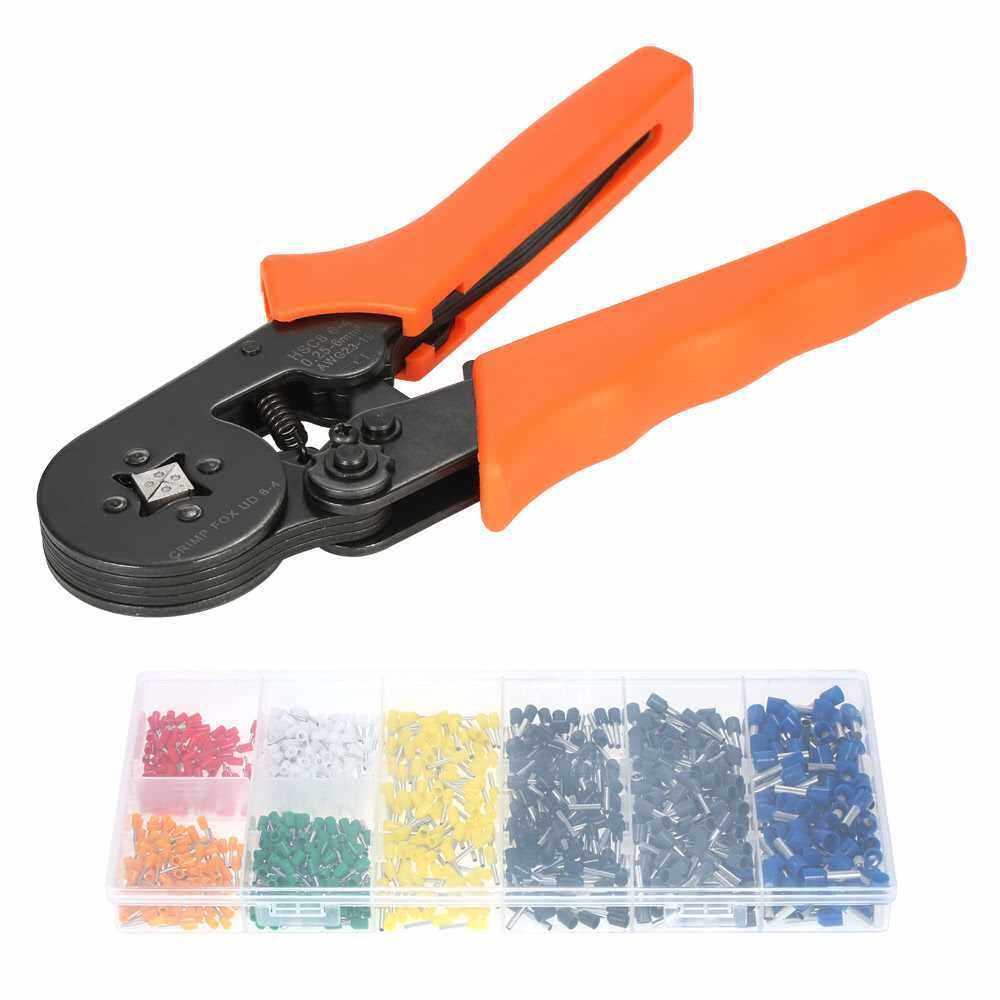

Do you want to crimp wires quickly without stripping and soldering? Try this ferrule crimper plier set with 800 pcs insulated crimp terminals. The wire crimper features convenience, efficiency and harmlessness to the cable cores. It is easy to use, just hold the handle and manipulate it once to successfully press tight the wire and terminal blocks.

Features:
Accurate adjustment before ex works delivery and high assurance with fast lifting safety lock.
With adjustable ratchet wheel structure and the lever action to reduce the operation fatigue.
Due to great handle grasping position, light and compact structure and handle design ensure perfect crimping effect.
Special design of the four spindle crimp style for strengthening the grip.
Easy and convenient to use for wire connecting usage in marine and automobile applications.
A sorted storing transparent box for easy access with 800 assorted electrical wire terminals.

Specifications:
Colors: Multicolor
Material: Nylon + Copper
Crimping Range: 0.25-6.0mm2; AWG23-10
Suitable Terminals: Cord End Terminals, Insulated Terminals
Wire Crimper Size: 175 * 90 * 17mm / 6.89 * 3.54 * 0.67in
Wire Crimper Weight: 351g / 12.37oz
800pcs assorted crimp terminals including:
AWG 10 (Green): F: 12mm, L: 20.5mm, W: 6mm, D: 3.9mm, C: 3.4mm
AWG 12 (Gray): F: 12mm, L: 19.5mm, W: 4.4mm, D: 3.2mm, C: 2.8mm
AWG 14 (Blue): F: 12mm, L: 19.2mm, W: 4mm, D: 2.6mm, C: 2.3mm
AWG 16 (Black): F: 10mm, L: 16.4mm, W: 3.5mm, D: 2mm, C: 1.7mm
AWG 18 (Red): F: 8mm, L: 14.6mm, W: 3mm, D: 1.7mm, C: 1.4mm
AWG 20 (White): F: 8mm, L: 14.6mm, W: 2.8mm, D: 1.5mm, C: 1.2mm
AWG 22 (Yellow): F: 6mm, L: 12mm, W: 2.5mm, D: 1.3mm, C: 1mm
AWG 22 (Orange): F: 8mm, L: 14mm, W: 2.5mm, D: 1.3mm, C: 1mm
Size of the Storage Box: 28 * 13 * 2.5cm / 11.02 * 5.12 * 0.98in
Package Weight: 628g / 22.16oz
Package Size: 28 * 13 * 5.5cm / 11.02 * 5.12 * 2.16in

Package list:
1 * Wire Crimper
100 * E0506 Crimp Terminals
100 * E0508 Crimp Terminals
100 * E7508 Crimp Terminals
100 * E1008 Crimp Terminals
100 * E1510 Crimp Terminals
100 * E2512 Crimp Terminals
100 * E6012 Crimp Terminals
100 * E4012 Crimp Terminals
1 * Storage Box
