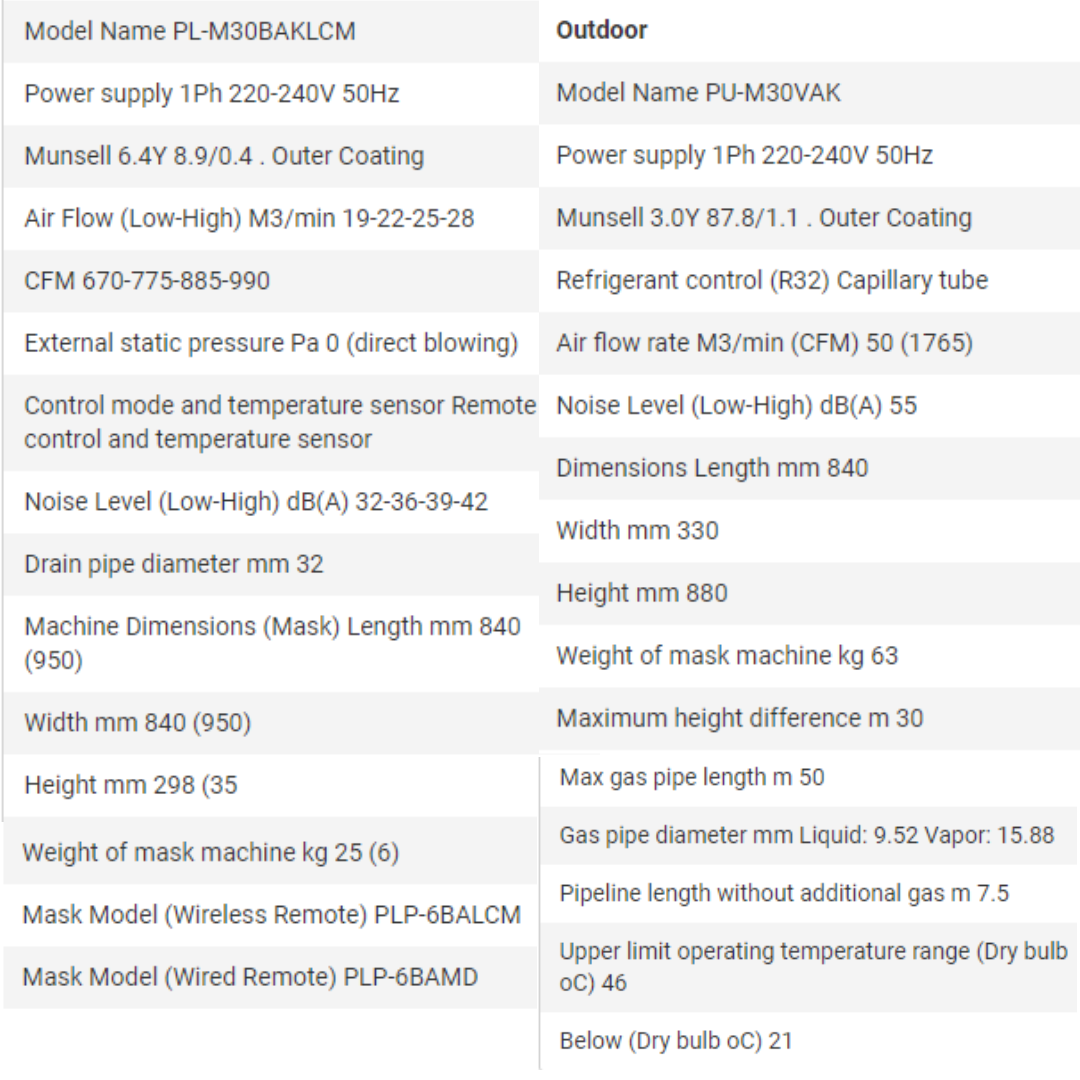

Product Information
- Model Name PL-M30BAKLCM
- Power supply 1Ph 220-240V 50Hz
- Munsell 6.4Y 8.9/0.4 . Outer Coating
- Air Flow (Low-High) M3/min 19-22-25-28
- CFM 670-775-885-990
- External static pressure Pa 0 (direct blowing)
- Control mode and temperature sensor Remote control and temperature sensor
- Noise Level (Low-High) dB(A) 32-36-39-42
- Drain pipe diameter mm 32
- Machine Dimensions (Mask) Length mm 840 (950)
- Width mm 840 (950)
- Height mm 298 (35
- Weight of mask machine kg 25 (6)
- Mask Model (Wireless Remote) PLP-6BALCM
- Mask Model (Wired Remote) PLP-6BAMD
- Outdoor
- Model Name PU-M30VAK
- Power supply 1Ph 220-240V 50Hz
- Munsell 3.0Y 87.8/1.1 . Outer Coating
- Refrigerant control (R32) Capillary tube
- Air flow rate M3/min (CFM) 50 (1765)
- Noise Level (Low-High) dB(A) 55
- Dimensions Length mm 840
- Width mm 330
- Height mm 880
- Weight of mask machine kg 63
- Maximum height difference m 30
- Max gas pipe length m 50
- Gas pipe diameter mm Liquid: 9.52 Vapor: 15.88
- Pipeline length without additional gas m 7.5
- Upper limit operating temperature range (Dry bulb oC) 46
- Below (Dry bulb oC) 21
