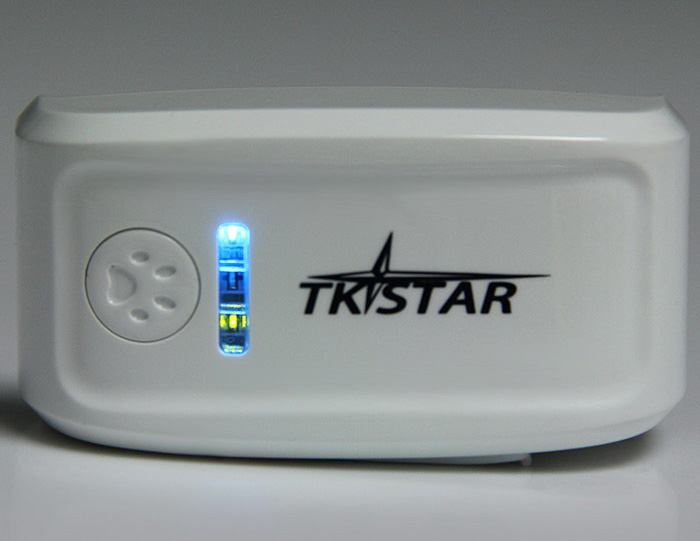

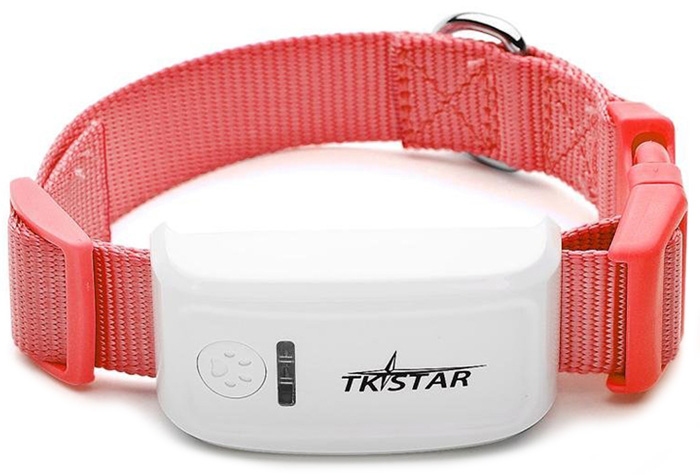

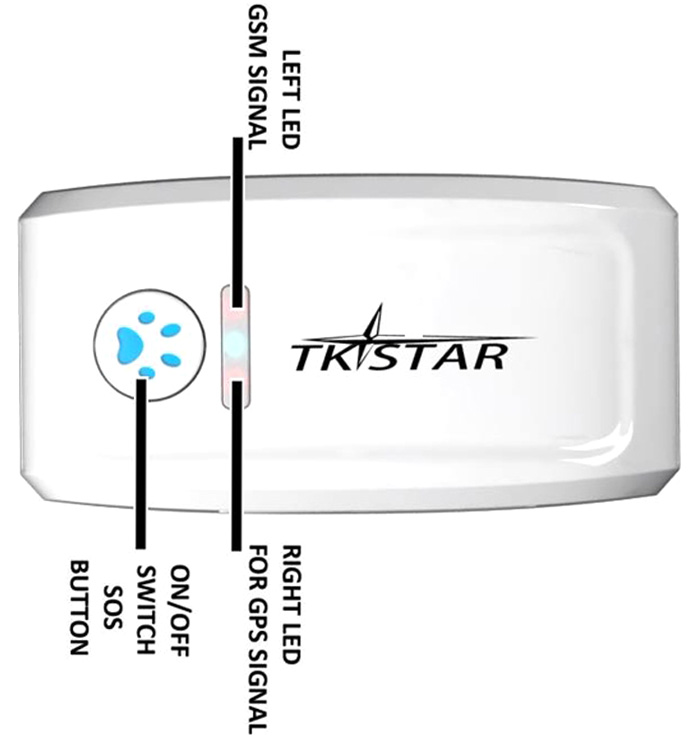

DMDG Mini Waterproof IPX6 GSM / GPRS / GPS Strap Tracker for Pet Cat / Dog / Pig

Pet GPS Tracker

Main Features:

Based on GSM / GPRS and GPS system

Can locate and monitor distant object

Waterproof grading: IPX6

Built-in Li-ion battery, long standby time

Widely used for pets

With functions of locating, monitoring, electronic fence, low battery alarm, sleep mode

GPS and Location Based Service Location Based service also named A-GPS, when tracker in underground or tunnel, you can get location by AGPS

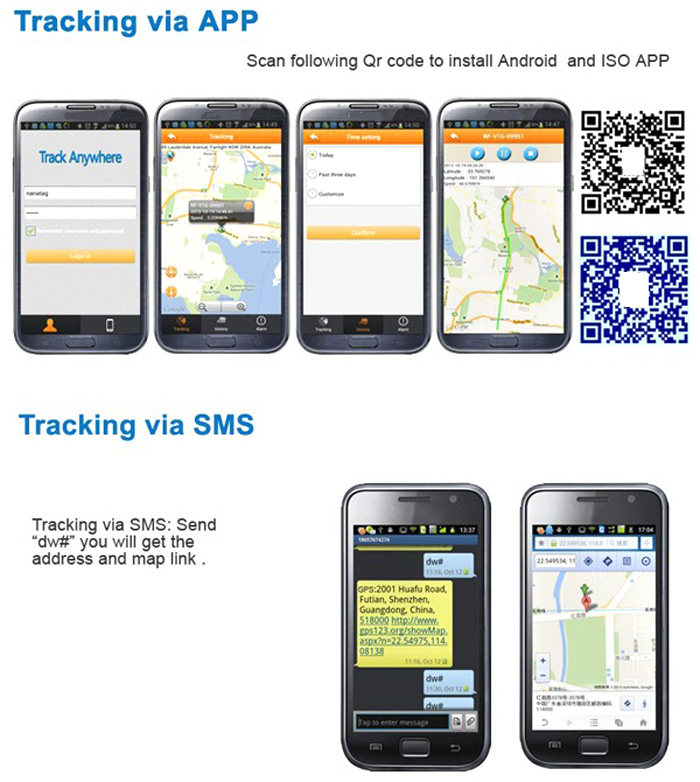

Real time tracking by cell phone and platform

Also can support get location every 5 seconds, and the GPS accuracy is 5m

Check the history of route on platform and replay within one year history of route of device, by web monitor center The software supports iOS and Android

Simply insert a standard GSM SIM card into the GPS unit

Whenever you call the unit it will respond with the real-time geo-coordinates of its location via an SMS

If you have a smartphone then you can click over the geo-coordinates (hyperlink) to see the exact location on Google map

With some very basic/straightforward setup, you can also configure the GPS tracker to send location information (via GPRS) directly to a computer or web-server

Every tracker comes with bundle PC software (supports Microsoft Windows 7 and 8) for real-time location tracking

Parameters:

Chip: Ublox

Charging time is 3-5 hours

Charge for more than 12 hours for the first time use

Car charger: 12-24V input / 5V output

Wall charger: 110-220V input / 5V output

Battery: Chargeable changeable 3.7V 1100mAh Li-ion battery

Standby: 240 hours

Storage temperature: -40-85 degree centigrade

Operation temperature: -20-55 degree centigrade

Humidity: 5-95 percents non-condensing

Warm Prompt:

Clean it with dry cloth

Do not disassemble the device

Use original battery and charger

Type: Tracker

Model: DMDG

GPS Bands : GSM 850/900/1800/1900MHz

Network : GSM,GPRS

GPS Sensitivity: -159dBm

GPS Start Time: Cold status: 35-80s; Warm status: 35s; Hot status: 1s

Package weight: 0.396 kg

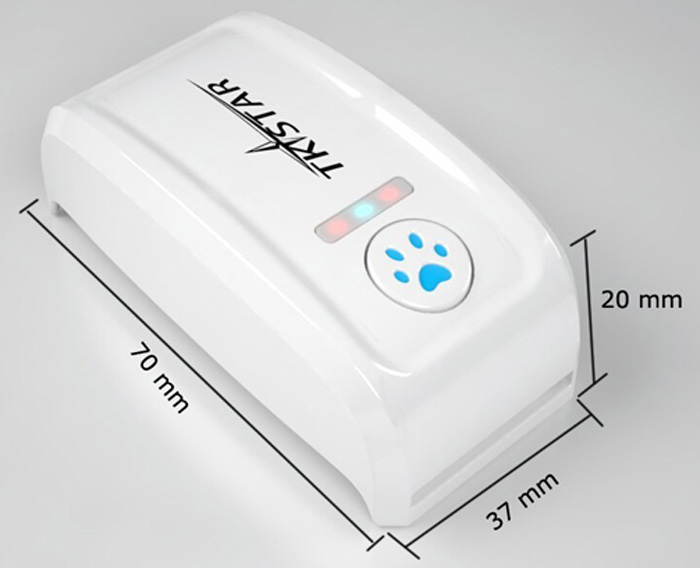

Product size (L x W x H): 7.20 x 3.50 x 2.00 cm / 2.83 x 1.38 x 0.79 inches

Package size (L x W x H): 20.00 x 14.00 x 6.50 cm / 7.87 x 5.51 x 2.56 inches

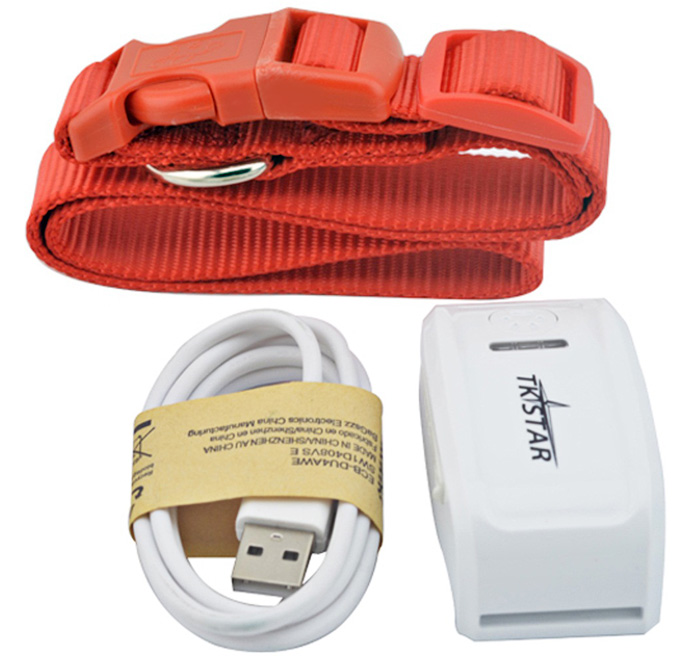

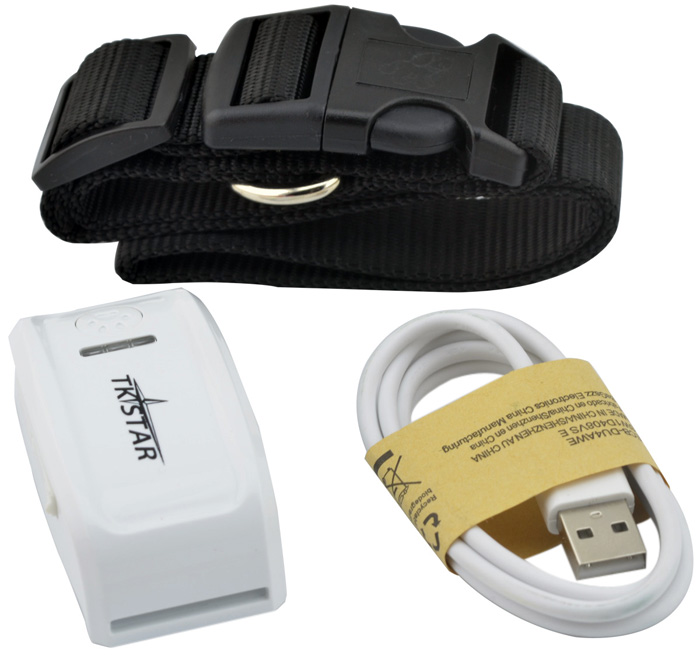

Package Contents: 1 x GPS Tracker, 1 x USB Cable(90cm), 1 x English Manual, 1 x Strap(65cm), 1 x Power Adaptor (US Plug)

Warranty: 3 Months

IPXX Rating Chart

IP Code

The IP Code (or International Protection Rating, sometimes also interpreted as Ingress Protection Rating*) consists of the letters IP followed by two digits and an optional letter. As defined in international standard IEC 60529, it classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. The standard aims to provide users more detailed information than vague marketing terms such as waterproof.

The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. For example, an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. IP22 or 2X are typical minimum requirements for the design of electrical accessories for indoor use.
