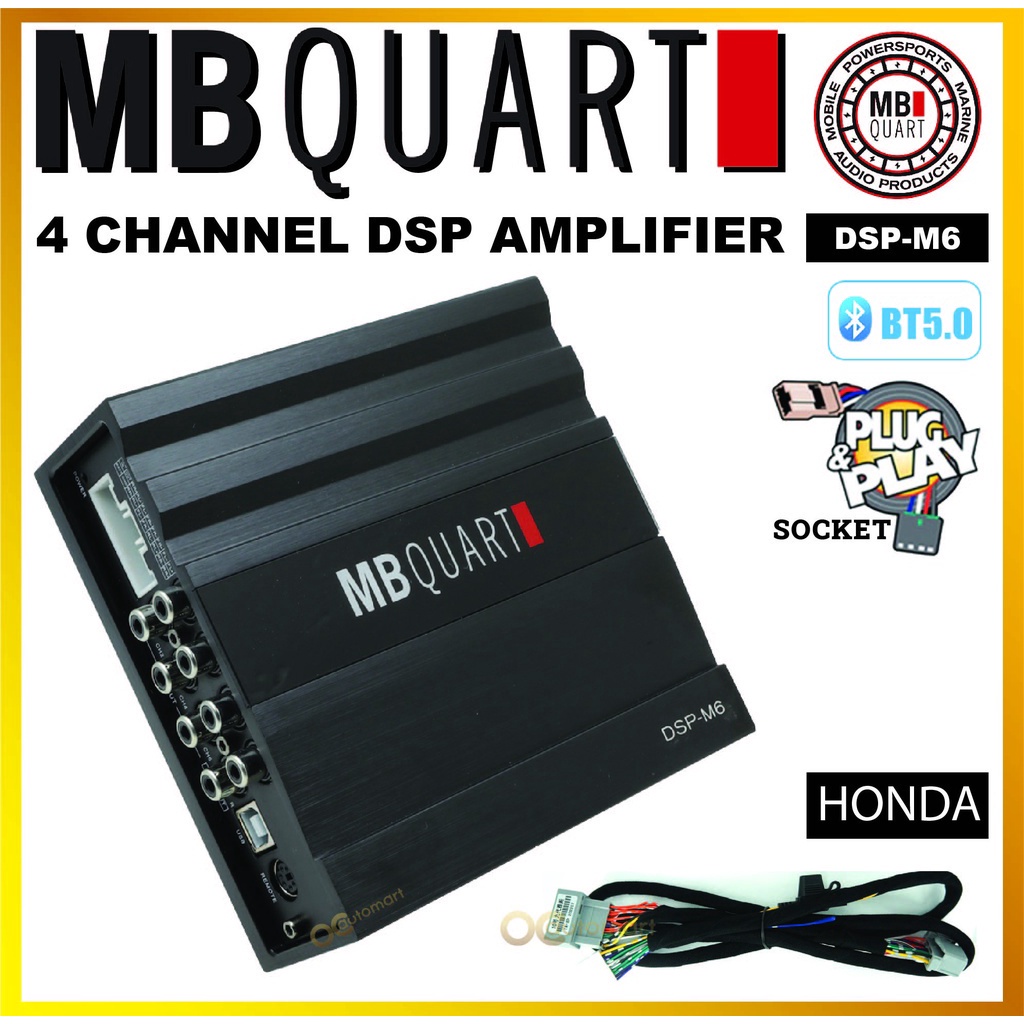

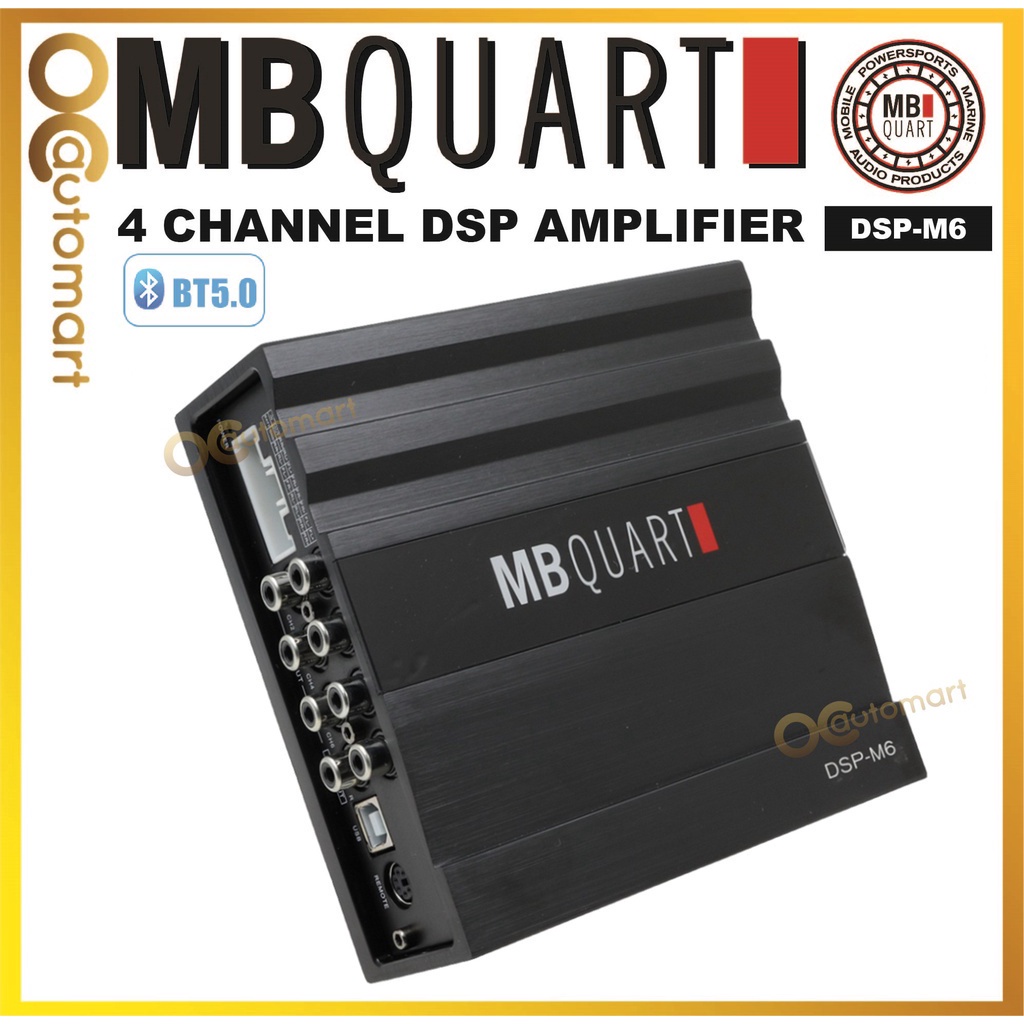

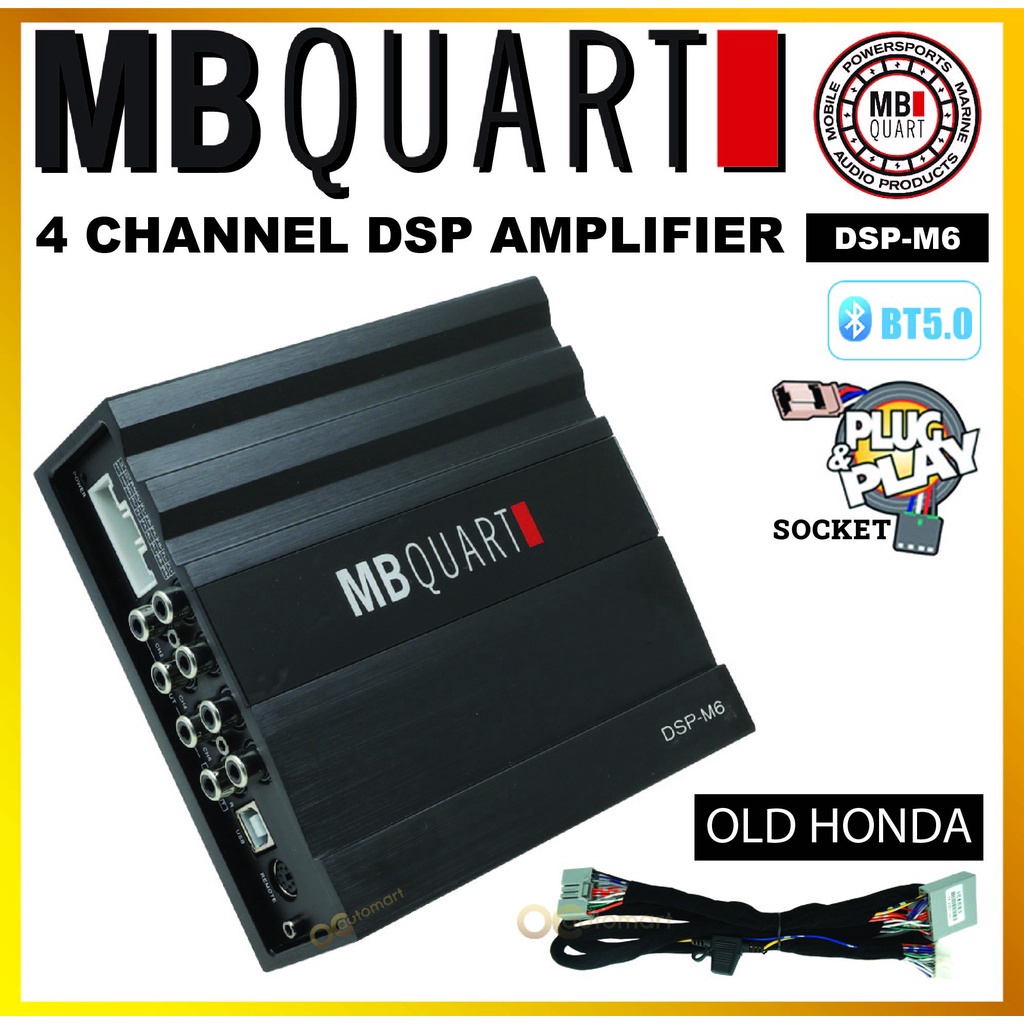

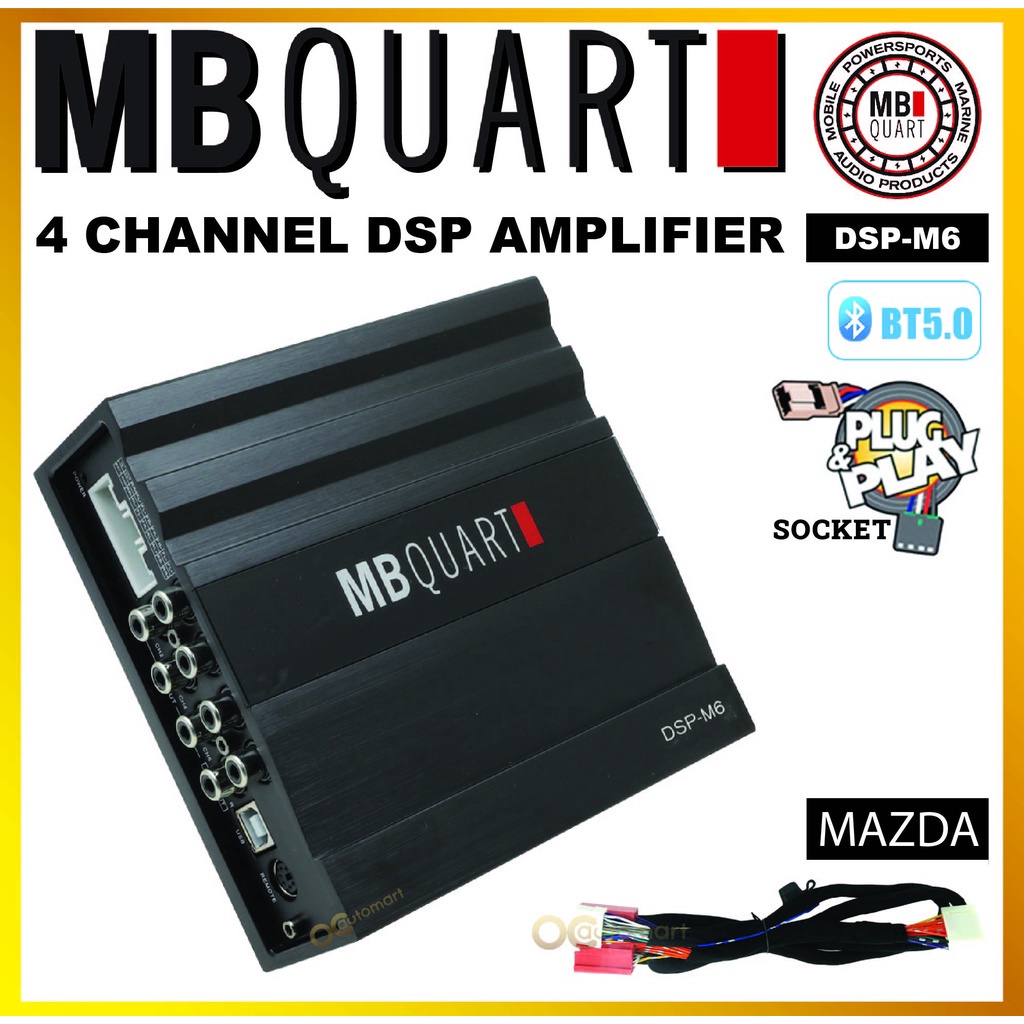

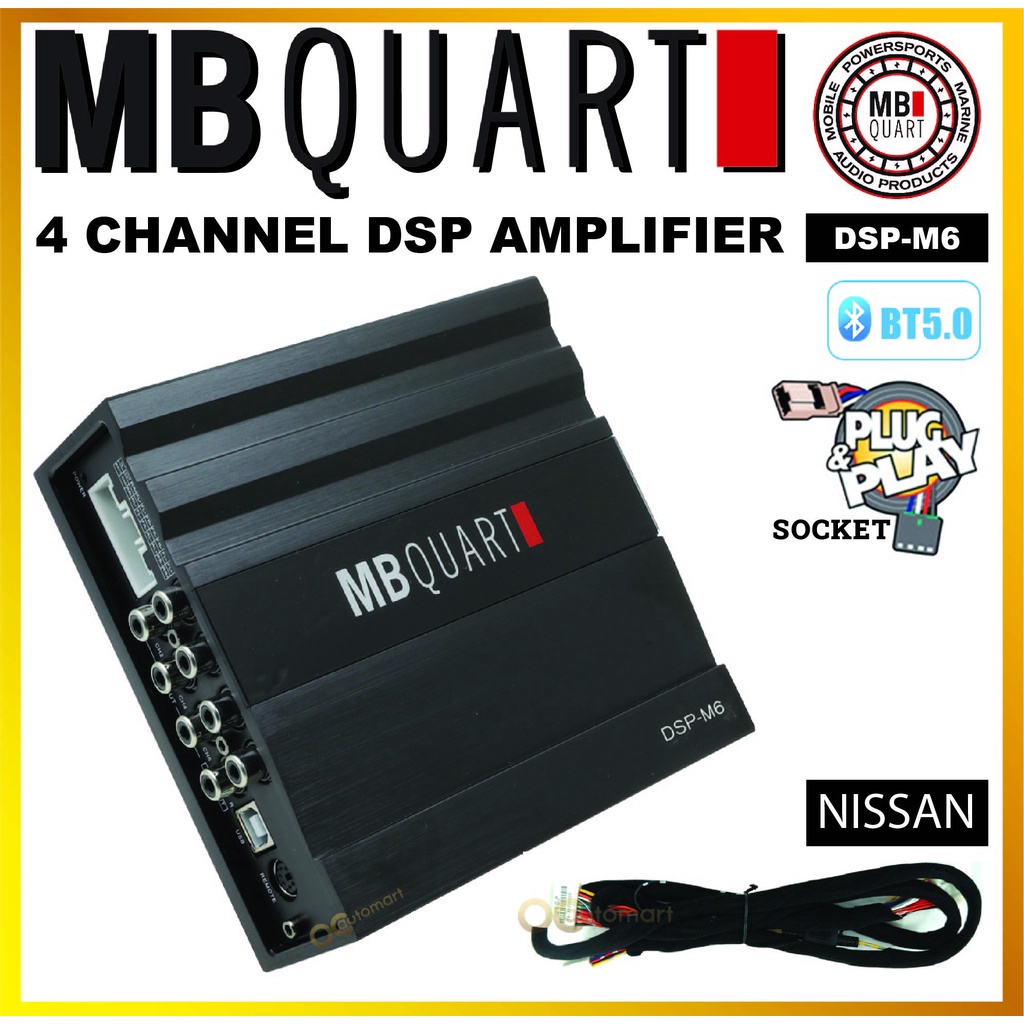

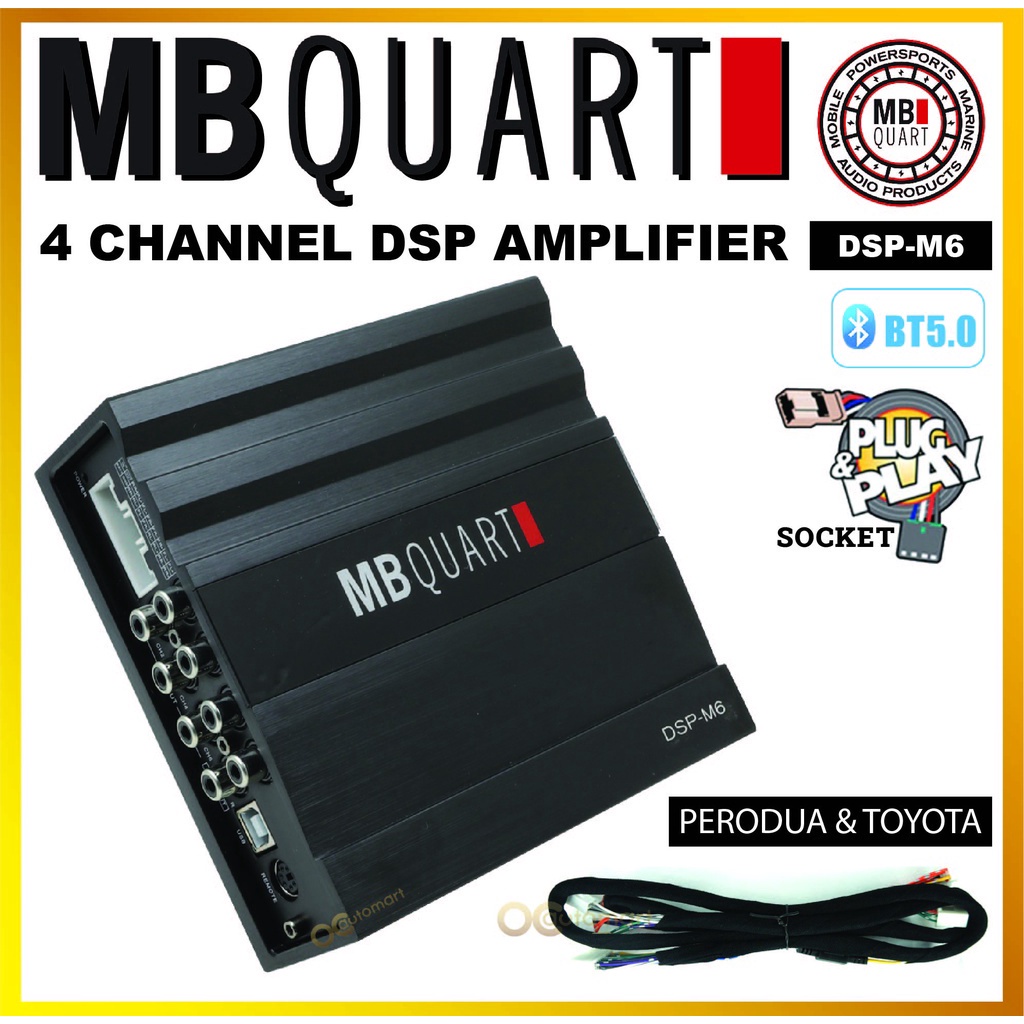

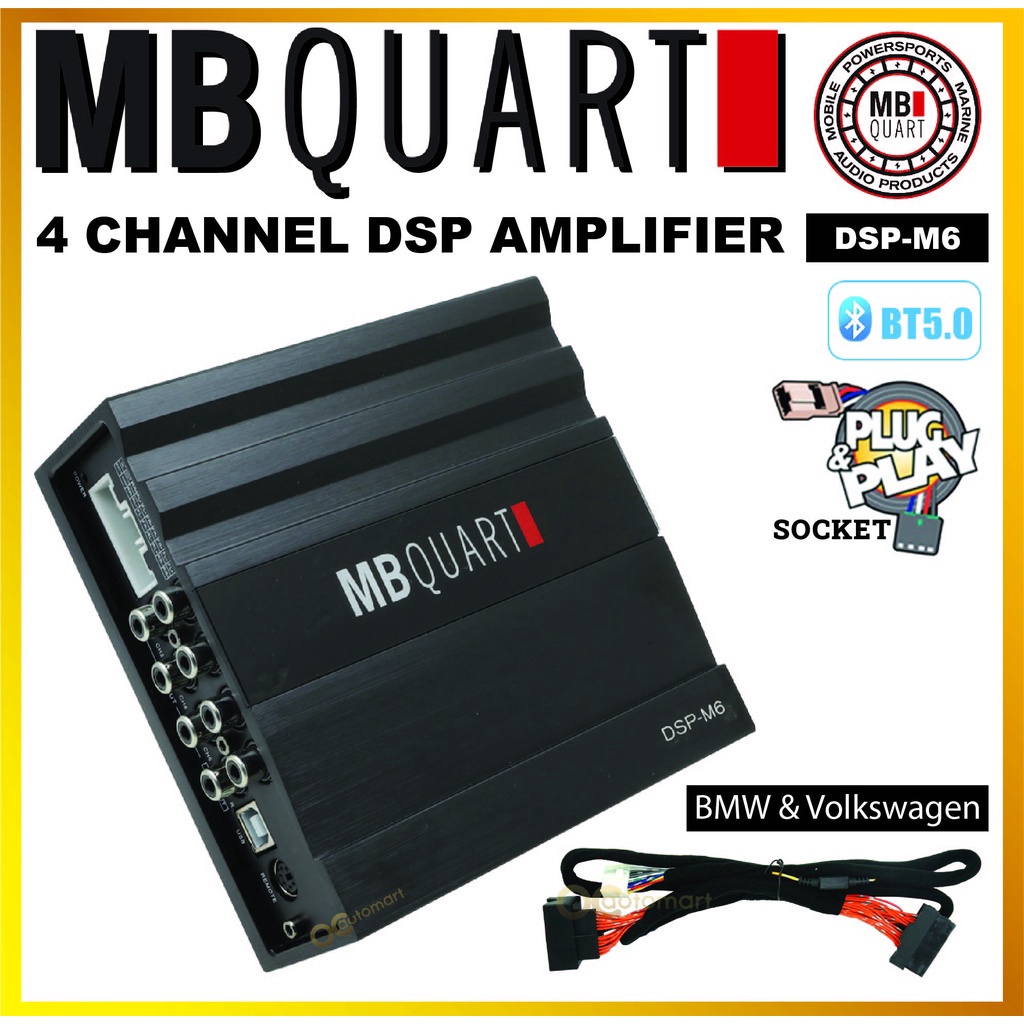

MB Quart 4 Channel DSP Built In Amplifier Digital Signal Processor 4Ch Plug n Play DSP With Amp Car DSP
CSR 5.0 Lossless Bluetooth
aptX HD Audio ensures your bluetooth wireless enabled device can deliver High Definition (HD) audio,
It preserves sound data through the audio transmission, resulting in a better-than-CD' listening experience.
With aptX HD, you can enjoy listening to your music at the highest audible quality when using a wireless device
220Watts 4 Channel DSP Amplifier
Dynamic Range : >100dB
S/N (RCA) : >100dB
Noise : High level : 25yVrms; RCA: 25uVrms
Crosstalk : >80dB
THD&Noise : 0.01%
Input level : High Level : 32Vpp; RCA: 8Vpp
Output Level : 6Vpp
RMS Power 4x20w (4, 14.4V .1KHz , 1%THD)
MAX Power 4x55w (4, 14.4V .1KHz , 10%THD)
AUX Input / ouput Sensitivity (RCA) 1 : 22
Frequency Response : 20Hz- 20kHz
System Sampling Rate : 48k Hz / 24bit
Input Impedance : Hight Level : 240; RCA :15k
Working Voltage : 9-16v
The Static Current : 2.3mA (No Power On Status)
Standby Power : 0.1W
REM Start Input : High Level (H1-/H1+) , ACC Selectable
REM Start Output : 12V (0.2A)
Boot Time : 10s
Size Of the Host (WxHxL) : 139mm x 45mm x 142mm
