What's in the box:

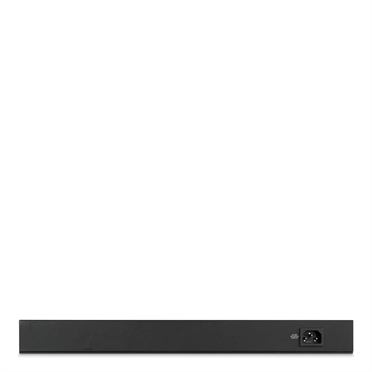

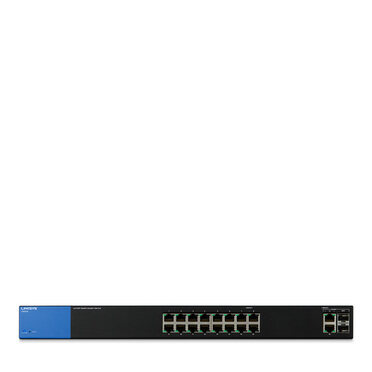

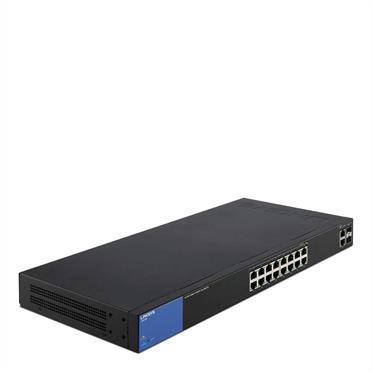

1 x Linksys LGS318 18-Port Business Smart Gigabit Switch ( LGS318-AP )

Product detail of LINKSYS LGS318P 18-Port Business Smart Gigabit Switch ( LGS318P-AP )

• Proven Performance and Reliability
• Easy Configuration and Management
• Advanced Network Security
• IPv6 Support
• Enhanced QoS
• Enhanced Security
• Meets EEE (Energy Efficient Ethernet) 802.3az standard

• QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION

  Numerous QoS features prioritize traffic, ideal for real-time voice and video applications & high bandwidth graphic or video uploads and downloads.

• NETWORK EXPANSION FEATURES

  Build a mesh of switches easily with features like Spanning Tree Protocol (STP) and Storm Control. They help control planned or inadvertent cable loops so you can expand your network with confidence.

• ADVANCED NETWORK SECURITY

  Ensure data passes to authorized clients only with Port authentication and MAC-based port security. Advanced DHCP snooping and IP-MAC binding functions assure network integrity and help prevent attacks.

• Model Name: LGS318
• Network Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3ad
  • IEEE 802.3az
  • IEEE 802.1d
  • IEEE 802.1Q/p
  • IEEE 802.1X
• Memory: 128 MB
• LEDs: System (blue), Link/Act (green)
• System Power Consumption without PoE+:
  • 110V:13.55W
  • 220V:13.66W
• Forwarding Rate: 26.79 Mpps
• Switching Capacity: 36 Gbps
• Jumbo Frame (FE, GE): 9K
• Dimensions (LxWxH): 440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
• Weight: 2.378 kg (5.23 Ibs.)
• Power Input:
  • 100240V
  • 50-60 Hz
  • (0.7A max)
• Operating Temperature: 0 to 50C (32 to 122F)
• Storage Temperature: -40 to 70C (-40 to 158F)
• Operating Humidity: 10 to 90% RH
• Storage Humidity: 10 to 90% RH (non-condensing)
• Spanning Tree: IEEE 802.1d Spanning Tree, IEEE 802.1s Multiple Spanning Tree, IEEE 802.1w Rapid Spanning Tree
• Link Aggregation: IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
• VLAN: Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
• Auto Voice VLAN: Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels

• IGMP Snooping: IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
• HOL Blocking Prevention: Head-of-line (HOL) blocking prevention
• Port Mirroring: Traffic on multiple ports (up to four ports) can be mirrored to another port for analysis with a network analyzer
• Security Features:
  • 802.1x Radius authentication
  • DHCP snooping
  • IP-MAC binding
  • Port security supports limited dynamic lock and locked MAC address
  • Management access control
• Storm Control: Broadcast, flooding, and multicast
• RMON: Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
• Management Interface:
  • HTTP
  • HTTPS
• Other Management: Telnet (menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
• SNMP:
  • Version 1
  • Version 2c
• Firmware Upgrade:
  • Web Browser (HTTP/HTTPS)
  • TFTP
• QoS - Class of Service: Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
• Combo Ports (RJ45 + SFP): 2 combo on ports g17, g18
• Copper FE/GE Ports (RJ45): g01g08, g09g16
• Green Power Mode: EEE+, Short Reach + Energy Detect
• QoS - Priority Levels: 4 hardware queues
• QoS - Scheduling: Priority queuing and weighted round robin (WRR)
• Total System Ports: 18GE
• Mac Addresses: 8K
