What's in the box:
1 x Linksys LGS308 8-Port Business Gigabit Switch ( LGS308-AP )

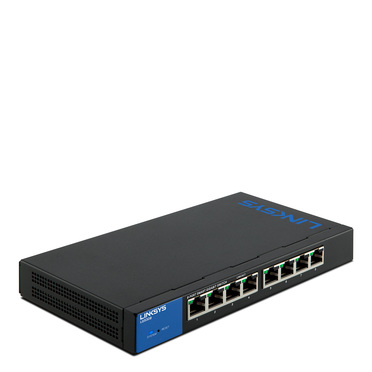

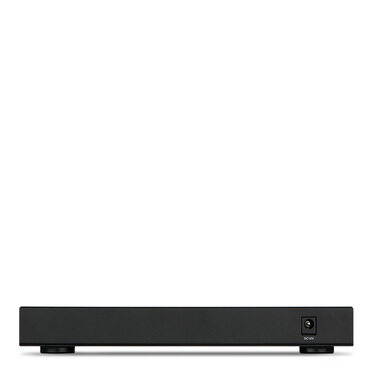

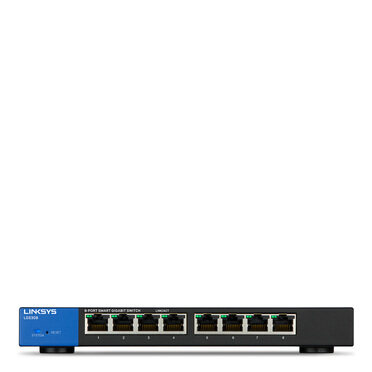

Product detail of LINKSYS LGS308P 8-Port Business Smart Gigabit Switch ( LGS308P-AP )
- Model Name: LGS308P
- Network Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3ad
- IEEE 802.3az
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1d
- IEEE 802.1q/p
- IEEE 802.1X
- Number of Ports with PoE+ Support: 8
- Memory: 128 MB
- LEDs: System (blue), Link/Act/PoE (green/green)
- Forwarding Rate: 11.90 Mpps
- Switching Capacity: 16 Gbps
- MAC Address Table Size: 8K
- Jumbo Frame (FE, GE): 9K
- Dimensions (LxWxH): 210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)
- Weight: 0.562 kg (1.23 Ibs.)
- Power Dedicated to PoE+: 72W
- Operating Temperature: 0 to 50C (32 to 122F)
- Storage Temperature: -40 to 70C (-40 to 158F)
- Operating Humidity: 10 to 90% RH
- Storage Humidity: 10 to 90% RH (non-condensing)
- Spanning Tree: IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
- Link Aggregation: IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
- VLAN: Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
Number of VLANs Supported: 128 active VLANs (4,096 range) Auto Voice VLAN: VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels IGMP Snooping: IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups HOL Blocking Prevention: Head of line (HOL) blocking prevention Port Mirroring: Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer Security Features:
- 802.1x Radius authentication
- DHCP snooping
- IP-MAC binding
- Port security supports limited dynamic lock and locked MAC address
- Management access control
Storm Control: Broadcast, flooding, and multicast RMON: Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis Management Interface:
- HTTP
- HTTPS
Other Management: Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP SNMP:
- Version 1
- Version 2c
Firmware Upgrade:
- Web Browser (HTTP/HTTPS)
- TFTP
QoS - Class of Service: Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based Copper FE/GE Ports (RJ45): g1g8 Green Power Mode: EEE+, Short Reach + Energy Detect QoS - Priority Levels: 4 hardware queues QoS - Scheduling: Priority queuing and weighted round robin (WRR) Total System Ports: 8GE
