What's in the box:

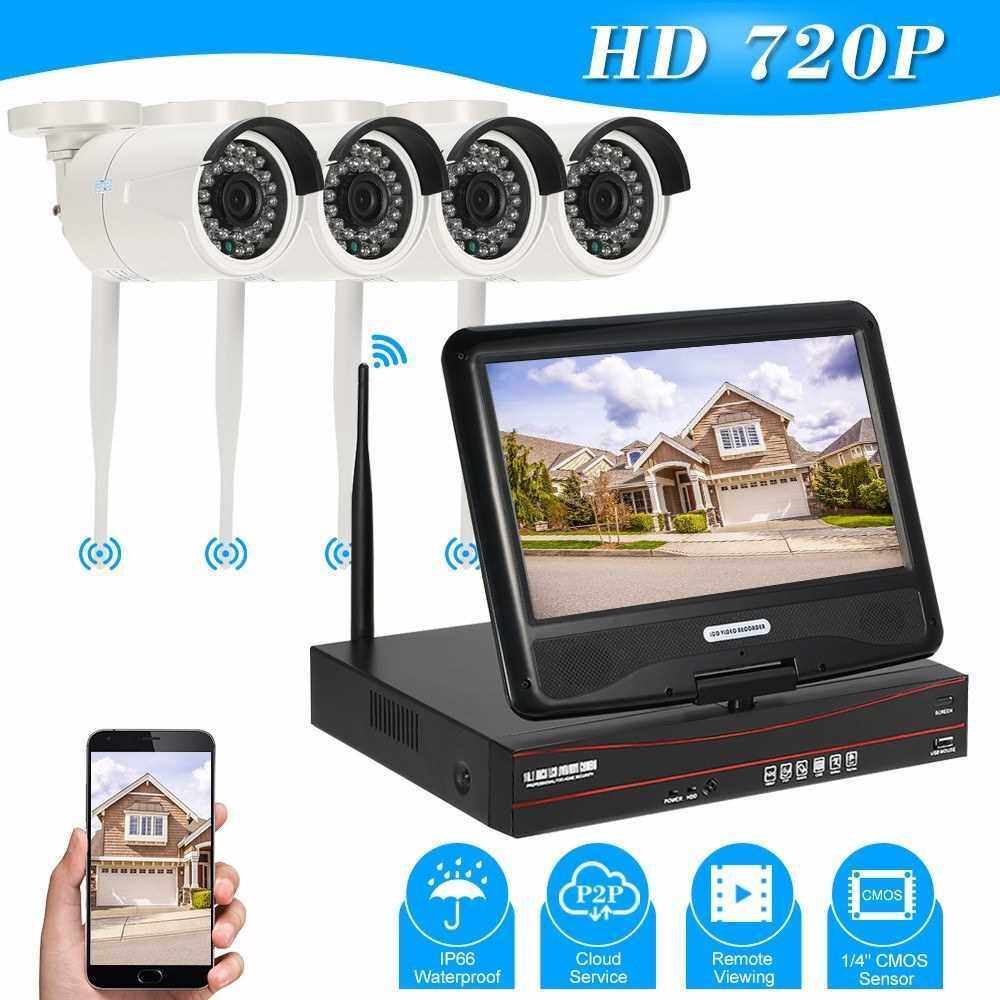

KKmoon 4 Channel 720P Wireless WiFi NVR CCTV System Kit (Us)

Note: This kit is shipped with no HDD, so you may need to buy and install it by yourself, and it has SATA 3.0 cable inside, so you can easily connect and install the HDD.
Hard Disk Requirement: 3.5inch SATA port, Max 4TB capacity.
Note: If you need download the software or more detailed information, you can download it by the link on the user manual.

Features:

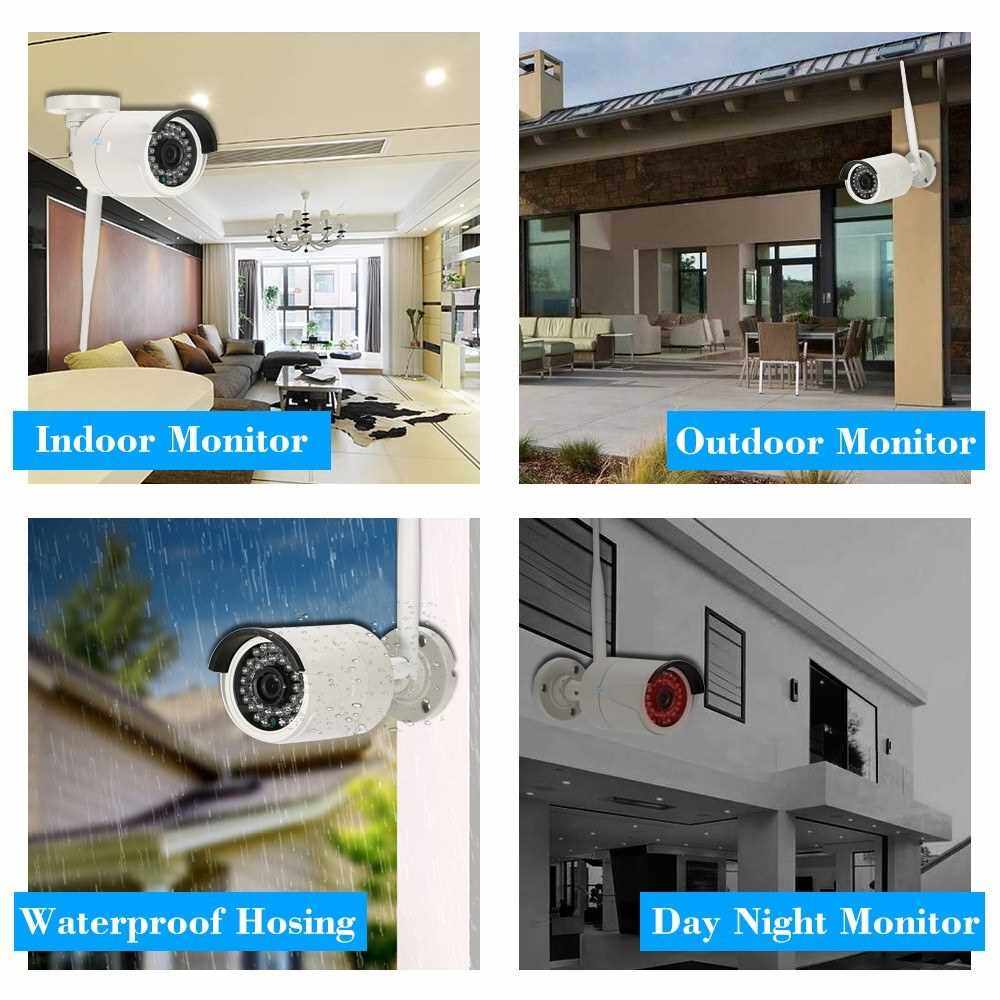

*4-ch 720P IP camera input and 4-ch sync 720P playback. Max support 1080P IP camera input and 4-ch sync 1080P playback. Support outdoor waterproof and IR night view.

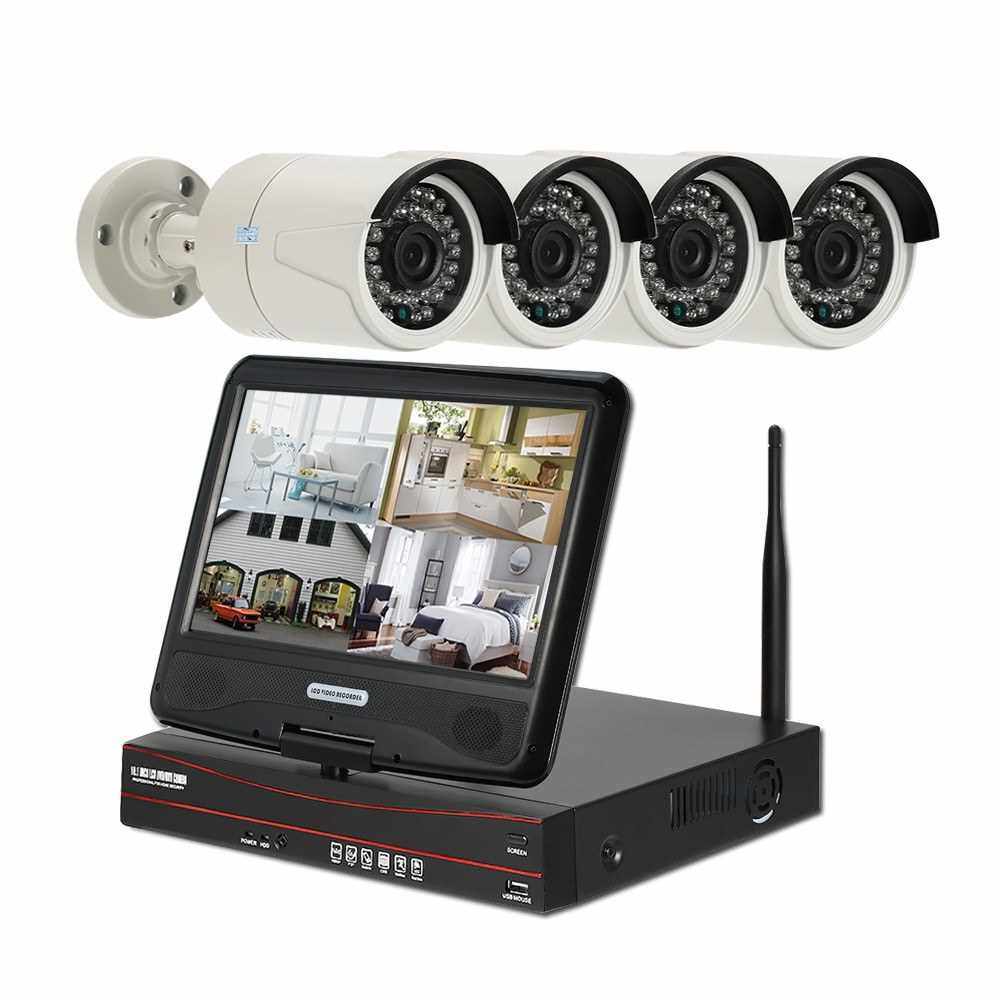

*With 10.1'' LCD screen, no need to connect extra screen, easily see the real-time images and sync playback.
*H.264 video compression, higher definition image and lower bit rate.
*P2P cloud service for Android/iOS mobile devices remote view anywhere anytime.
*Motion detection recording. The DVR will be triggered to record when detect something moving. NO trigger, no record, more intelligent and space-saving.
*More stable transmission effect because NVR is with enhanced dual WiFi antennas. All the cameras with antennas, which make more stable transmission.
*Multiple ways to access on the PC, phone and pad, can be viewed by PC client, Phone APP and IE browser.
*Wireless WIFI connection, play and plug in.


NVR Specifications:
Power Supply: DC 12V 2A
Operating System: LINUX OS
Menu Display: 1/4 screen
Record Resolution: 1280*720
Record Mode: Manual/Scheduled/Motion
Compression Format: H.264
Sync-playback: 4 channel
OSD Language: English, Russian, Italian, French, Japanese, Korean, Portuguese, German, Spanish, Chinese
NVR Resolution: 1024*768, 1280*1024, 1366*768, 1440*900, 1080P
HDD Support: 3.5inch SATA port, Max 4TB capacity (HDD not included)
WiFi Protocol: 802.11b/g/n, dual WiFi antennas
WIFI Distance: 100m (open), 30m (with obstacle)
APP Support: for Android/iOS Phone/Pad
PC Client: Support Windows XP, Win7, win8, Win10 OS
Browser: support IE, Firefox, Chrome, Safari, etc
Network Protocol: HTTP, DHCP, SMTP, PPPOE, FTP, DDNS
NVR Size: Approx. 28*22*6.5cm(L*W*H)

Camera Specifications:
Power Supply: DC 12V/1A
Image Sensor:1/4" Color CMOS Sensor
Mega Pixel: 1.0MP
Resolution: 1280*720
Lens: 3.6mm
LED: 36pcs IR LEDs; auto switch
Low Lux: Color: 0.1Lux ; B/W: 0.01Lux
IR Distance: 20~30m

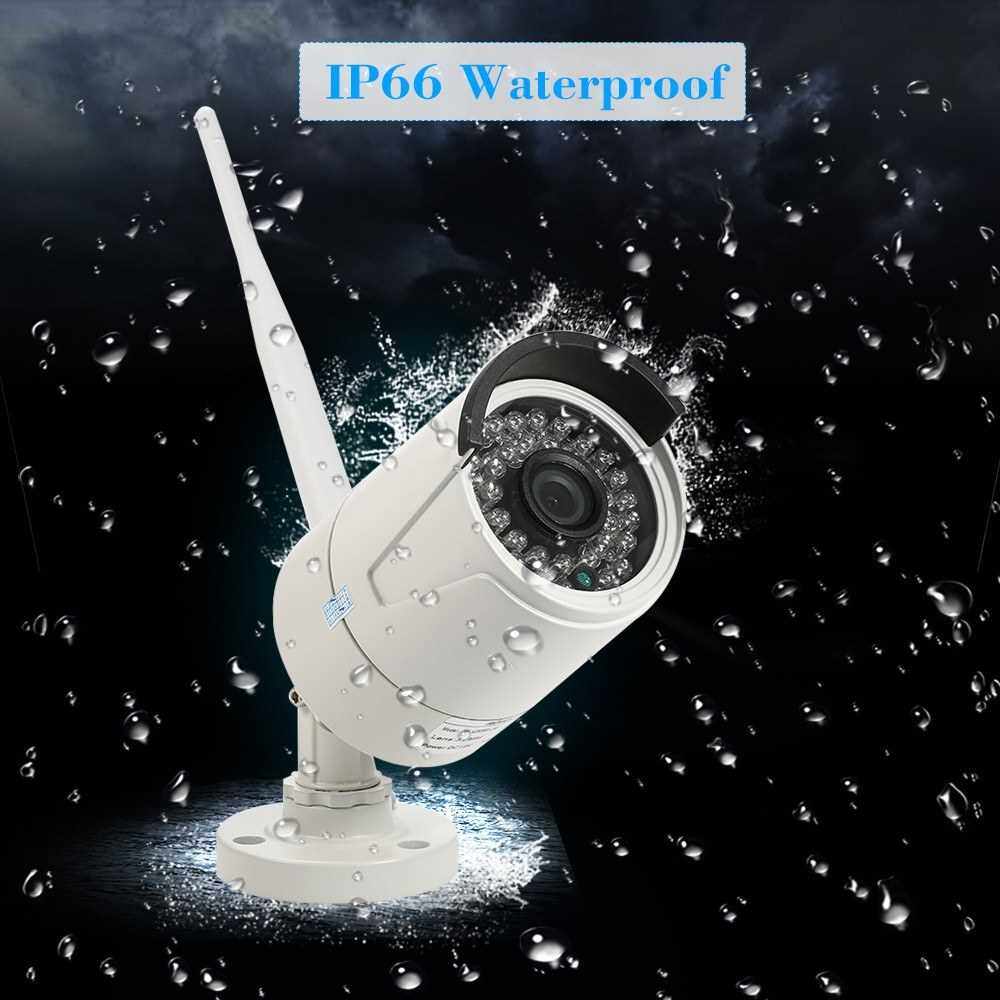

Waterproof Grade: IP66
S/N Ratio: >39.1dB
Mobile Phone Support: for Android/IOS
WIFI: Support WIFI, about 100m distance(Open area)
Wireless Standard: IEEE 802.11b/g/n
Camera Size: Approx. 17*6.5*6cm(L*W*H)


Package Information:
Package Size: Approx. 32.5*28.3*20cm/12.79*11.14*7.87in
Package Weight: Approx. 4263g/150.37oz

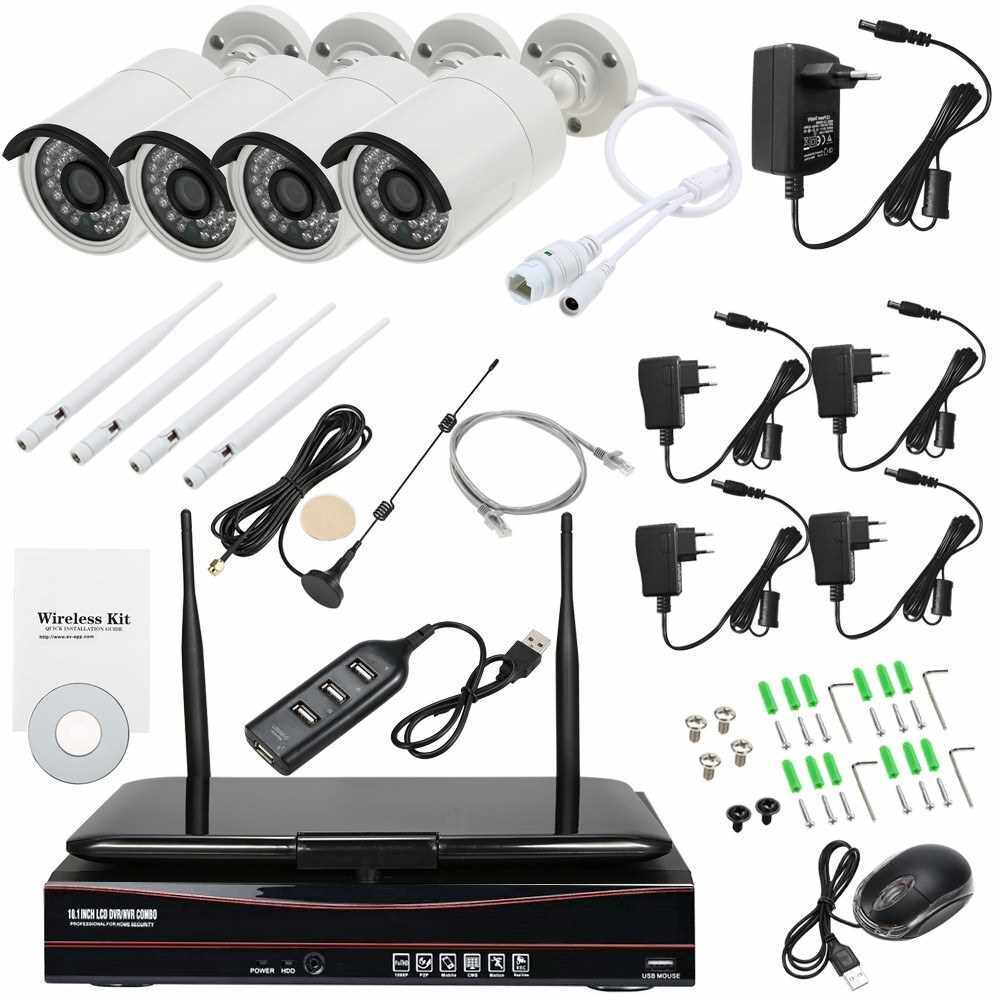

Package List:
1 * 4CH WiFi NVR with Antennas (HDD not included)
4 * 720P WiFi Camera
4 * Camera Antennas

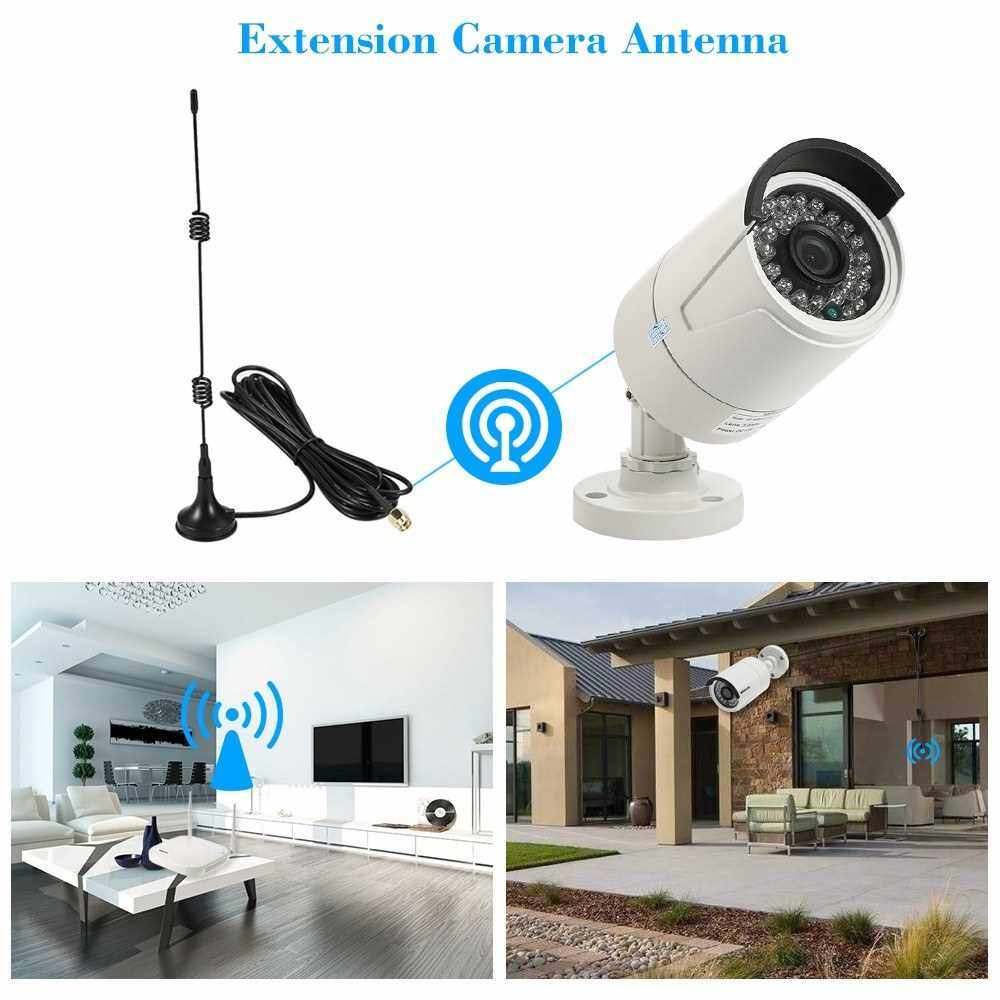

1 * Extension Camera Antenna
5 * Power Adapter
1 * USB Mouse
1 * Network Cable
1 * USB2.0 Cable with 4 Ports
4 * Set of Camera Mounting Screws
1 * Set of HDD Installation Screws
1 * User Manual
