What's in the box:

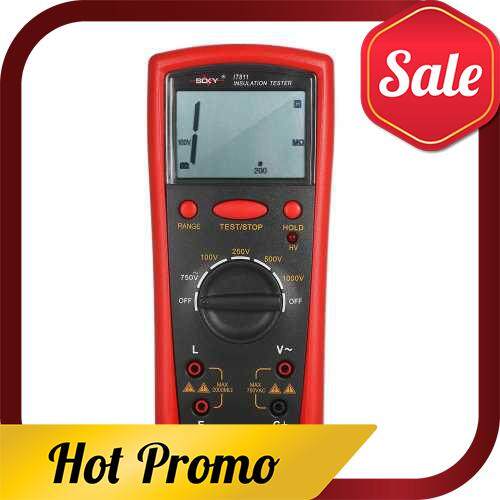

Insulation Resistance Meter Digital Ohmmeter Handheld Insulation Tester 0.1M-2000M Auto-Ranging High Accuracy LCD Insulation Measurement Instrument (Standard)
The Digital Insulation Resistance Tester has safe configuration and improved electro-circuit. It is one new item with more functions, higher precision, and easier operation. It' s also one quake-proof, dust-proof and damp-proof tester for outdoor use.
Features:
Capability: Can do the test at several test voltages: 100V, 250V, 500V, 1000V; voltage below AC750V can be tested; with resistance measurement ranging from 0.1M to 2000M.
Practical Function: Auto switch the range when measuring resistance; data hold feature; low battery reminder and high voltage indicator.
Large LCD Display: Equipped with a 3 1/2 digits big LCD display with max value 1999, easy to read.
Safe to Use: Rugged housing is dust-proof and damp-proof; strong load capacity with output short-circuit current about 1.0mA; protective circuit prevents damage from voltage shock.
User-Friendly: Turn the rotary switch to select voltage; comes with test leads, alligator clips, and a kickstand on the back.
Wide Application: This tester can be applied in all kinds of electric equipment and insulation materials such as transformer, electromotor, cable, switch, appliance, etc.
Specifications:
Material: ABS
Color: Red
Size of LCD: 68*44mm / 2.67*1.73in
Power Supply: 6 * 1.5V AA battery (Not Included)
Working Temperature: 0~40
Relative Humidity: 80%
Safety Level: CAT-II 1000V and CAT-III 600V
Item Size: 205 * 90 * 55mm / 8.07 * 3.54 * 2.16in
Item Weight: 450g / 15.87oz
Package Weight: 774g / 27.3oz
Package Size: 23.2 * 16.2 * 7cm / 9.13 * 6.37 * 2.75in
Technique Index:
Test rated voltage: 100V, 250V, 500V, 1000V
Output voltage: 90%~110% of the test rated voltage
Resistance
Measurement range: 0.1M~2000M
Resolution: 0.01 M
Accuracy:
0.1 M ~ 200 M: (3% of the reading + 5 significant digits)
200 M ~ 2000M: (5% of the reading + 5 significant digits)
AC voltage
Measurement range: 1V ~ 750V
Resolution: 1V
Accuracy: (2% of the reading + 5 significant digits)
Frequency Response: 40Hz ~ 400Hz
Packing List:
1 * Insulation Tester
1 * Storage Bag
1 * Test Leads(pair)
1 * Probe Clips(pair)
1 * User Manual (English)
