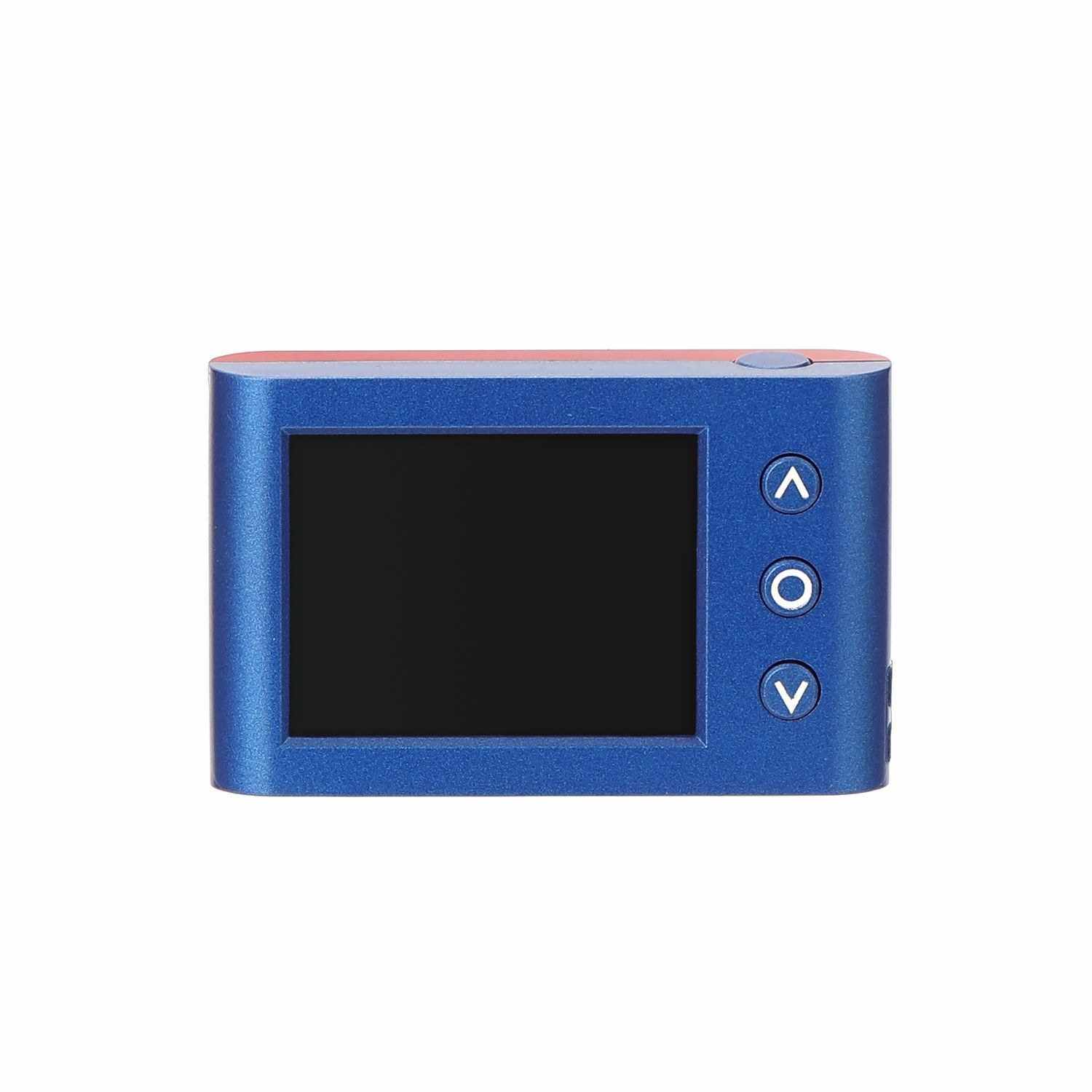

HY MLX90640 2.4 Inch Digital LCD Display Screen Portable Handheld Thermograph Camera Infrared Temperature Sensor Digital Infrared Thermal Imager Multipurpose Detection Tool (Standard)

Wish List

Ask Seller

Bulk

RM 895.86

Quantity

–

Model

10343422

Brand

NO BRAND

Status

Available Now

Delivery

Usually ships within 2-4 days

Delivery Fee

FREE Shipping

Rewards

895 Points

Highlights

Features:
Built-in rechargeable lithium battery, Micro USB interface, you do not need to worry about the power.
The refresh rate is 8Hz, the target temperature measurement ran-ge is -40~+300?, and the use environment is 10~50?.
The emissivity can be adjusted from 0.1 to 0.99 range.

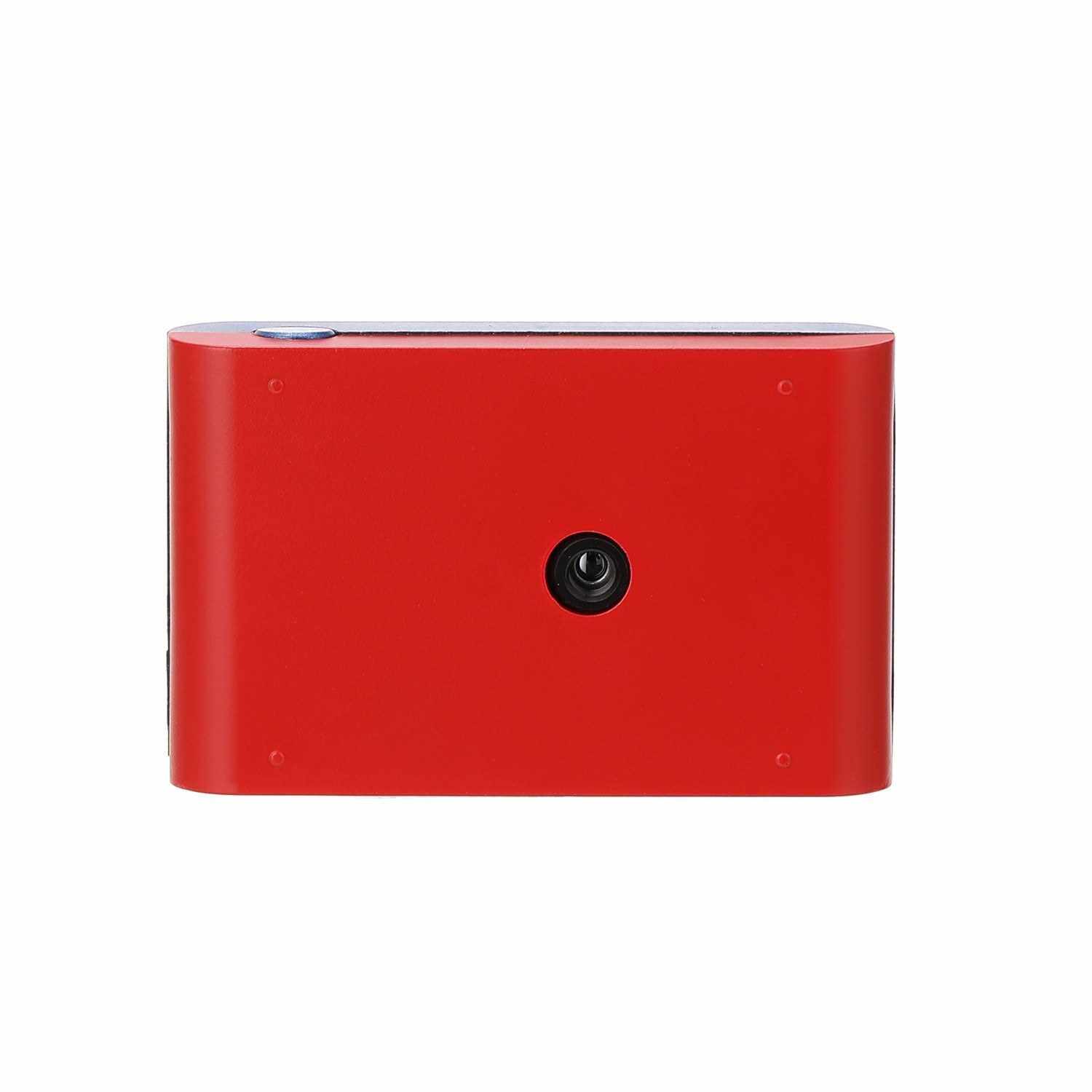

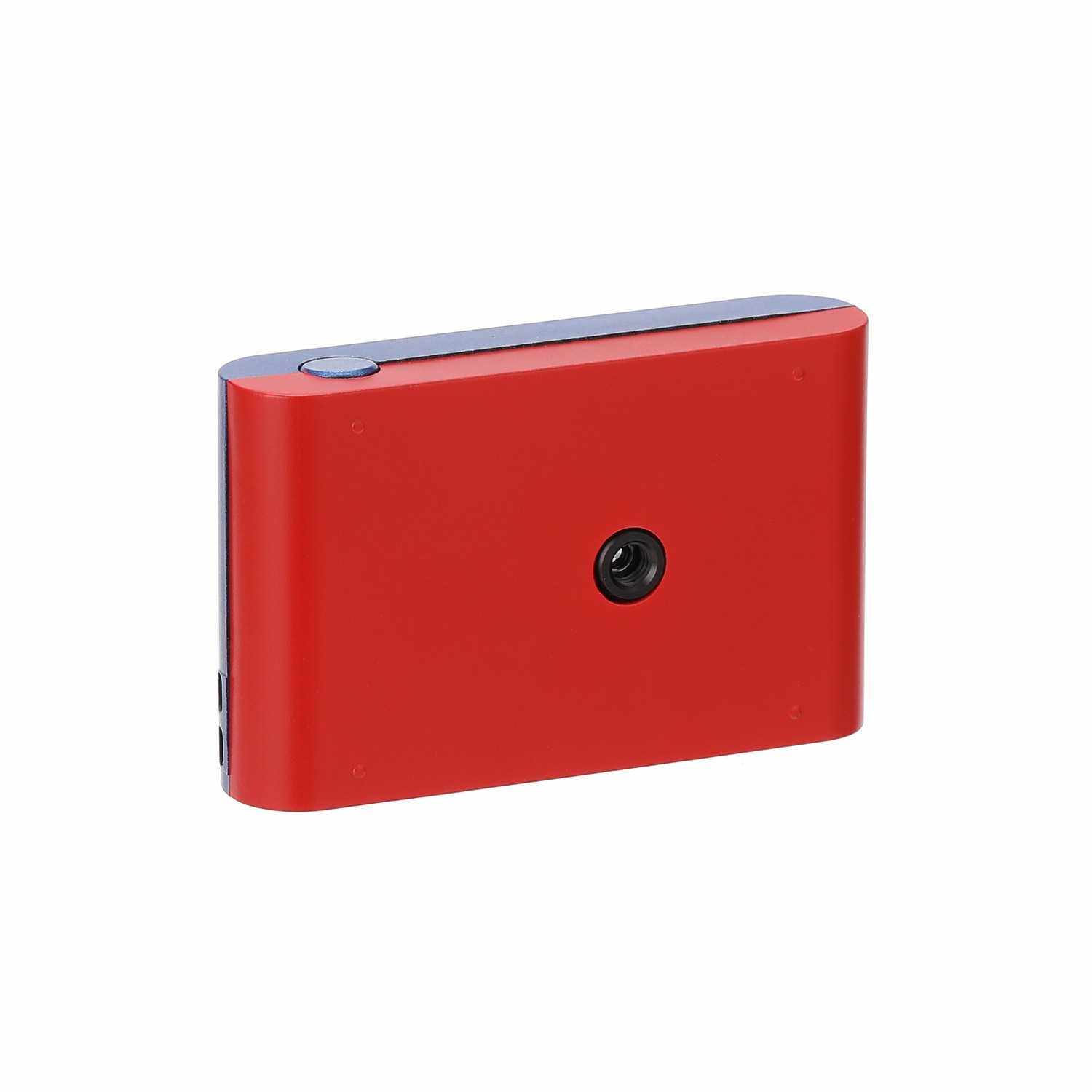

Sensor probe field angle, default 75 degrees*110 degrees MLX90640ESF-BAA probe.

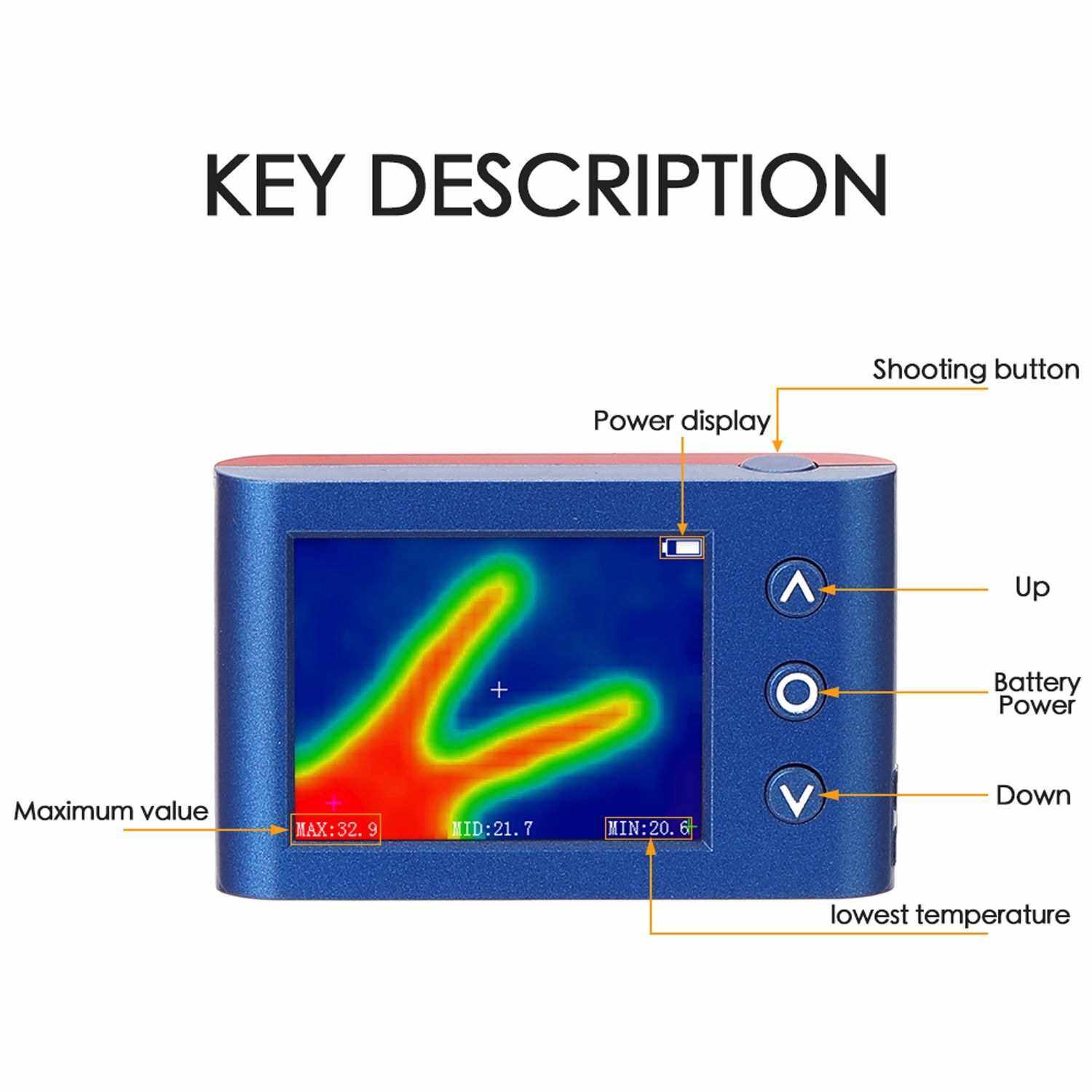

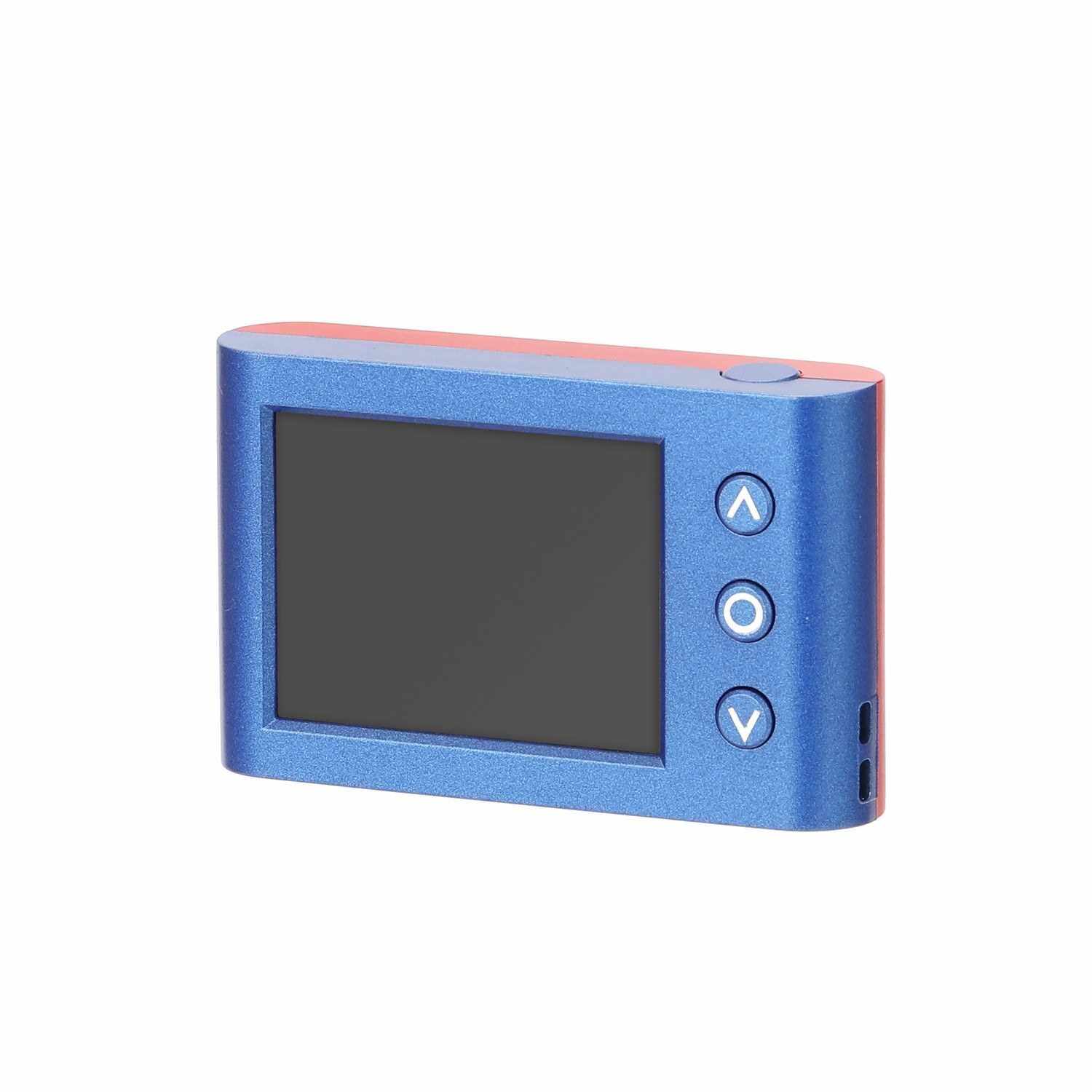

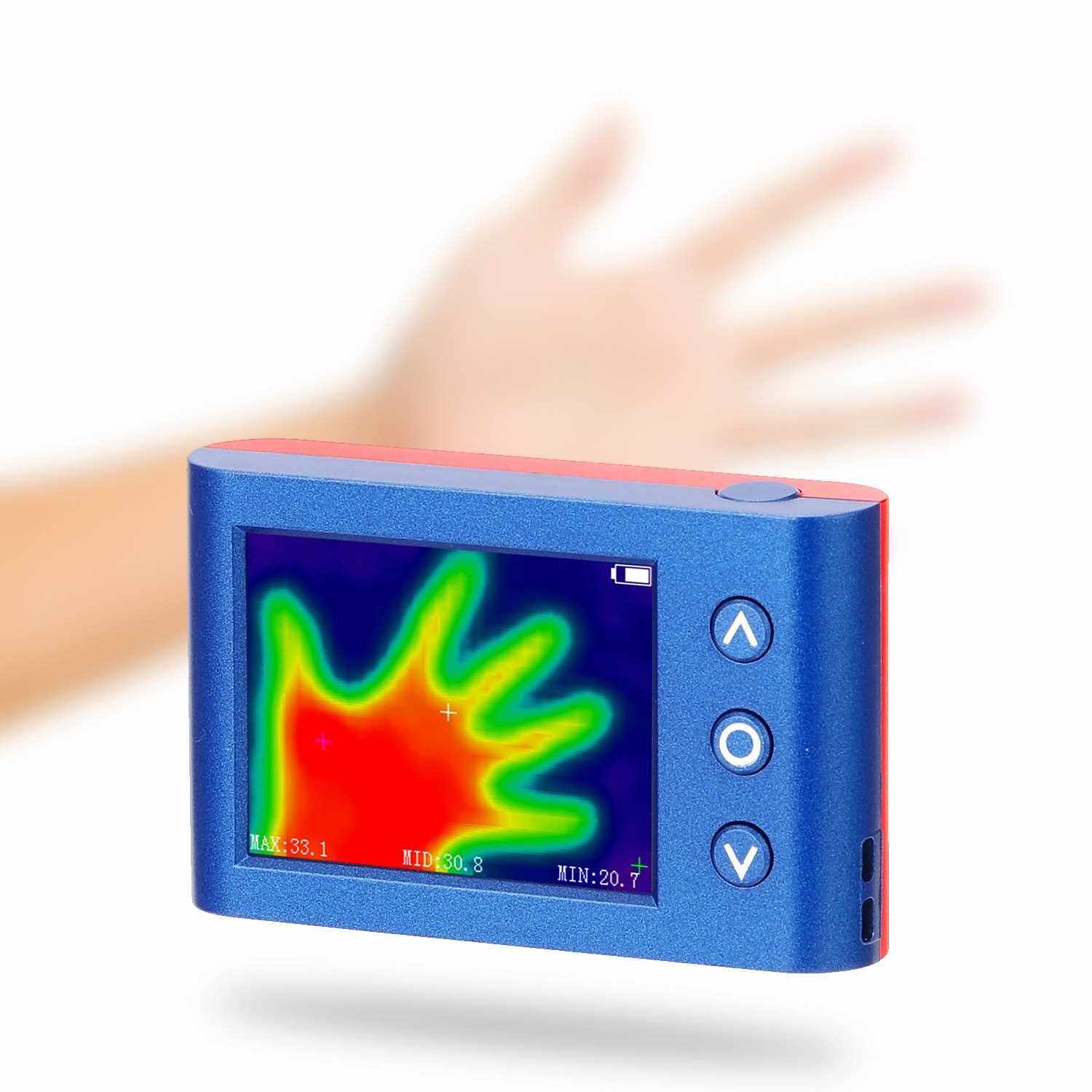

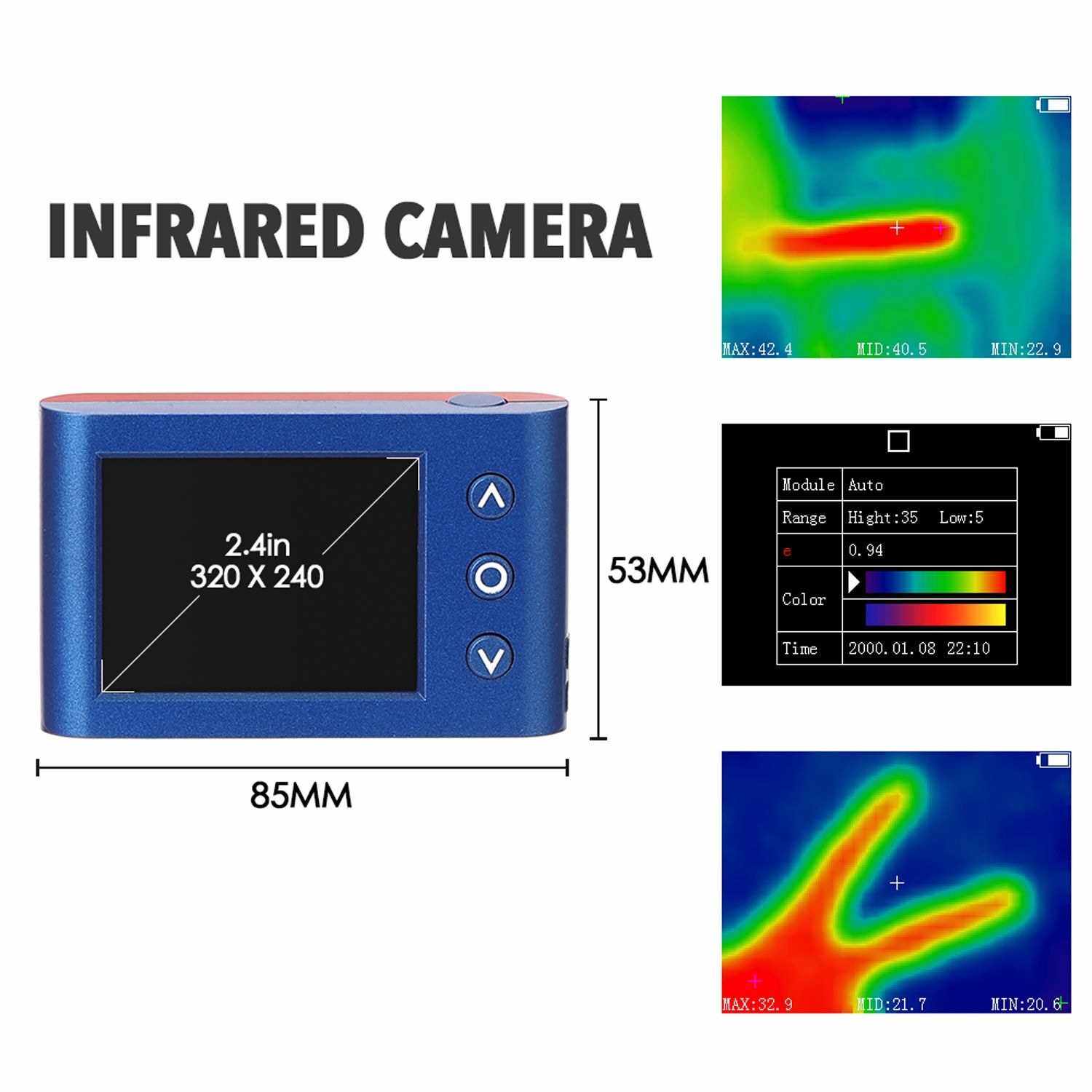

2.4 inch LCD screen resolution is 320*240, the screen shows the highest temperature, the lowest temperature, the center point temperature, displays each coordinate point.
Two color modes can be selected: iron red and rainbow.
With photo taking function, built-in memory, you can take 100 photos, without using other tools, use Micro USB cable to connect directly to the computer, you can browse, copy, delete pictures.
Can be applied to human body temperature detection, PCB component heating temperature detection, floor heating temperature detection, automotive parts temperature detection, electrical switch temperature detection, air conditioning and microwave oven detection, etc.

Product Information

This is a handheld and multifunctional thermal imager, compact and lightweight, with 2.4inch LCD display screen, you can see the data more clearly, easy to carry. It can be used in a variety of situations and is an indispensable tool for household and industry use. Come on and try it, it will not let you down.

Features:
Built-in rechargeable lithium battery, Micro USB interface, you do not need to worry about the power.
The refresh rate is 8Hz, the target temperature measurement ran-ge is -40~+300?, and the use environment is 10~50?.
The emissivity can be adjusted from 0.1 to 0.99 range.
Sensor probe field angle, default 75 degrees*110 degrees MLX90640ESF-BAA probe.
2.4 inch LCD screen resolution is 320*240, the screen shows the highest temperature, the lowest temperature, the center point temperature, displays each coordinate point.
Two color modes can be selected: iron red and rainbow.
With photo taking function, built-in memory, you can take 100 photos, without using other tools, use Micro USB cable to connect directly to the computer, you can browse, copy, delete pictures.
Can be applied to human body temperature detection, PCB component heating temperature detection, floor heating temperature detection, automotive parts temperature detection, electrical switch temperature detection, air conditioning and microwave oven detection, etc.

Specifications:
Material: ABS
Color: blue+red
Resolution: 32*24
Temperature measurement range: -40?~300?
Measurement accuracy: 2? (center area, 0~100?)
Working temperature: 10?~50?
Working humidity: 70%
Refresh rate: 8Hz
No calibration required
Sensor field angle: 75 * 110
Emissivity: 0.1~0.99 adjustable
Display center point, highest and lowest temperature
Color modes: iron red, rainbow
Battery: 1 * lithium battery, 750mAh (included)
Use time: 4h
Recharging time: 1.5h
Power jack: Micro USB 5V/1A
Item size: 87 * 53 * 20mm / 3.4 * 2.1 * 0.8in
Item weight: 58g / 2.0ounce
Package size: 135 * 70 * 30mm / 5.3 * 2.8 * 1.2in
Package weight: 105g / 3.7ounce

Note:
it is recommended to fully charge the thermal imager before connecting it to the computer, and then connect to the computer after shutting down.

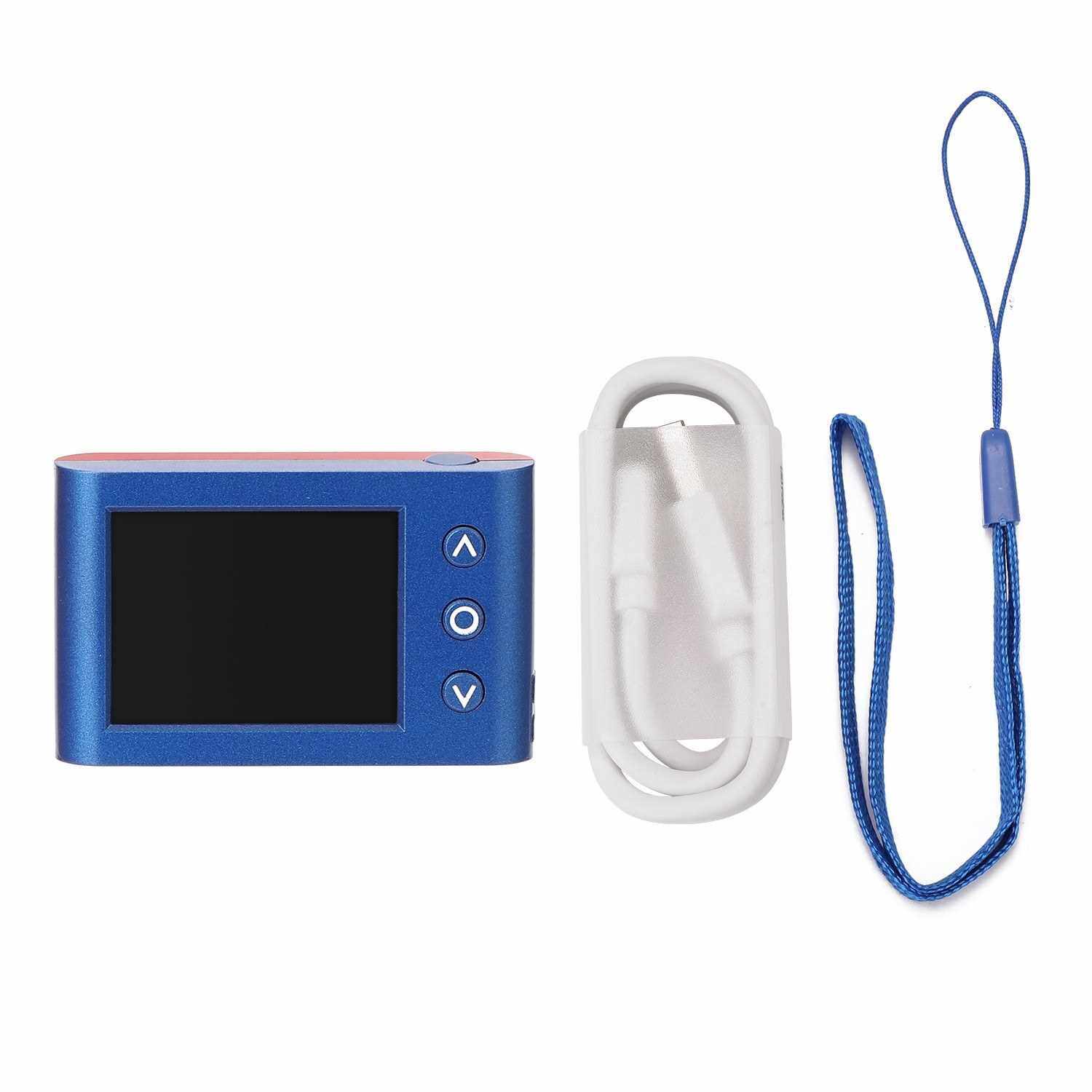

Package list:
1 * Thermal Imager
1 * USB Cable

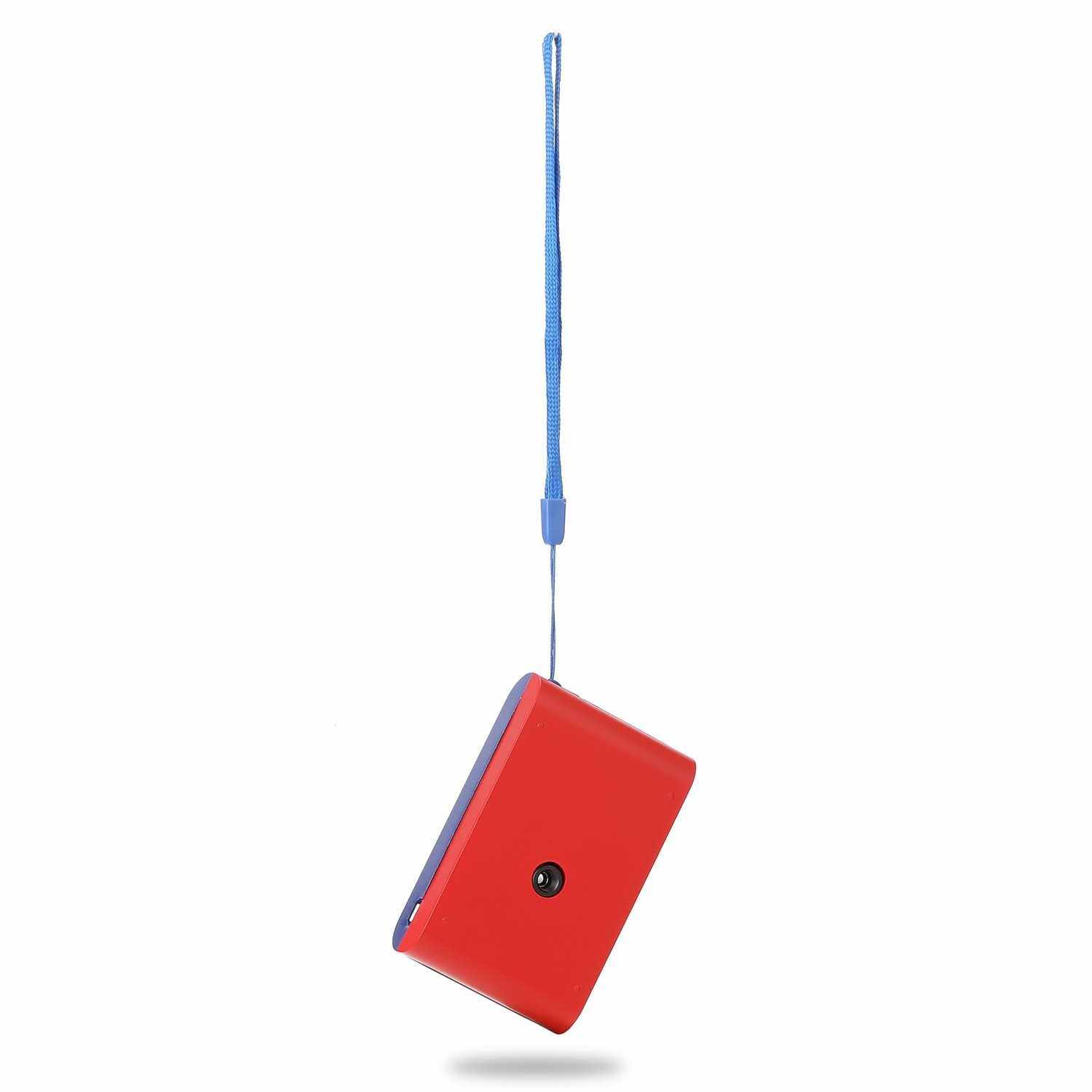

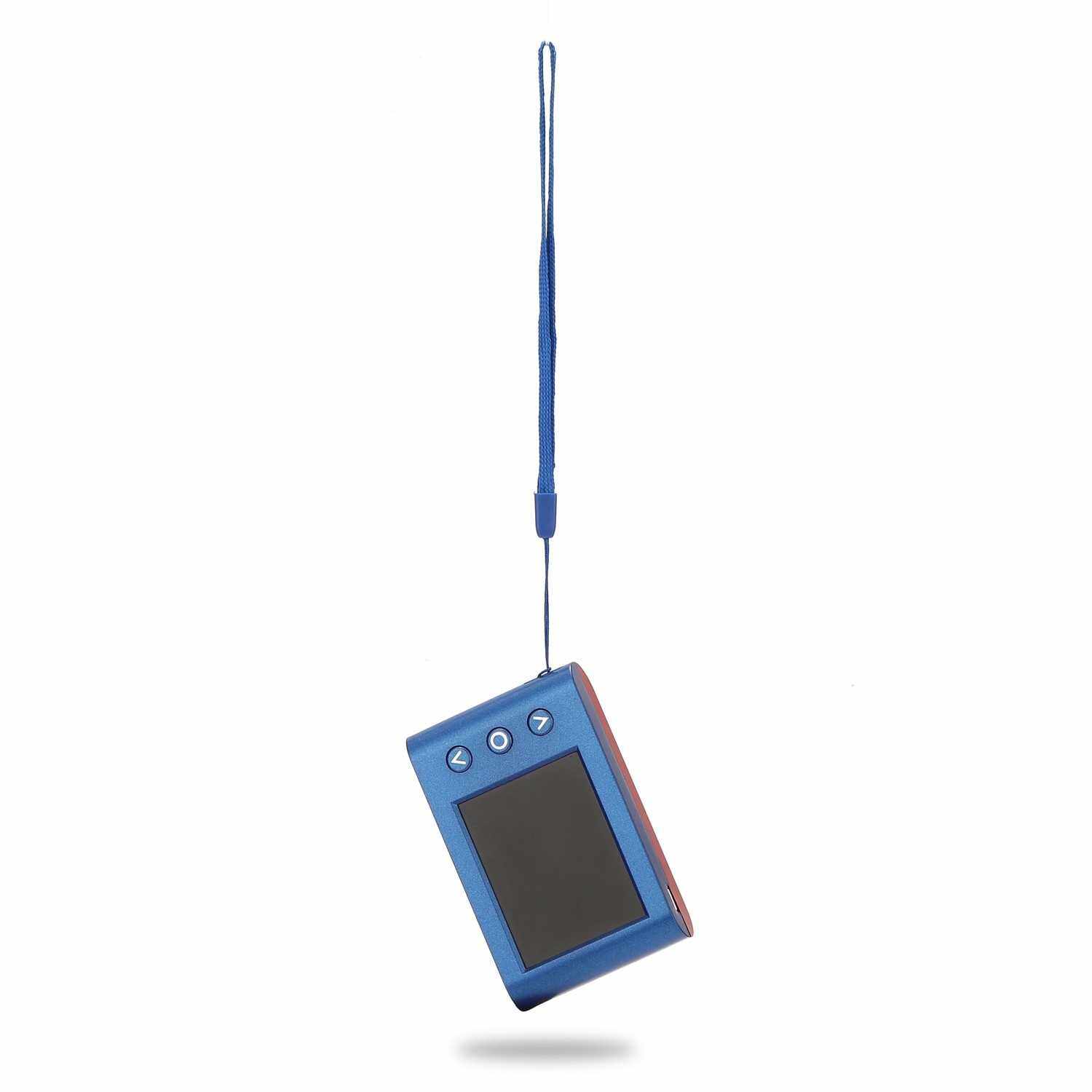

1 * Lanyard
