What's in the box:
Glow Plug x 1pc

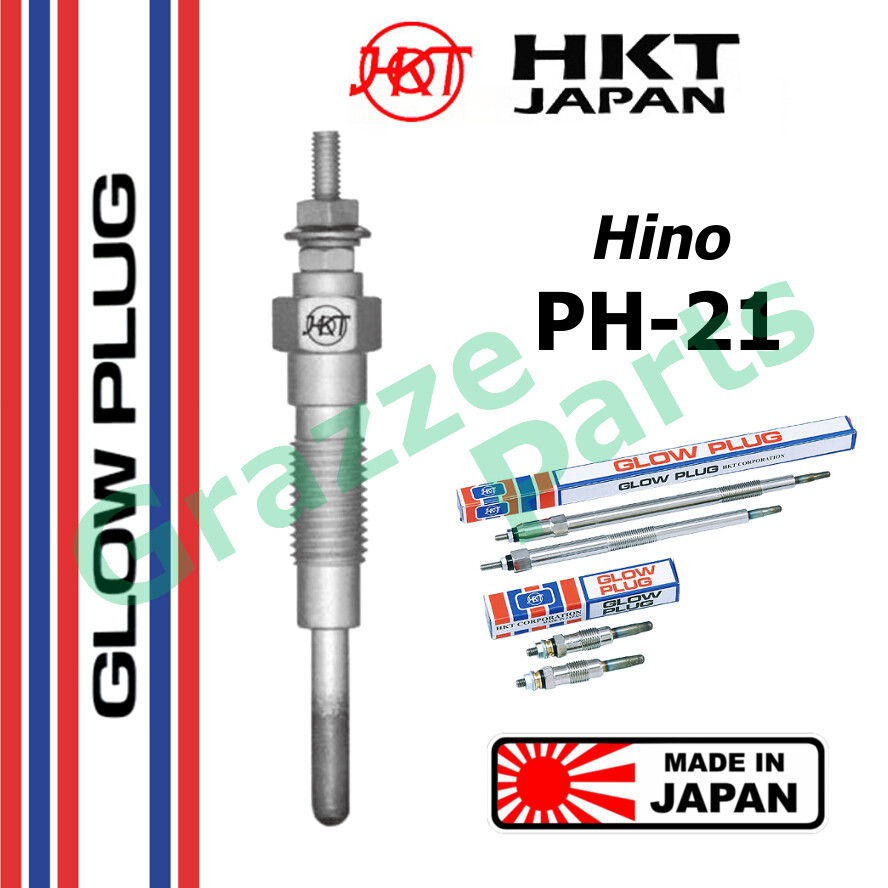

HKT 100% Made In Japan Heater Glow Plug PH-21 / 19110-1040A Hino Ranger EB300 EH100 EH300 KR LB DM EM DS60 KL340 (19V)
Original HKT Japan
Made In Japan
Price quoted for 1pc
1 car use 6pcs
Heater Glow Plug Specifications :
L1 : 41.0mm
L2 : 25.0mm
LT : 85.0mm
A : M4
H : 12.0mm
B : 10 × 1.25
Diameter (ø) : 5.0mm
Nominated / Plug Voltage : 19.0V
Battery Voltage : 24.0V
OEM No. :
19850-67010
63013-30010
63013-30011
19110-1040A
19110-1040
A glow plug facilitates the starting of the diesel engine when it is cold by glowing in a combustion chamber within the engine. It is also called a heater plug.
HKT manufactures two types of glow plugs. A metal-type glow plug where heater elements are made of a heat-resistant alloy, and a ceramic-type glow plug made of silicon nitride.
Our assorted product lineup for passenger vehicles, commercial vehicles, construction machinery, agricultural machinery, and marine vessels all receive high acclaims from customers from all over the world.
Metal Type:
The heat elements at the tip of these glow plugs are made of metal. There are two types: the single coil type, and the dual coil type which uses both heating coils and regulating coils.
Metal types are classified into six categories by engine type and control systems for which the glow plugs are used: Standard, Quick, Quick glow system (QGS type), Super quick (SQ type), Long post heating (LPH type), and Instant glow system (IGS type).
