What's in the box:

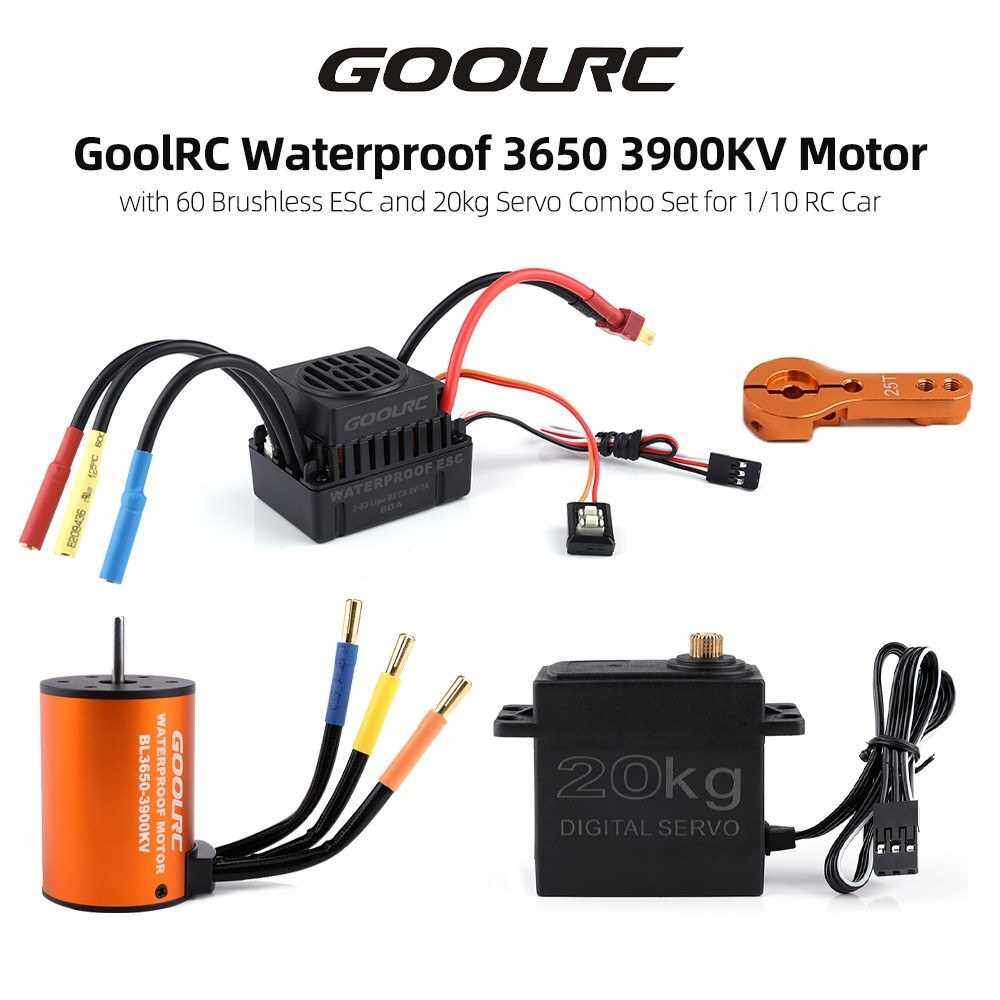

GoolRC Combo Set 3650 3900KV Motor 60 Brushless ESC 20kg Servo w/ 25T Servo Arm for 1/10 RC Car Truck Off-road (Standard)
The set includes a 3650 3900kv motor, a 60A ESC and a 20kg digital servo, which is perfectly fit for the 1/10 RC car. Made of high-quality components to achieve reliable power, this combo set is conductive to provide a stable and powerful driving to your car. It is a good choice for RC hobbyists, especially for DIY enthusiasts.
Features:
Made of high-quality components to achieve reliable power.
High purity copper windings and high-power output raise efficiency.
Waterproof characteristic exists in all parts of this set, whch allows it eminently practical, strong and durable.
High torque servo provides accurate movement.
The ESC features fast response to throttle input and accurate throttle linearity.
Multiple protection functions including low voltage cut-off protection for lithium or nickel battery, over-heat protection, throttle signal loss protection and motor blocked protection.
The economical combo comes with a 3650 3900kv motor, a 60A ESC and a 20kg servo is more convenient for DIY.
Any problem, please contact our store without hesitation. Honor to serve you.

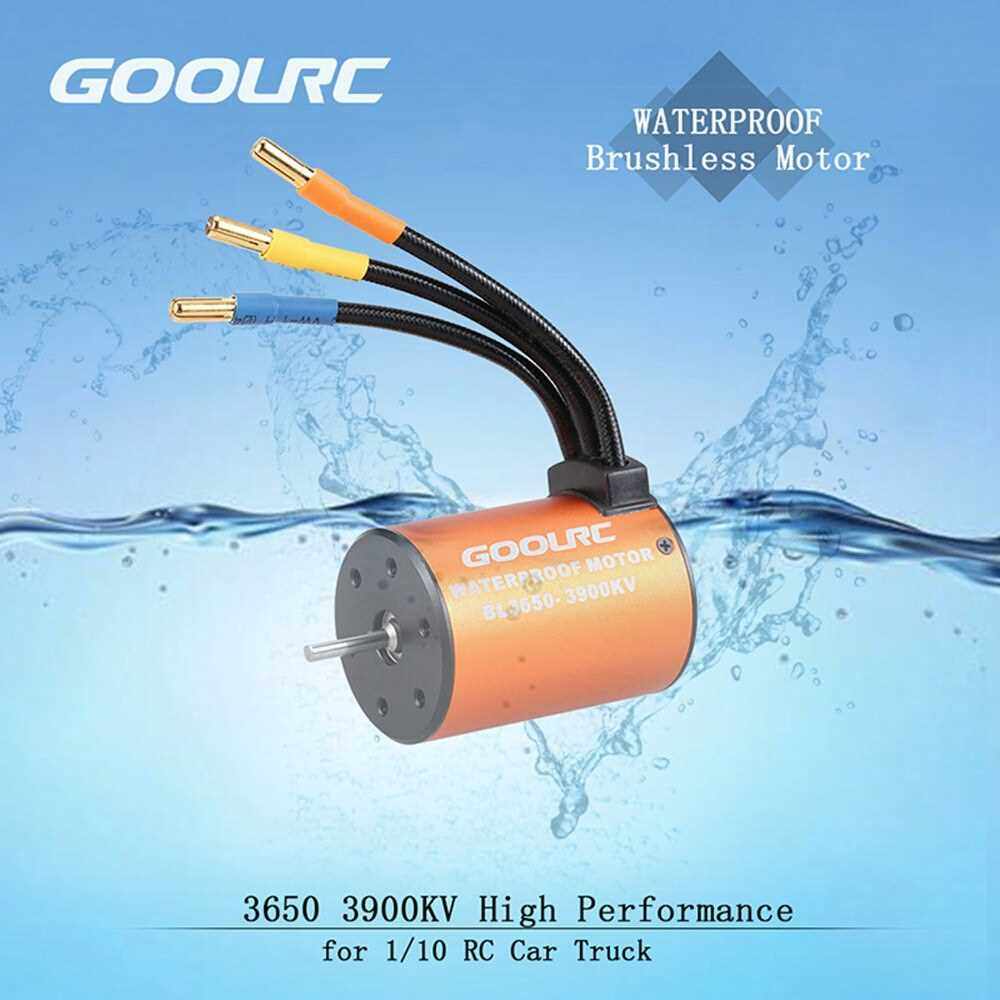

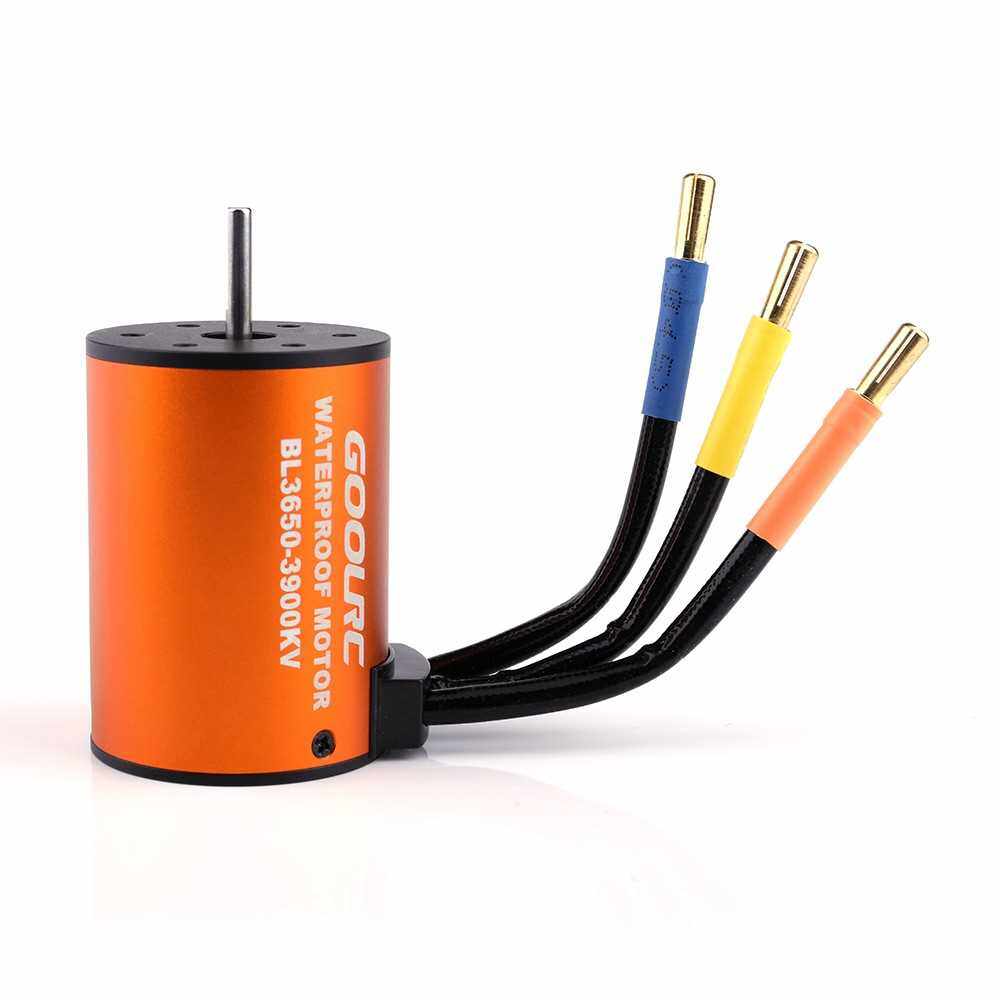

Motor Specifications:
Brand: GoolRC
Watts: 900W
Max voltage: <12V> Max Amps: 75A
KV(RPM/Volt): 3900KV
Max RPM: 50000

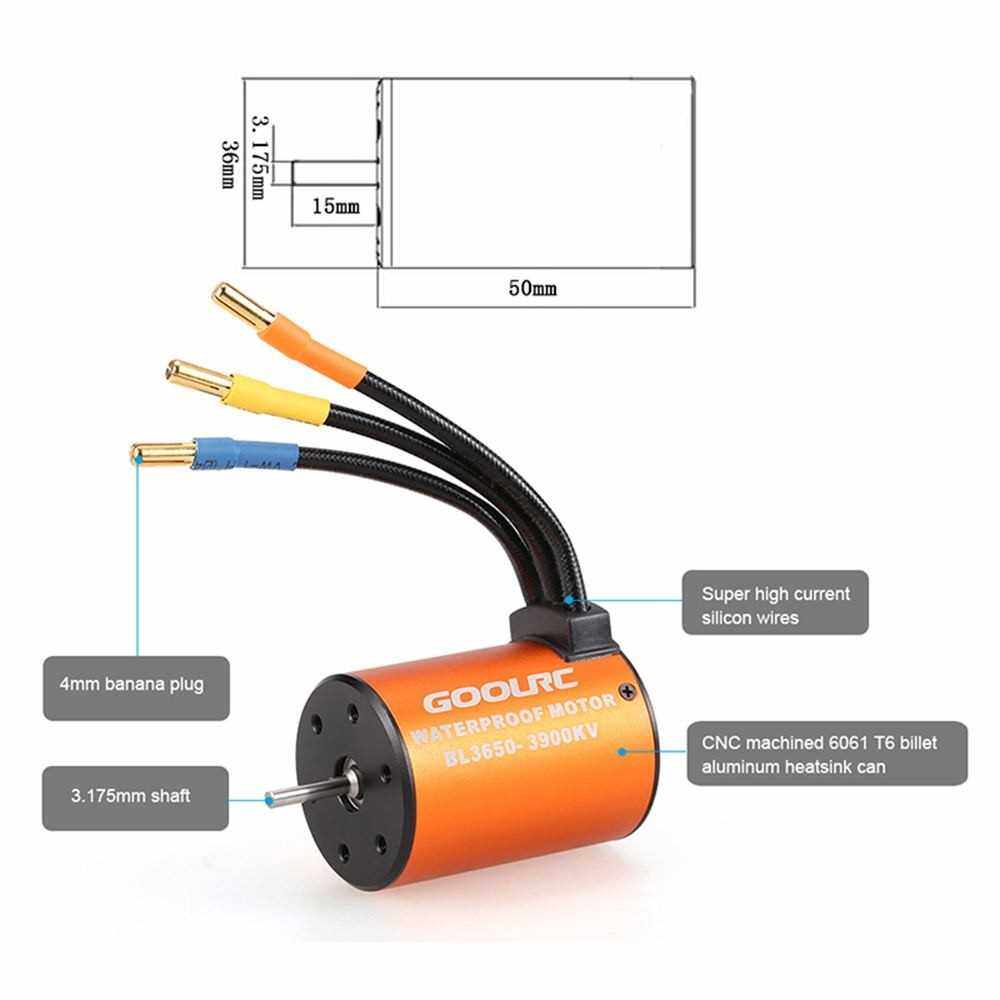

Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug

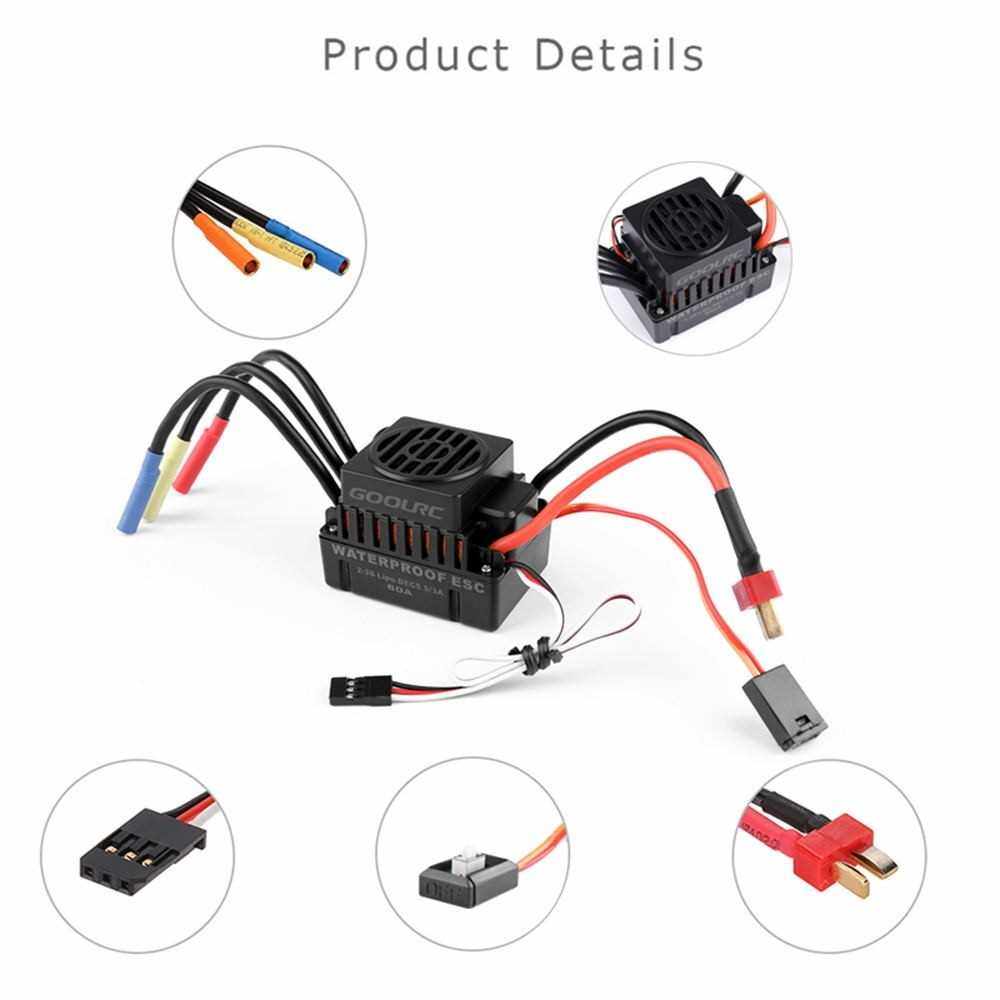

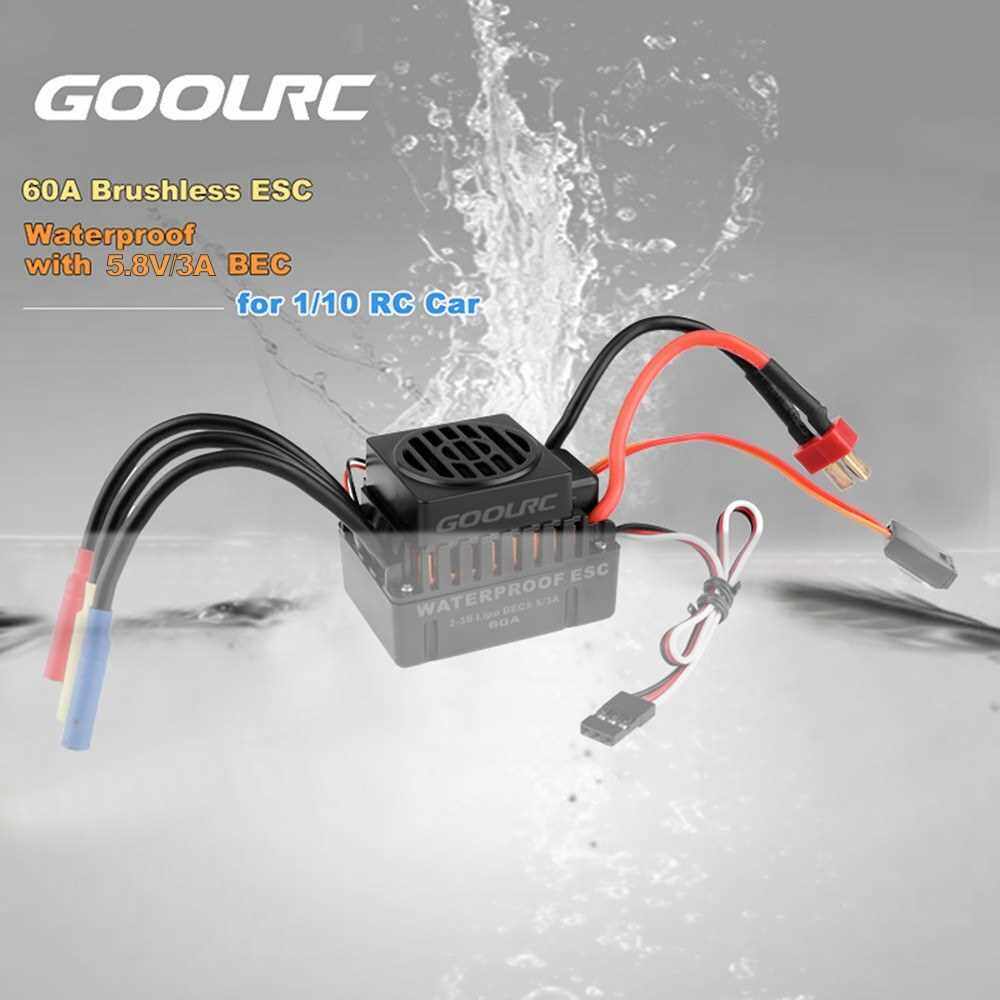

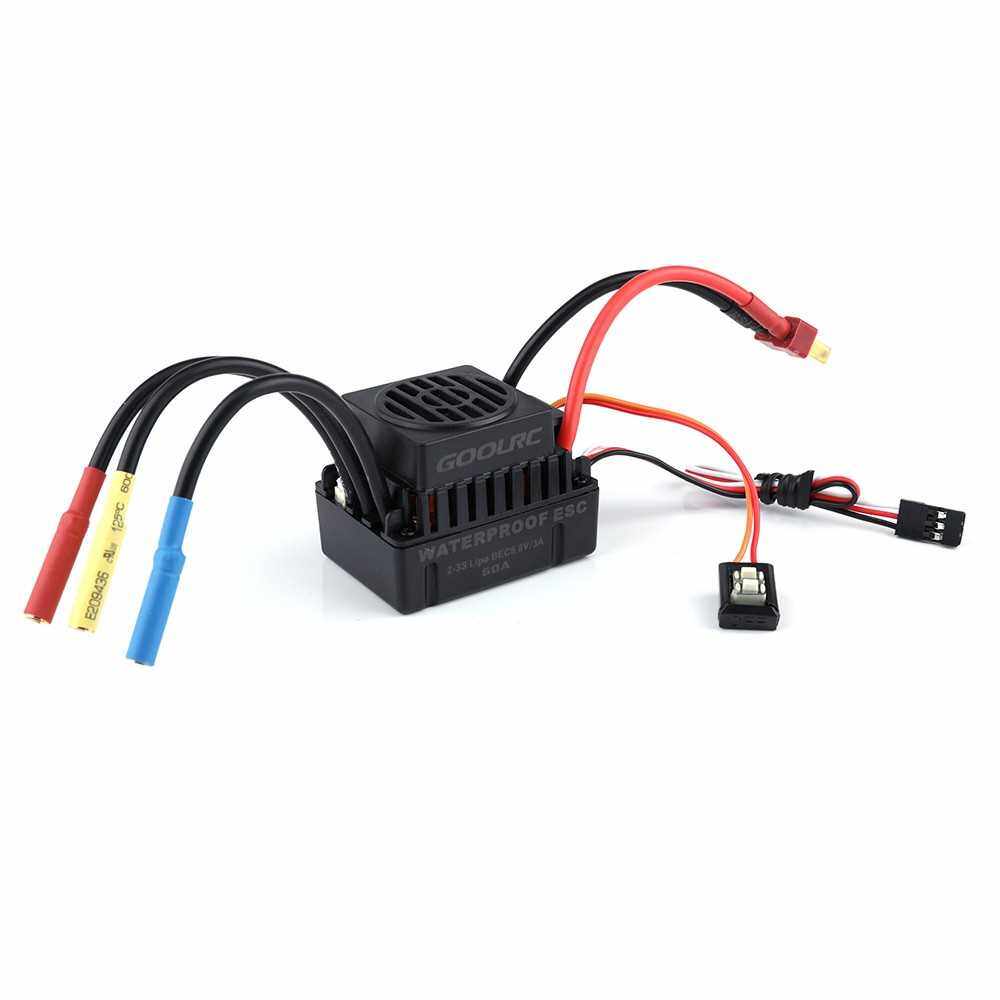

ESC Specifications:
Brand: GoolRC
Item name: waterproof ESC
Continue current: 60A
Burst current: 320A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female

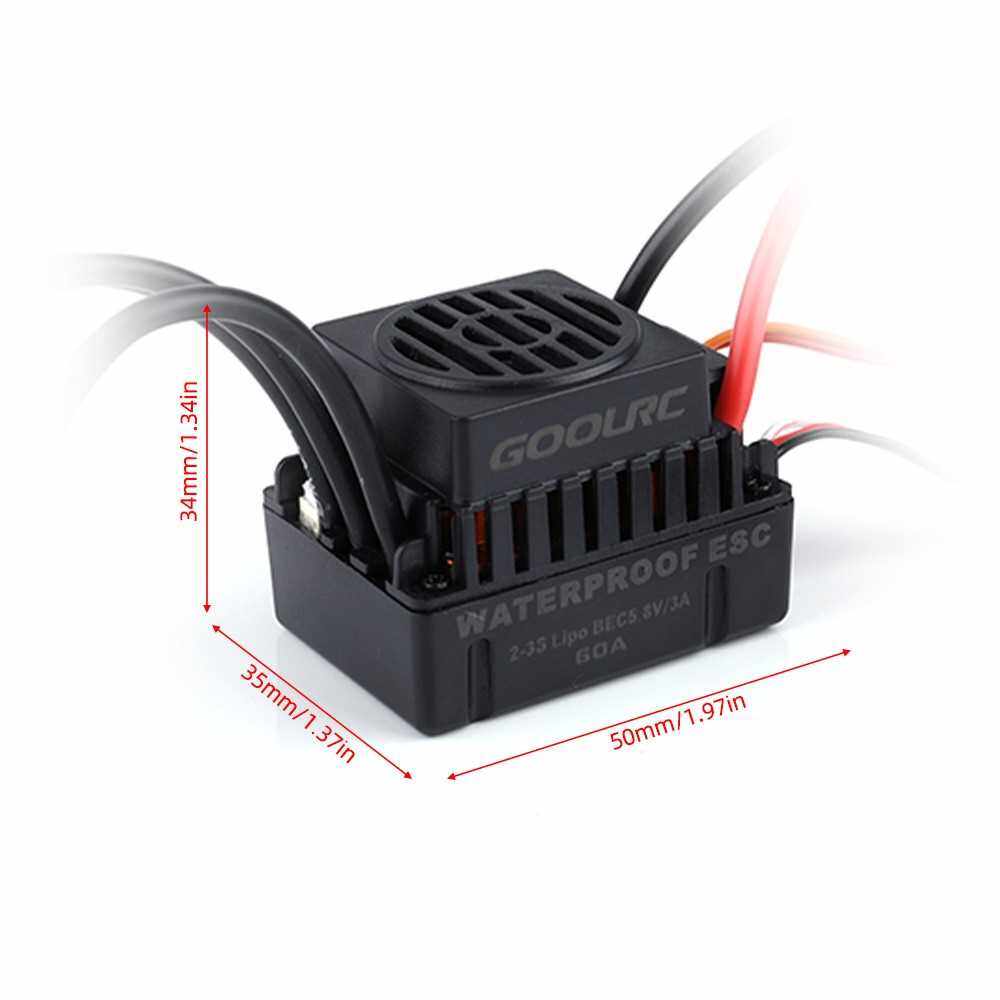

Dimension: 50 * 35 * 34mm / 2.0 * 1.4 * 1.3in (without cables)

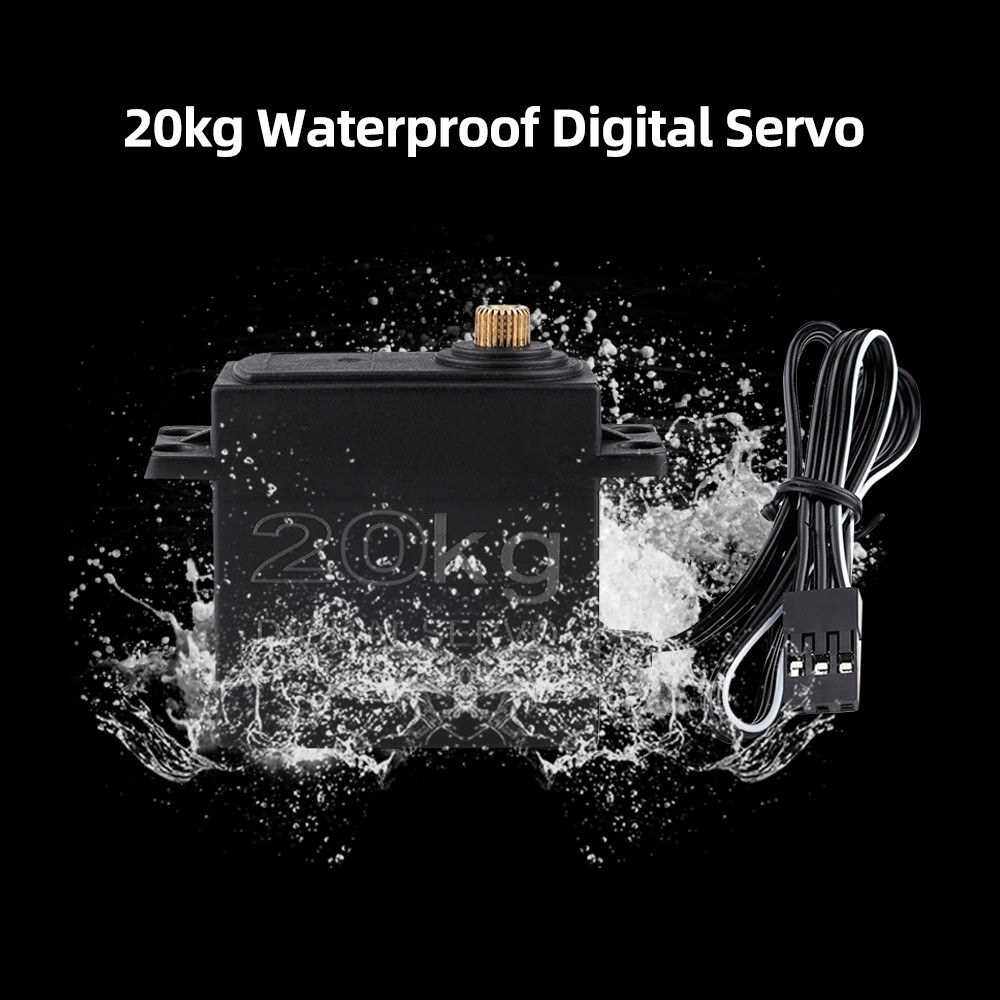

Servo Specifications:
Motor: Coreless motor
Bearing: 2BB
Dead band: 1s default
Mechanical Angle: 120
Waterproof: Yes
Operating Voltage: DC6.0~7.4V
Working frequency: 1500s/330hz
Operating Speed (6.0V): 0.23sec/60 degrees
Operating Speed (7.4V): 0.20sec/60 degrees
Stall Torque (6.0V): 20kg.cm (239.05oz/in)
Stall Torque (7.4V): 22kg.cm (294.75oz/in)
Item Size: 40 * 39 * 20mm
Weight: 76g
Connector Wire Length: JR300 mm (12.6in)
Package Information:
Package size: 10.5 * 8 * 6cm / 4.1 * 3.2 * 2.4in
Package weight: 375g
Gift box package
Note:
* There could be a few deviations due to manual measurement or slight color difference owing to photographing condition. Thank you for your understanding.

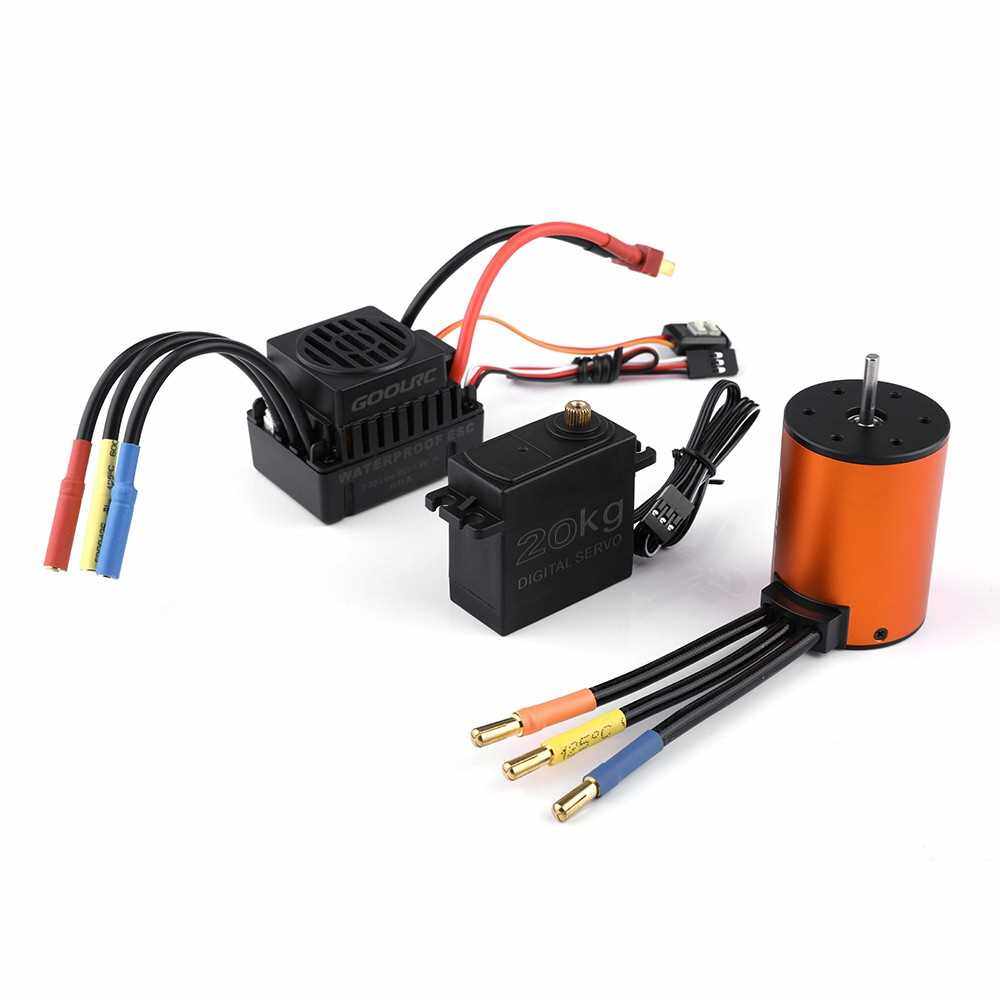

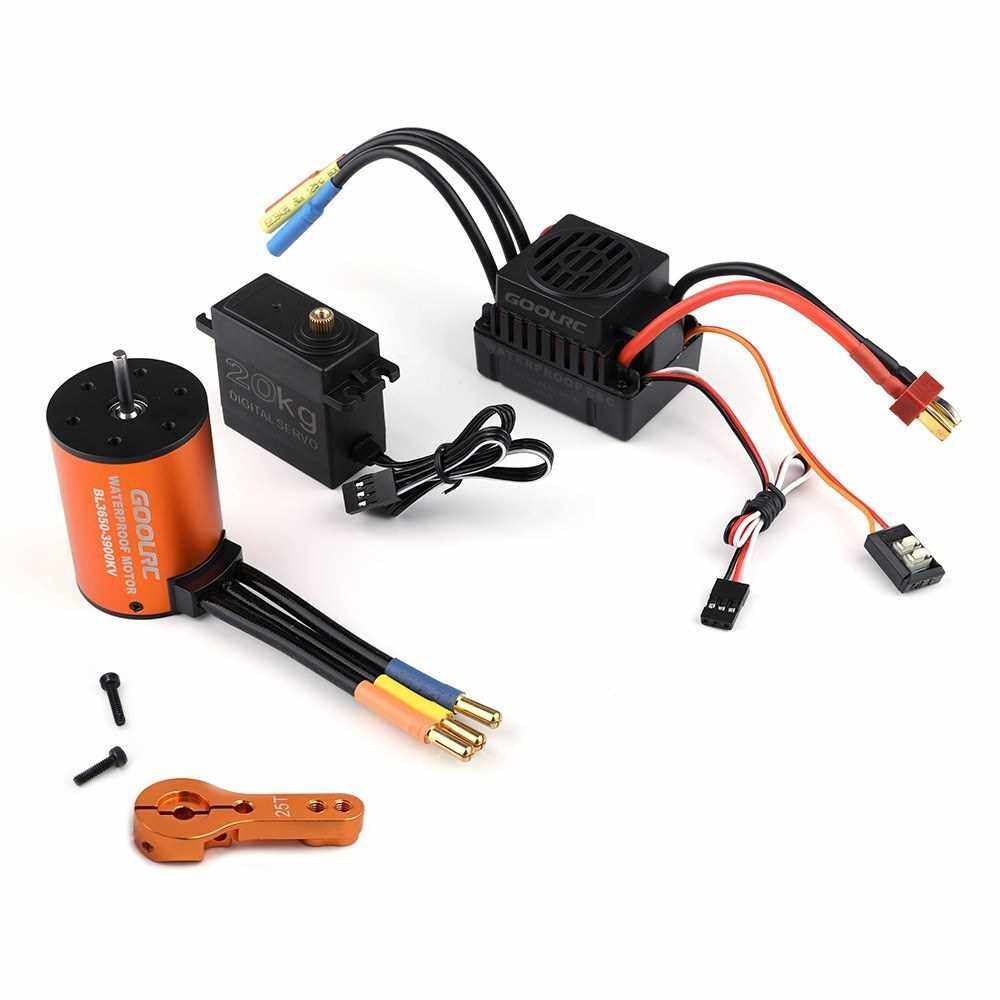

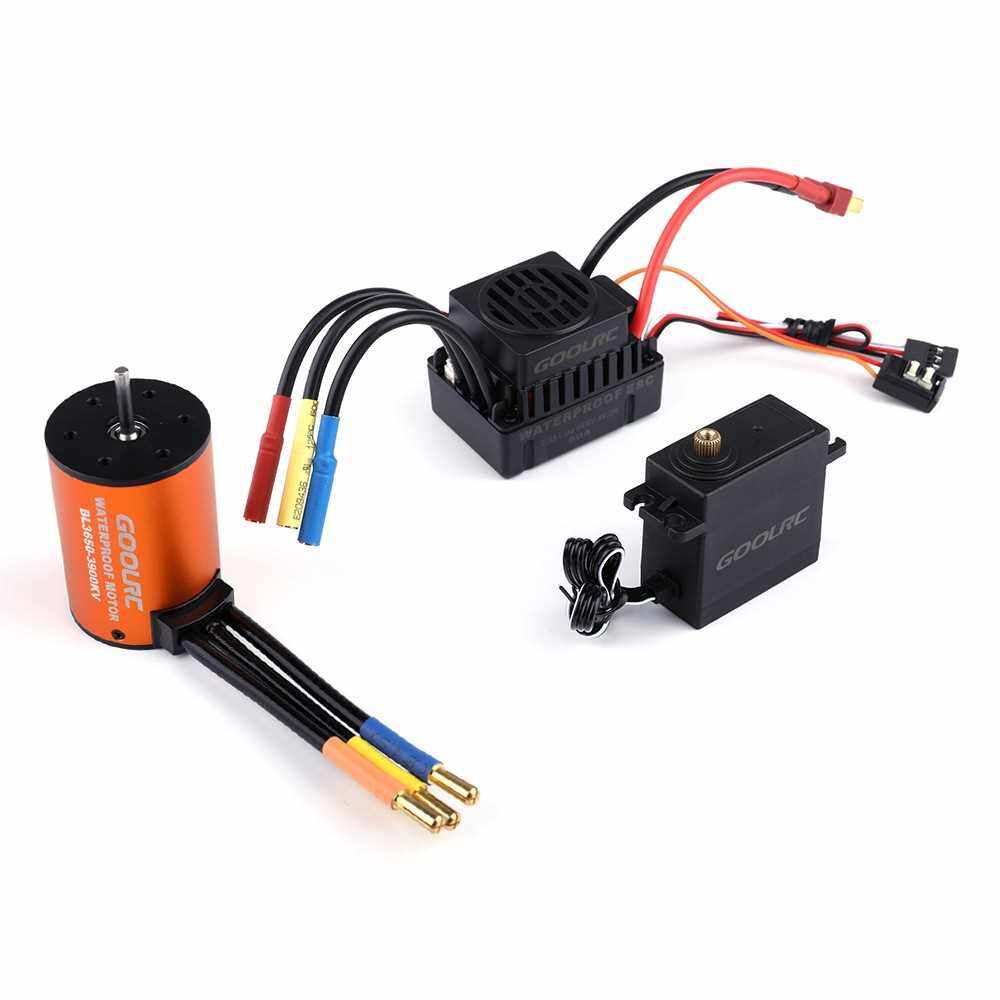

Package List:
1 * GoolRC 3650 3900KV Motor
1 * GoolRC Waterproof 60A Brushless ESC
1 * GoolRC 20kg Servo
1 * 25T Adjustable Metal Servo Arm
