What's in the box:
Water Pump x 1pc

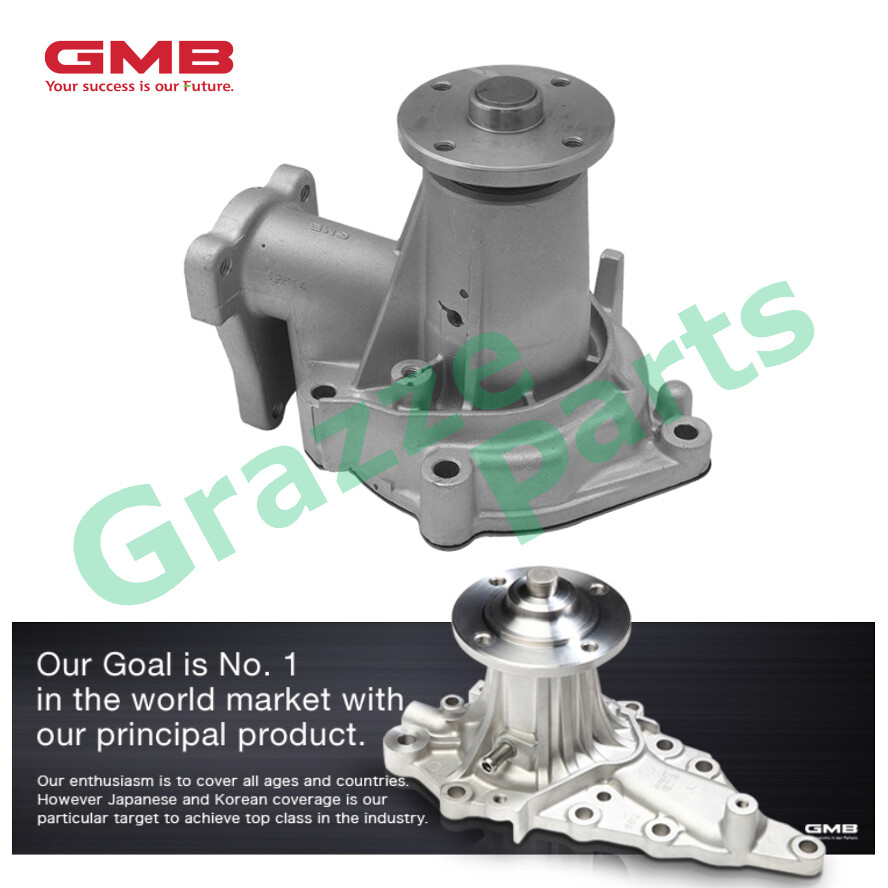

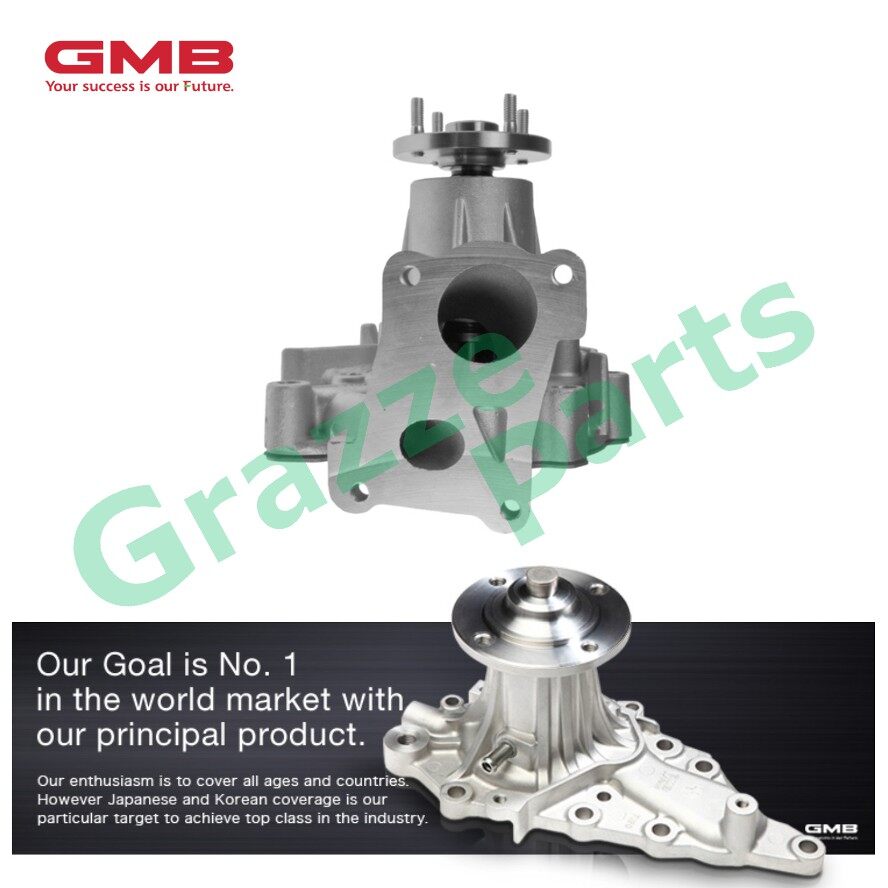

GMB Water Pump GWM-52A Mitsubishi Pajero Turbo 4D56T Storm L200 K74AT Triton Lite 4X2 Inokom Lorimas AU26 Diesel 2.5
OEM No. :
25100-42540
MD972002
MD974999
MD997686
Suitable for
Mitsubishi Pajero Turbo
Mitsubishi Storm
Inokom Lorimas Lorrymas
100% GMB Genuine Products
Best Quality Product
We have distributed many type of model
GMB Water Pump
GMB proudly announces that all principal component parts are designed, manufactured and tested in house, such as bearings(life), impellers (pumping water), mechanical seal kits(sealing) and housings(ruggedness). Integration of these parts through our experience and accumulated knowledge shall lead to total quality assurance, unsurpassed by anybody else.
Coverage from domestic applications to foreign, from micro automobile to truck and industrial and from outdated to future models.
Functions
Vital part required to circulate coolant around engine. Heat produced by engine combustion is absorbed by coolant which then passes through radiator to cool down before returning to engine. Water pump is situated between radiator and engine and driven by pulley through timing belt or fan belt. Water pump causes coolant to circulate.
Structure
Consists of body (aluminum diecast, cast iron, aluminum gravity etc), flange(forged steel, sintered iron etc), impeller (pressed steel, cast iron, synthetic resin etc), water pump bearing and mechanical seal kit.
Its material is decided dependent upon performance level, quality as well as customer requirements and working conditions. Revolution power of crankshaft is transmitted to impeller through water pump bearing. Impeller vanes drive coolant out into circulation jacket.
Vortex chamber of water pump filled with coolant is separated from water pump bearing by mechanical seal kit.
A sliding seal, like mechanical seal kit, must be lubricated all the time it is moving by coolant fluid.
Engulfed(lubricating) coolant evaporates out into water pump bearing side and exits through weap hole on body.
