What's in the box:
Universal Joint x 1pc
Product details of GMB Universal Joint / U-Joint / Coupling GUT-29 for Toyota Hilux GGN25 TGN26 Nissan Navara D40 4WDFord B2500
Brand : GMB

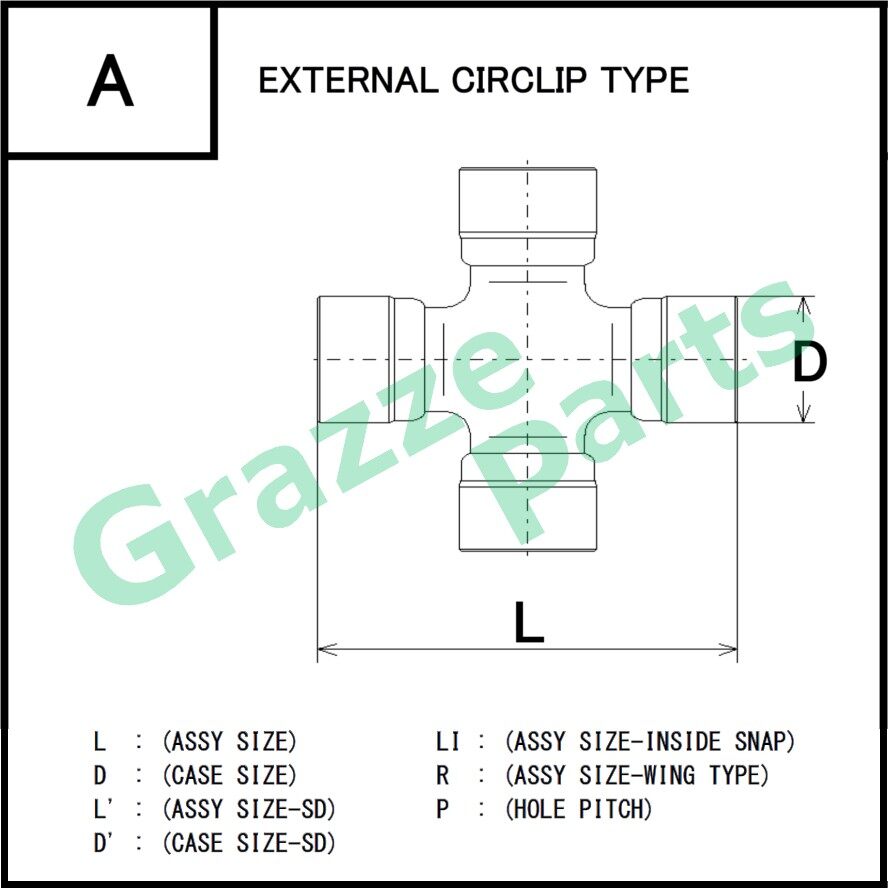

Universal Joint Specifications:
Figure Type = A2
L = Assembly Size: 92.10mm
D = Case Size: 26.99mm

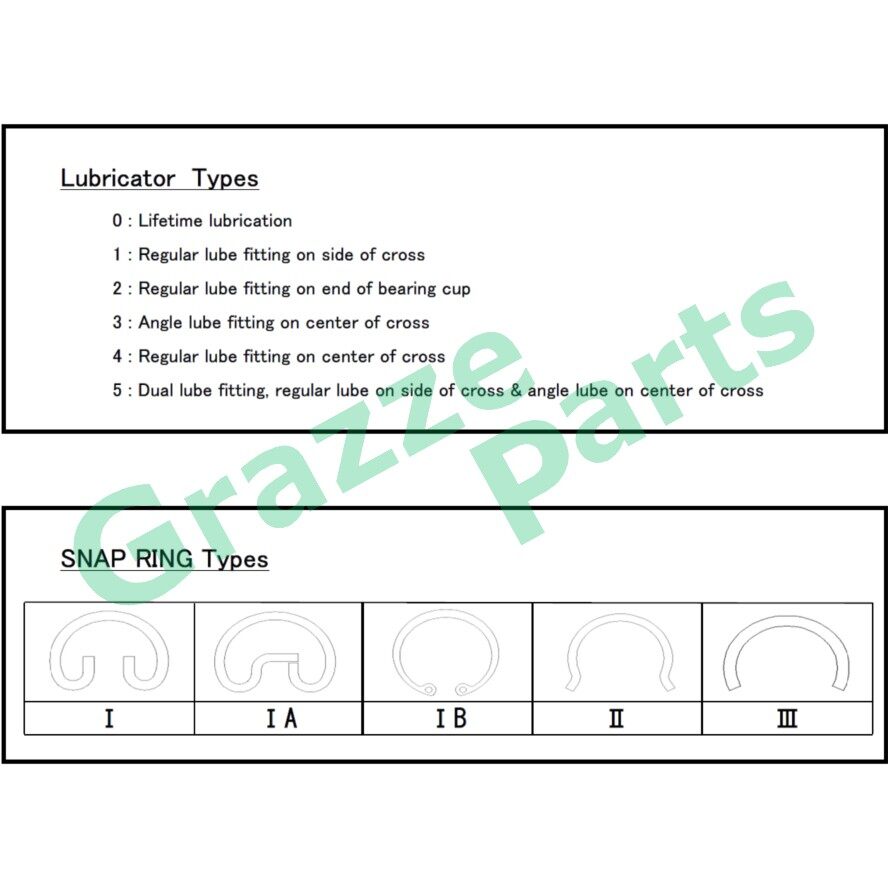

Universal Joint's Snap Ring Specifications:
Diameter= 30.0 mm
Thickness = 1.50 mm
Type : IA
Position : Outer
Price quoted is for 1pc
OEM Reference Number
04371-0K080
04371-04030
SA68-25-06X
GMB's Universal Joint
Drive shaft incorporated with universal joint is widely in use not only in automotive industry but also all other industrial scenes. Purpose: high torque transmission in limited space. GMB is specialized in universal joint, key element of module like drive shaft or propeller shaft. GMB is able to meet different requirements and shaft sizes of OEM customers. GMB also covers global aftermarket with wider range line-up and proudly extends our brand name. This service is realized by our thorough in-house production. GMB maintains production and engineering knowledge and experience to produce universal joints of the highest quality viable under all conditions at economical cost.
Structure
Universal joint consists of spider(cross) and 4 grease-filled roller bearings. It can transmit large torque at low friction. Spider with journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized in furnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size under severe tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreign material. Variety of grades and materials are selected to respond to extreme conditions such as very hot / very cold temperatures.
